Product Details:

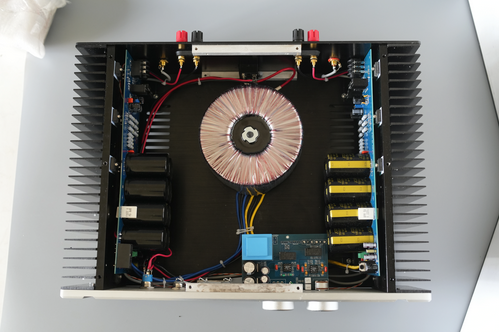

Refer to PASS A5 circuit design, single ended Class A circuit, high power, low distortion.
The rated continuous output power of the 8Ω speaker reaches 58W per channel.
16 15000uf high-capacity filtering capacitors ensure high dynamic and low ripple and signal-to-noise ratio.

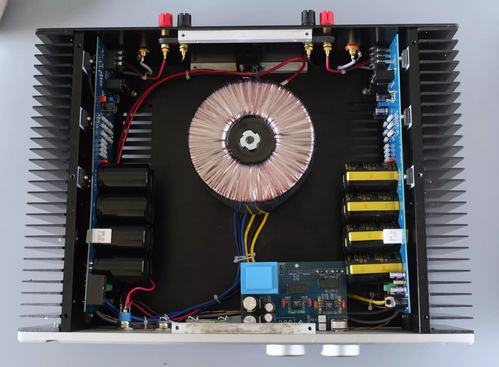

Customized 750W high-power A-grade iron core encapsulated Toroidal transformer.
12 high-power field-effect transistors are connected in parallel to ensure sufficient power.
Complete protection circuit to achieve zero impact power on/off.
Built in preamp circuit, allowing for free switching of amplifier modes.
Parameters::
Output power: 58W+58W 8 Ω
Harmonic distortion: 0.01% 8 Ω 1KHz 10W
Voltage gain: 14 times Output noise level: -92dB
Input sensitivity: 300mv
Input impedance: 10K

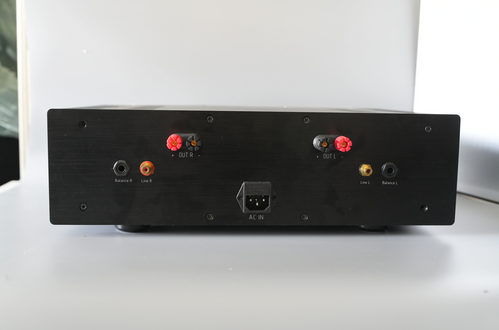

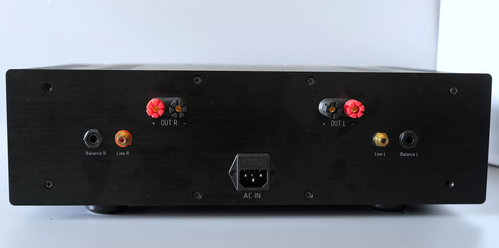

Input interface: 6.5 balanced terminal
Power consumption: less than 250W in standby mode and less than 500W at maximum output
Size: 430 * 120 * 311
Weight: Approximately 15kg
Preamp section
Input sensitivity: 100mv
Input impedance: 50K
Harmonic distortion: less than 0.001% 1KHz
Output noise level: 105db
Voltage gain: 6 times/12 times
Package list:

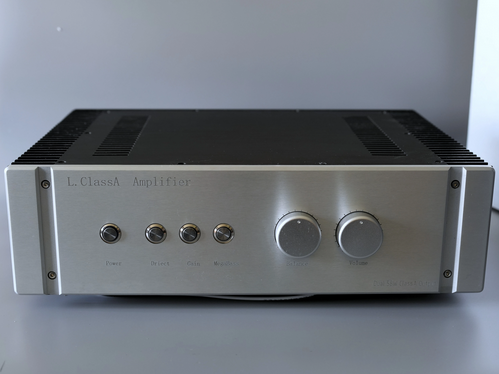

1 × Finished A5 amplifier
