Product details:
Adopting BTL technology to achieve high dynamic, high-power, and low distortion effects.

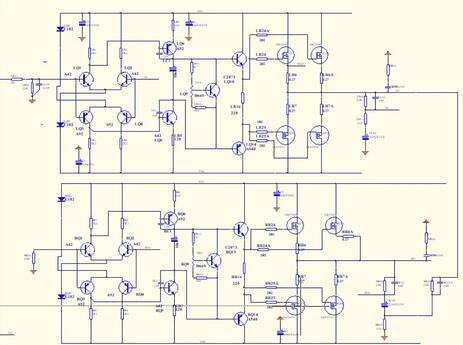

Referring to the circuit architecture of KRELL 100 in the United States, it features fully balanced dual differential input, stability, wide bandwidth, and good sound field.
The left and right channels are independent, with high separation and good heat dissipation effect.
4 pairs of 2SC5200/2SA1943 Japanese original transistor drivers per channel.
German WIMA coupling capacitor.

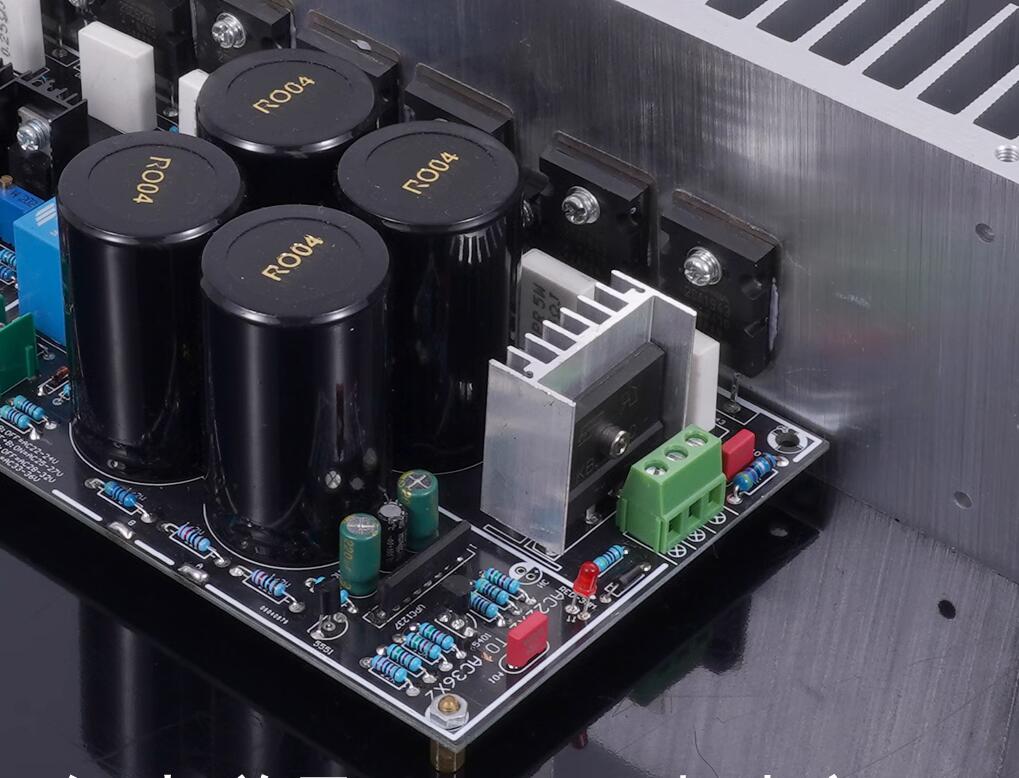

80000uf NOVER filter capacitor.
1% precision metal film resistor
Equipped with multiple protection functions such as power on/off delay protection, output short circuit protection, and DC output protection.
Parameters:
PCB size: 228 * 96mm

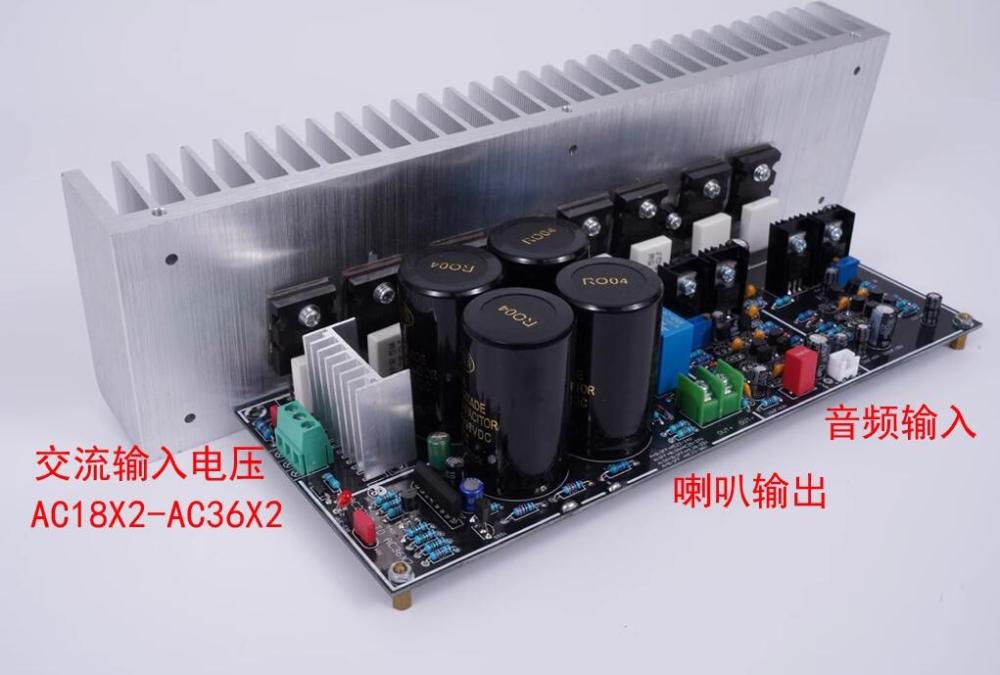

Input voltage: AC18V * 2-36V * 2 independent power supply for left and right channels
Output power: 400W * 2 8 ohms, 500W * 2 4 ohms
Band 10Hz-30Hz
Distortion: 0.002%
