Product details:Adopting an independent split design, the sound is more transparent. Higher power, deeper dynamics, wider sound field, richer sound quality, and richer details.

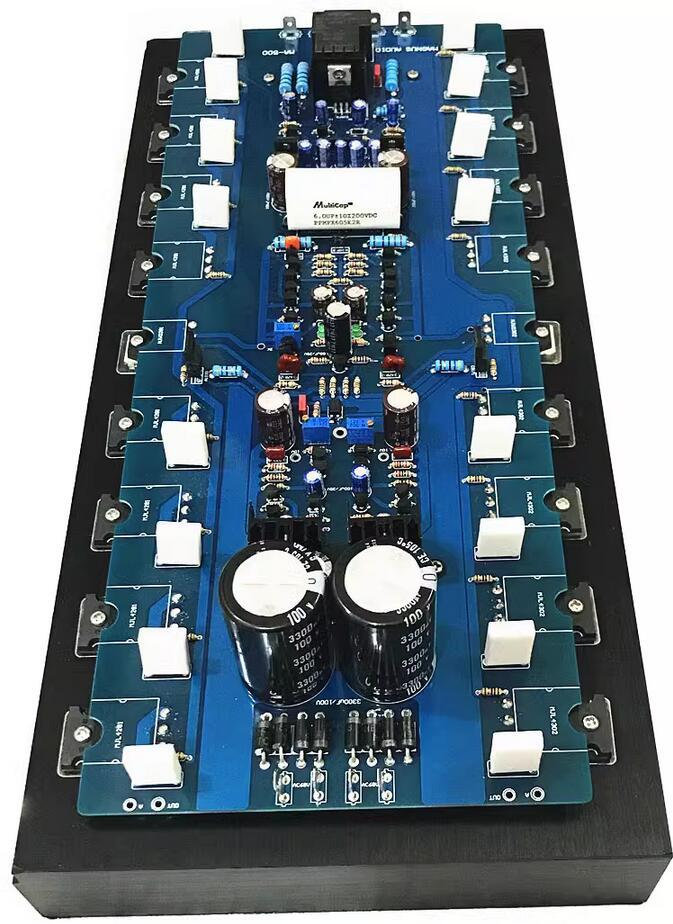

16 carefully selected and paired powerful ON MJL4281 MJL4302 transistors.
The output can be connected to a 50-500 watt speaker, which can drive the majority of speakers on the market even in low efficiency and low impedance situations.
Handmade, high-quality components that meet Hi end standards
Advanced and complex class AB design with high output performance
Current mirror input for more stable output throughout the entire dynamic range
Two 1000W customized pure copper audio Toroidal transformers.
Customized aluminum heat sink, combined with the chassis heat sink for quick heat dissipation, stable long-term performance.
Equipped with a comprehensive protective circuit, making your audio equipment safer.
With delayed input, effectively preventing the impact of power on/off.

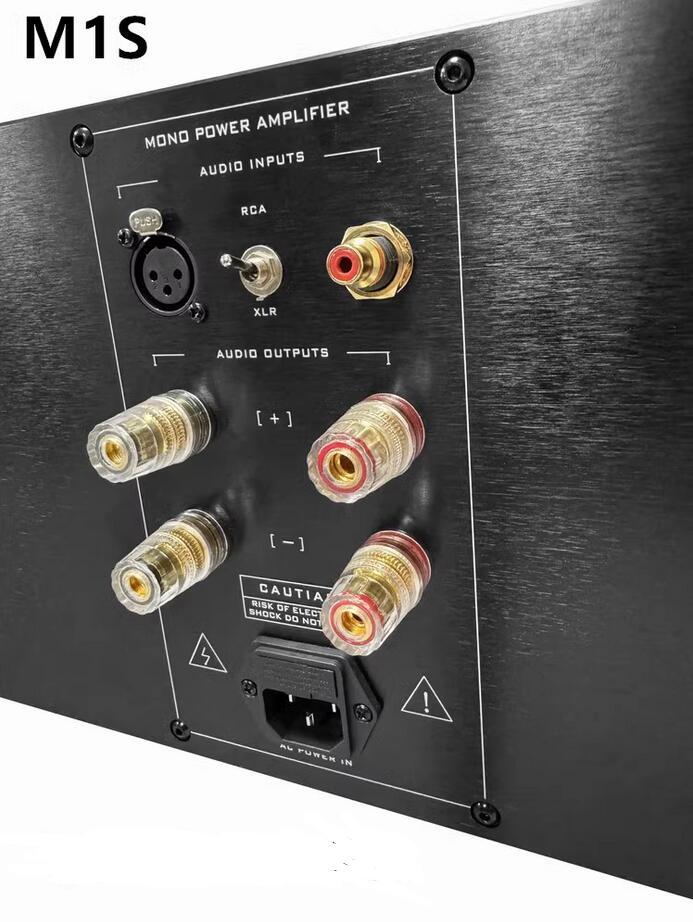

Switchable balanced (XLR) and single ended (RCA) inputs.
Parameters:Rated output power: Each single channel power is 50-500 watts (8 Ω)
Frequency response: from 10 Hz to 100 kHz (+/-0.1 dB)
Signal to noise ratio: 110dB
Total harmonic distortion (THD):<0.001%
Gain: 32.8 decibels
Input impedance: 25K ohms (single ended) 50K ohms (balanced)
Input sensitivity: 2.1 V RMS
Output voltage: 70V RMS
Damping: 1200 reference 8 ohms
Power consumption: Static 100 watts

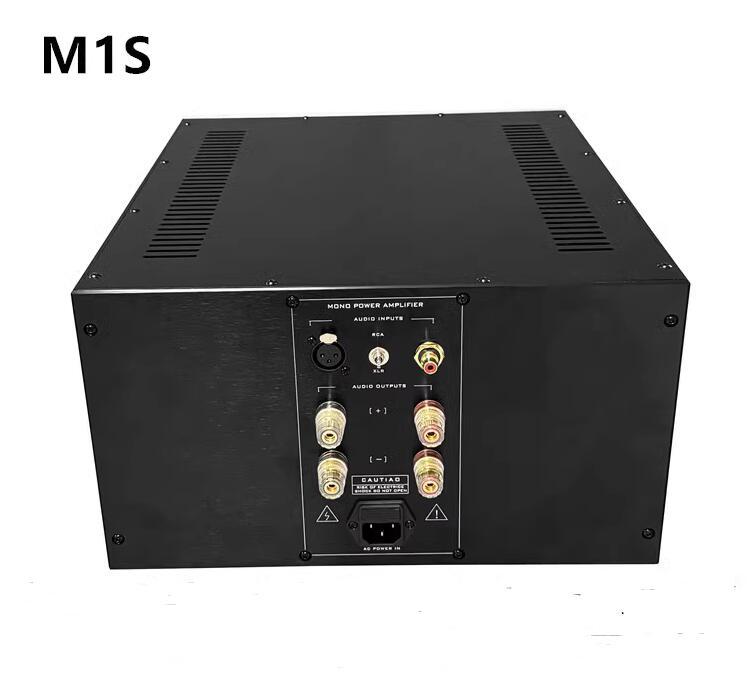

Input: Balanced through XLR connectors (1 per channel)
Single ended via RCA connector (1 per channel)
Output: Two pairs of high-quality terminal blocks
Working voltage: 220V (110V can be customized), 50 or 60Hz
Dimensions: width 360mm * height 220mm * depth 500mm
Weight: 33KG per single channel.
List：M1S amplifier x 1 pair
