Product Details:

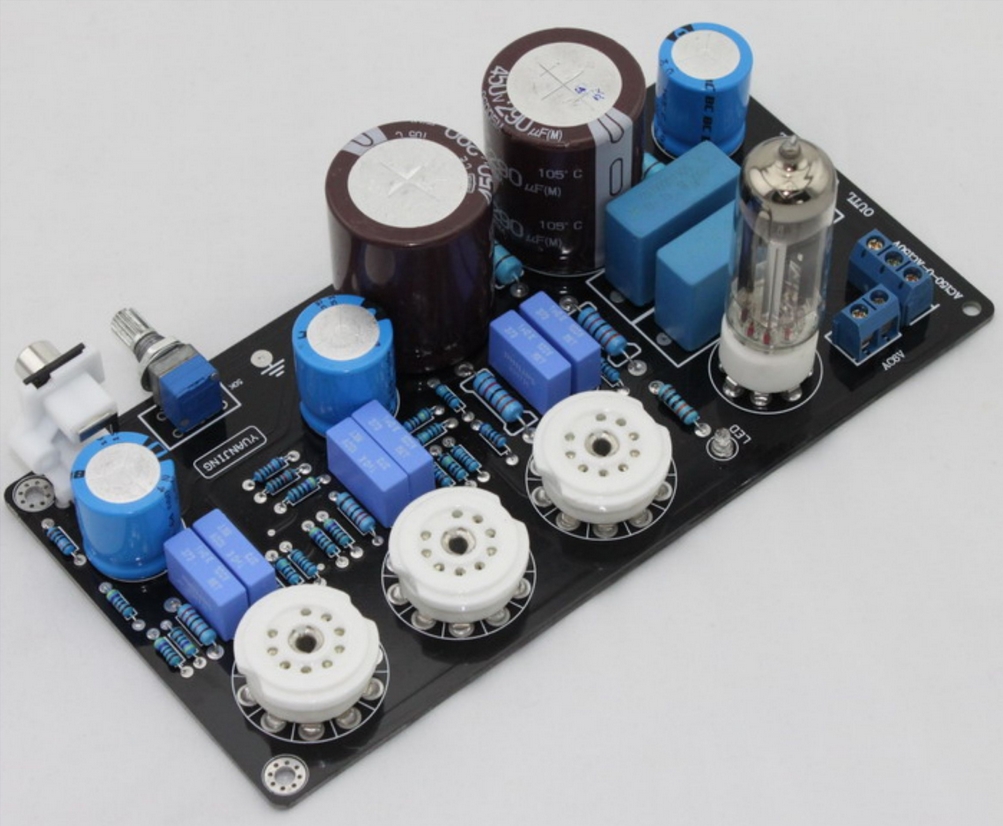

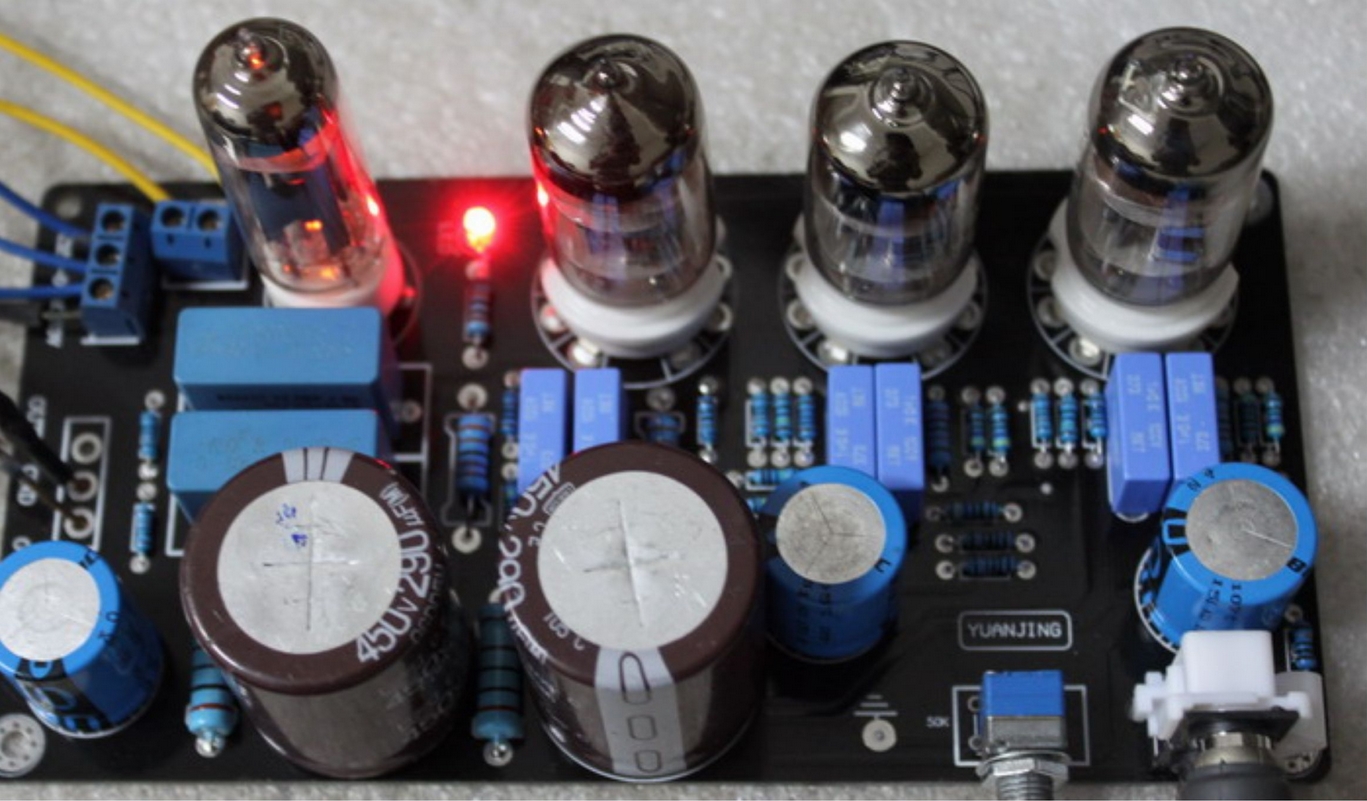

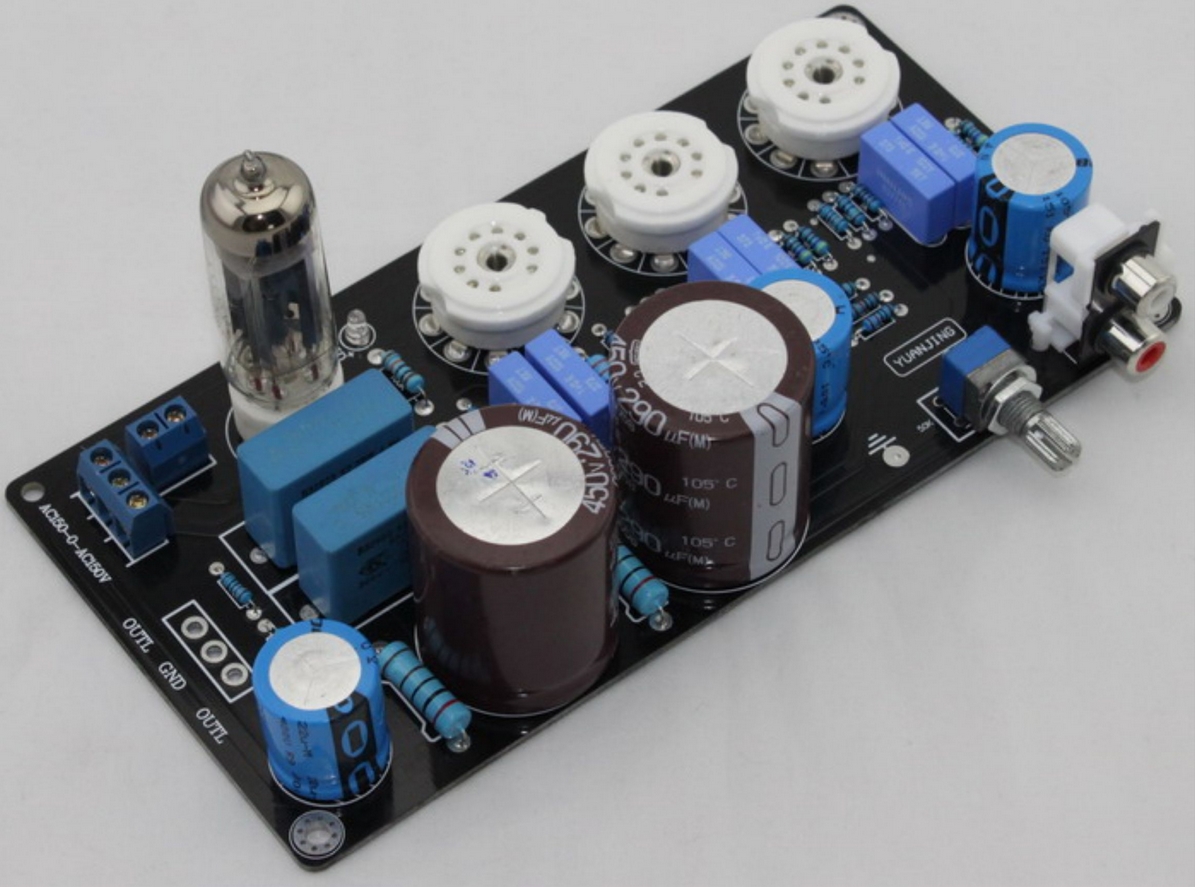

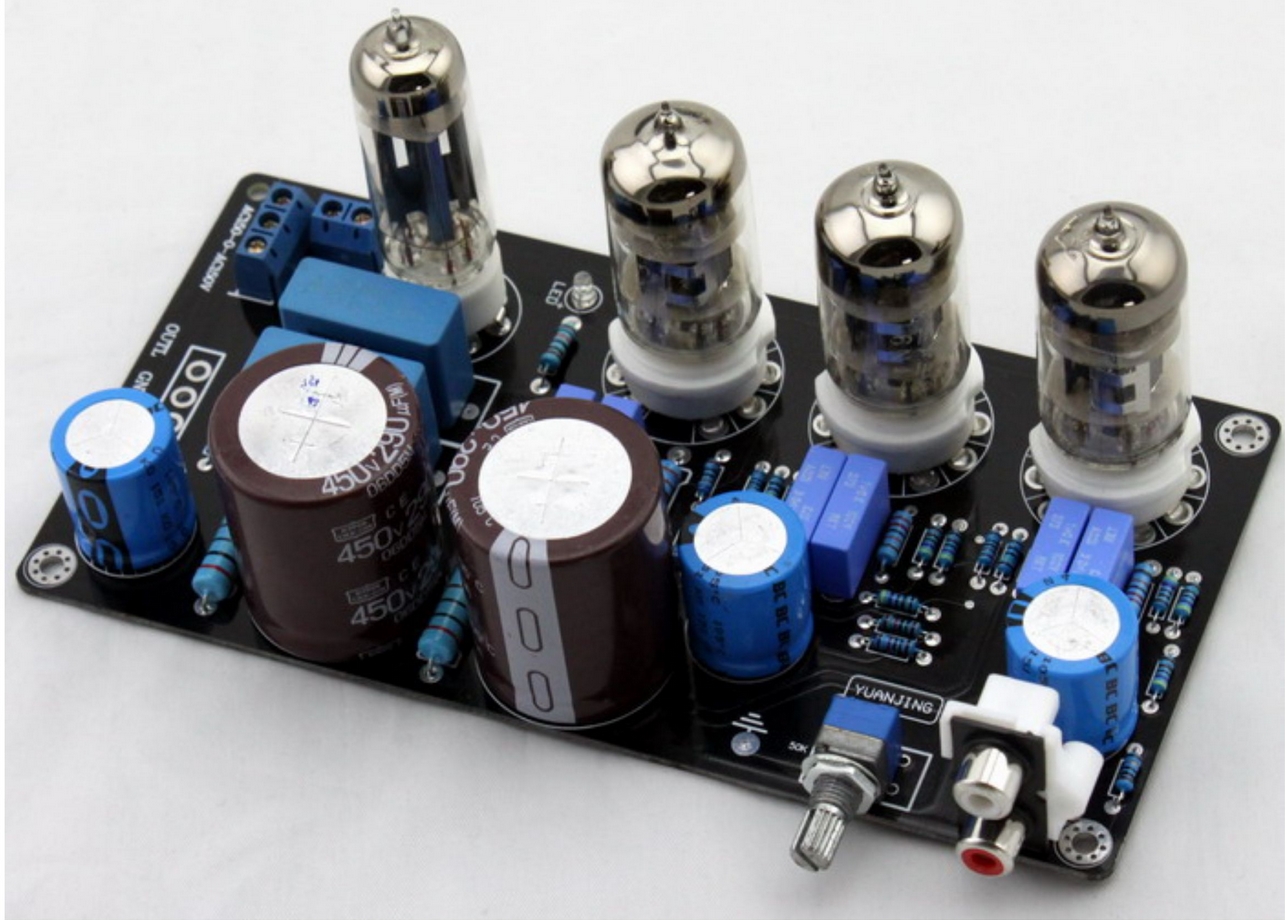

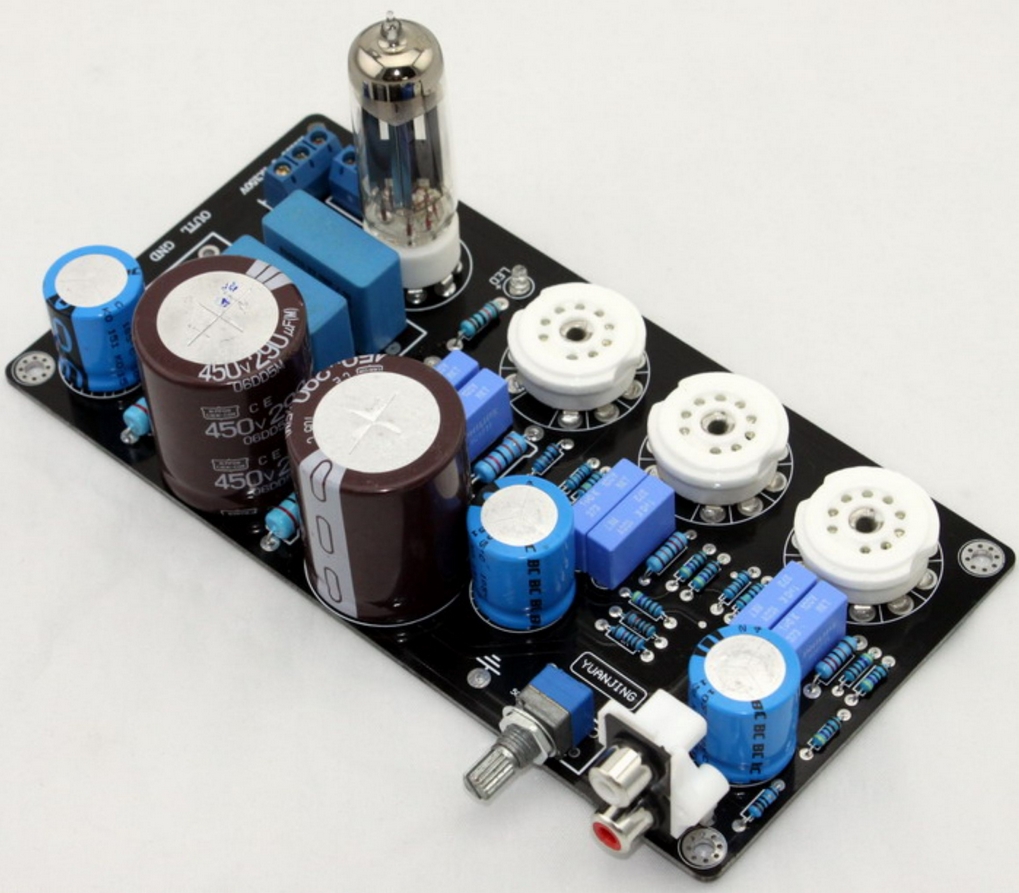

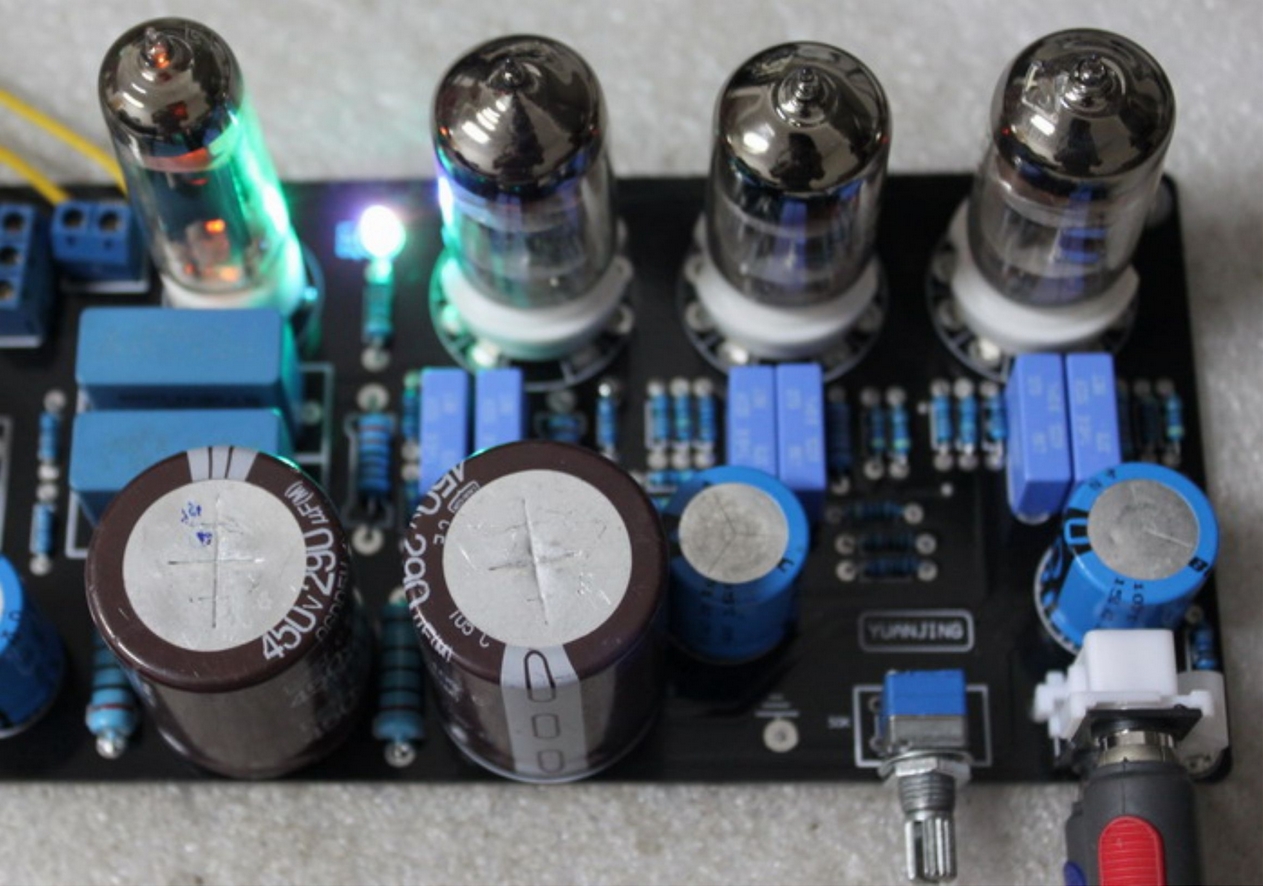

6N4 Tube Preamp board(Refer to Maratz 7 Circuit). Note: This price does not include tubes.
All components of this product are original, unpretentious and of pure quality; the use of quality original components is not only a strong guarantee that the safety and quality are guaranteed and the service life is long, but more importantly that the actual performance can reach the design goal. The pursuit of flowing quality is a constant aim of the shop.
1:) Adopt original 6Z4 electronic tube,6N4 electronic tube.
2:) Electrolytic capacitor using imported chemical and BC electrolytic, coupling capacitor using Philips 1UF, output using Siemens 1UF, to ensure a strong source of continuous power support.
3:) The resistor is a four-ring 1W metal film resistor, which ensures a good signal-to-noise ratio of the whole machine.
4:) Supports RCA and XLR inputs, compatible with various preamps.
5:) PCB using 1.6mm thick double-sided plate, 2.0oz copper thickness, spray tin full process, to ensure the size of the current through the good performance of the PCB quality.
6:) The use of 7 colour flashing LED indicators, better effect at night.
Specifications:
PCB size: 170*85MM
Voltage: AC6.5V (15W) AC150V-0-AC150V (10W) Two sets of voltage
Package List:
1 × 6N4 tube preamp board （not include 3pc 6N4 tuebes ）
