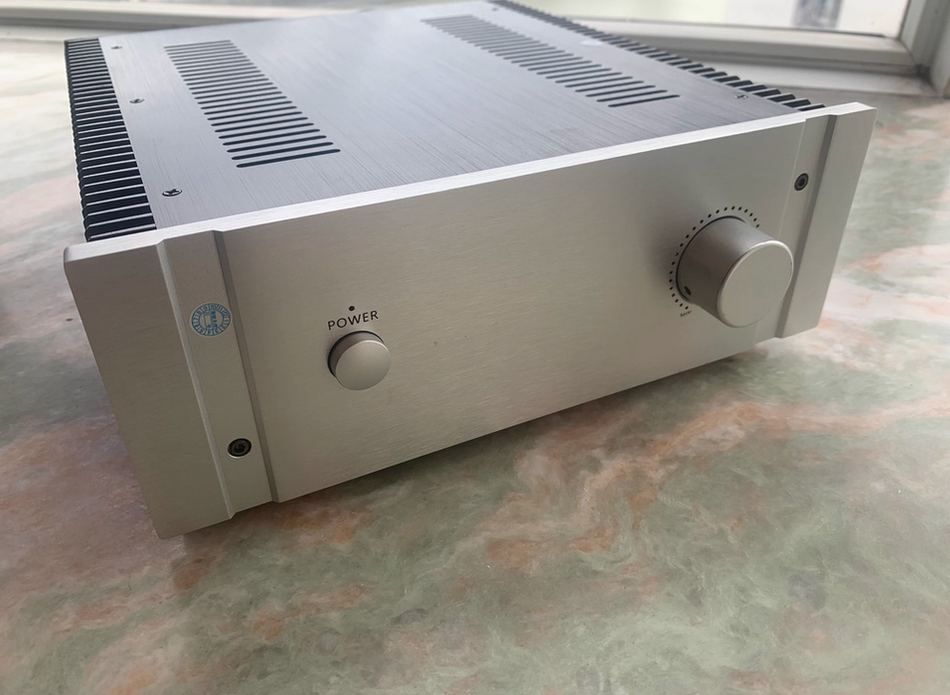

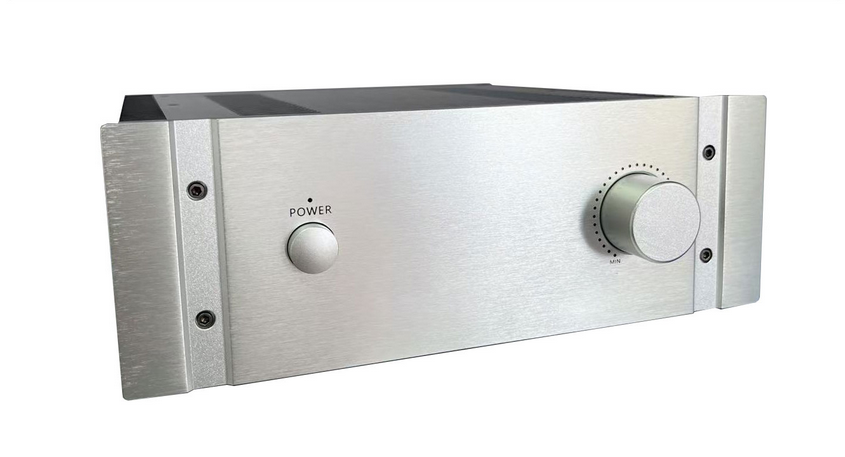

Marantz HDAM MP6005 circuit class AB 150W*2 HIFI DIY stereo power amplifier

Product Details:

Referencing the Japanese HDAM MP6005 circuit design, it delivers high resolution and full-frequency output, performing optimally when the amplifier reaches a certain temperature (this model generates considerable heat, with temperatures reaching over 60 degrees Celsius at peak).

Using Toshiba 2SA1943/2SC5200 paired transistors, the output power per channel can reach 150W.

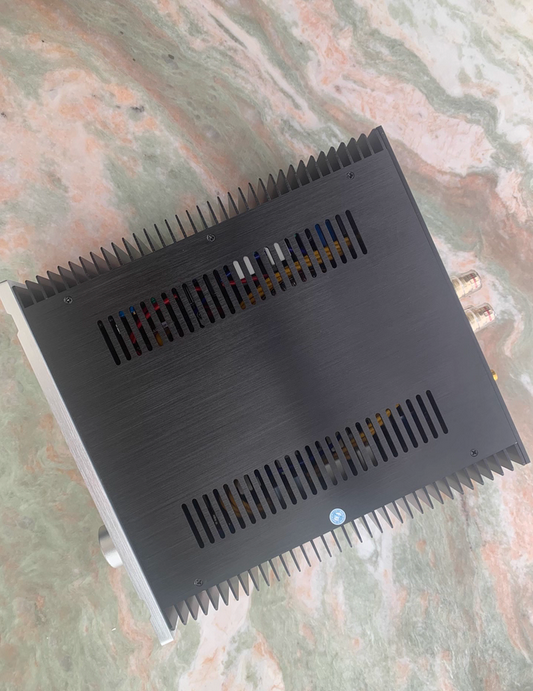

All aluminum alloy chassis with exposed heat sink.

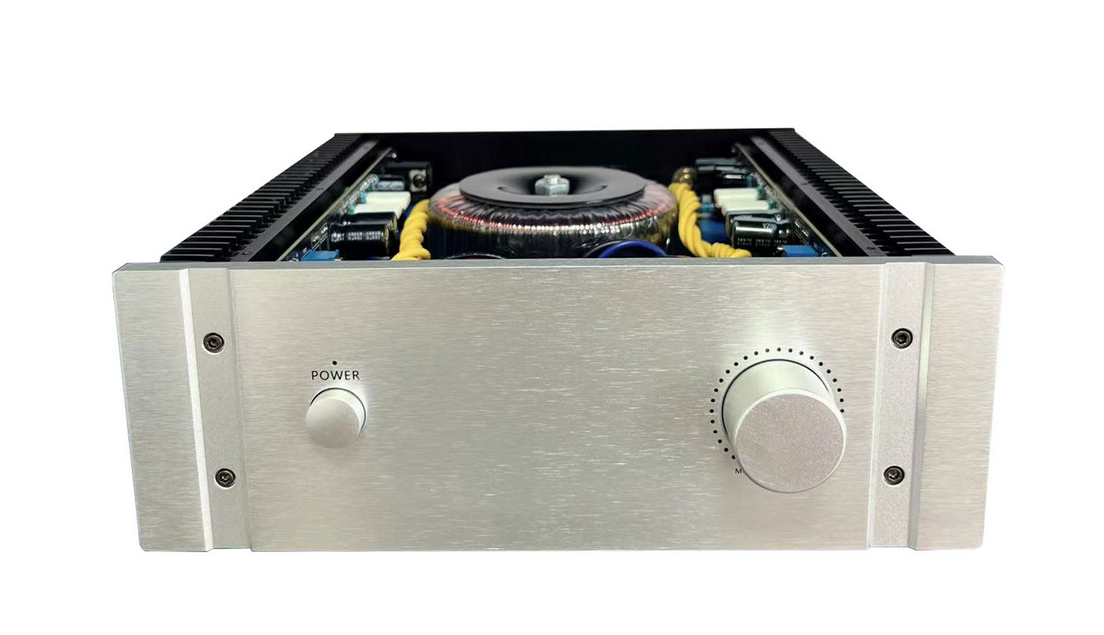

Pure copper wire wound toroidal transformer.

Four 10000uF/50V high-capacity filtering capacitors.

A970 and C2240 audio transistors have pure sound quality and low harmonic distortion.

SONGLE relay has a long lifespan and good stability, effectively protecting your equipment.


Parameters:

Output power: 150W+150W

Impedance: 2-16 Ω

Working mode: Class AB

Magnification factor: 47 times

Input sensitivity: 1.5V

Signal to noise ratio: 90db

Frequency response: 10Hz-33KHz

Input voltage: AC110V/220V

Size: 255 * 235 * 80

Weight: 6.3kg

Package list:

1 × HDAM circuit amplifier
