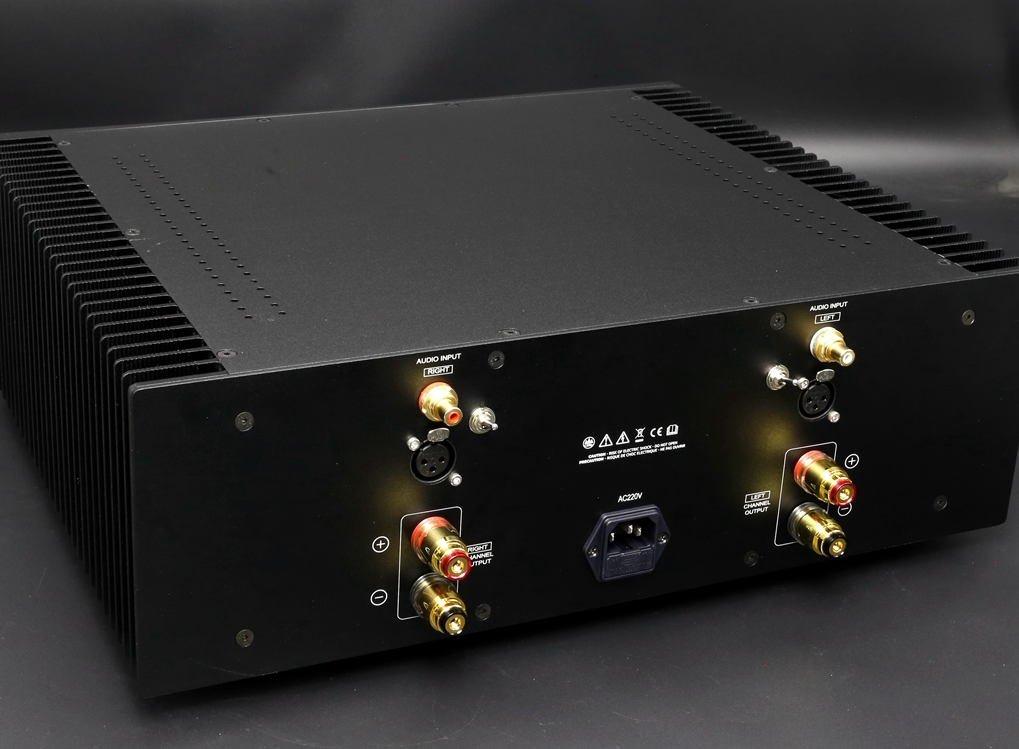

Product Details:
Dartzeel NHB-108 has no large loop feedback amplifier circuit, and the sound is warm, soft, comfortable, and pleasant to listen to.
1:) High damping coefficient, can control any horn freely.
2:) Dual mono design, independent power supply for left and right channels, extremely high separation.
3:) Equipped with soft startup and a comprehensive horn protection circuit.

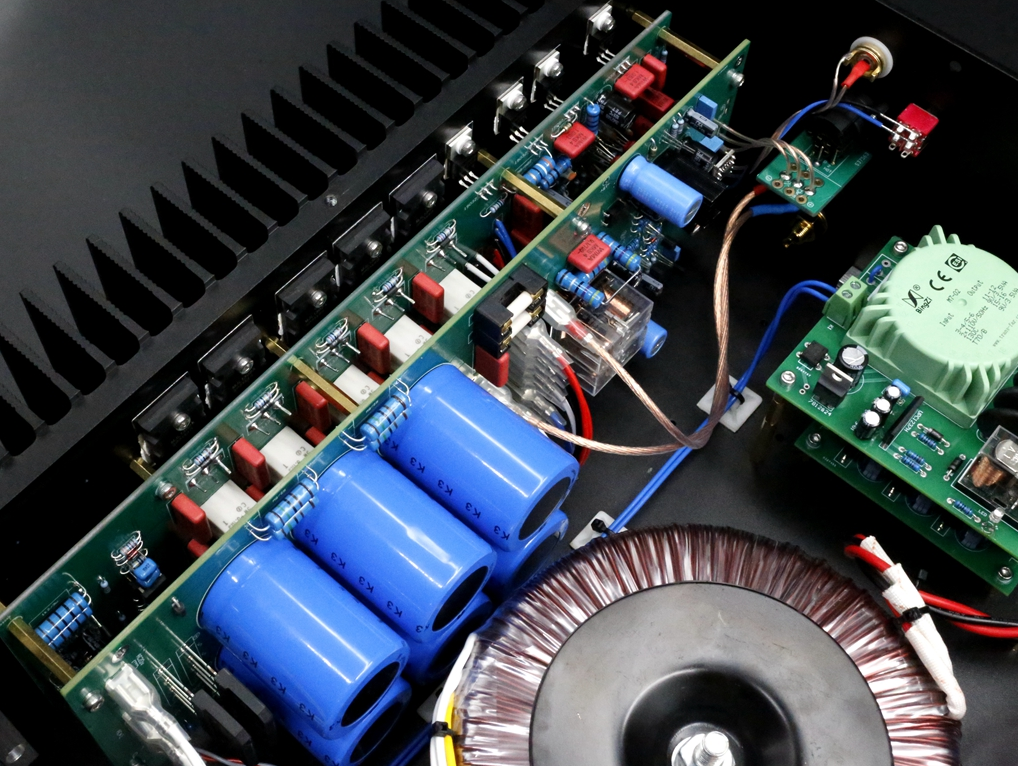

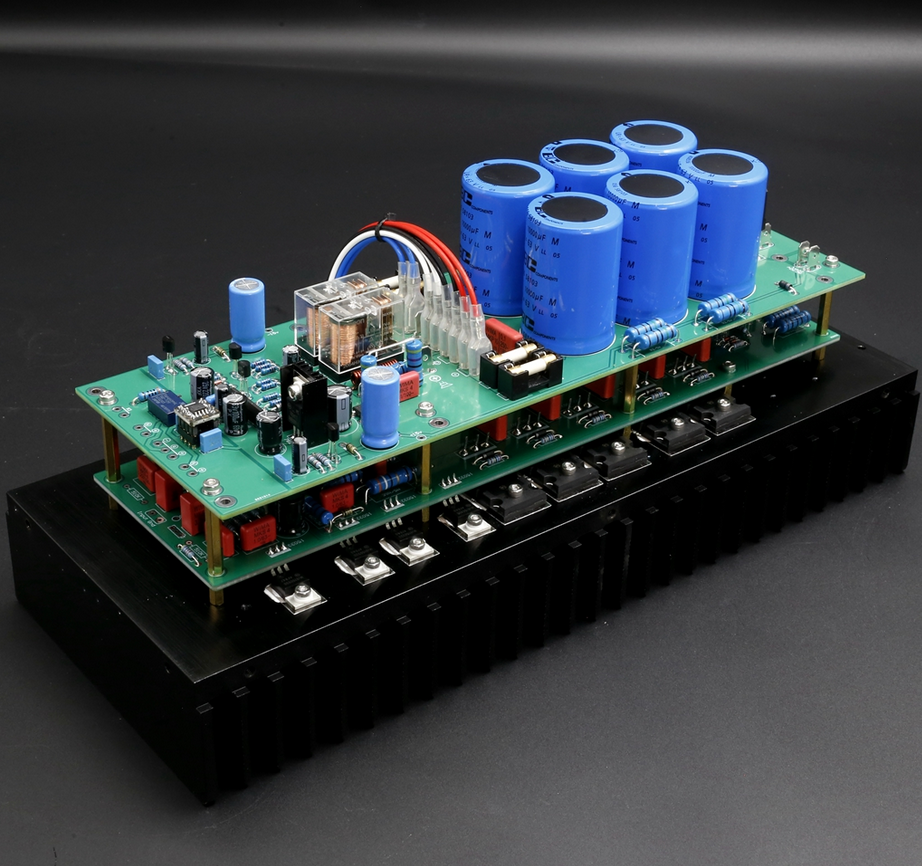

4:) 10 pairs per group, 5 pairs per channel, precision testing 1% paired ON MJL3281/1302 high output current capability.
5:) All small signal cables and high current lines are made of Taiwanese single crystal copper wire.

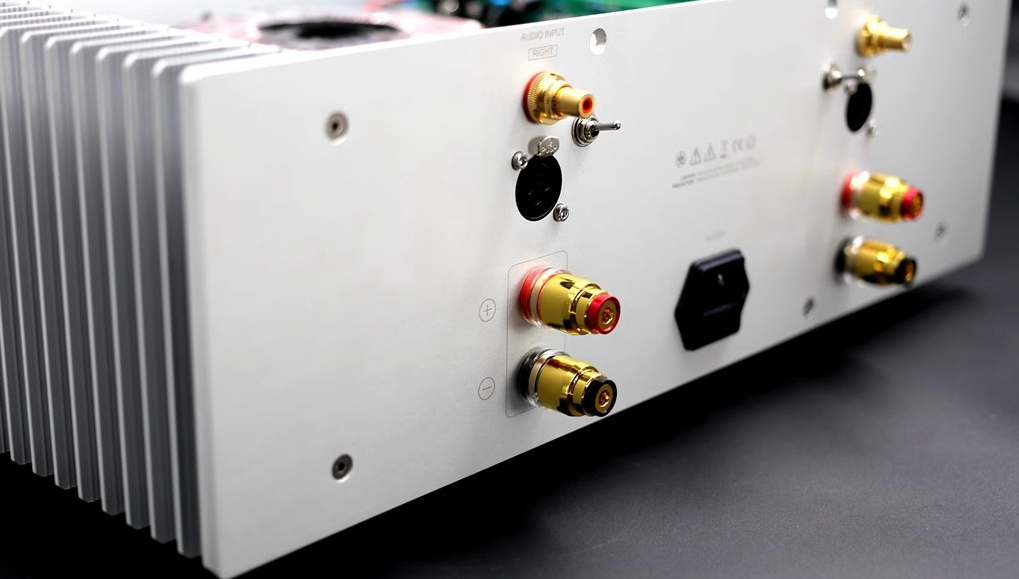

6:) Higher end pure copper RCA terminals and terminals.

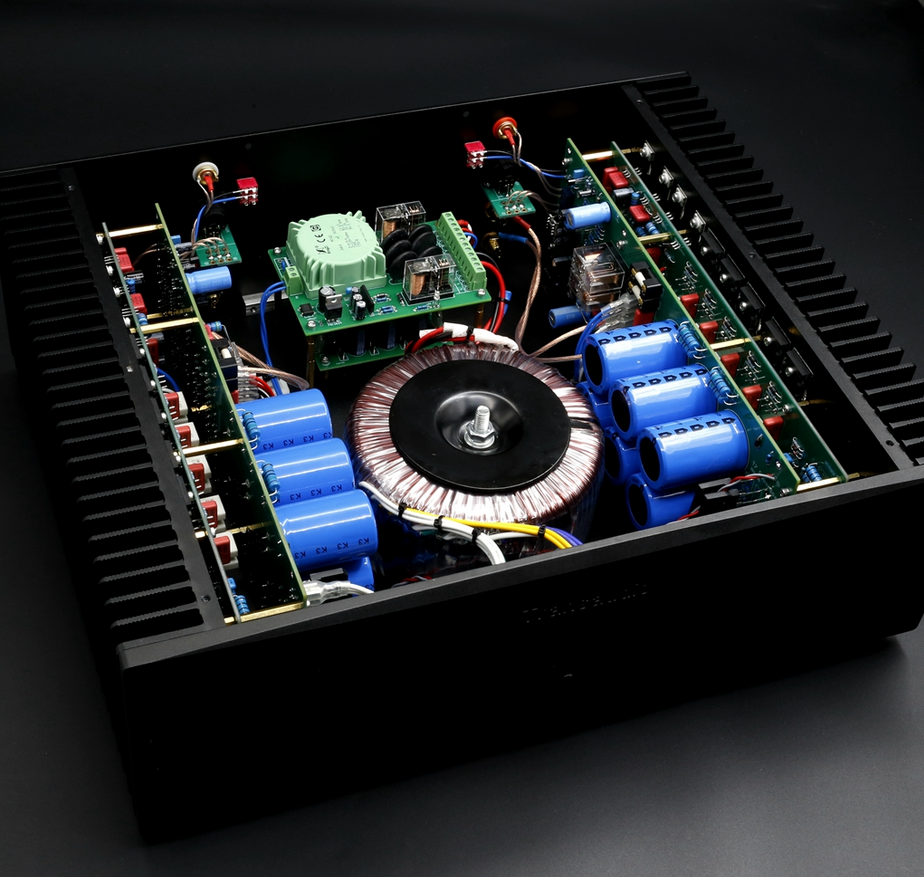

7:) 800W high-end Nippon Steel transformer.
8:) KOA audio resistor.

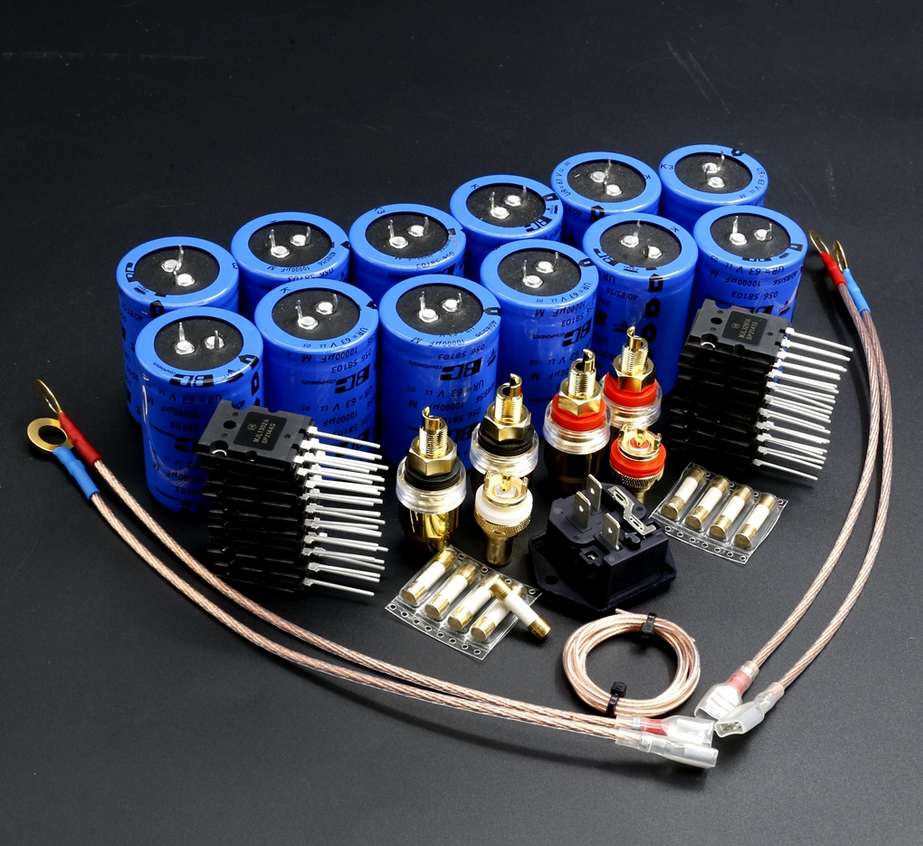

9:) 12 Pieces HiFi grade BC large electrolytic capacitors.

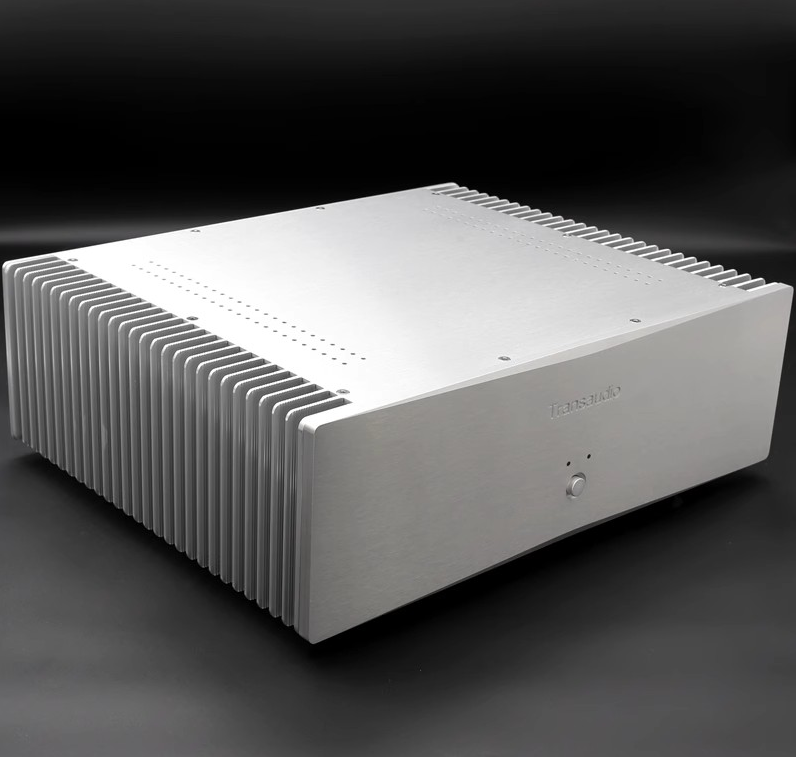

10:) CNC machining of all aluminum high-precision chassis.
Specifications:
Input sensitivity: 1.66Vrms
Input impedance: 22KΩ
Damping coefficient: 800
Output power: 150W/8 Ω, 300W/4 Ω RMS power, stable output at full power for a long time
Static power consumption: 120W
Input voltage: AC110V or AC220V

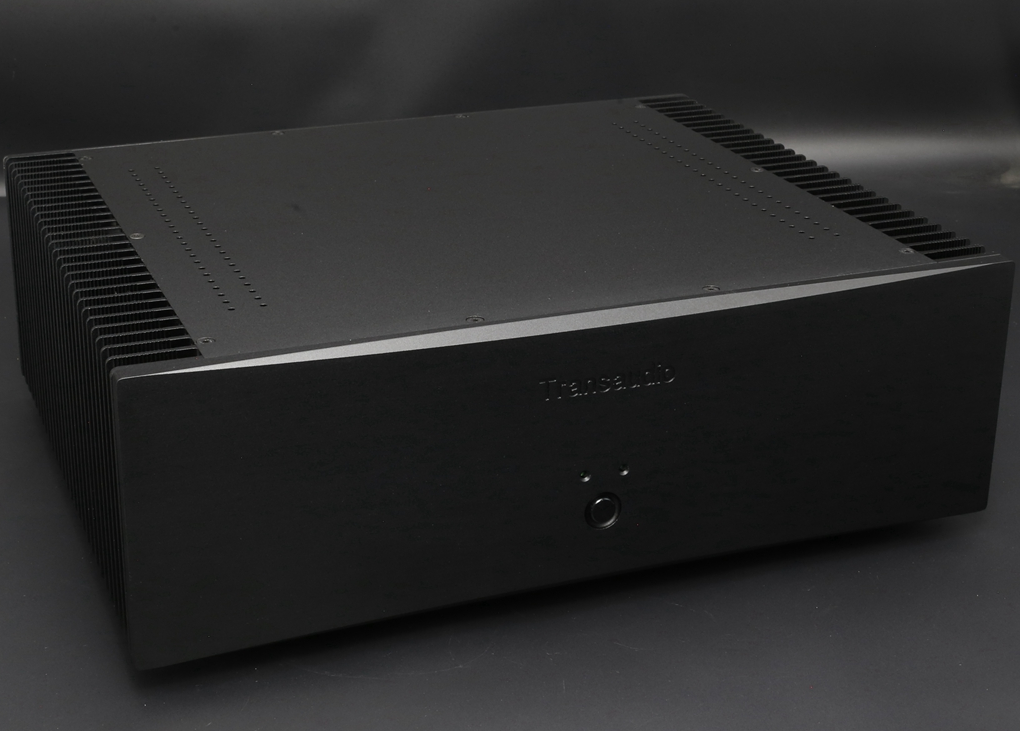

Color: silver or black
Weight: 19kg
Overall dimensions: 450 * 380 * 150mm Packaging dimensions: 550 * 480 * 250mm
AP test parameters: with 8 Ω 800W load test
Output effective value: 35.71Vrms
Channel gain: 26.6dB 21.3 times
Signal to noise ratio: 124.6dB
Dynamic range: 124.7dB THD distortion: 0.0020%
THD+N distortion: 0.0097%
Frequency response bandwidth: ± 0.046dB
Package List:
1 × D9Pro Amplifier
