Matisse circuit 12AX7 6n4 12AU7 6X4 tube rectify hifi tube audio preamplifier

Name: Matisse circuit 12AX7 6n4 12AU7 6X4 tube rectify hifi tube audio preamplifier
Brand: BRZ-hifi-audio
SKU: MTS
Price: 161 USD
Availability: InStock

Matisse circuit hifi tube audio preamplifier

Flash Sale

0.0 (0 Reviews)

4 Sold

~~$175.00~~ $161.00

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

Description

Product details:

This preamp has a transparent sound, good extension at both ends, excellent high and low frequency performance, elastic low frequencies, and slim high frequencies.

High quality components, stable performance, and long service life.

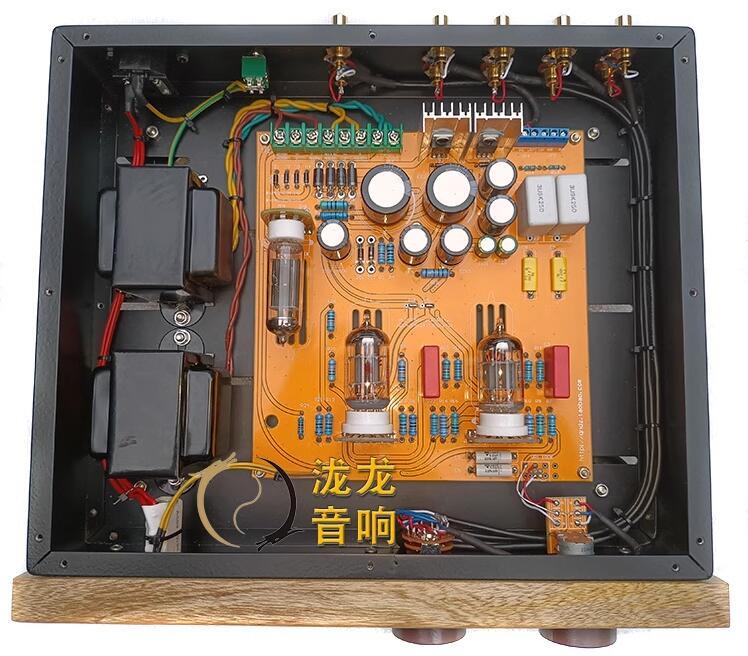

Using 6Z4 electronic tube rectification, Siemens electrolytic capacitor filtering, and DC power supply for filament, effectively reducing interference.

The main circuit adopts a five ring metal resistor with an accuracy of ± 1%，Good signal-to-noise ratio.

Japanese ALPS 16 A100K potentiometer.

Both transformers are shielded to effectively suppress electromagnetic interference, and the high and low voltages are separated from each other, resulting in less impact and a high signal-to-noise ratio.

The chassis is made of 1.2mm post painted iron plate, with excellent electromagnetic shielding effect

Parameters:

Input sensitivity: 200mv

Voltage output: 2V (RMS THD<0.03%) -14V.

S/N Ratio: 96DB

Frequency Response: 10Hz-30KHz (-1DB)

Input Impedance: 100Kohm

Output Impedance: 2000ohm

Channel isolation: 65DB

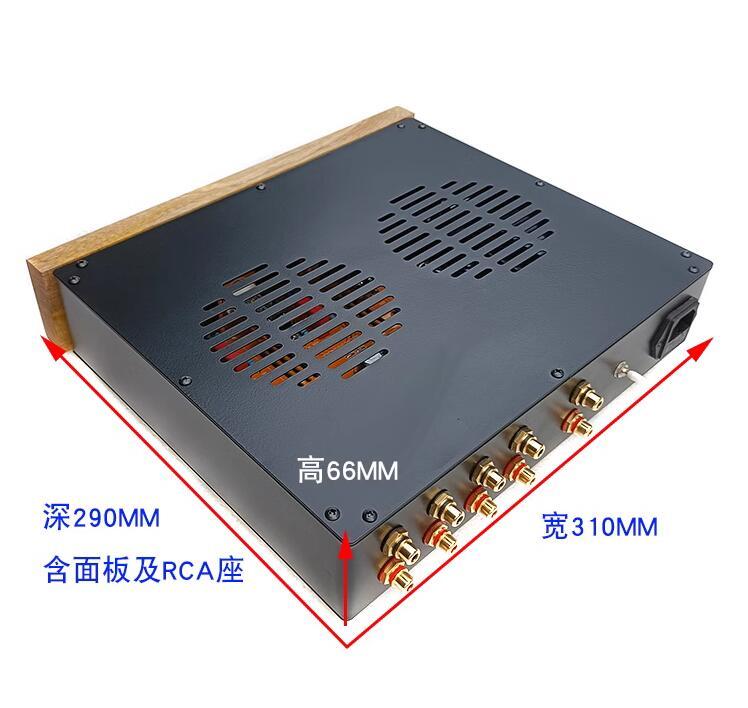

Dimensions: W 310 mm, D 290 mm, H 66 mm

Weight: 3.8 kg

List：

Finished preamplifier X 1
