Minava 12W*2 SE-KT88 single ended pure A-class Bluetooth electronic tube amplifier stereo combiner+pure post amplifier

Product specifications and parameters:

Input impedance: 100K ohms (RCA)

Output impedance: 4 ohms and 8 ohms

Output power: 12 watts (pure Class A, 8 ohm load)

Frequency response: 20Hz~20KHz (-1dB)

Total harmonic distortion:<1% (20Hz-20KHZ)

Total gain: 32dB

Input sensitivity: 300mV~600mV

Signal to noise ratio:>85dB (noise<1.5mV)

Working voltage: AC230V or AC115V (switchable)

Dimensions: 335mm x 265mm x 210mm (length x width x height)

Weight: about 18 kg

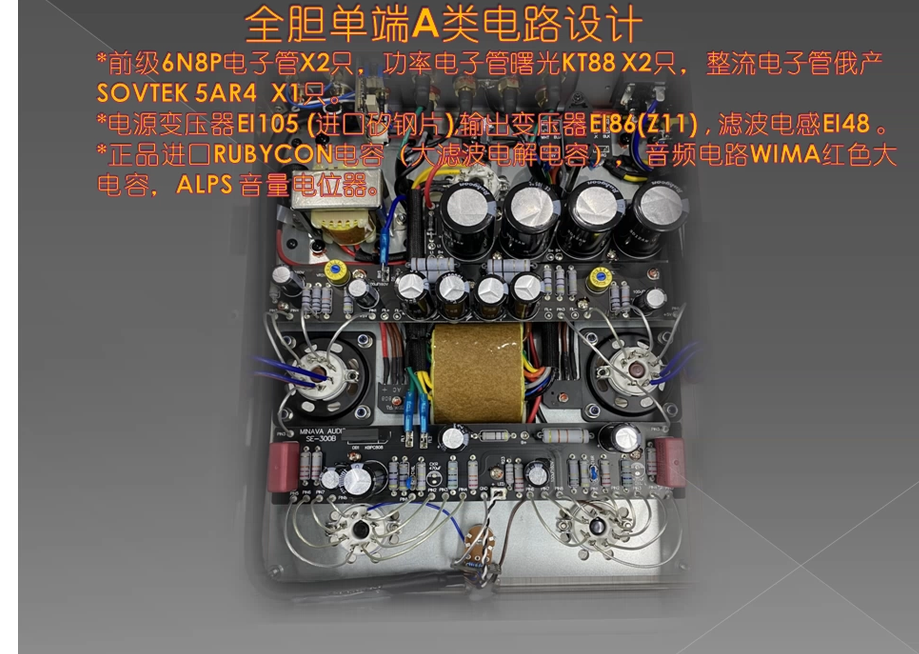

tubes : power amplifier Shuguang KT88*2   pre tube 6N8p*2  rectifier  tube SOVTEK 5AR4*1

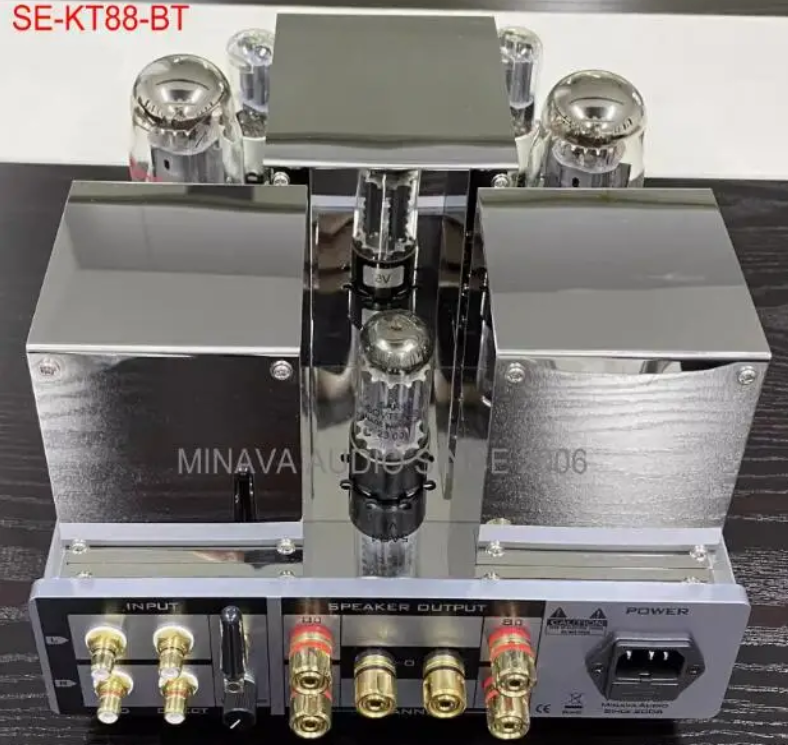

SE-KT88-BT Bluetooth version:

A set of RCA inputs directly connected to your CD player or other audio sources; Connect another set of RCA Direct inputs to your independent preamplifier at home, and use our SE-KT88-BT amplifier as a pure preamplifier.

A set of Bluetooth inputs adopts Qualcomm QCC5125+DAC decoding output, stereo Bluetooth 5.1 scheme, CPU 32MH2, 32Bit.
