Design highlights:
1. The power supply using a small capacitor array design, with two regulators, low ripple more clear.
2. Using 2pcs Single opamp for each channel , do not interfere.
3. Feedback attenuation, the speed will not be too fast.
Main material:
A. Pretty sound lubricated Vishay BYV27 smoothing tube.
B. SAMYOUNG electrolytic capacitor filter capacitor array, low power supply resistance, fast dynamic response.
C. ST 18-15 three-terminal regulator build two power supply, anti-mains interference ability.
D. Supporting 4 BB OPA445 op amp.
E. WIMA, EVOX, PHI, ERO brand Promise capacitor school sound.
F. NichiconFINE GODE (FG) Series Feedback Capacitors.

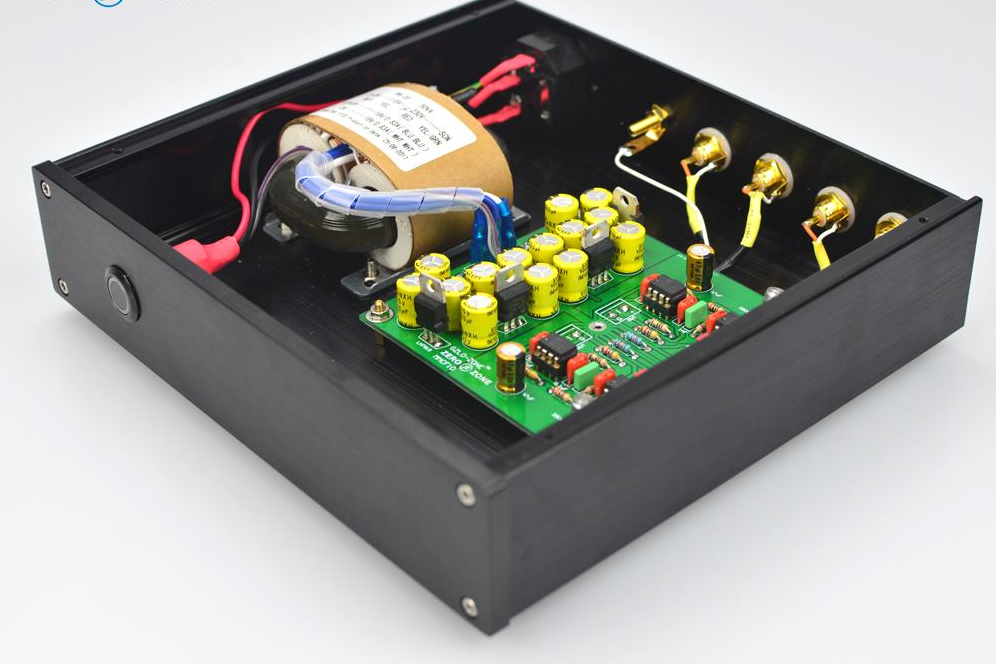

G. Full aluminum chassis + Metal switch

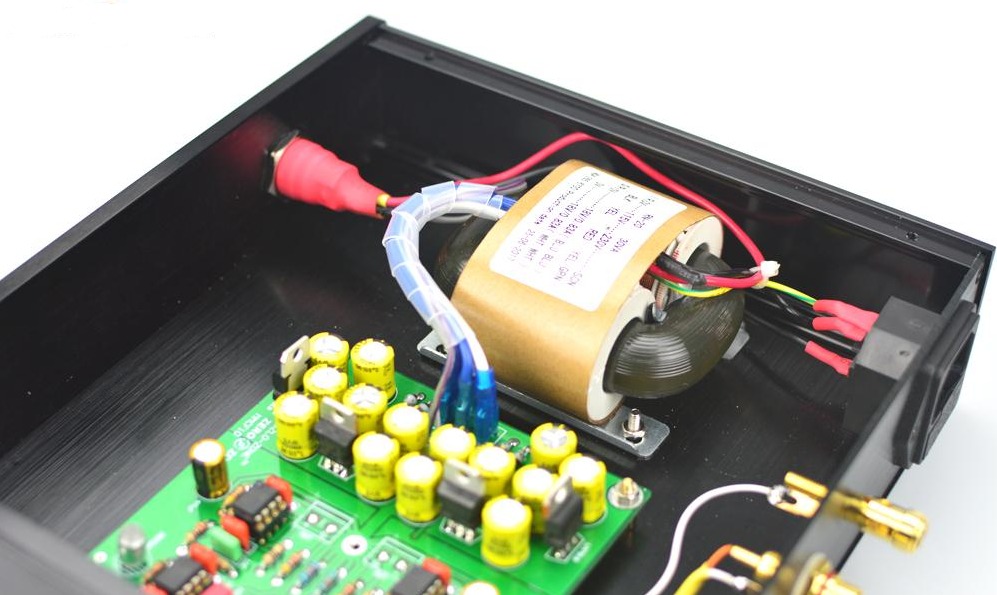

H. Oxygen free copper R-core transformer.
Size: 210mm*195mm*48mm(W*D*H)
Gain: 41DB 1KHz
Input impedance: 47K
Input voltage: 115V or 230V
