Product Details:
The A1 circuit was designed by British designer Tim de Paravicini in 1982. It is pure Class A, with warm and sweet sound and excellent musical sense.
1:) Pure Class A design, no crossover distortion, high linearity.
2:) Specially customized shielded toroidal transformer, anti-interference, strong output.
3:) The high-speed rectifier circuit has a fast response speed.
4:) Up to 40000 uF high-performance audio filtering capacitors CRC filtering circuit effectively reduces power ripple.
5:) Precision paired transistors effectively reduce distortion.
6:) All aluminum chassis with exposed heat sink, stable performance.
7:) Original ALPS potentiometer from Japan.
Specifications:
Input voltage: AC115V or AC230V (optional)

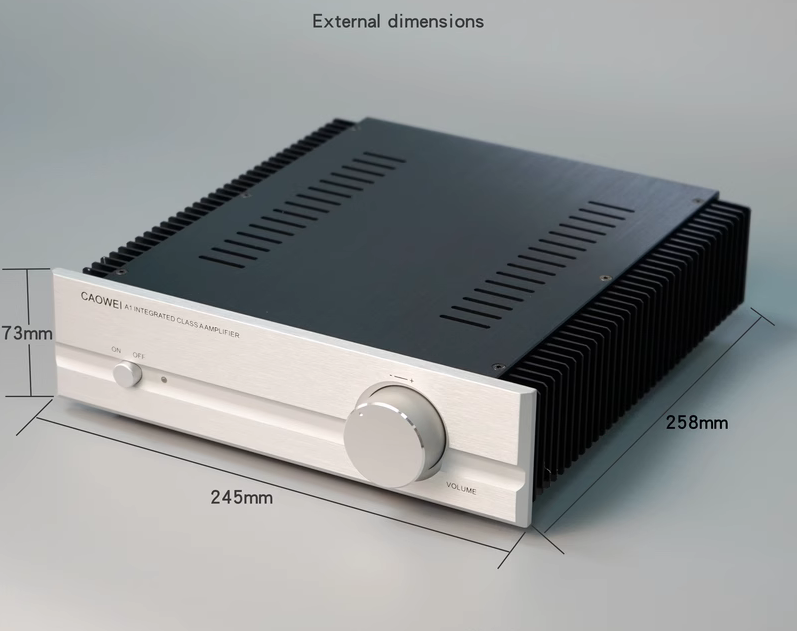

Dimensions: Width: 245mm, Height: 73mm, Depth: 258mm
Weight: about 4.05KG
Output power: 25W
Type: Class A
Distortion: 0.003%
Signal to noise ratio: 84db
Power consumption: maximum 130W
Package List:
1 × Finished amplifier
For transportation safety, no power intput cable is provided.
