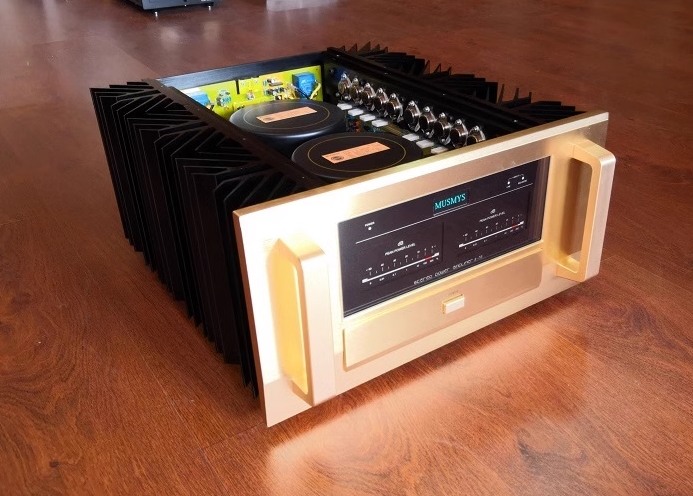

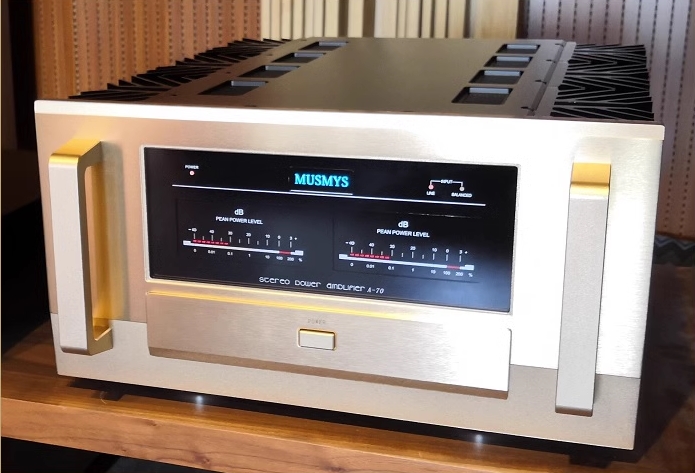

Product Details:
This amplifier is designed with reference to the ACCUPHASE A70 circuit, and after 2 years of repeated testing and calibration, it has good control, natural sound, rich details, and lifelike appearance As if immersing oneself in the scene.
1:) Using self-developed input modules to minimize noise.

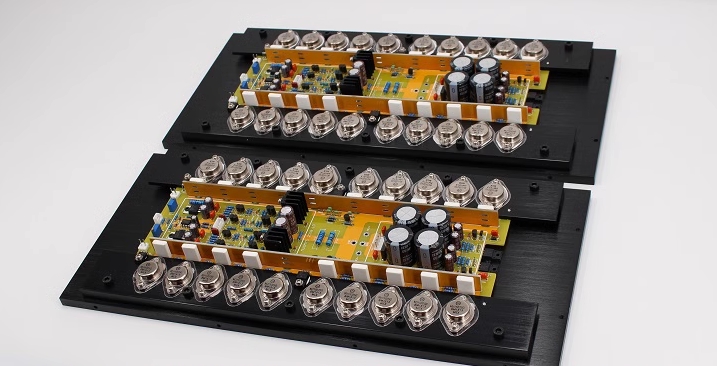

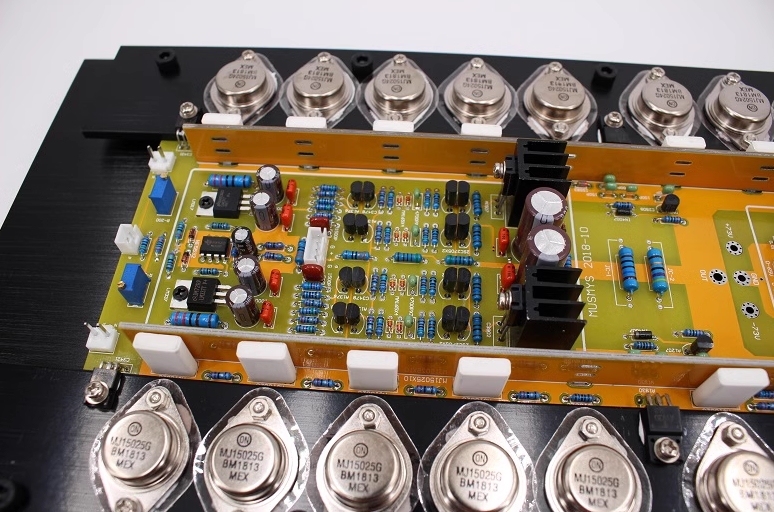

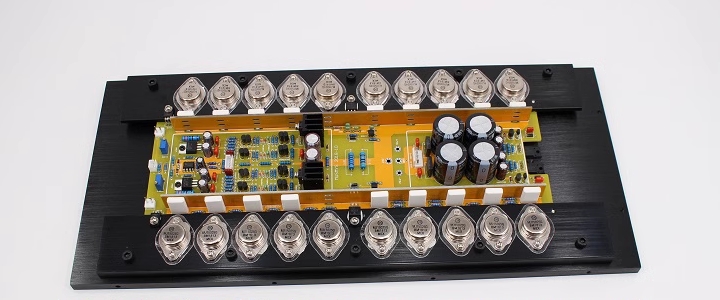

2:) Each channel has 10 pairs of MJ15024/15025 precision paired transistors, which can easily drive various audio systems.
3:) High quality and high-precision 5-color pure copper foot resistors produced in Taiwan.

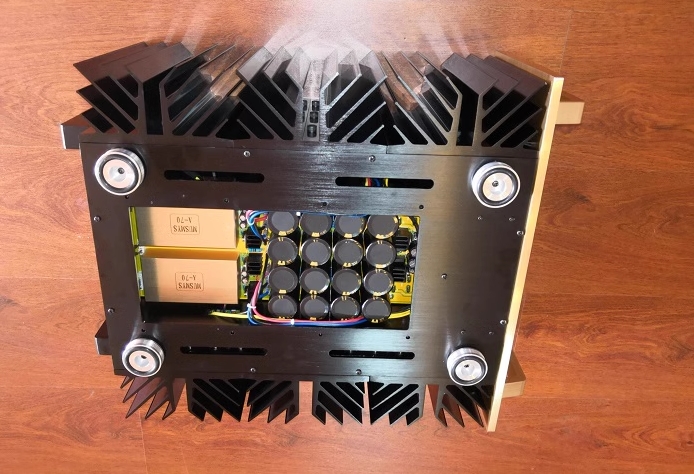

4:) 16 ELNA audio capacitors provide ample power.

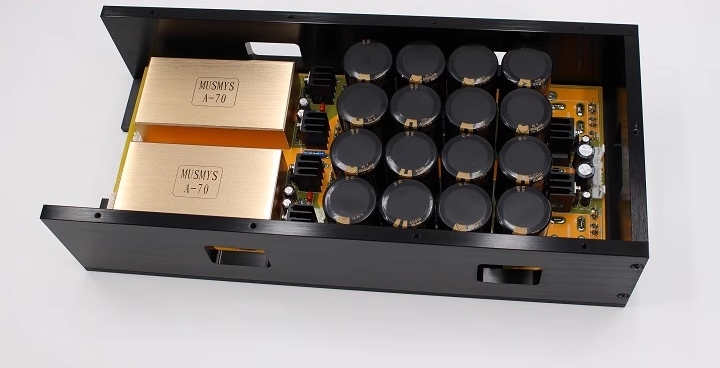

5:) The power module and input amplifier are separately installed in an aluminum alloy box, effectively isolating internal electromagnetic interference The background is more peaceful.
6:)Two shielded pure copper Toroidal transformers provide independent power supply for the left and right channels.
7:) Independent design of left and right channels, without interference with each other.

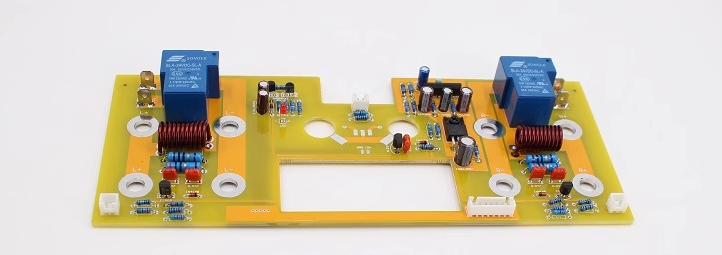

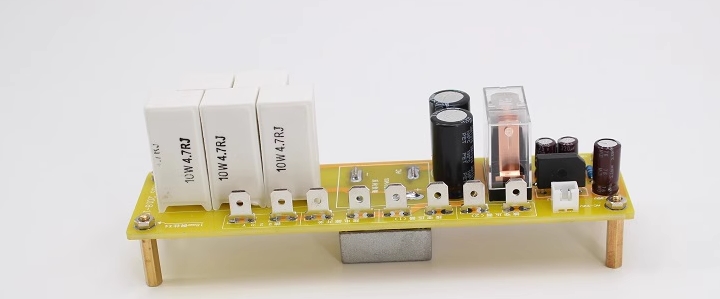

8:) Equipped with startup delay function, midpoint DC output protection function, audio short circuit protection function, and fault indication function (LED will flash when there is a fault)

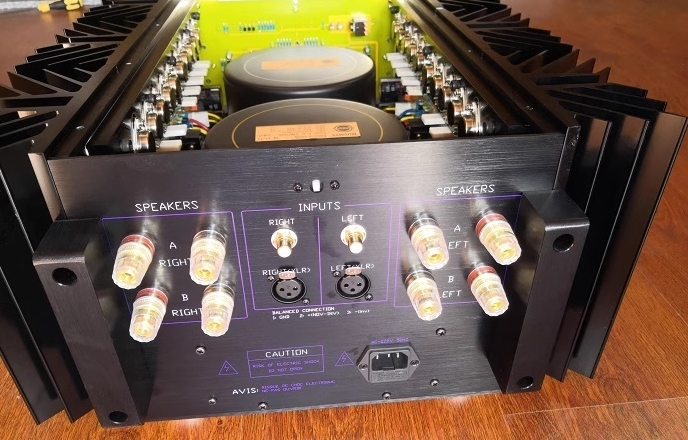

9:) RCA input and XLR input can be freely switched
Specifications:
Based on the EIA RS-490 test standard
1. Rated Continuous Average Output Power:
100W/CH 8-ohm load
200W/CH 4-ohm load
400W/CH 2-ohm load 800W/CH 1-ohm load
2. Total Harmonic Distortion 20-20,000 Hz:
0.06% 2-ohm load
0.02% 4 to 16 ohm load
3. Intermodulation Distortion: 0.01%
4. Frequency Characteristics
POWER IN At rated continuous average output
20 - 20,000 Hz +0, -0.2 db
POWER IN At 1 watt output 0.5 - 160,000 Hz +0, -3 db
5. Damping Factor 800 (with 8-ohm load,50 Hz)
6. Input Sensitivity,Input Impedance
Balanced input 40K ohm
RCA input 20K ohm
7. Gain power : 28 db
8.S/N Ratio,input-converted Noise : 118 db
9. Load Impedance : 2-16 ohms
10.Power Requirements AC ~ 220V 50/60Hz
11. Power Consumption 300 Watts idle
12. Maximum Dimensions L430*W220*H520 MM
13.Net weight :47KG
Package List:
1 × Finished A70 amplifier
