Product Details:
Referring to the E-600 circuit design, positioned as high-end and cost-effective After two years of continuous testing, listening, and improvement Final shaping

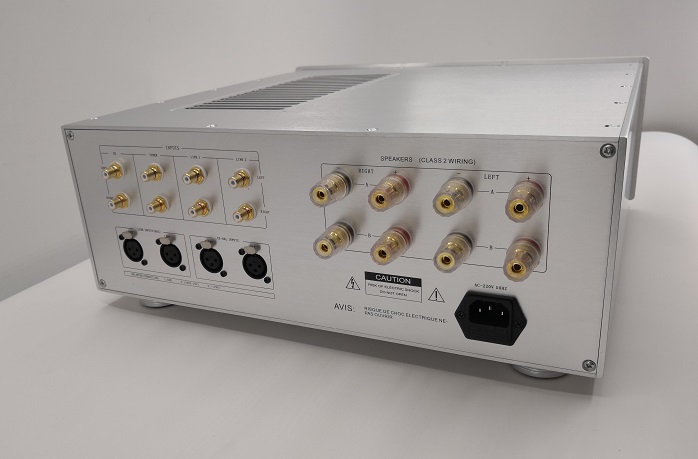

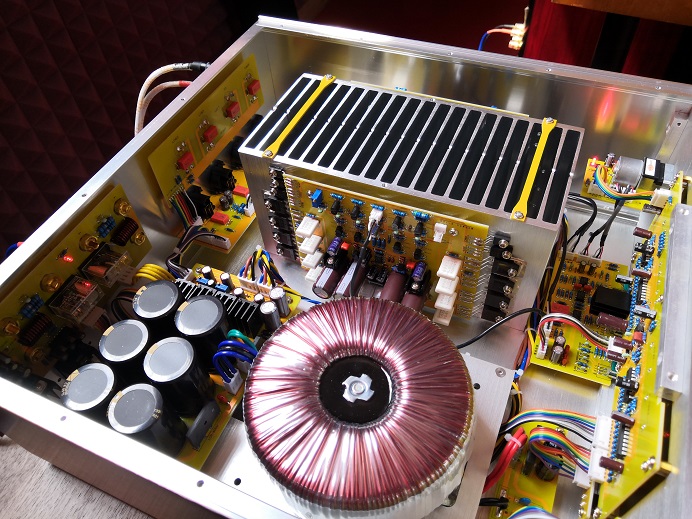

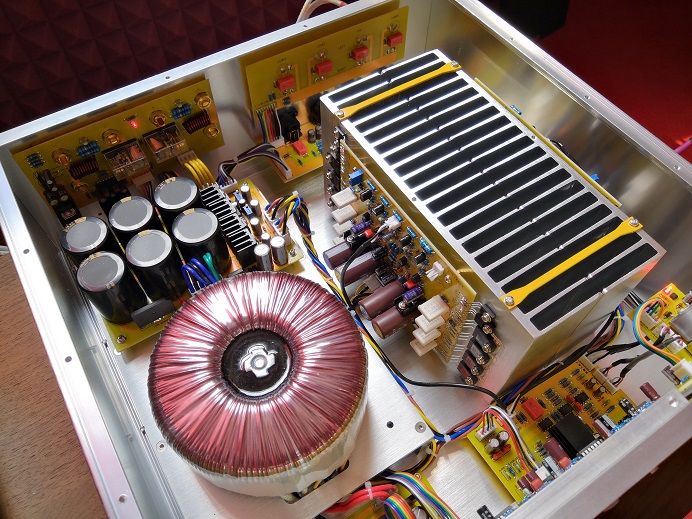

1:) All aluminum alloy chassis, with a smooth and delicate surface and precise hole positions First class craftsmanship.

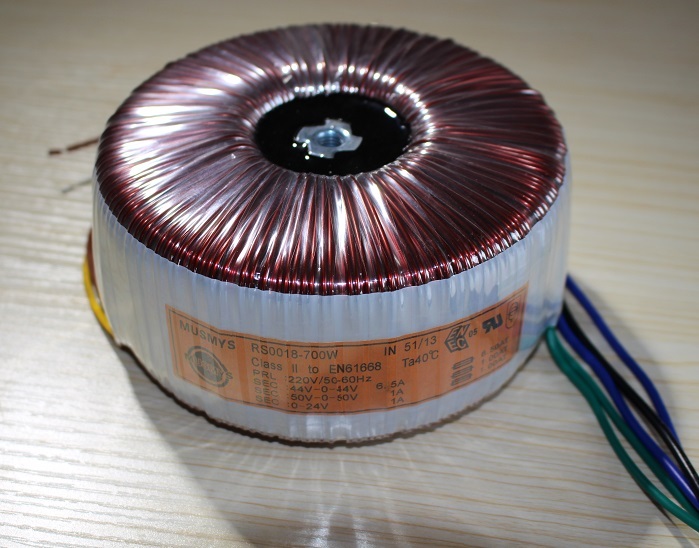

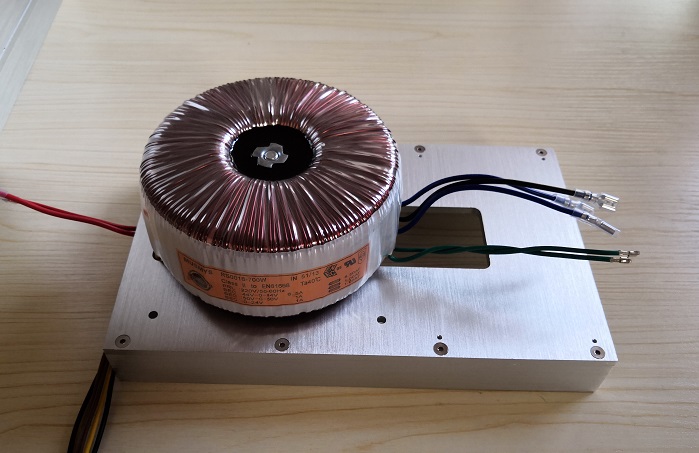

2:) 700W toroidal transformer with A-grade iron core and pure copper wire winding.

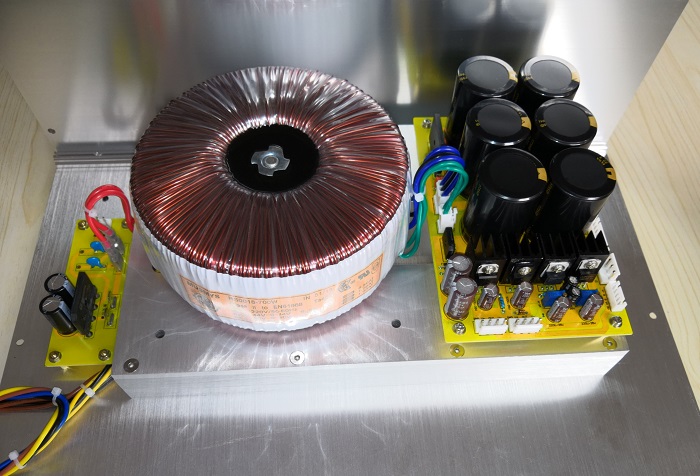

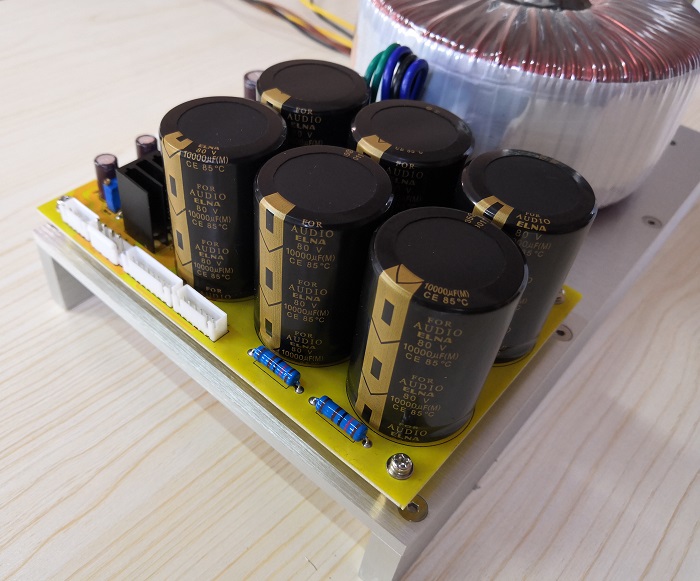

3:) 6 Japanese ELNA 10000UF/80V audio specific filtering capacitors LM317/LM337 voltage regulator.
4:) 1237HA protection chip, original Omron relay Effectively protect your device.
5:) NEC relay EA2-5NU controls input switching Low impedance, low distortion.

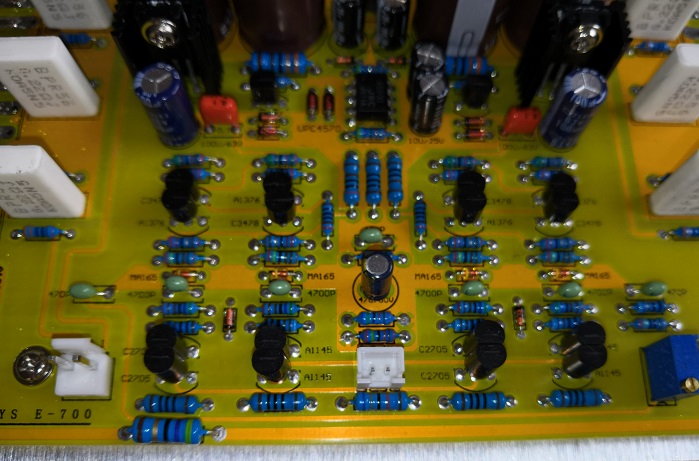

6:) The left and right channels are independent, greatly improving separation and widening the sound field, increasing dynamics, creating clear layers, and enhancing the sense of detail and depth.

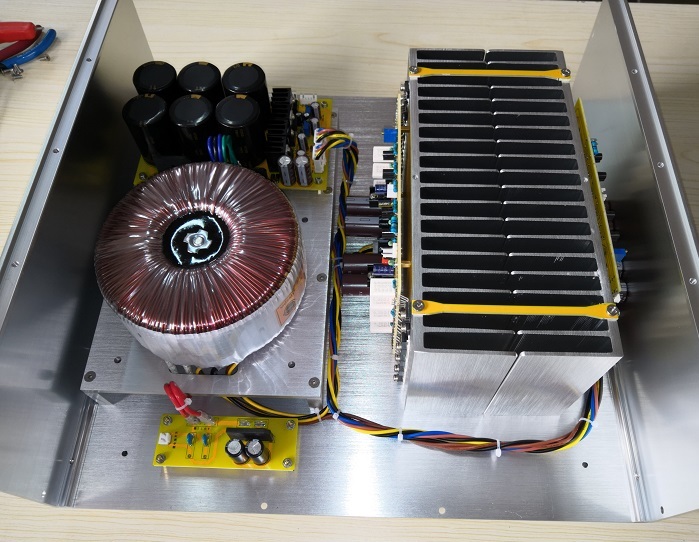

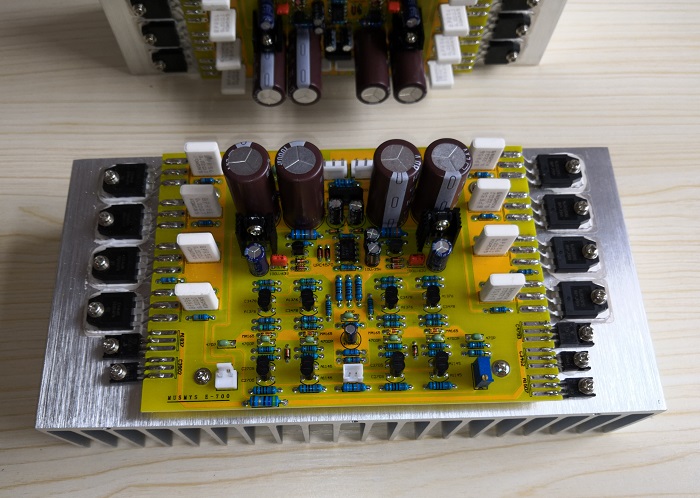

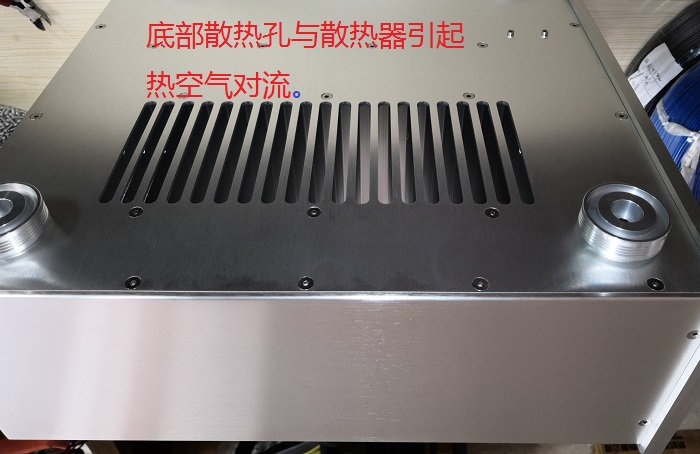

7:) Built in large heat sink, combined with the heat dissipation slot on the chassis, effectively and quickly dissipate heat
8:) The original ALPS potentiometer with motor from Japan has good left and right balance and can also remotely control the volume

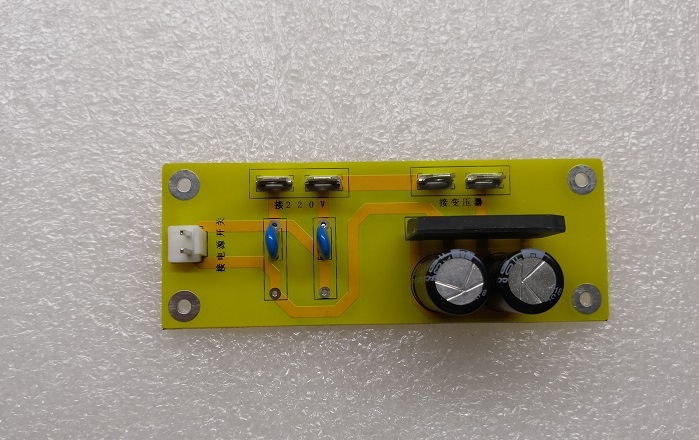

9:) Add a power processing module to effectively filter the DC component in the power supply, making the music background more peaceful.
Specifications:
Input voltage: AC115V or AC230V (optional)
Rated Continuous Average Output Power 180W/CH 8-ohm load 320W/CH 4-ohm load 500W/CH 2-ohm load
Total Harmonic Distortion 20-20000 Hz 0.05% 2-ohm load 0.03% 4 to 16 ohm load
Intermodulation Distortion 0.01%
Frequency Characteristics 20-20000 Hz+0, -0.5 db POWER IN At rated continuous average output 20-20000 Hz+0, -0.5 db
POWER IN At 1 watt output 3-150000 Hz+0, -3 db
Damping Factor 500 (with 8-ohm load, 50 Hz)
Input Sensitivity, Input Impedance Balanced Input 40K ohm RCA Input 20K ohm
Gain power 28 dB
Pitch control BASS: 300 Hz+-10 db TREBLE: 3K Hz+-10 db
Equal loudness control+6 dB (100 Hz)
Signal to Noise Ratio (S/N Ratio), Input Converted Noise 117 dB
Load Impedance 2-16 ohms
Static power consumption of 90 Watts idle
Dimensions Width 430 mm Height 160 mm Depth 450 mm
Weight 18.5kg
Package List:
1 × E600 amplifier（To ensure transportation safety, power input cables are not provided by default）
