Product details:
Attention when placing an order:

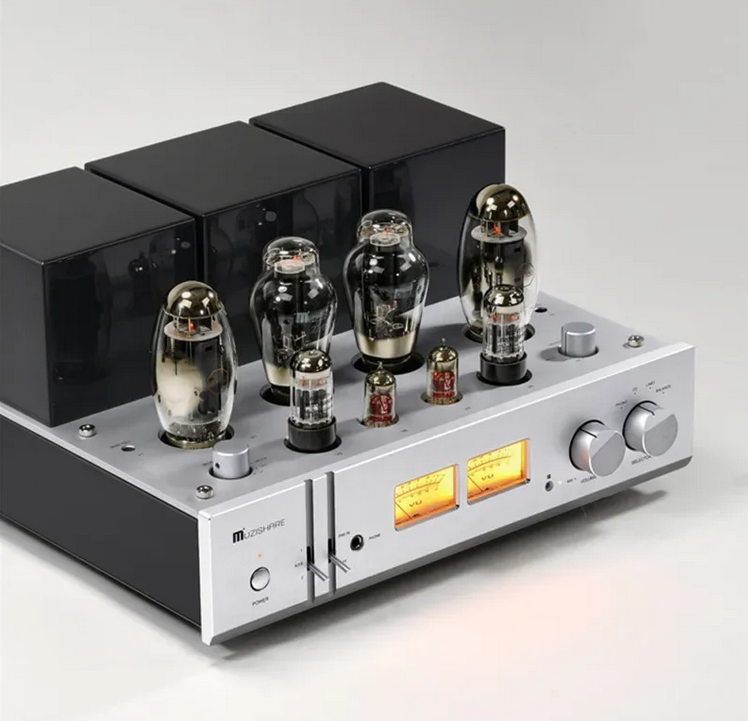

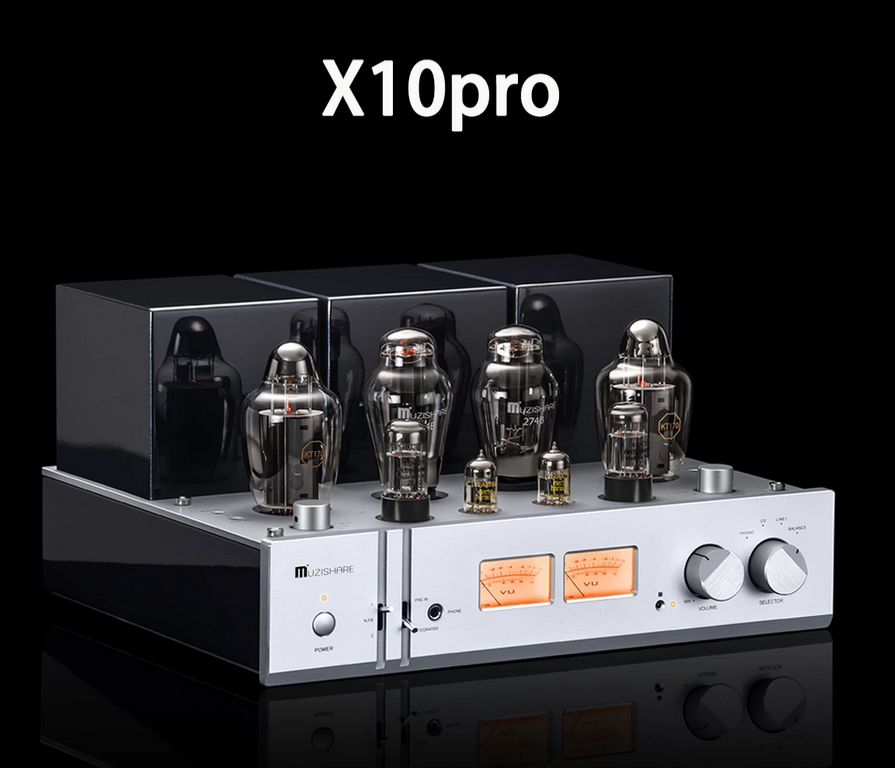

The X10pro version is a new product launched by our company in May 2024. It uses Russian KT170 power tubes and has a similar
appearance to the early X10 version. The circuit and transformer parts have been greatly modified and improved. The overall power
is 28W Class A single ended, and the sound is smooth, full, and durable. The density control is very good, very pleasant to listen
to. Welcome to consult!
Due to time constraints, the detailed pictures of X10PRO version have not been taken yet. Please forgive me! At present, X10PRO
finished products are in stock for shipment, welcome to order!
The following is a detailed introduction of the old model of X10 for reference
This machine features:

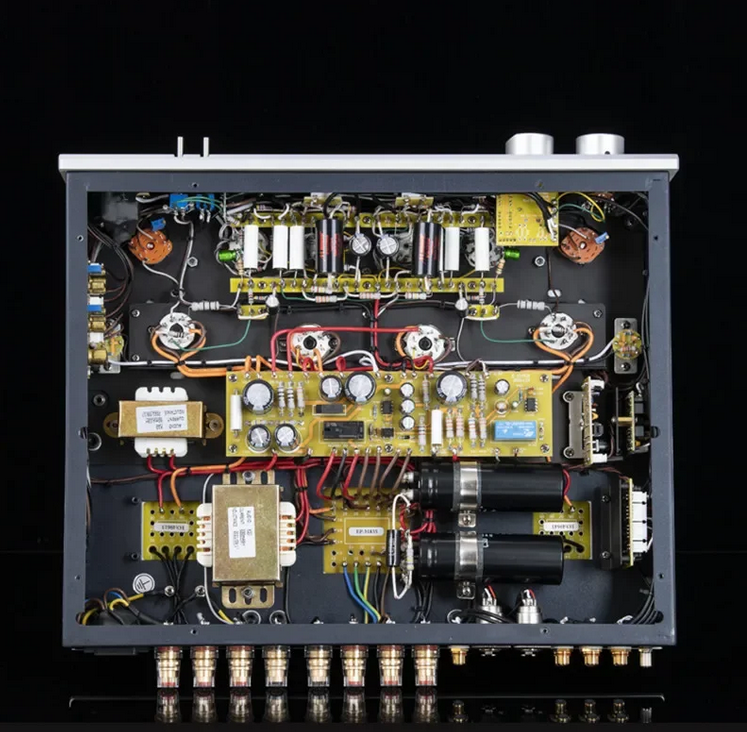

1. Purely handmade, the whole machine adopts scaffolding welding
2. Two high-quality wide-frequency response and high-quality Japanese EI output transformers are used
3. Use the high-power Z11 iron core EI type power transformer specially designed for this machine
4. The high-voltage part adopts 2 specially customized replicas of Xidian 274B for full rectification.
5. The Pre amplifier uses two Czech ECC83 and 6SN7EH vacuum tubes each, and the power amplifier uses two KT150 vacuum tubes for class A power amplification
6. Peripheral power tube current adjustment button and current display and dynamic output level UV meter
7. Select Japanese ALPS motor potentiometer and use German Mondoff M-CAP fever capacitor
8. Power-on mute delay function (about 30 seconds)

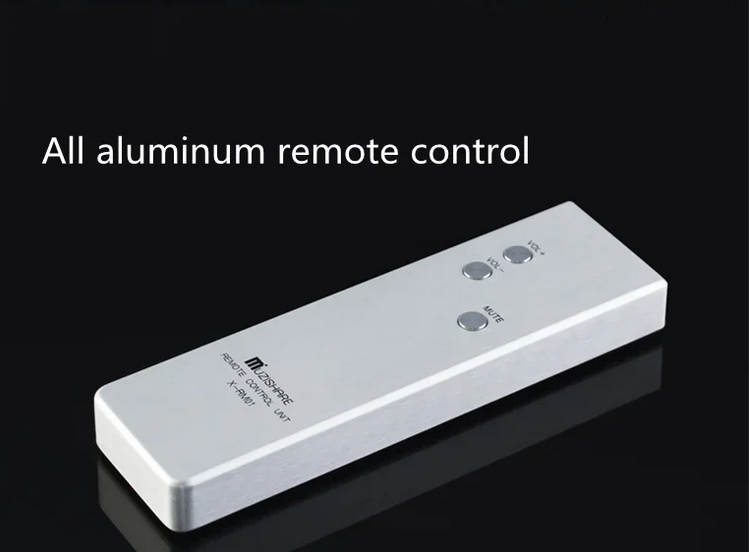

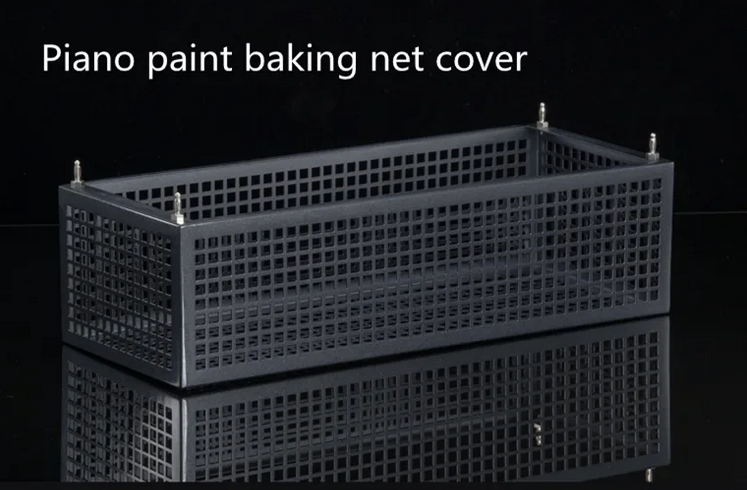

9. Infrared function remote control, easy-to-install plug-in vacuum tube shield, 10 pure power amplifier and merge machine to choose the working mode

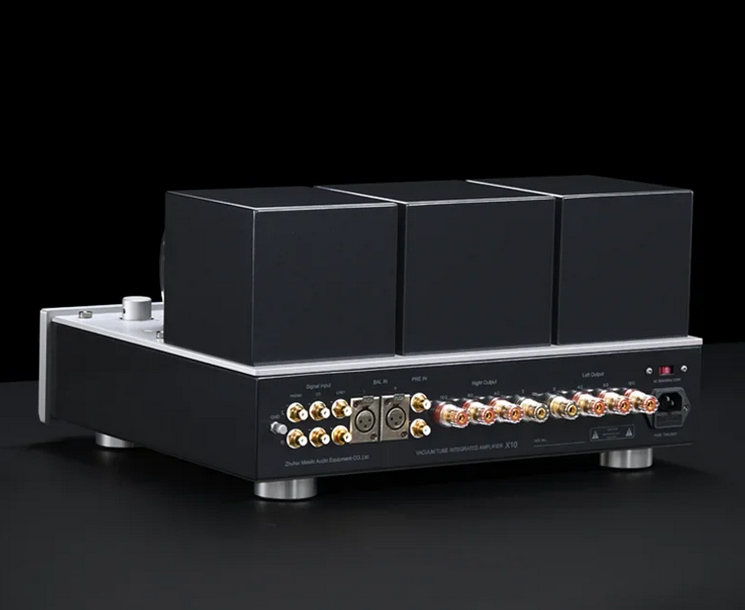

11. With balanced input and PHONO phono amplifier function
Technical parameter:
Rated output power: 25W+25W(RMS)
Harmonic Distortion: 1% (1kHz)
Input sensitivity: 150mv (-1.5db) 180mV (-3db) 1.5V (pre in)
Input impedance: 100KΩ
Signal-to-noise ratio: 92dB
Power consumption of the whole machine: 220W
Overall frequency response: 10Hz~50kHz (-1.5dB)
Output impedance: 4Ω, 8Ω, 16Ω
Weight: 41Kg
Left and right output balance: <1db

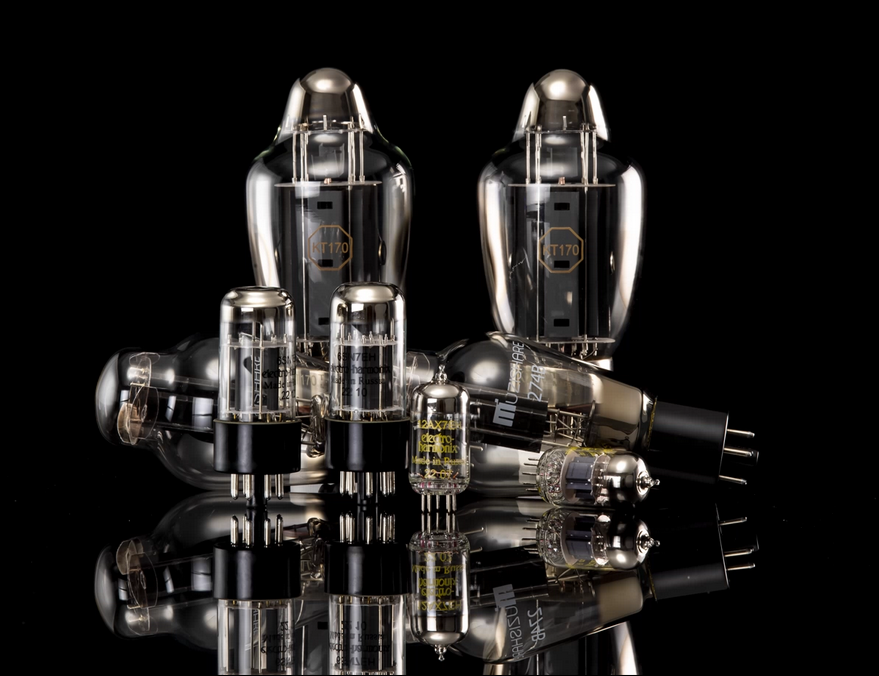

Vacuum tubes used: ECC83×2, 6SN7×2, KT150×2, 274B×2
Overall volume (Wx DXH): 430mmx393mmx228mm
Power supply voltage: ~110V/220V±5%(50Hz)
Working conditions: Temperature: 0°C~40° Humidity: 20%~80%
Storage conditions: Temperature: -20°~70° Humidity: 20%~90%
List：
MUZISHARE X10 tube amplifier X1
Remote control X1
AC cable X 1
