Product Parameters
Output power: 80W*2
Input impedance 22K ohm
Output impedance: 4-8 ohms
Output power: 70W-130W
Dryness control: < = 2MV
Input power: 220V (110V can be customized)
THD = 0.03%
Size: 260 * 230 * 80MM
Weight: about 2.95KG

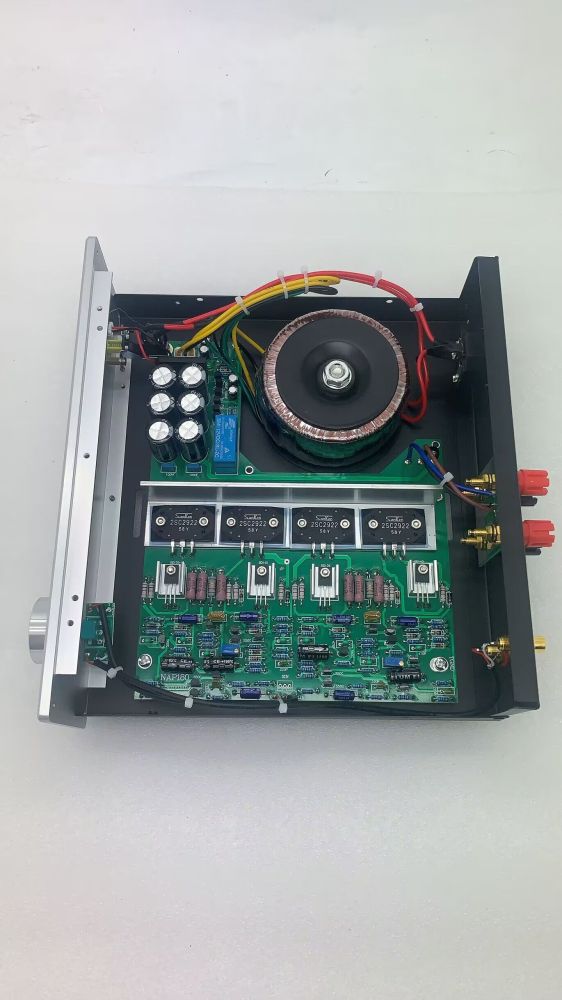

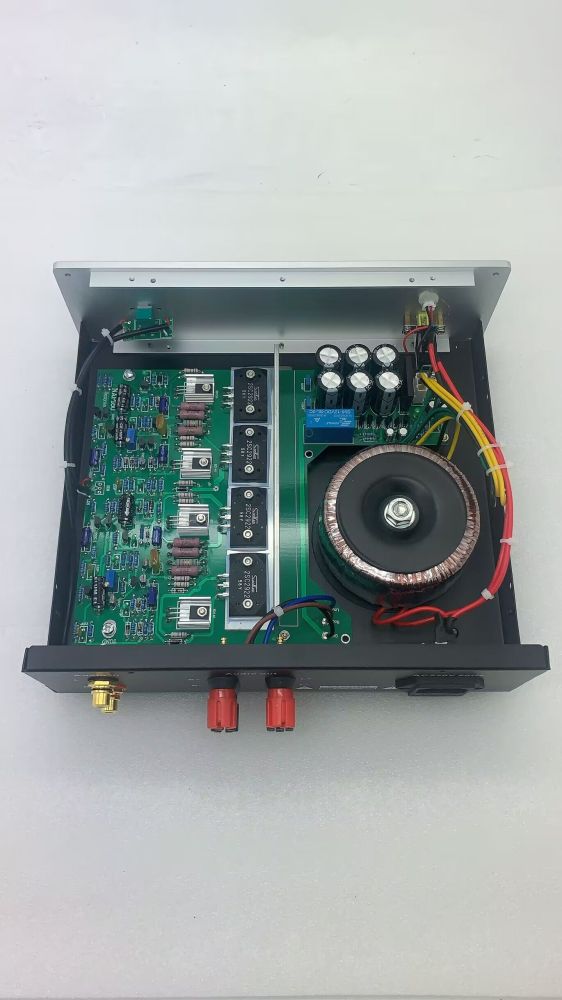

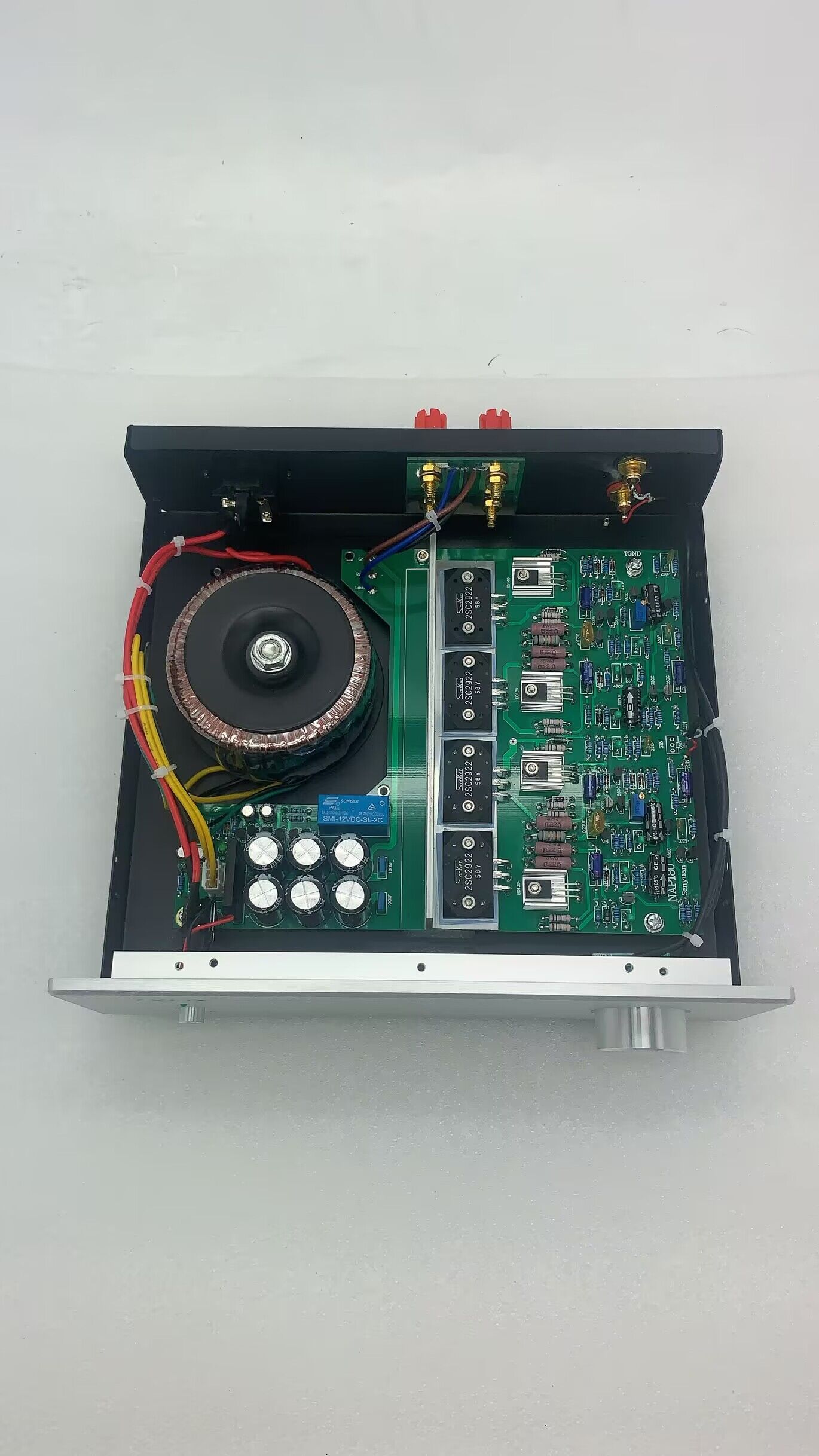

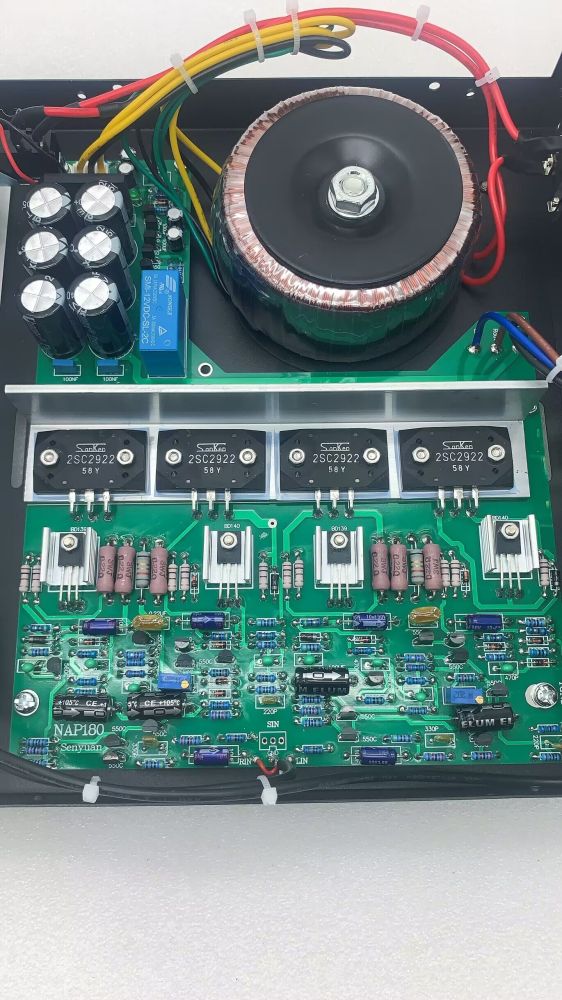

Output power tube is imported original assembly and disassembly of sanken sound tube Wang 2SC2922 genuine disassembly machine
Push transistor is a brand new Malay imported ST Italian BD139 140 pair transistor
Tubule: Brand new fairchild BC550C BC560C
1/4W and 1W resistors: all new RJ copper pin accuracy 1% metal film 5 color ring
The new 5W resistor is KOA non-inductive ceramic resistor imported from Korea
3W resistors are all new VISHAY advanced ceramic resistors imported from America
Non-polar capacitor is a new Japan imported Nikon film capacitor and CBB capacitor
Electrolytic new Japanese imported Ginicam
Power transformer: new professional custom 120W pure copper ox
Packing List

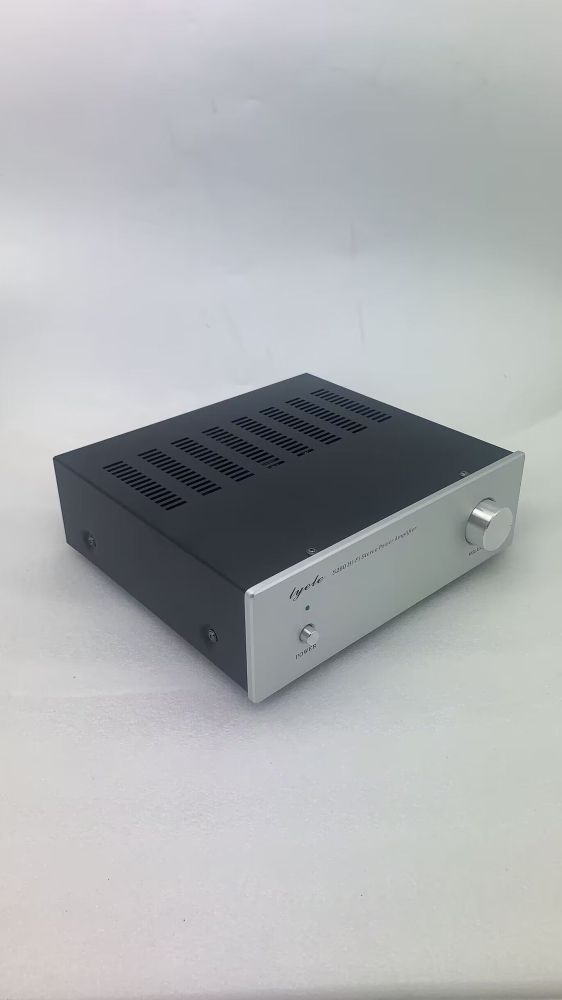

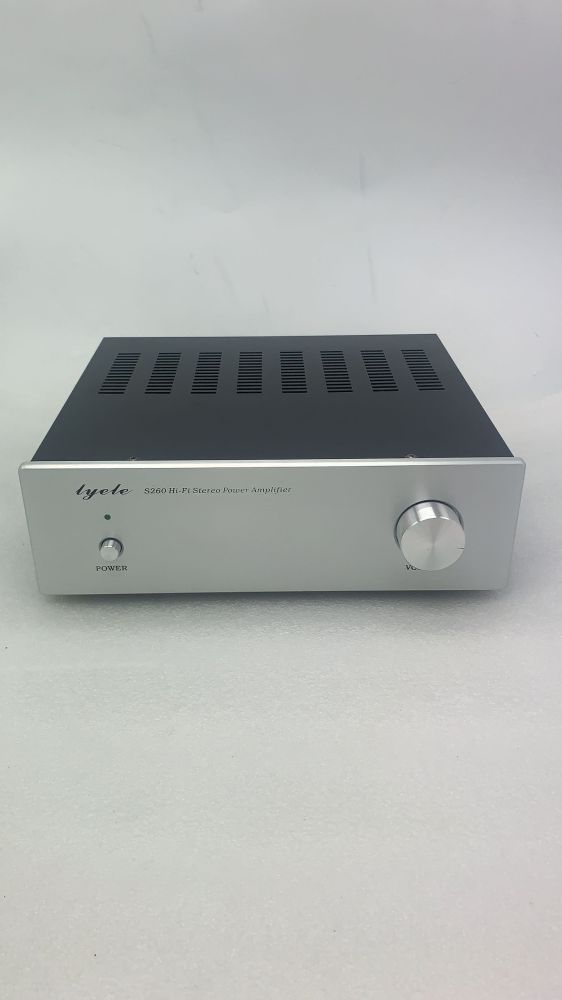

1× NAP140 Power Amplifier
