Product Details:

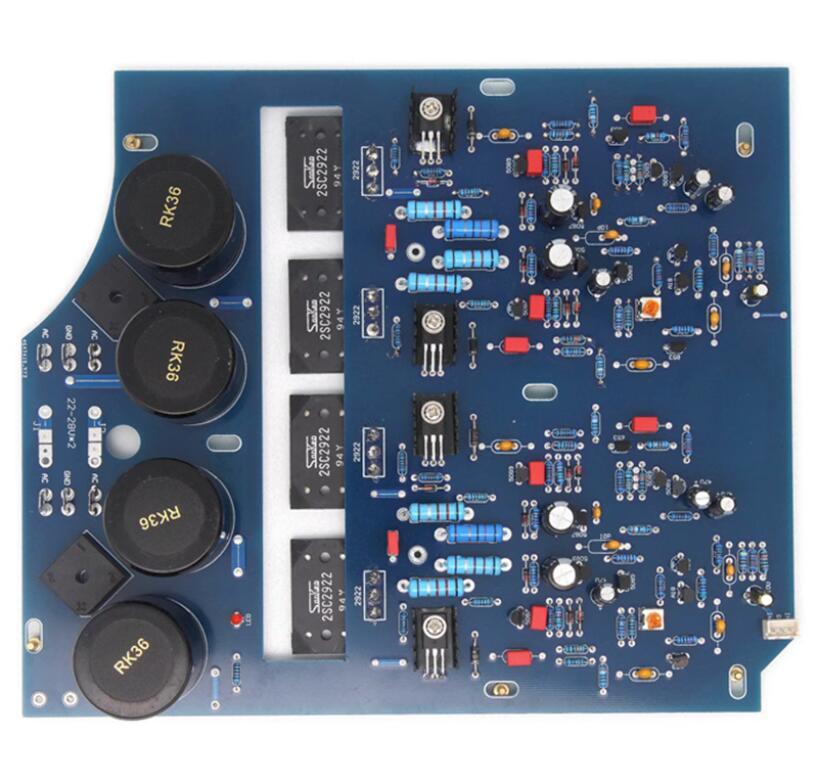

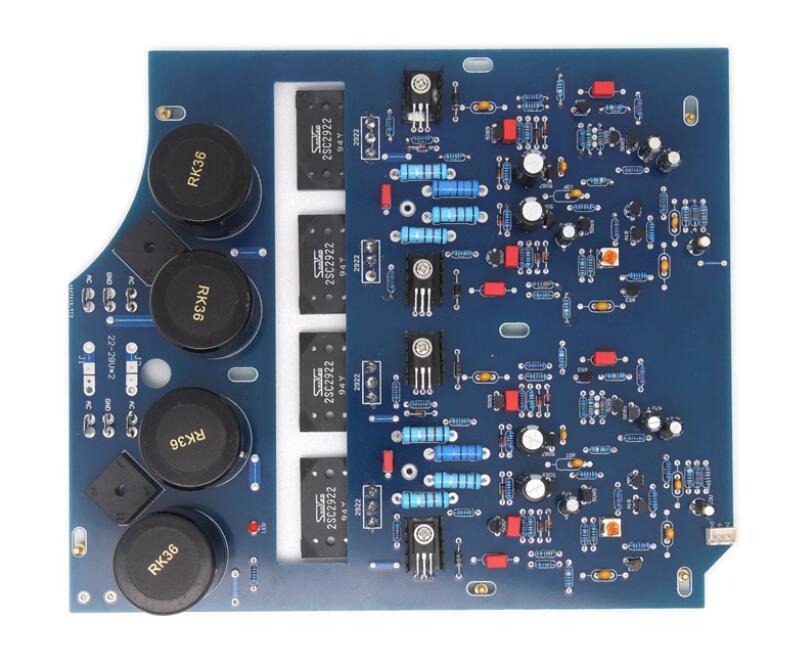

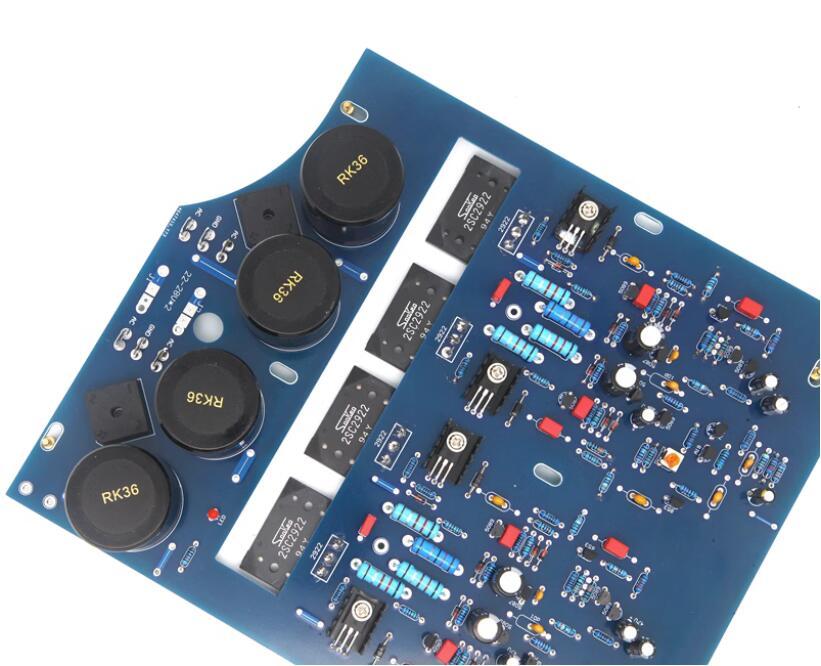

Based on NAIM NAP200 power amplifier circuit.
The left and right channels are independently designed and can be powered by 2 transformers or a single transformer.

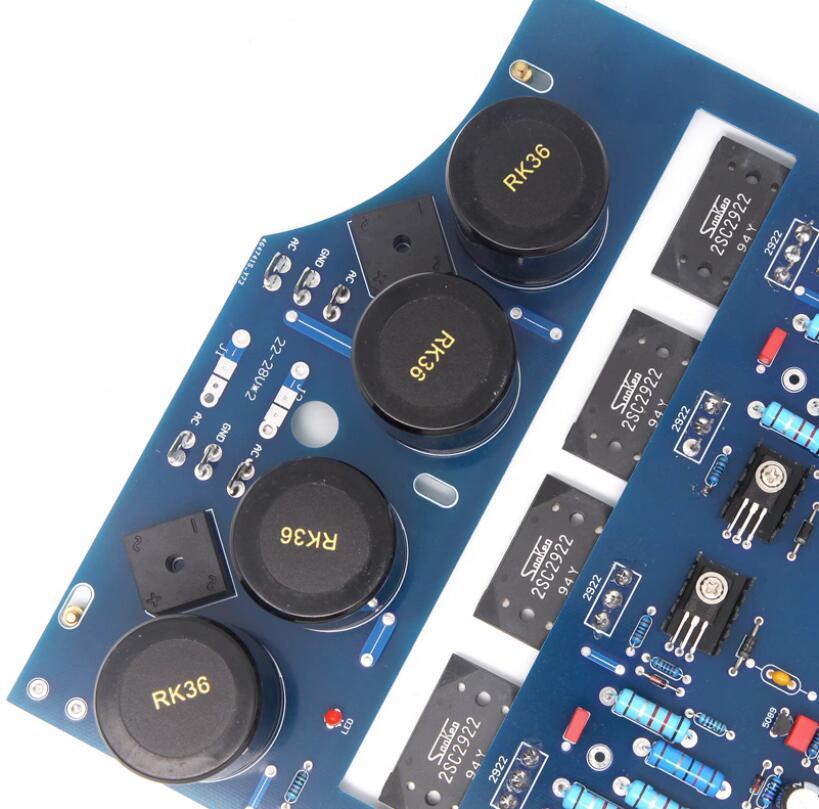

The design has a common short-circuit point, and the filter one shares 40000UF+ double rectifiers.

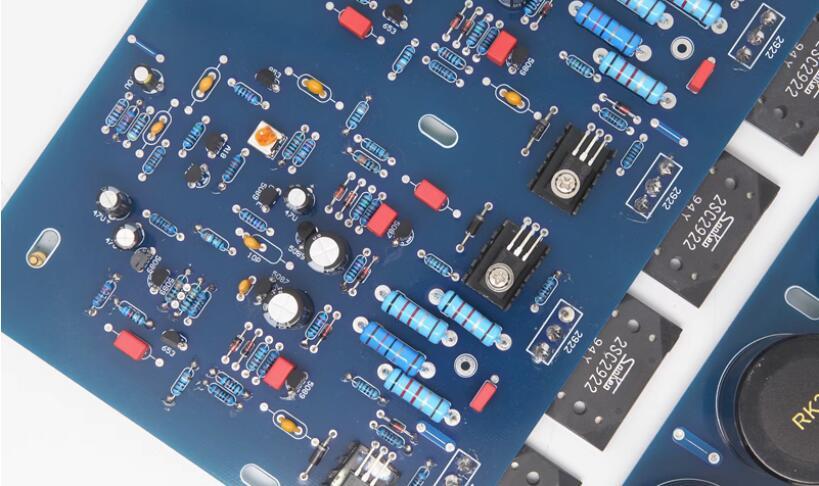

Use imported original SANKEN2SC2922 audio power tube.
The push tube uses imported original ON Semiconductor and original imported German WIMA capacitors.
Specifications:
Output power: 80W+80W /8 ohm
Input impedance: 50K
Frequency response: 10HZ-60KHZ
Distortion: <0.01%
Signal to noise ratio: 110DB
Power supply voltage: main AC dual 22~33V

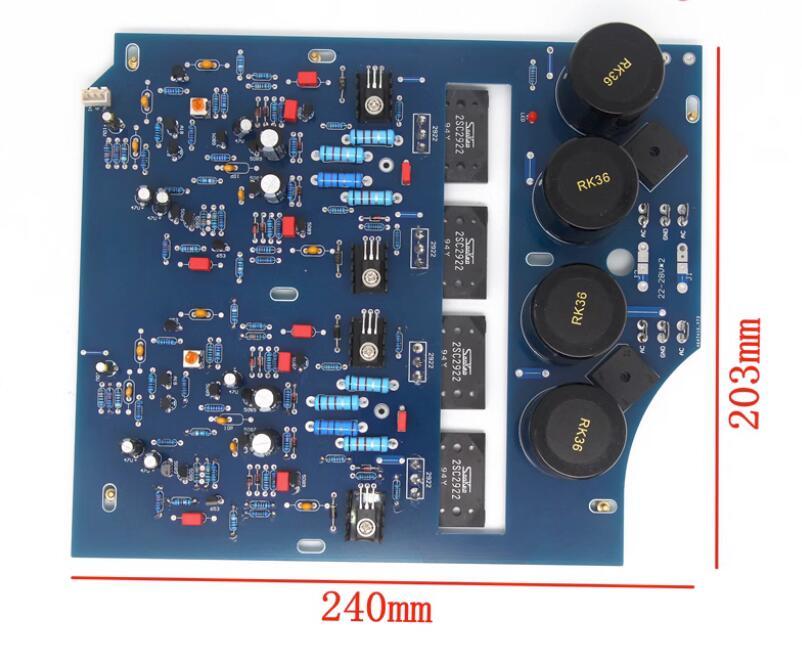

PCB size: 240*203MM
Height: about 48MM
Weight: about 0.45KG
Package list:
1 × Finished board
