Product details:Referring to PJ in the UK The Baxandall type electronic tube tone control circuit utilizes a low distortion tone circuit with frequency negative feedback operation, with a wide control range. Moreover, when both potentiometers are placed in the middle position, a flat response curve can be obtained.
Electronic tube preamp has many advantages, such as high input impedance, large dynamic range, low thermal noise, good transient response, low distortion, good air sensitivity, and simple circuit design.

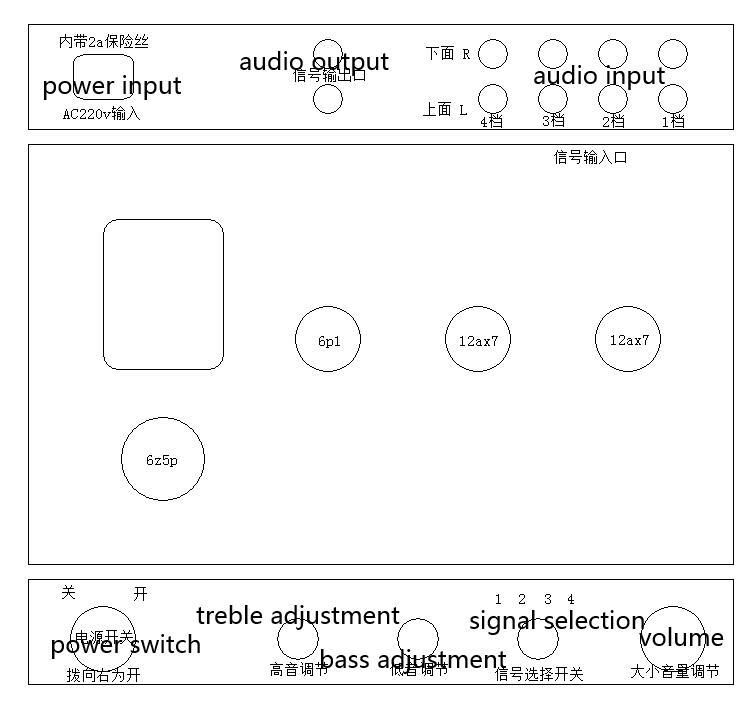

Using 6z5p high-voltage rectification, 6p1 electronic tube as high-voltage stabilizing output, and two 12ax7b amplifiers.
Parameters: Electronic tube: 6z5p * 1 6p1 * 1 12ax7b * 2
Gain: 10dB
Frequency response: 15-35kHz
Signal to noise ratio: 60dB
Harmonic distortion:<3% (1KHz)
Input sensitivity: 1v
Input impedance: 100k
Output impedance: 600 ohms
List：
12AX7 tube preamplifer x 1
