Introduction:

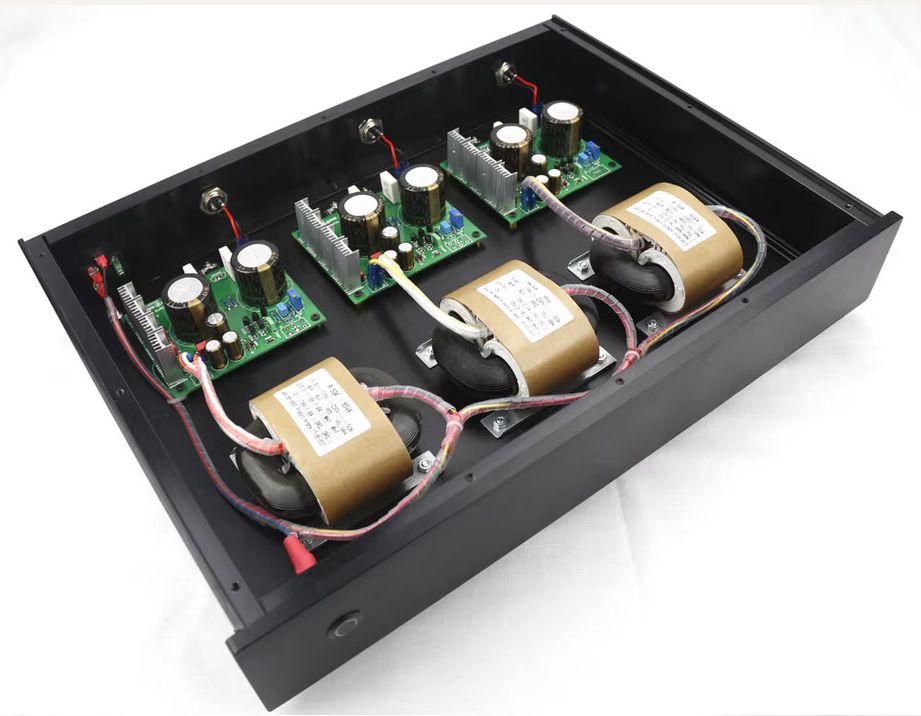

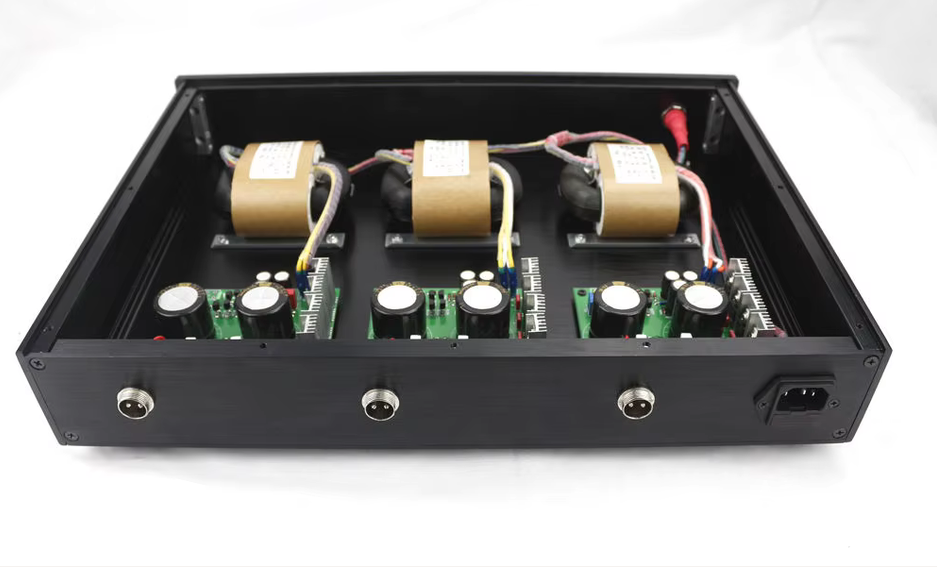

This is a 3 Way completely independent linear power supply module. Independent transformer. A variety of voltage can be combined, high current linear power supply.
Use oxygen-free copper high quality R-core transformer,Full aluminum chassis,Stainless steel power switch.
Using the original MOS regulator IC. The electrolytic capacitors are all Original nichicon.
Parameter:
Input voltage: AC 115V or AC230V (For choose)
Output voltage: 1:DC5V --3.5A 2: DC9V --2.7A 3:DC12V --2.3A
(If you need to customize other voltages and Current parameters, please contact us).
Front panel: Black or Silver for choose (if no message,default will send black front)
Size: Width 430mm * High 70mm * Heep 308mm
Transformer Power : 65VA + 65VA +65VA
Weight: About 9kg
Power polarity: inner"+" external"-"
DC plug size: Outer diameter 5.5mm, internal diameter 2.5mm (If you need other Size DC head, Please contact us)

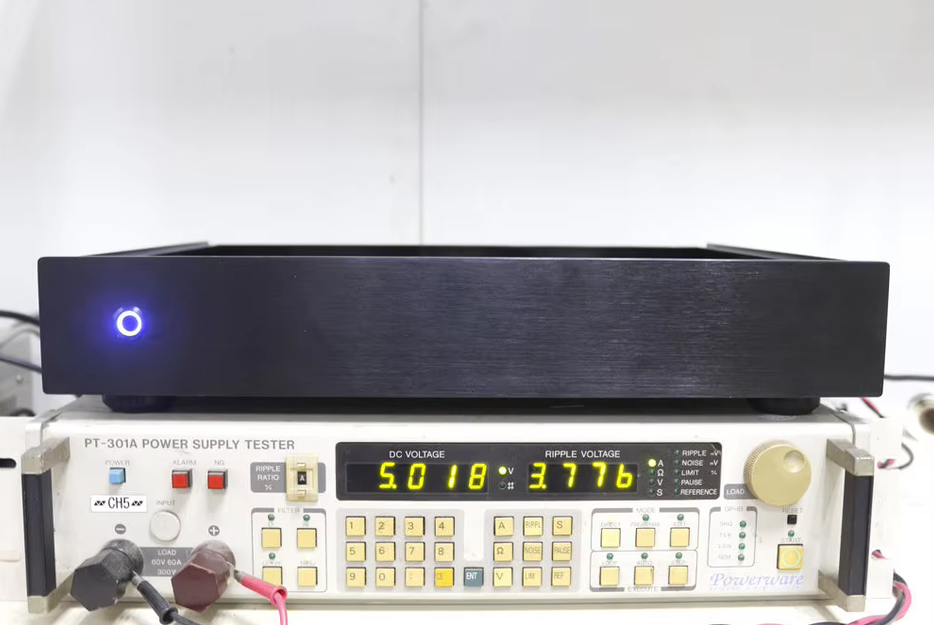

Ripple Coefficient: AP Test HIFI Audio Band 20HZ-20KHZ, 10UV level ( without the influence of wires)
Real ultra low noise Linear Power supply.
The main purpose:
Upgrade XMOS CM6631 TE8802L etc. USB interface DC power supply
Various DC5V power supply set-top boxes, routers and other digital devices
A variety of digital devices such as amp/ DAC/HIFI audio player

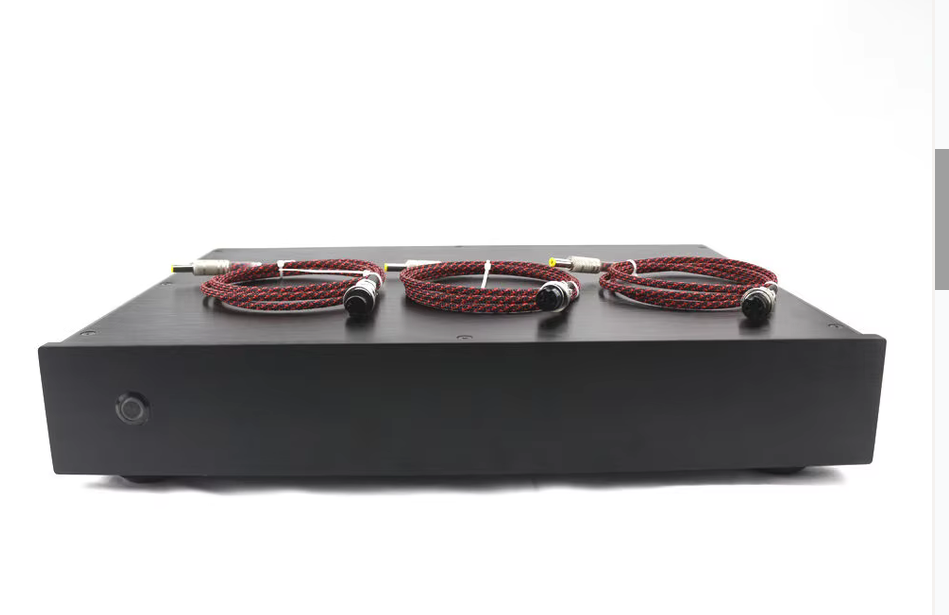

Package include: Finished way S11 linear Power supply X 1
1.2M (5.5*2.5mm) Teflon silver plating output DC cable X 3
NOTE: Default is not include the AC input cable.
