Purchase notes:
1: Please indicate special requirements, otherwise we shall not be responsible for!
2 : Product is borne power amplifier shell, does not contain internal parts.
3:Chassis machine foot hole is not open(Convenience of their own design)
4.a single weight is 2 kg ,the weight after package is 3 kg.
5.Accessories:ordinary botton switch (instead of switch with lamp shown in the picture)
38mm aluminum shell knob
a set of rubber machine feet
power socket(not included the input and output terminal)
Specific structural dimensions:

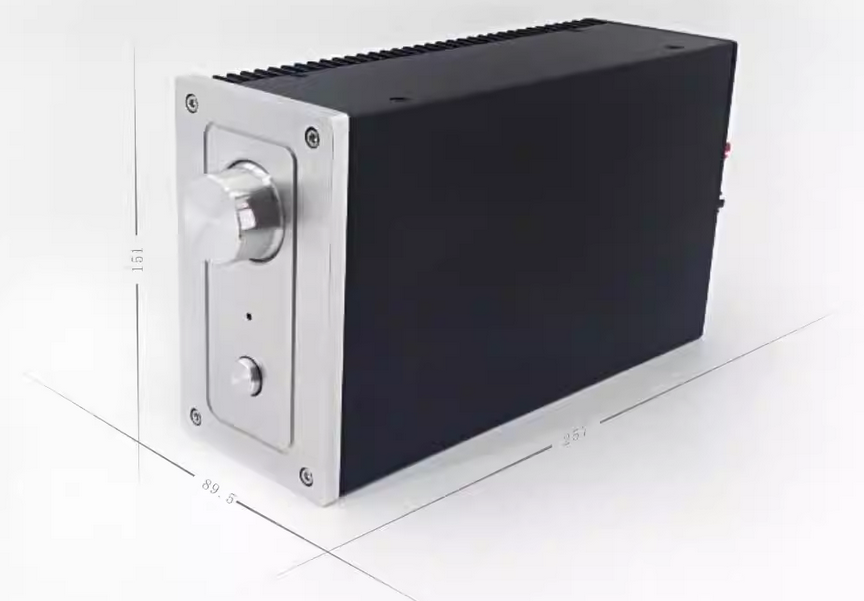

External dimensions: width=90mm Height= 140mm Depth = 257mm
Internal dimensions: Width=62mm Height= 132mm Depth = 246mm
the front panel:thickness=8mm
the rear panel:thickness=3mm
the right side panel:thickness=3mm
the cover panel:thickness=4mm
the floor panel:thickness=4mm
the left side is a radiator,the size :height=140mm,lenght=246mm,thickness=25mm

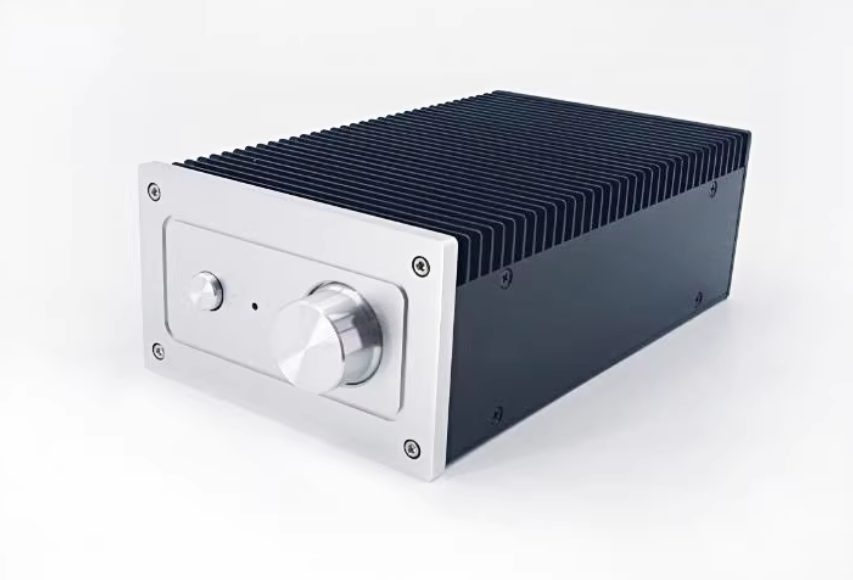

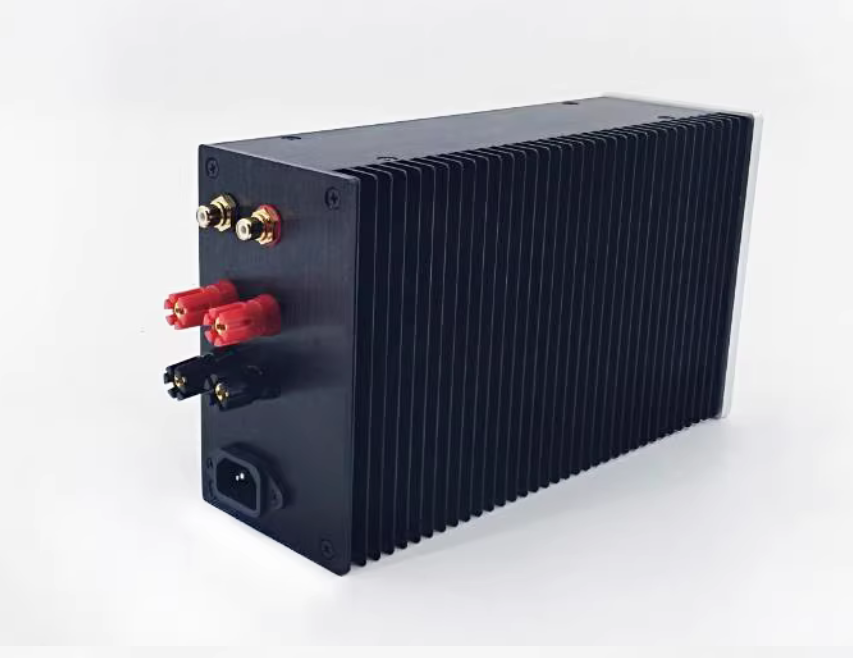

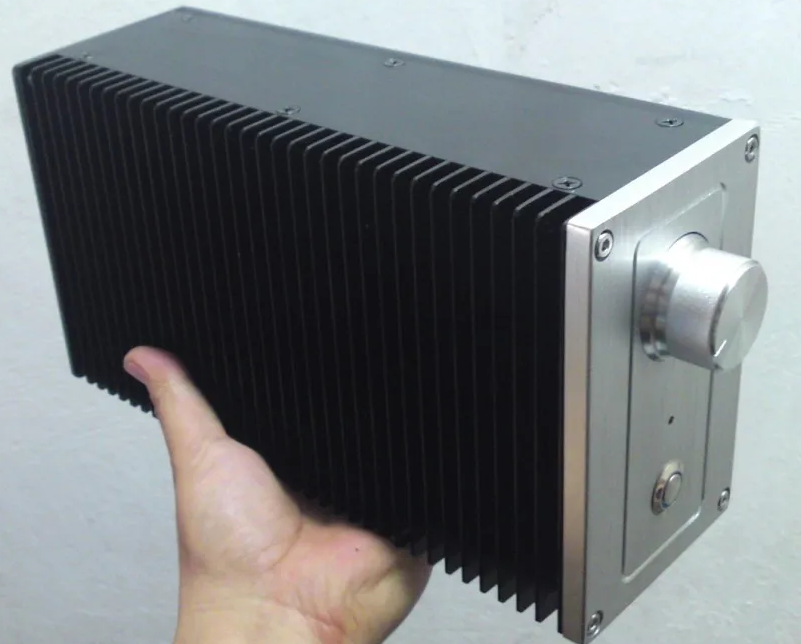

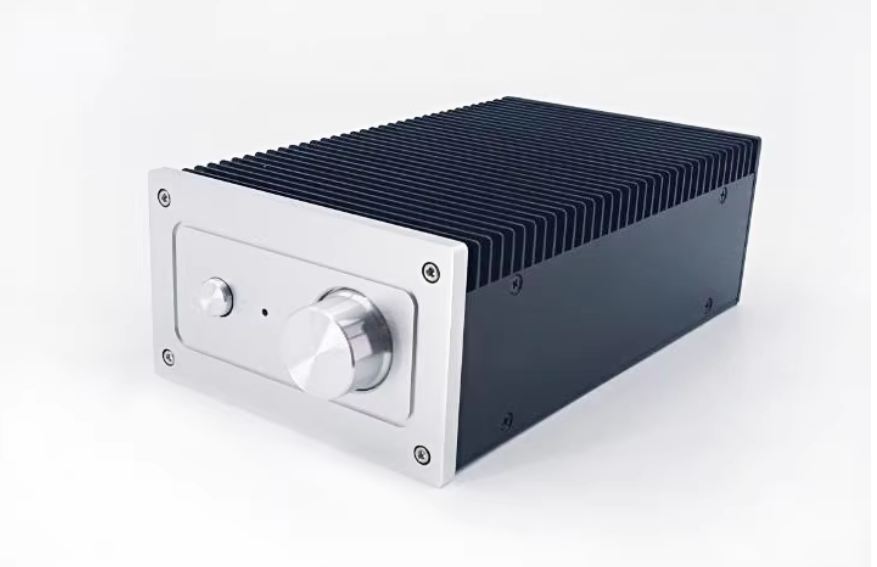

the picture
