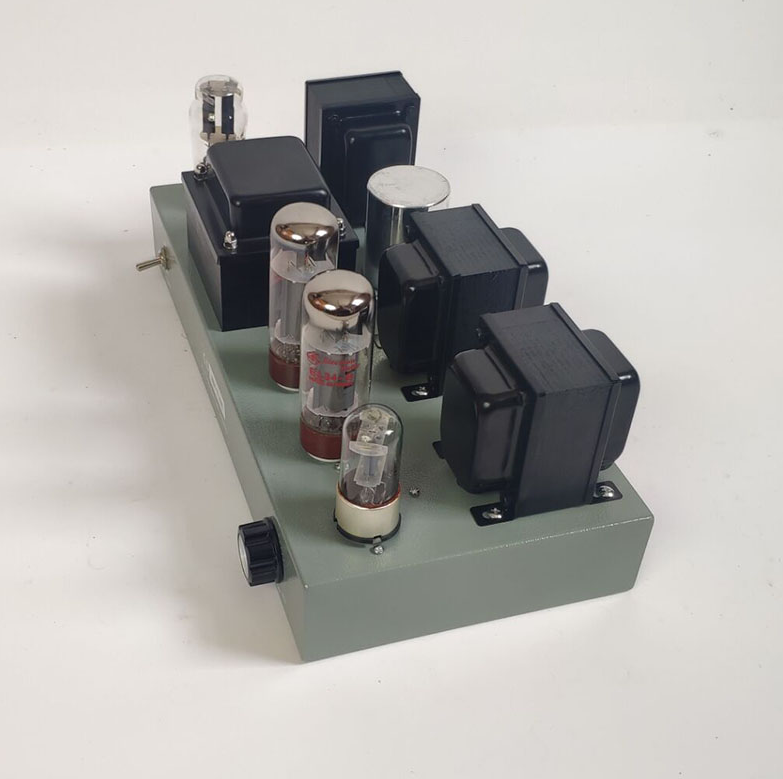

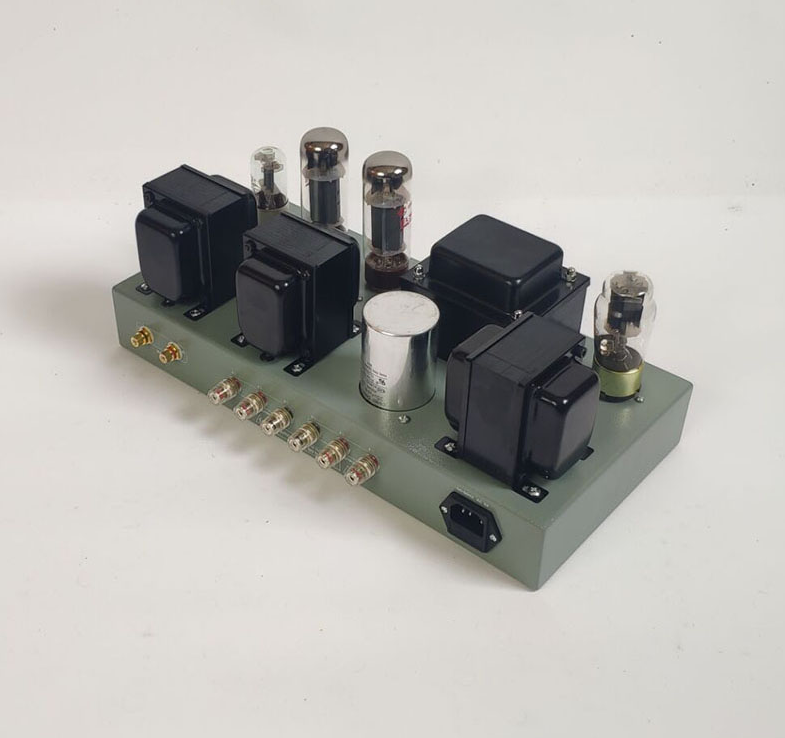

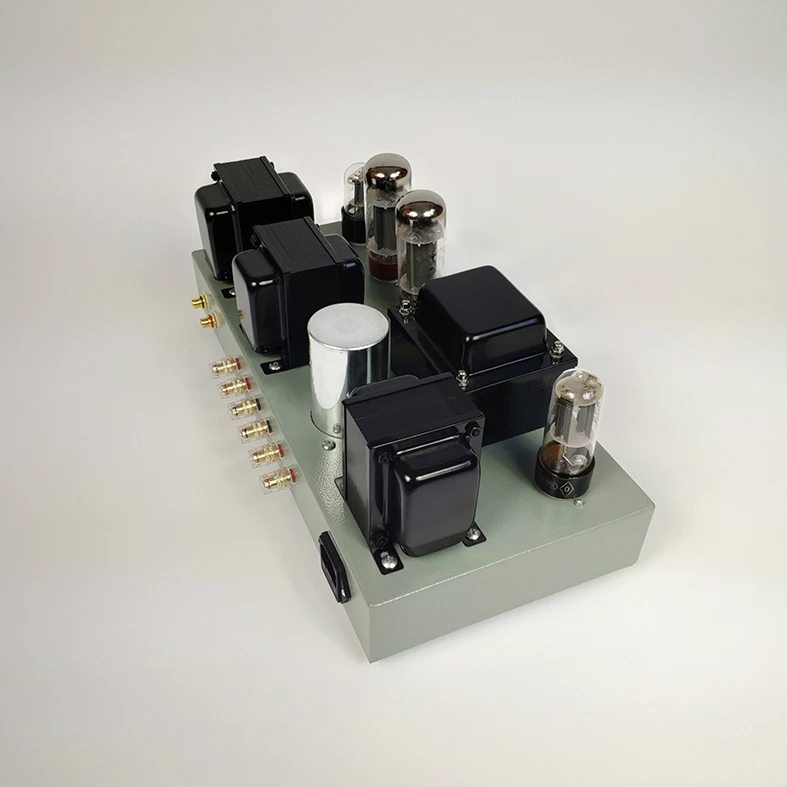

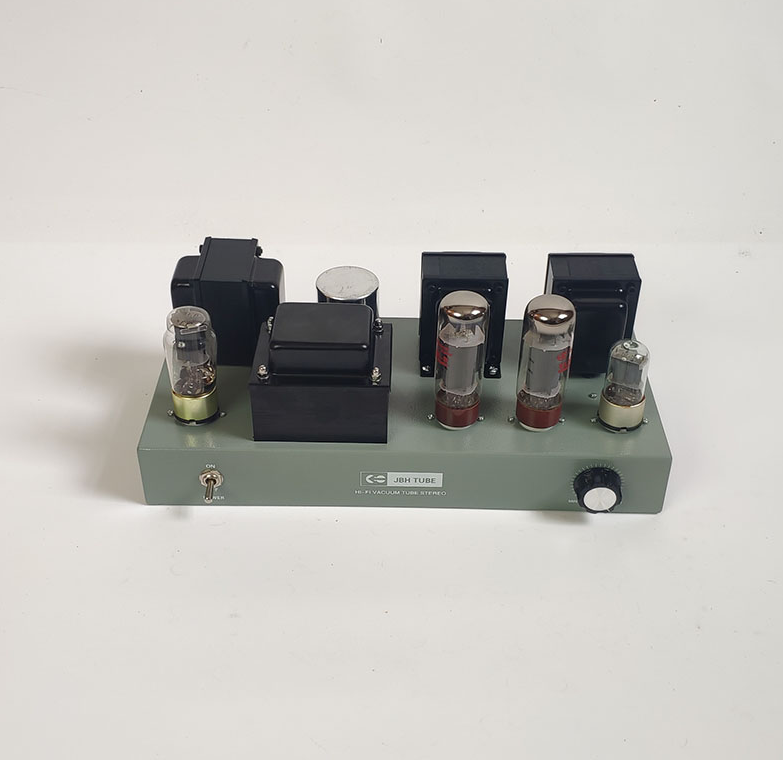

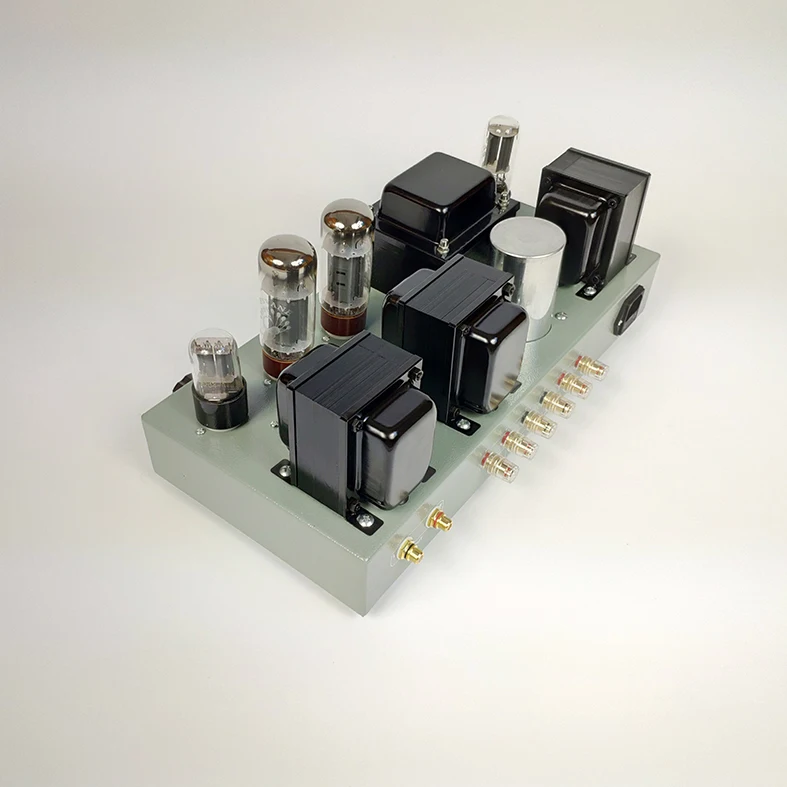

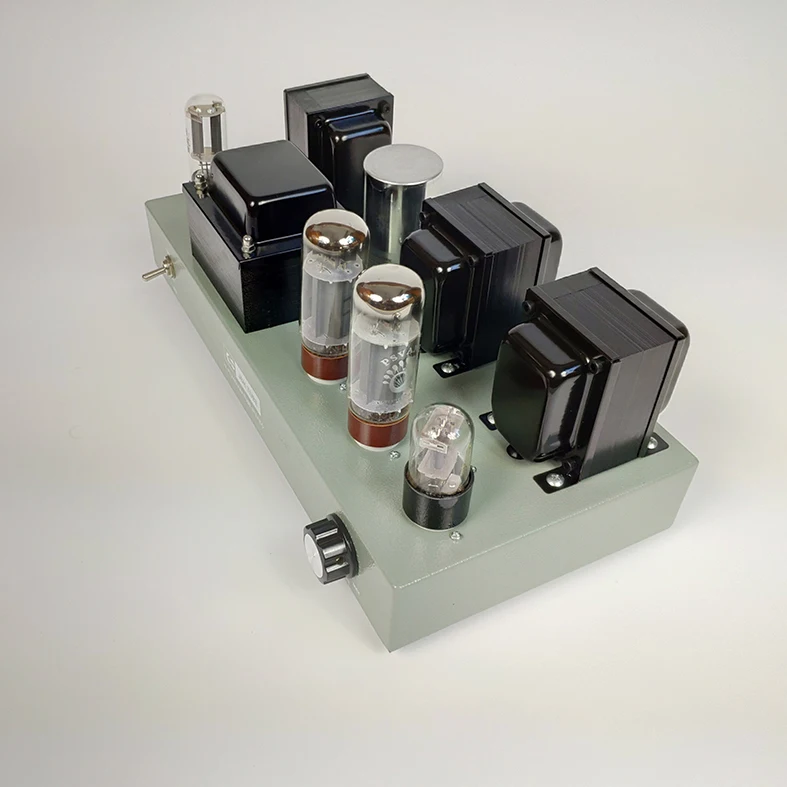

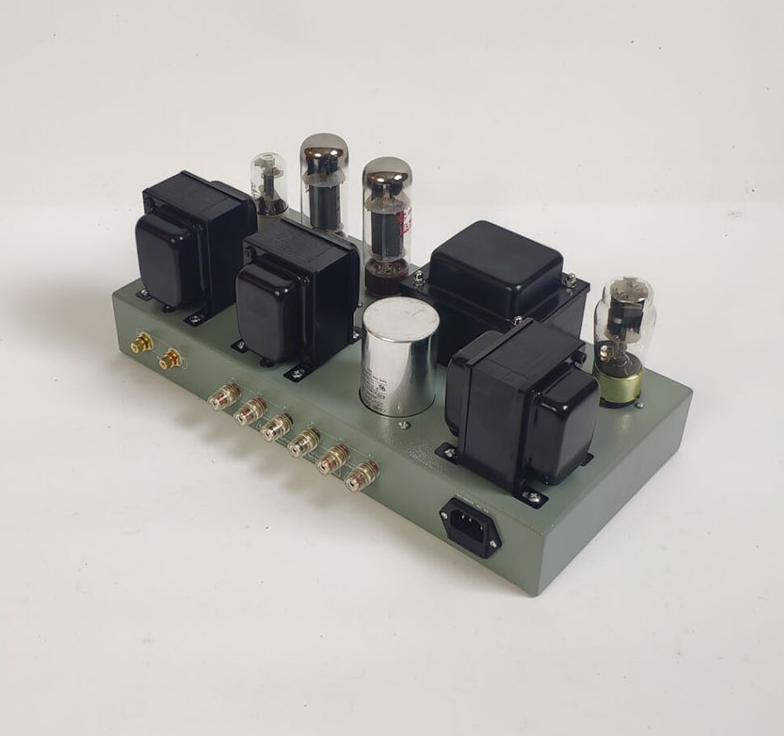

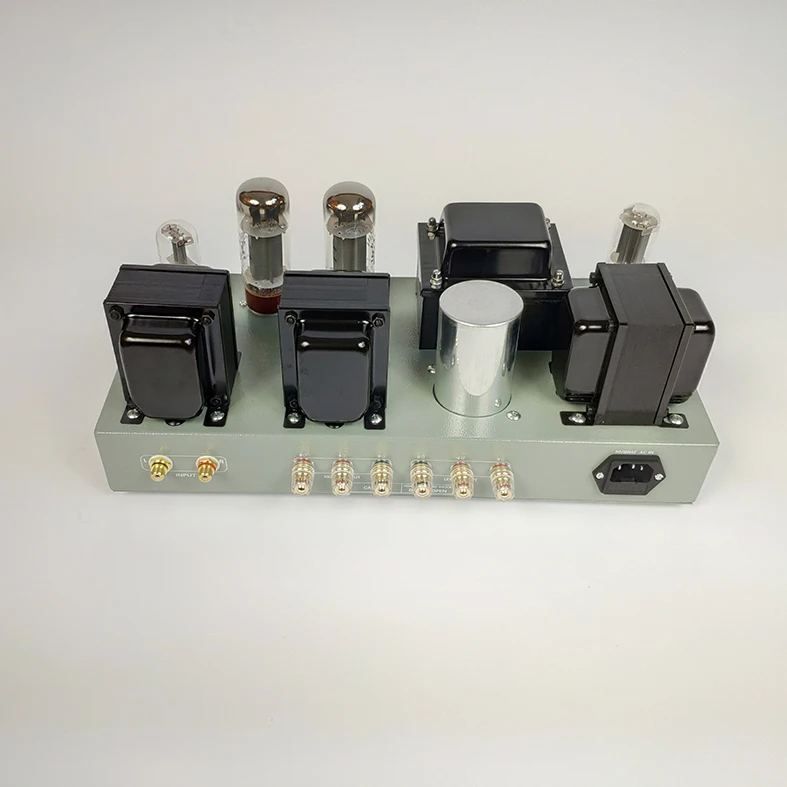

Finished HiFi EL34 6N9P Vacuum Tube Amplifier Class A Single-ended Stereo Power Amplifier
Product details:
6N9P is used for preamp voltage amplification The characteristics of this electronic tube amplifier circuit are: high speed and low distortion, small coupling capacitance, small phase shift, fast response, low distortion, large dynamics, good stability, which can faithfully amplify the wide range signal of CD players and reproduce the natural sound field space..
Attention: When using an electronic tube amplifier, it is necessary to connect the speaker properly, otherwise it is easy to burn out the transformer or electronic tube.
Electronic tube amplifiers need to be equipped with speakers with a sensitivity of over 90dB and a bass pitch of 6.5 inches or more to achieve their sound effects.

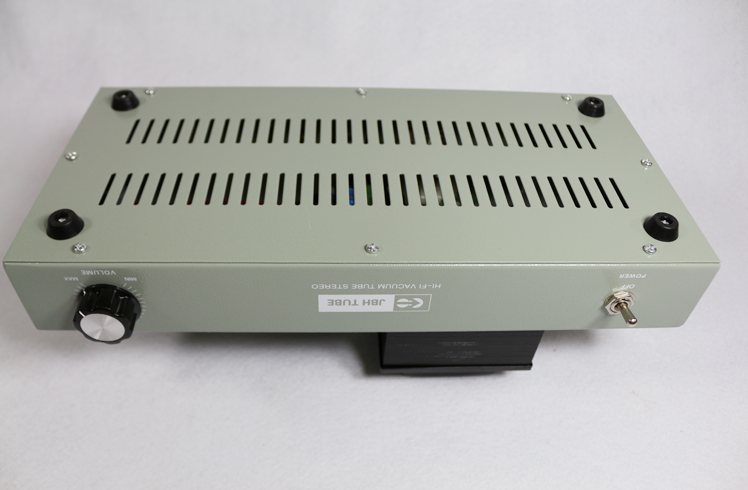

This amplifier adopts a 1.2mm iron plate CNC stamped chassis.
Fully handmade shed welding.
Original ALPS potentiometer from Japan.
Newly imported 0.33uf capacitor for coupling.
Equipped with Dawn 5z4p 6n9p, EL34 electron tube.
Gold plated crystal terminal post.
Product parameters
Output power: 8W × 2
Harmonic distortion: ≤ 1%
Signal to noise ratio: ≥ 89dB
Input sensitivity: 600mV-2V
Input impedance: 100K Ω (stereo input)
Output impedance: 4 Ω 8 Ω
Frequency response: 20Hz-26KHz
Distortion rate: ≤ 0.5% (1kHz)
Rectifiers: 5u4c
Voltage amplifying electronic tube: 6h9c
Power amplifier tube: EL34-B
Power Transformer: 96 * 50 (160W)
Output transformer: 76 * 40 (4-cap 3-winding method)
Choke coil: (5H) 76 * 40
Input voltage: AC110V/220V
Weight: 12KG
Size: Length 38cm, Width 17cm, Height 16cm, including tubes
Packing list
1× Tube Amplifier
