Product Details:
Reference to the Japanese Technica circuit
All aluminum chassis
US CMC pure copper input terminals, resistance to plug, contact resistance is very low
Machine layout is reasonable, the material is very appropriate

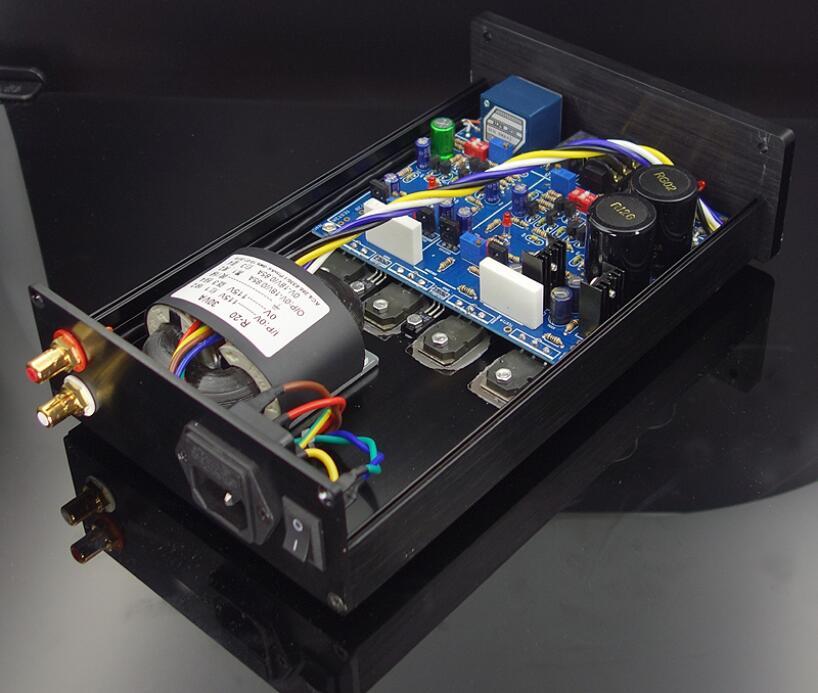

Low leakage magnetic sound dedicated R type oxygenless copper transformer

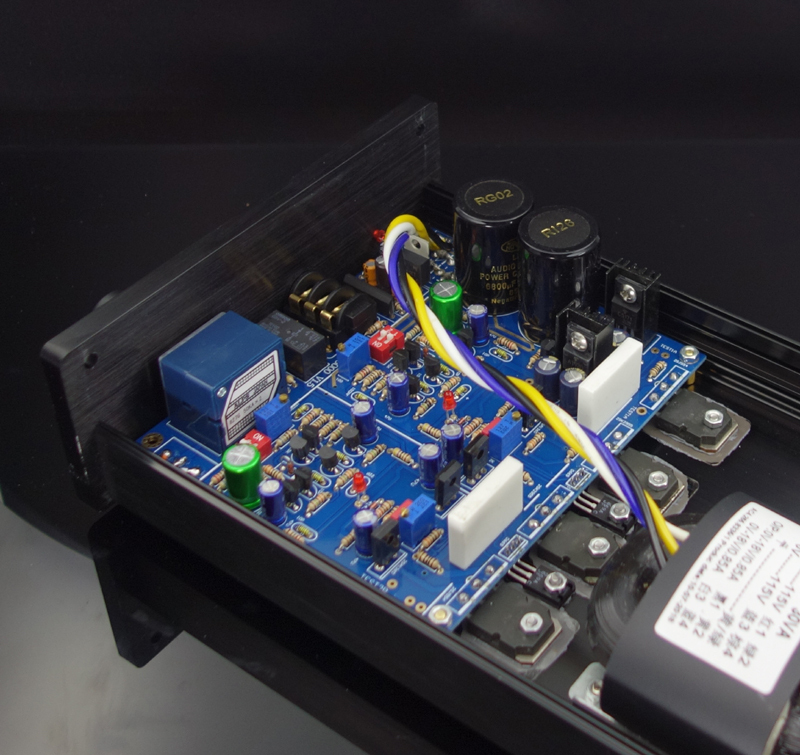

The core output of four high-power field-effect transistor, drive the general headset is very good, low-frequency jump full
Japan Omron relay protection circuit, so that headphones work in the safest state
Original genuine Swiss Neutrik 6.35 gold-plated headphone jack

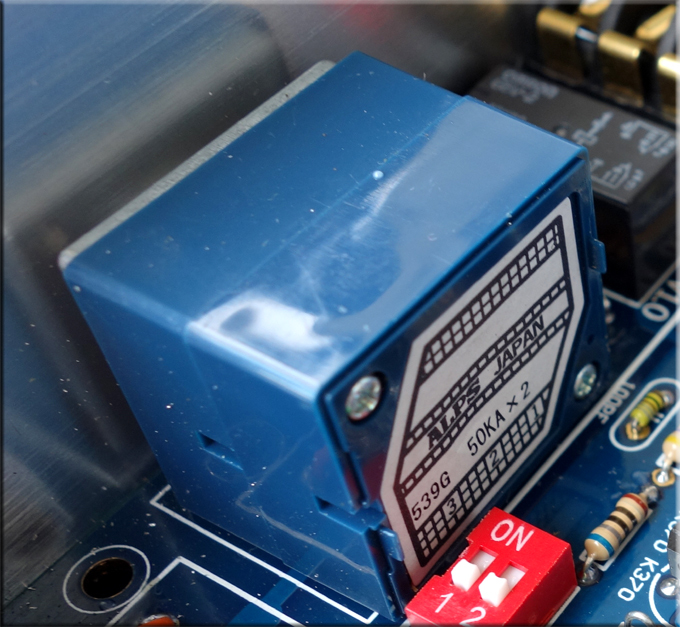

Japan ALPS27 potentiometer
British NOVER gold filter capacitor
Specifications:
Amplifier Type: Fully Separated Class A Amplifier
Power supply voltage: AC115V or AC230V
Output impedance: 400mW / 300ohm 1200mw / 32ohm
Input impedance: 47KOhm
Frequency characteristics: 10Hz - 35kHz
Signal ratio for noise:> 90dB @ Gain 6dB
Output impedance: circuit output 0.2 Ohms
Load range: 16 - 600 ohms

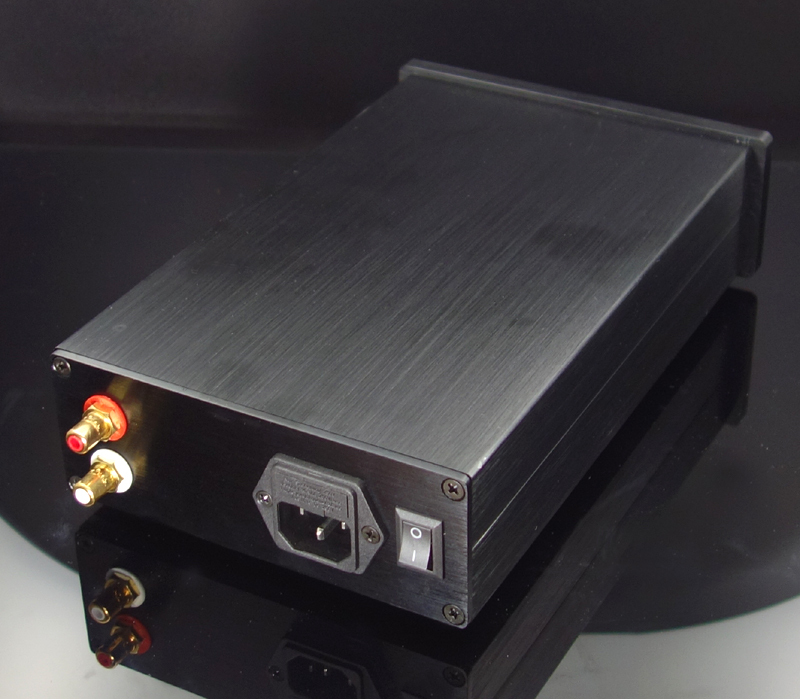

Input: RCA input

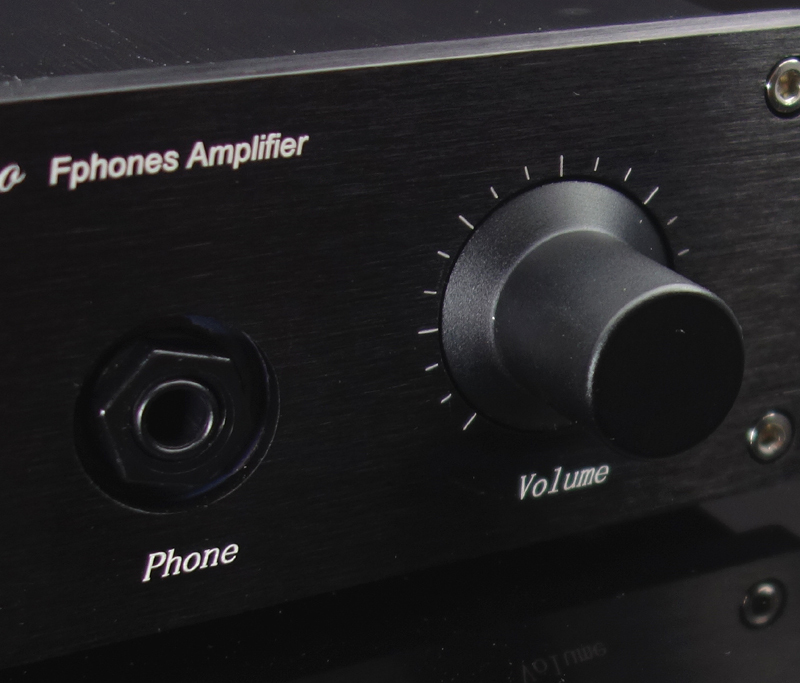

Output: 6.35 headphone jack
Dimensions (W*H*D): 155*60*261MM
Net weight: about 1.73KG
Package list:
1 × Finished headphone amplifier
