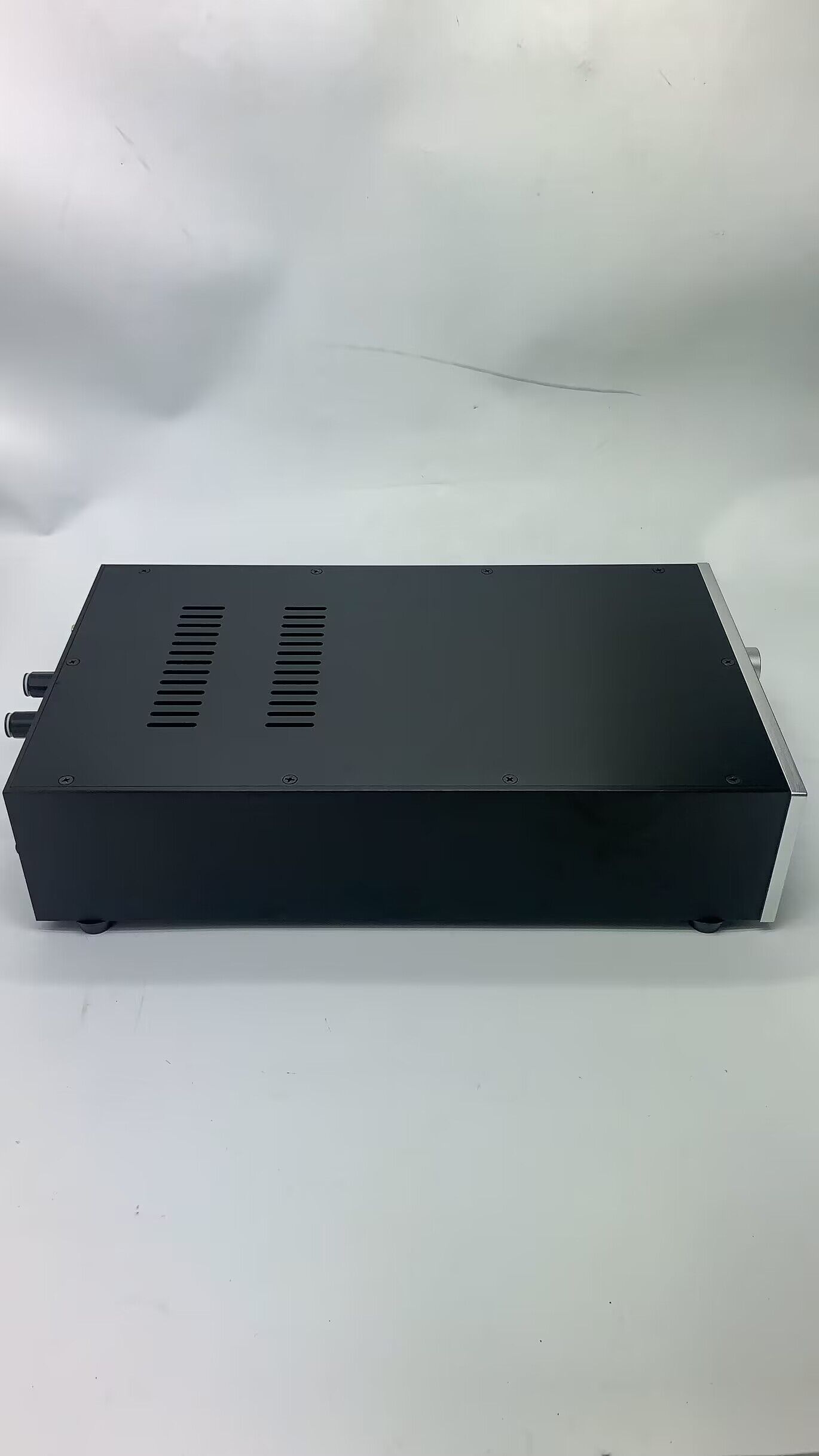

Finished IRAUD350 HIFI High Power Class D Digital 200W×2 Dual Channel Pure Post Power Amplifier

Product Details:


① There are perfect protection functions, including over-current protection, short-circuit protection, over-temperature protection and over-voltage protection.

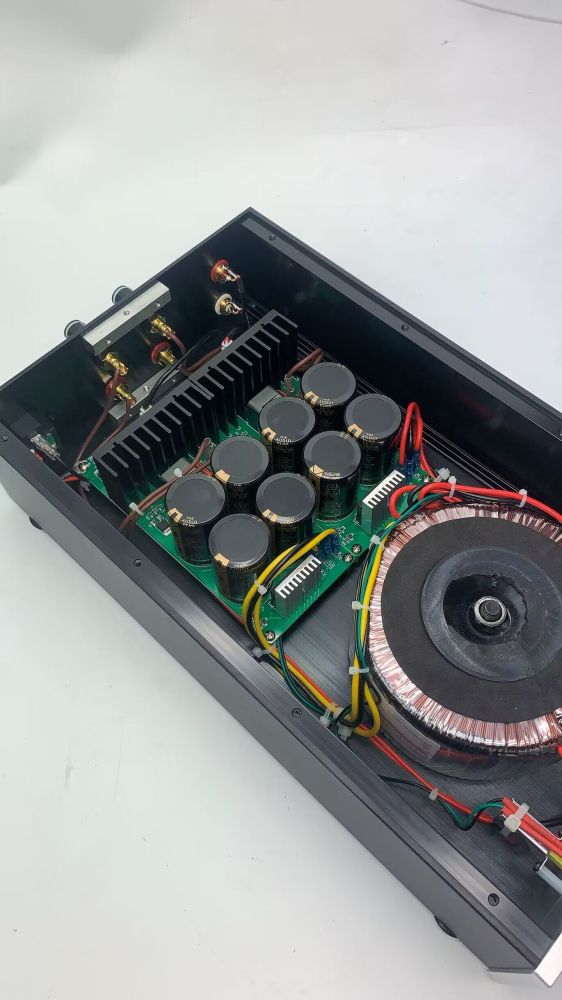

② Use 400W toroidal transformer.

③ Utilizes the IRS2092S Class D power amplifier chip and 23N15D digital amp professional field effect transistor produced by American International Rectifier, which makes the amplifier have more output power and less distortion. The maximum undistorted output power can be achieved at maximum 200W. /8 ohm 400W/4 ohm, small size and high power!

④ The reversed-phase snubber circuit makes the power amplifier amplified in normal phase, and it also improves the input resistance of the entire circuit and can better match the impedance of the preamp.

Specifications:


Operating voltage range: AC200-240V

Maximum output power: 200W/8Ω, distortion <0.1%
400W/4Ω, distortion <0.1%

Voltage magnification: 36 times

Input sensitivity: 1.6V (effective value)

Input impedance: 47KΩ

Frequency Response: 0-50KHz ±1dB 10W/8Ω

Residual noise voltage: 200uV

Dynamic Range: >100dB

Package Included:


1 × IRAUD350 Finished amplifier
