Product introduction:

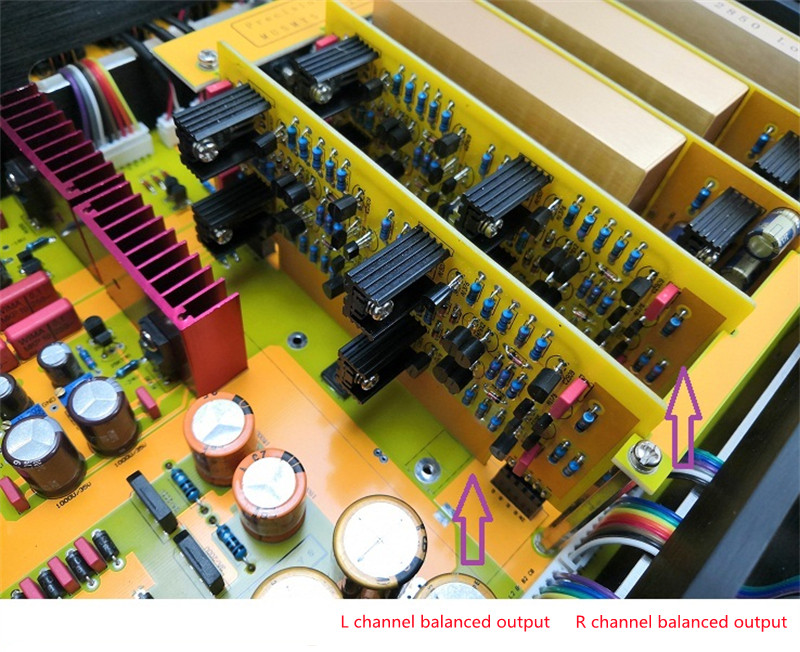

1: Equipped with 2 groups of line amplifiers and 4 channels of balanced amplifiers to complete the independent balanced output of each channel (+-) bridge arm, without interfering with each other, so that the sound positioning is accurate and no erratic.

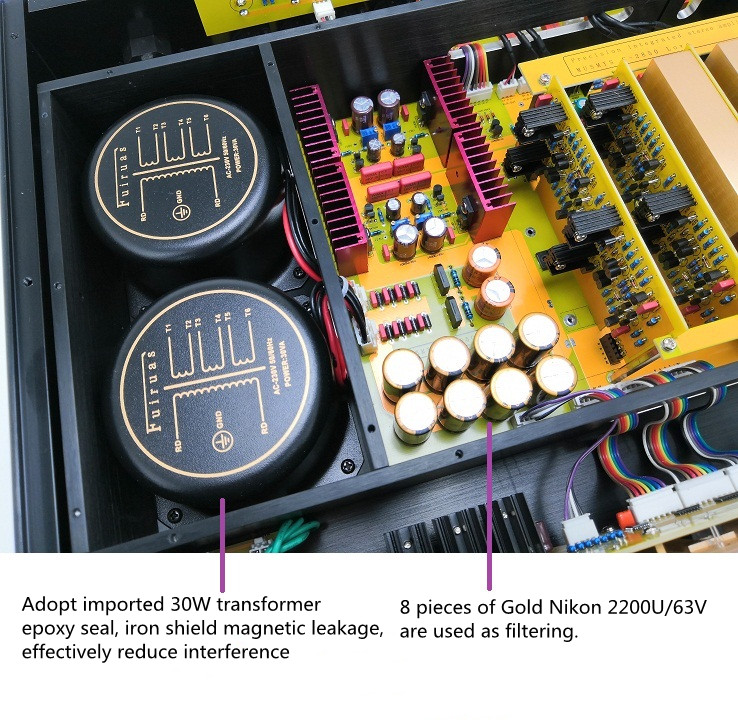

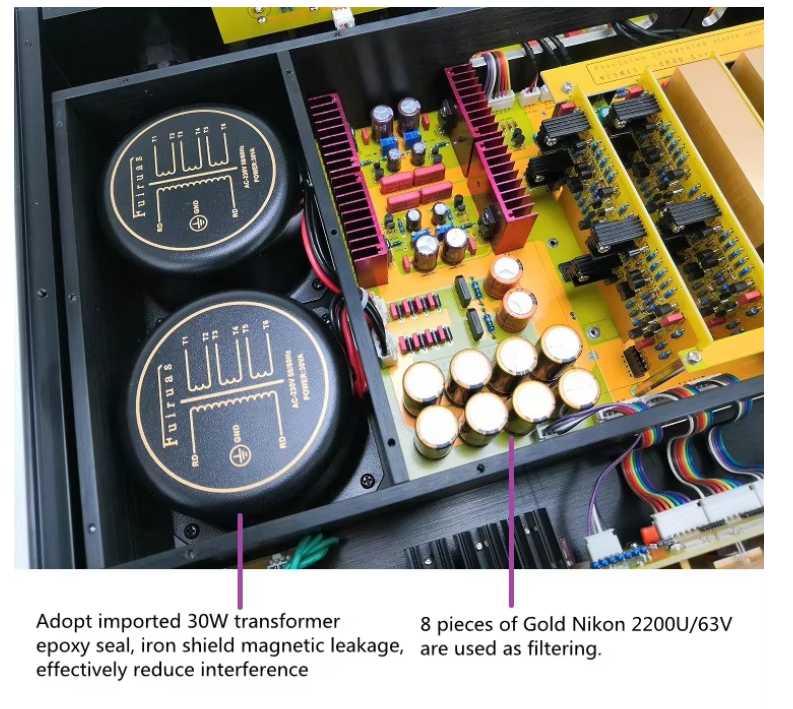

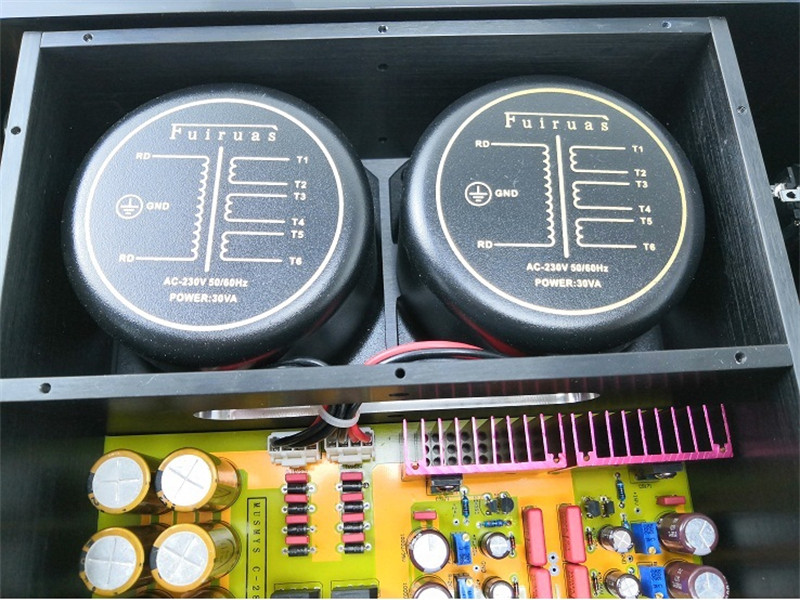

2: The use of two imported EI cow transformers can make the sound delicate and warm, which is not what a toroidal transformer can provide. It is shielded by a Fuiruas cow cover and sealed with epoxy.

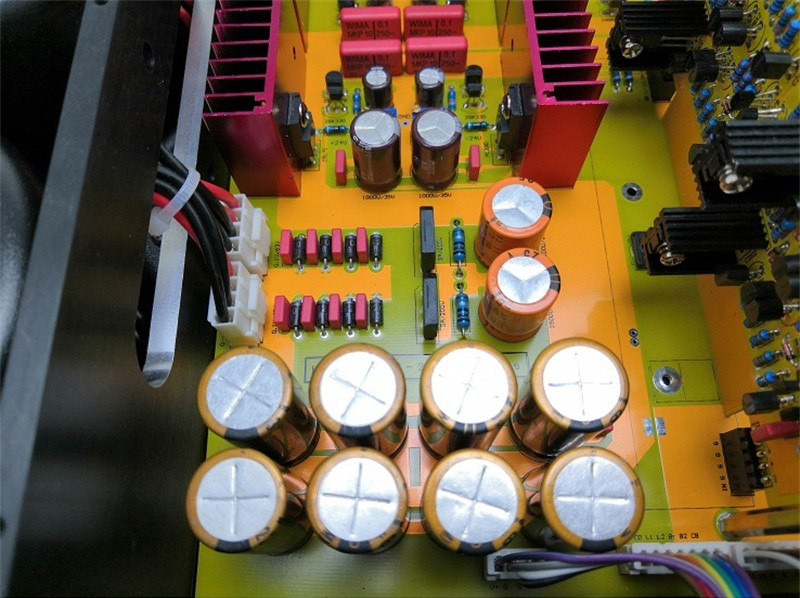

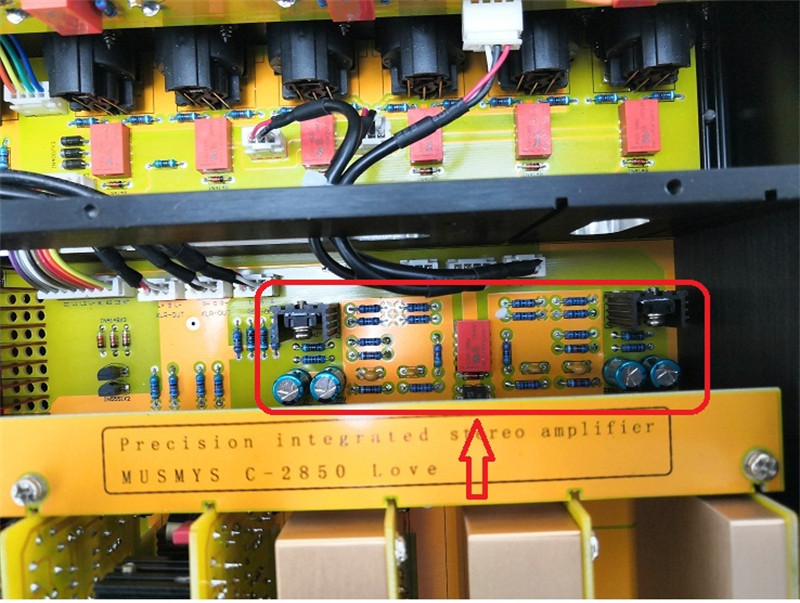

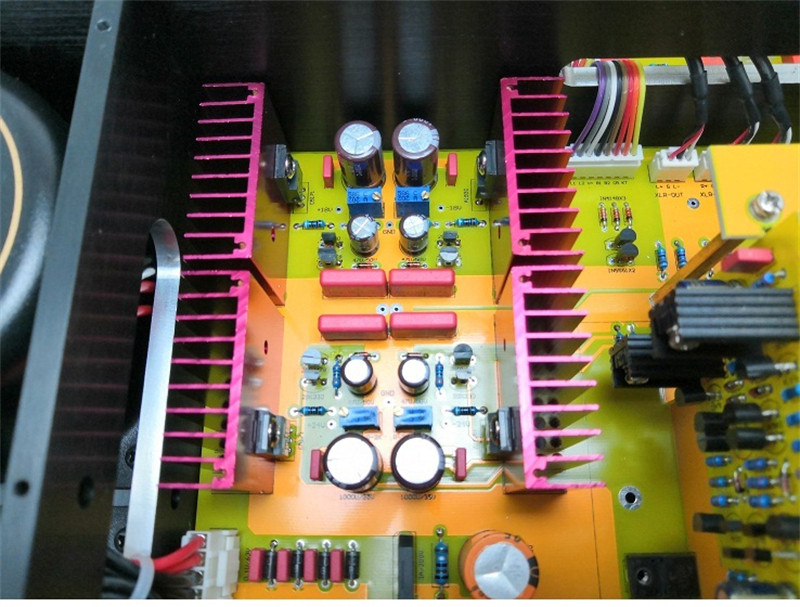

3: Use 2 sets of independent Class A regulated power supply for power supply, supplemented by large radiator as heat dissipation, differential control, Zener diode as the benchmark, field effect tube as constant current, and medium power tube to complete the current output to achieve pure water healthy and stable power supply.

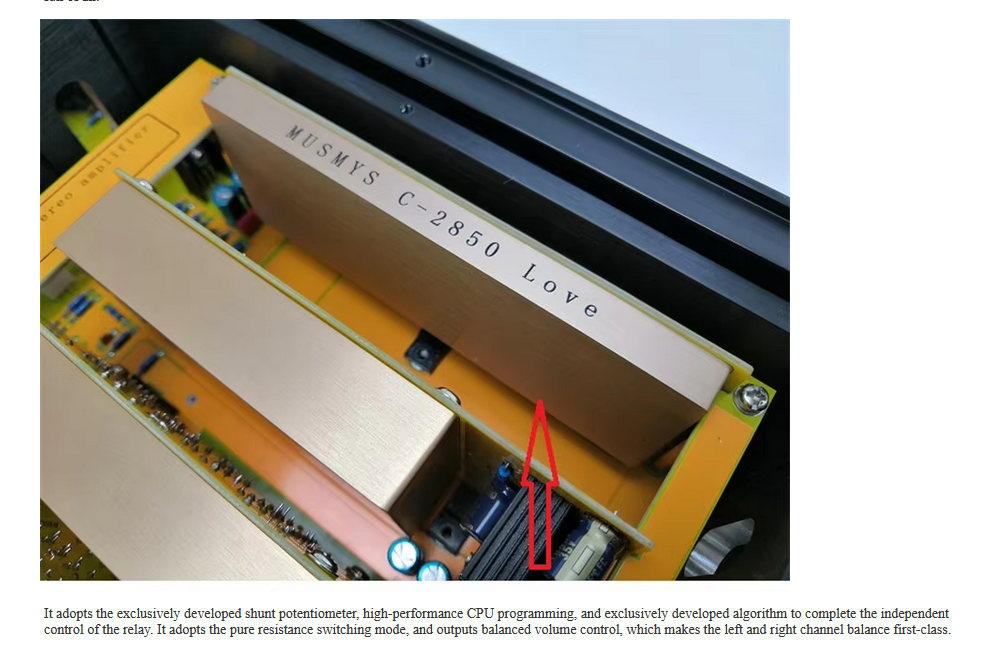

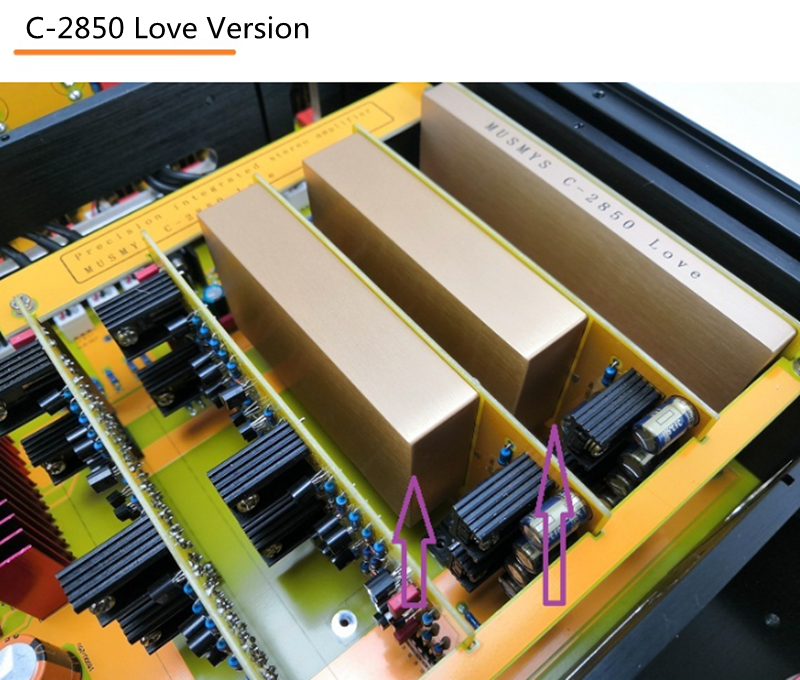

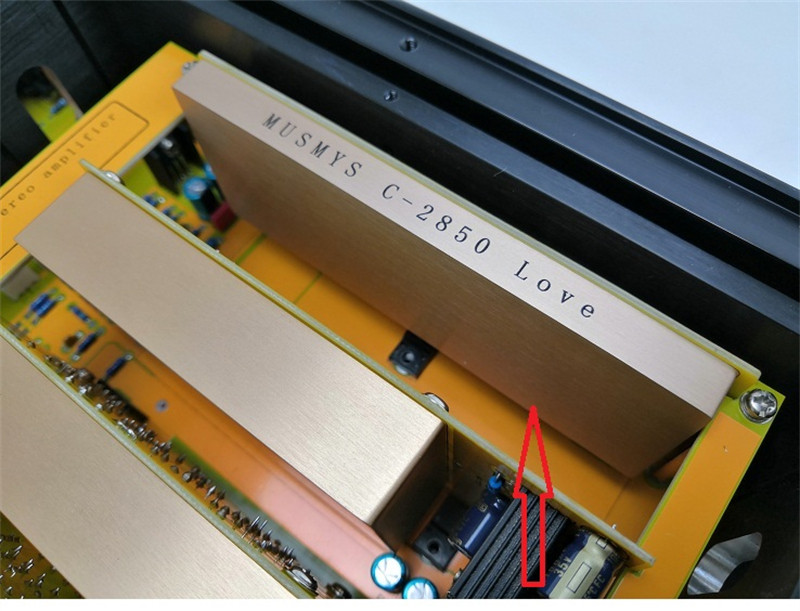

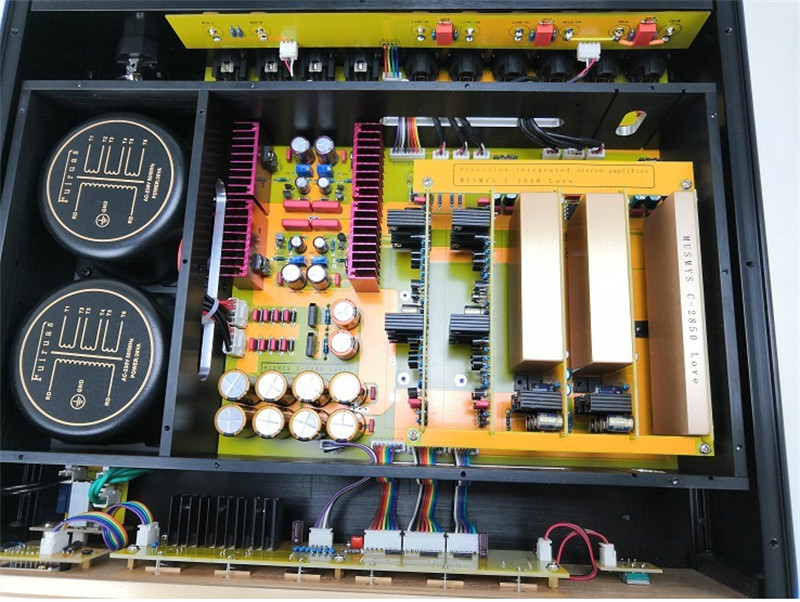

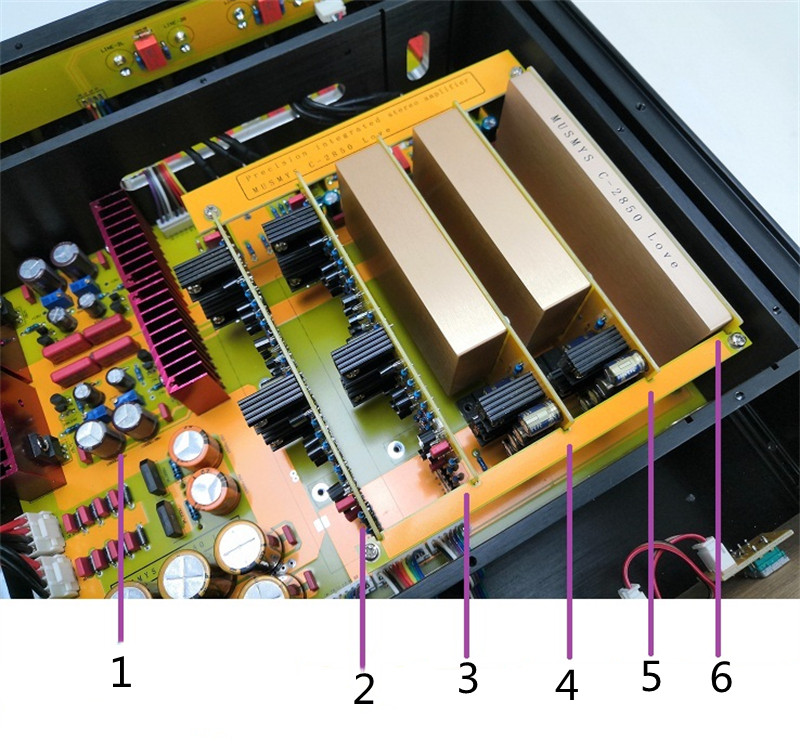

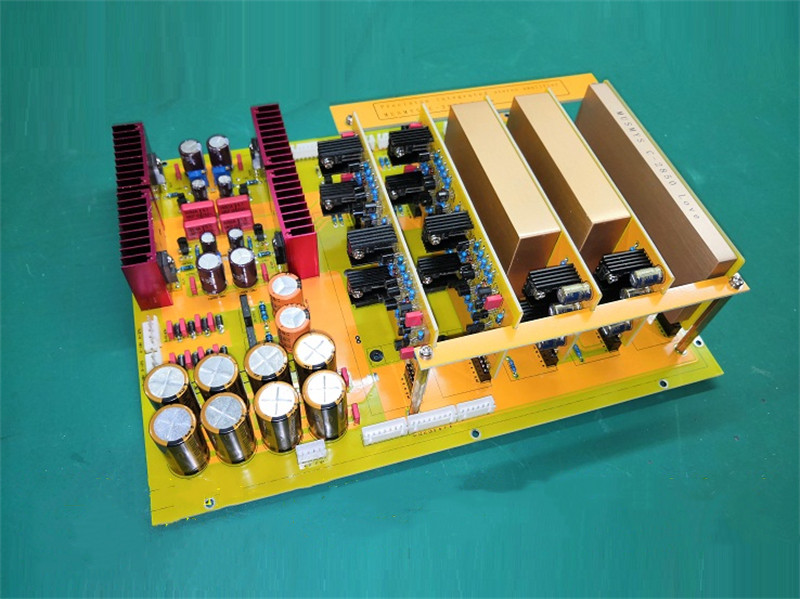

4: The modular design is adopted, and the aluminum alloy cover is used for shielding to reduce signal interference, make the sound purer, and improve the overall performance of the unit.

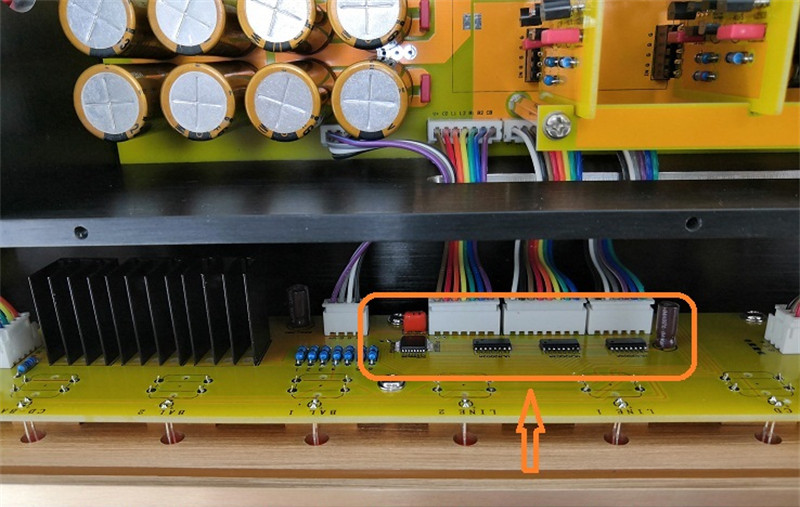

5: It adopts the exclusively developed shunt potentiometer, high-performance CPU programming, and exclusively developed algorithm to complete the independent control of the relay. It adopts the pure resistance switching mode, and outputs balanced volume control, which makes the left and right channel balance first-class.
6: Completely symmetrical amplifier circuit, unique and stable circuit design, using strictly tested and paired components, can make the sound more natural, durable, wider sound field, and darker background.

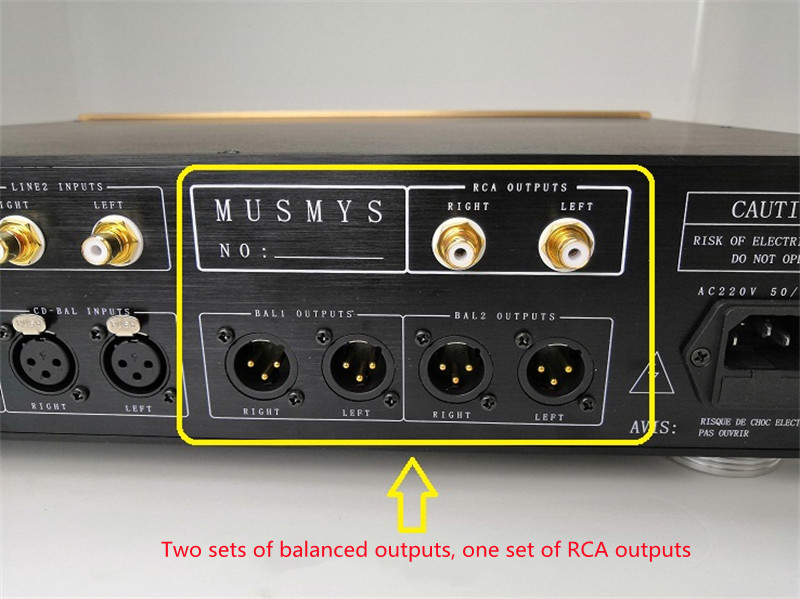

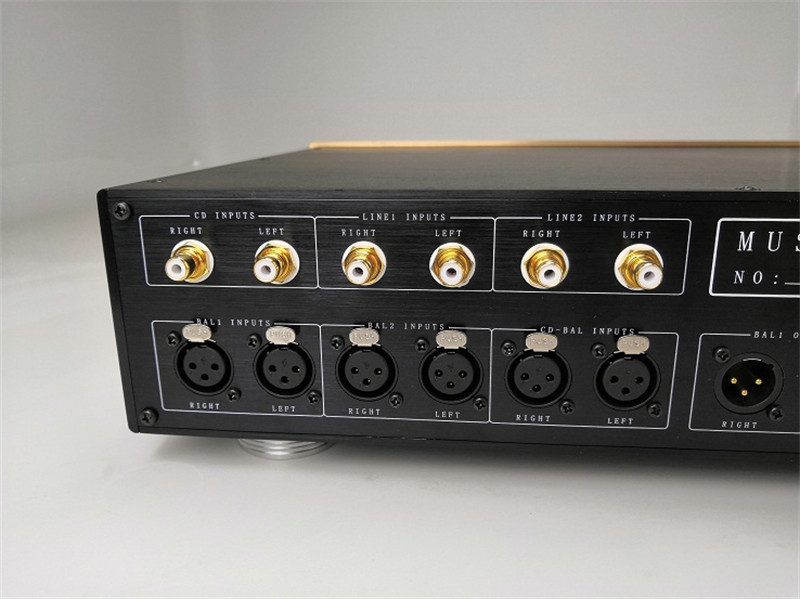

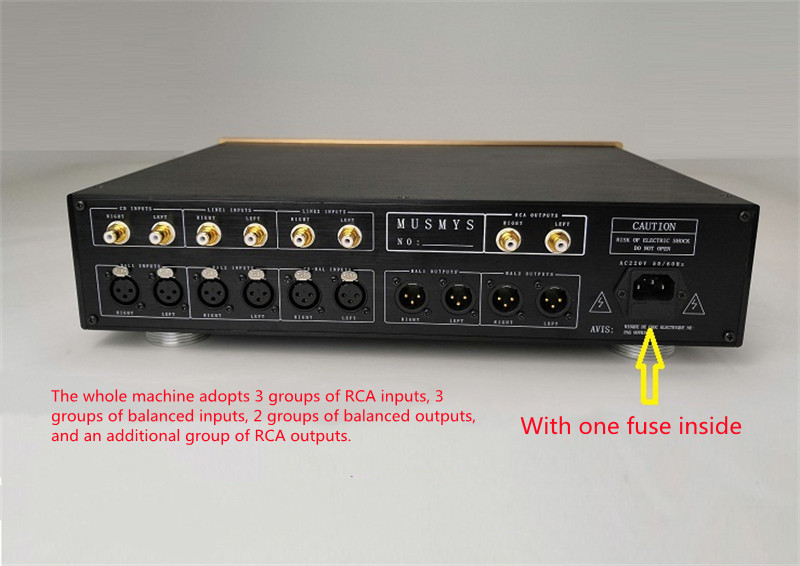

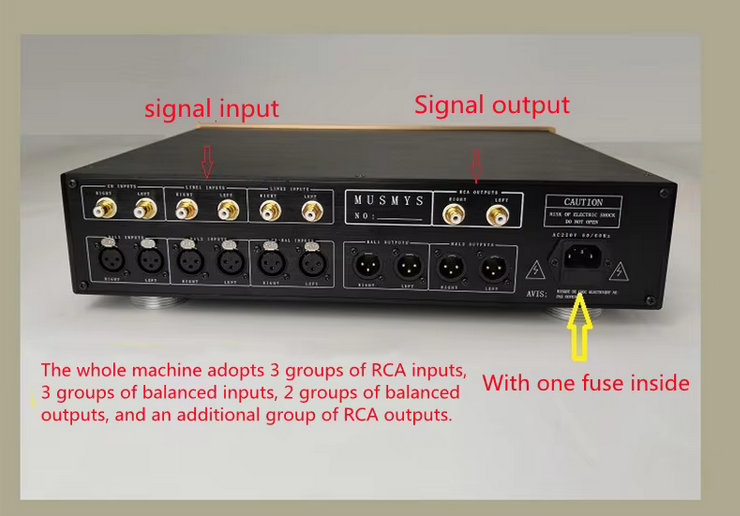

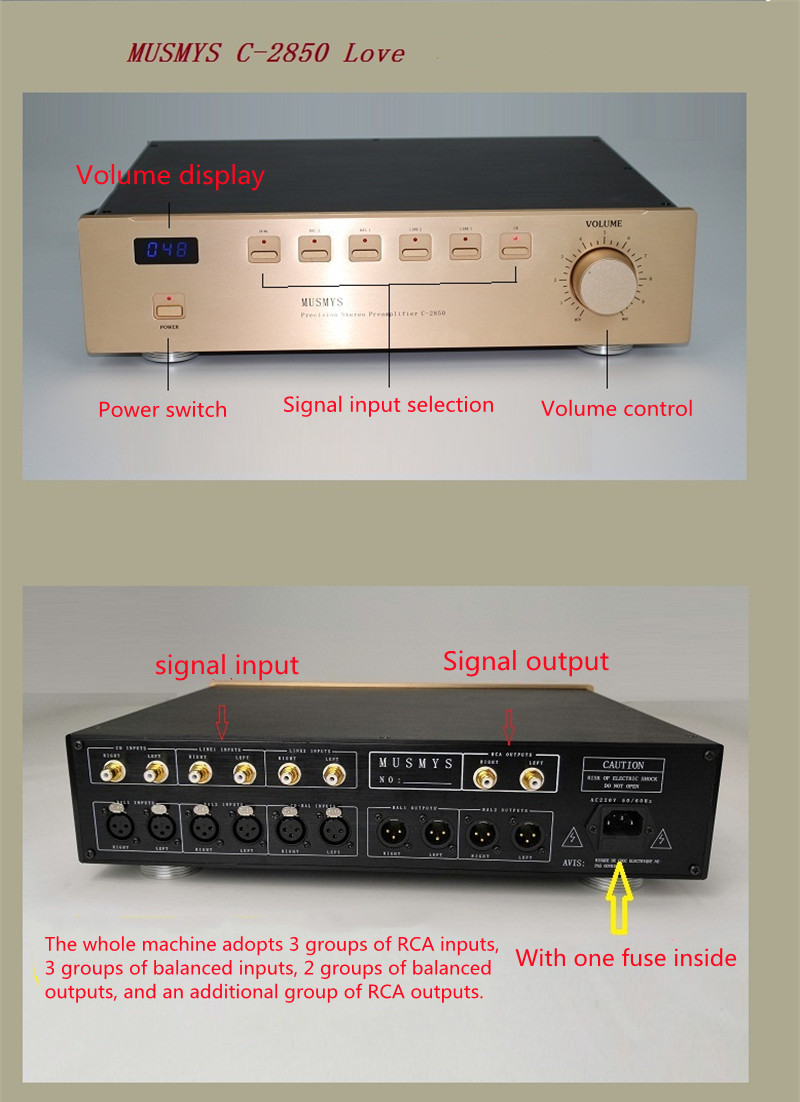

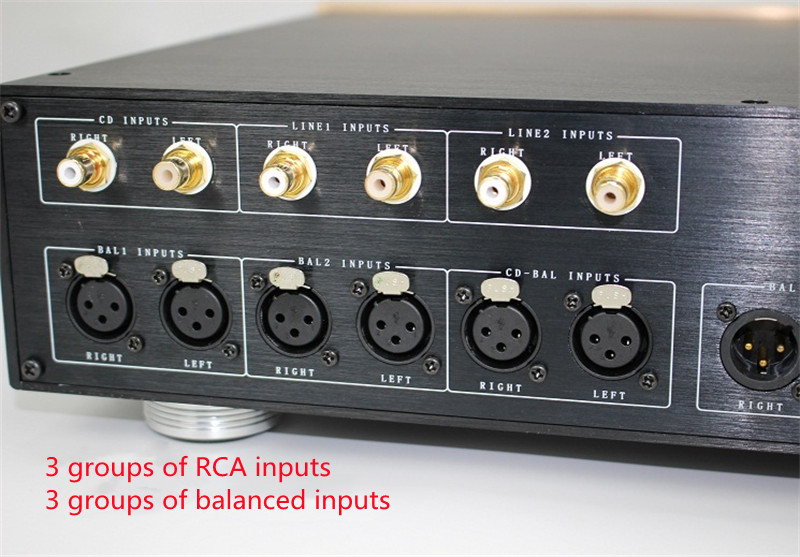

7: 6 groups of inputs (3 groups of RCA, 3 groups of balanced), 2 groups of fully balanced outputs, and one group of RCA outputs are used to ensure the high quality of the sound, so when using this preamp, your amplifier must have a balanced input interface in order to for the best sound.

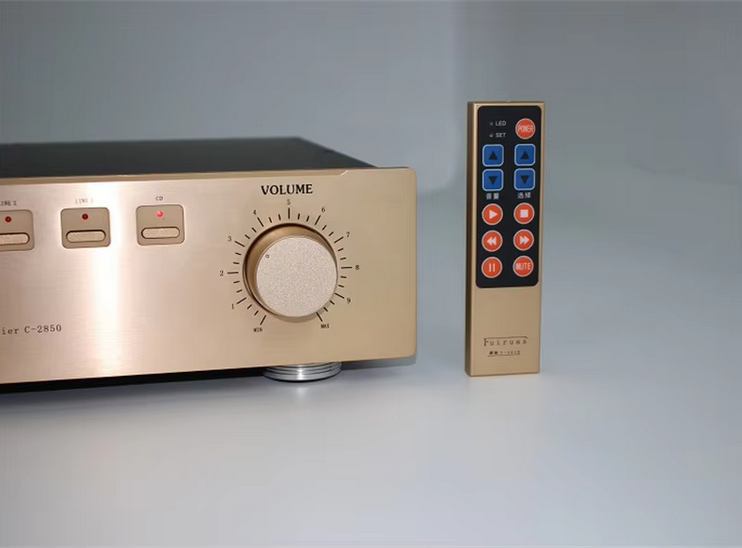

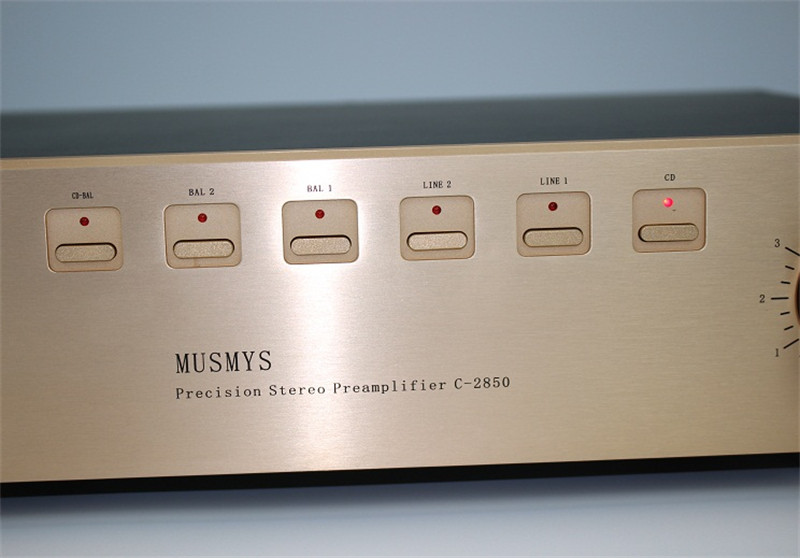

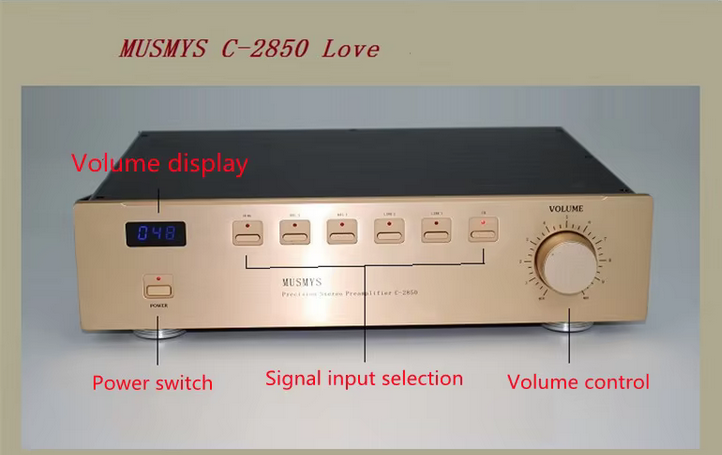

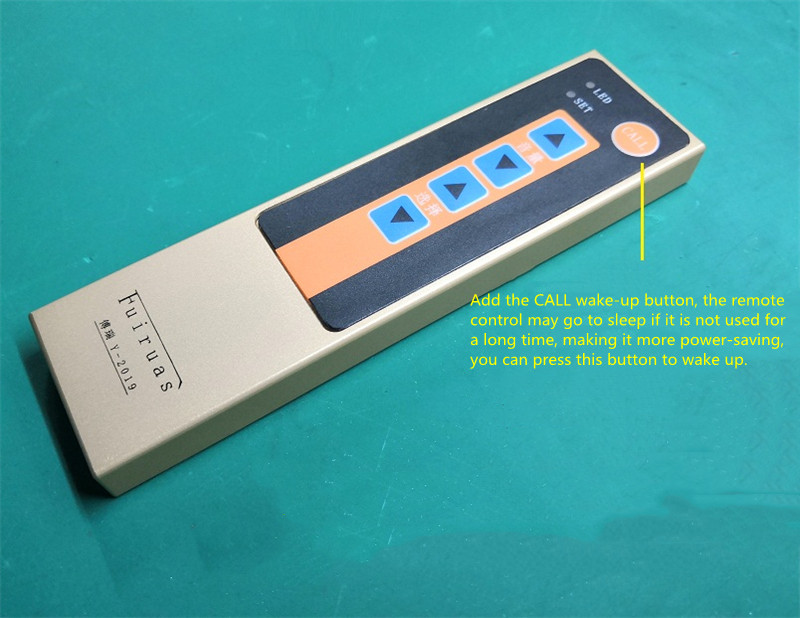

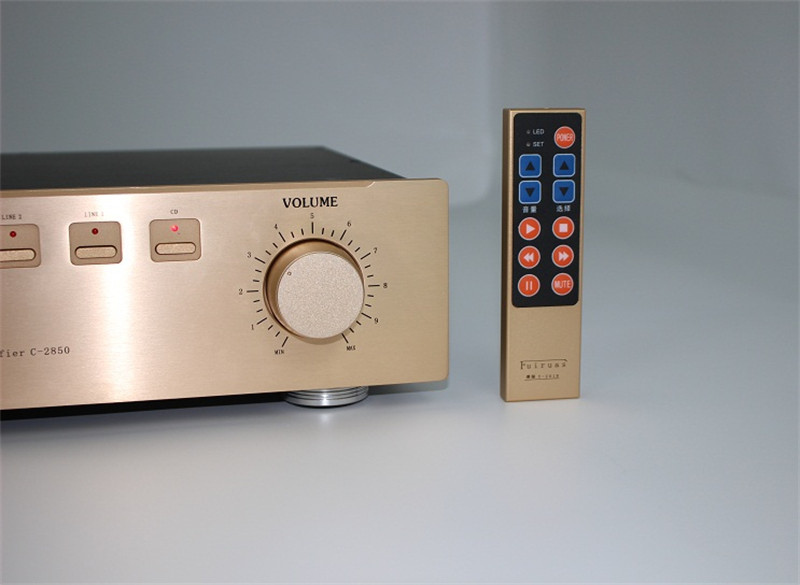

8: The remote control design is adopted, except that the power switch cannot be remotely controlled, the volume and six groups of input switching can be remotely controlled. People-oriented, with an all-aluminum remote control, it has a first-class feel.

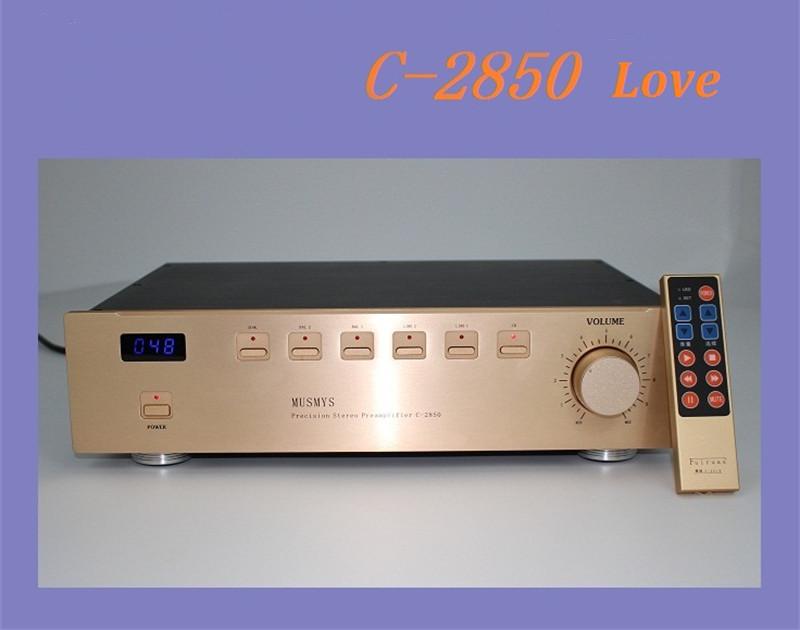

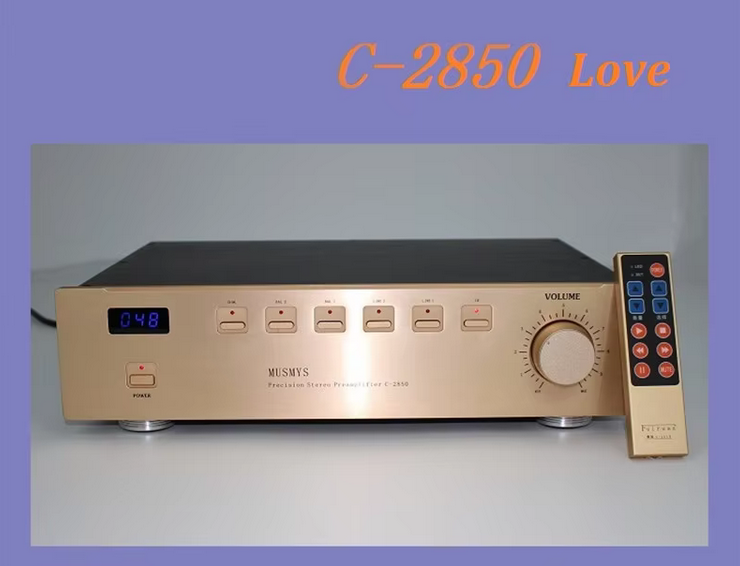

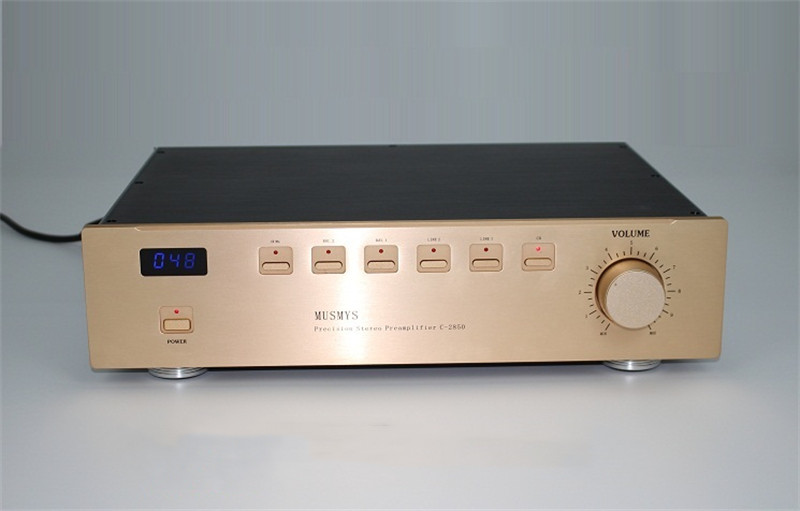

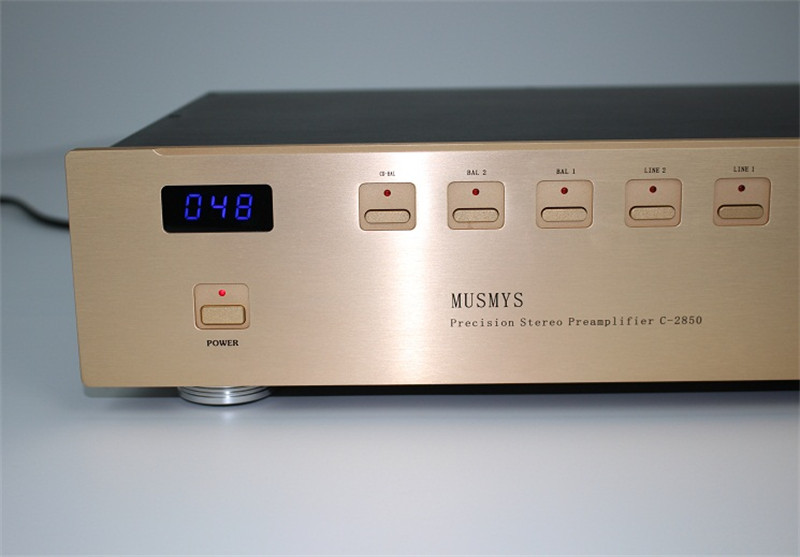

9: All aluminum alloy chassis, CNC precision machining, high-end golden panel, fine drawing process, oxidation, sandblasting, first-class silk screen.
MUSMYSC-2850 Love Version Main Specifications:
Frequency characteristics: 20HZ ~ 20KHZ (+0 -0.1db)
3HZ ~ 200KHZ (+0 -3db)
Full Band Distortion: 0.003%
Input Sensitivity: 250mV/40K (balanced) 250mV/20K (RCA)
Rated input level: 2V (audio signal)
Rated output level: 2V/50 ohms, (audio signal)
Maximum output level: 10V (audio signal)
Signal to noise ratio: 108db
Minimum load impedance: 600 ohms
Power supply: AC-220V 50/60 Hz
Dimensions: 430mm (width) X330mm (depth) X110mm (height) (excluding machine feet)
Weight: 10kg, 12kg with packaging.
