Note: this price = 1 machine
If you need to match the preamp amplifier. Please open the following link:

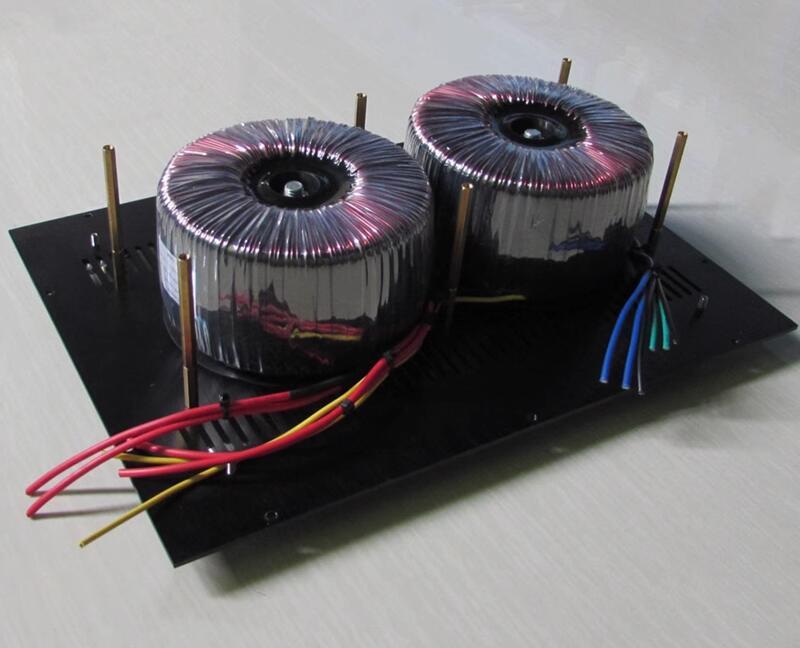

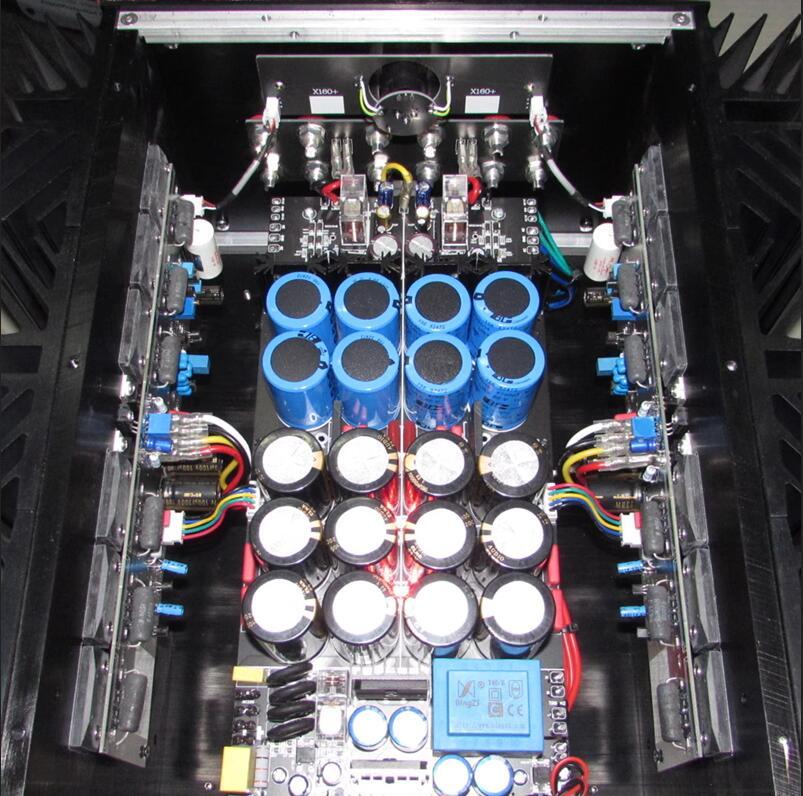

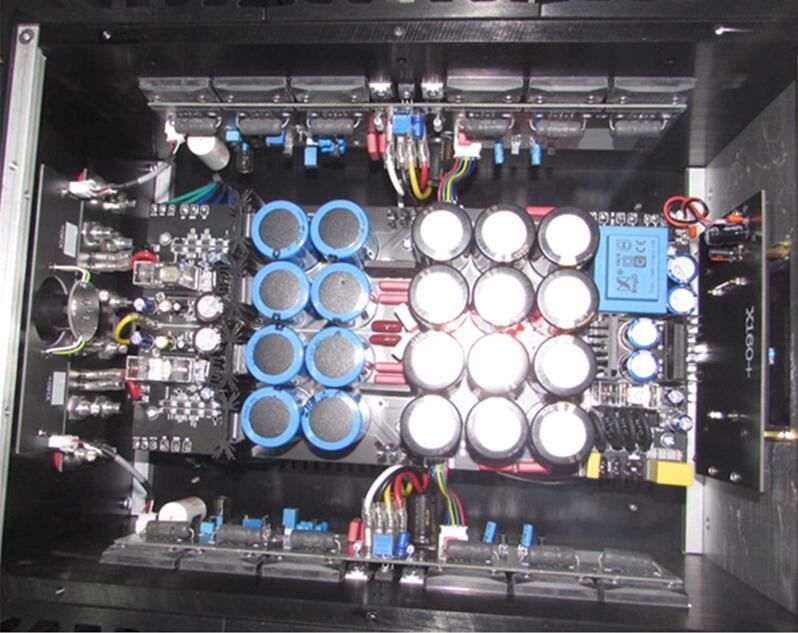

Refer to PASS 160 for the line amplification part. The power supply and others are designed by our own shop. The current level (that is, the output power supply of the triode) is rectified for the Schottky 120A high current design. The advantage is that the internal resistance is very small, which can ensure excellent large dynamic effects. When playing a symphony with a pure Class A power amplifier, it can be easily dealt with dynamically when the large-format instrument sounds; the specific materials are described in the following pictures.
Features:

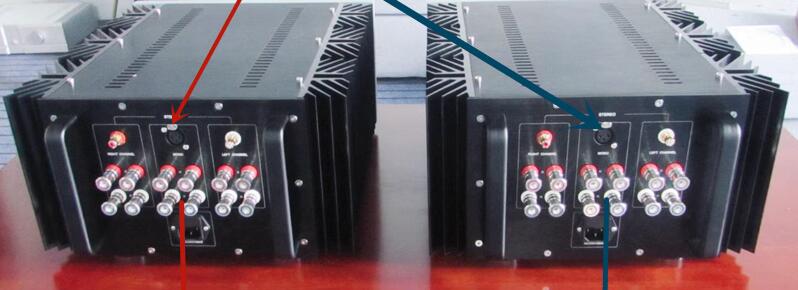

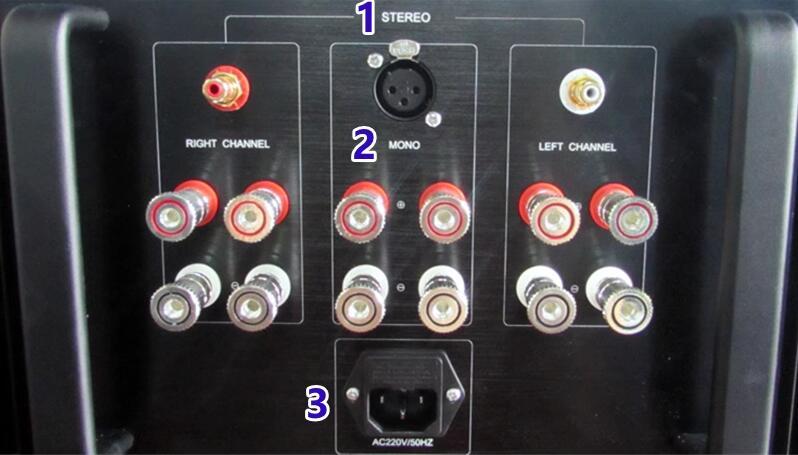

This power amplifier can be a single-ended RCA input mode for dual channel; it can also be balanced input bridge mode for mono (buy 2 for mono mode).
Note: The two modes are one of two options. One power amplifier cannot be connected to RCA stereo and balanced mono at the same time
Parameters:
Frequency response: 5Hz-120KHz (+0/-1dB)
Input Impedance/Sensitivity 47K/2V (RGA stereo) -1 unit 94K/4 (balanced bridging) -2 units
Rated power output: 100W * 2/8 ohms (single ended mode
Signal to noise ratio (S/NA weighting): 116dB
Total harmonic distortion (THD) 20Hz to 20kHz 8R load: 0.07%
Damping coefficient (20Hz to 20kHz, 8R load): 420 (single end) 500 (bridge connection)
Power supply voltage: 220 (10% fluctuation), customized for 110V regions
Power consumption: Static 160W (single ended)/320W (maximum 1500W (single ended)/3000W (bridged)
Amplification working mode: Class A 22x (26,7dB)
Net weight (1PCS): 32KG
Attention:
Two modes are optional, and one amplifier cannot be connected to both RCA for stereo sound and balanced XI R for mono sound.
