model6p3p
place of productionChinese mainland
SNR96dB
power16w
Color classificationBluetooth version of finished products can be used directly.
Frequency response: 13 ~ 33kHz-3dB
Total harmonic distortion: 1.5%
Signal to noise ratio: 293dB)
Power consumption of the whole machine: ≤80W
Input impedance: 100kΩ
Input sensitivity: 0.8Vrms
Output impedance: 4Q8Ω
deploy：6P3P/6N3C*26G2P*25Z4P*1
equivalent to 2x70w power amplifier of stone machine)
Weight: 9KG

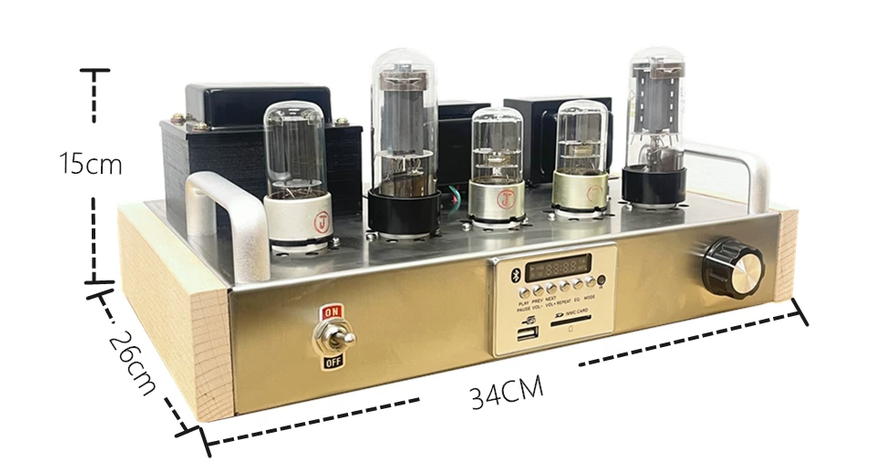

measure：34cm*26cm*15cm
Bolster model: 6P3P
Anterior bile duct: Shuguang 6G2P
Rectifier: Shuguang 5Z4PA
Rear Power Tube: USSR 6N3/ Shuguang 6P3
Output power: 2x7.5W
Load impedance: 4Q-8Q
Signal to noise ratio: 90DB
Input impedance: 100KQ
Operating voltage: 220V.
Frequency response range: 20Hz-20KHz.

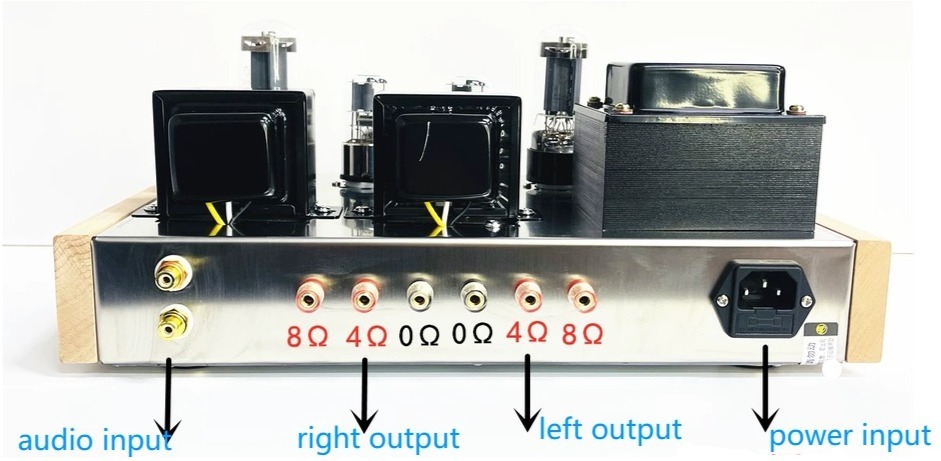

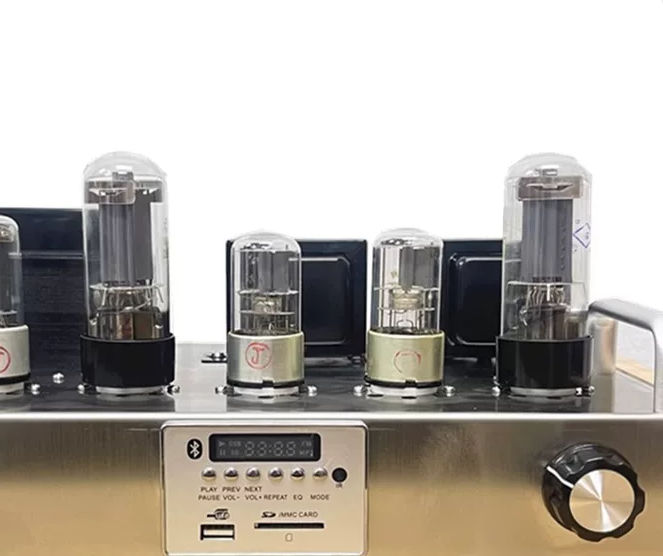

Audio input: Bluetooth, USB flash drive, FM radio, CD/ computer input.

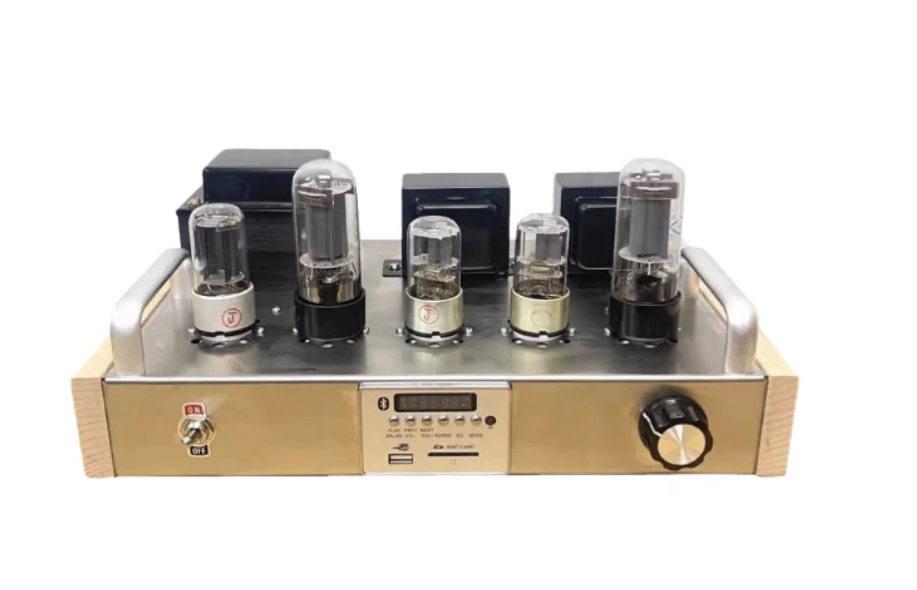

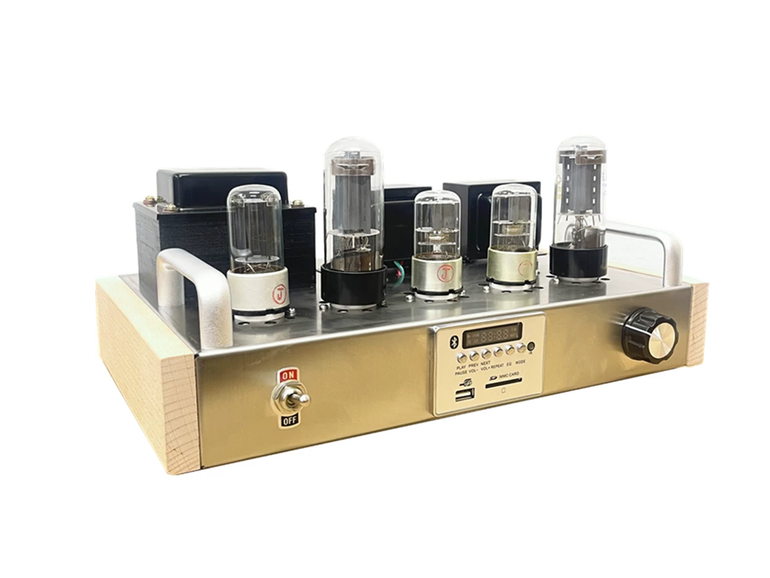

The finished amplifier with BT version :

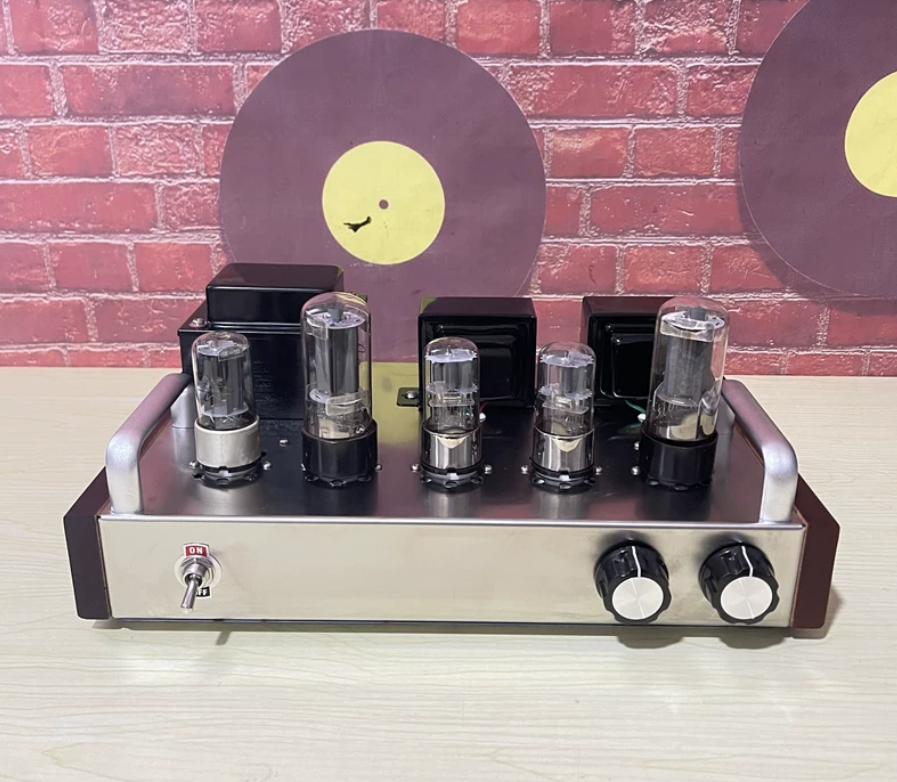

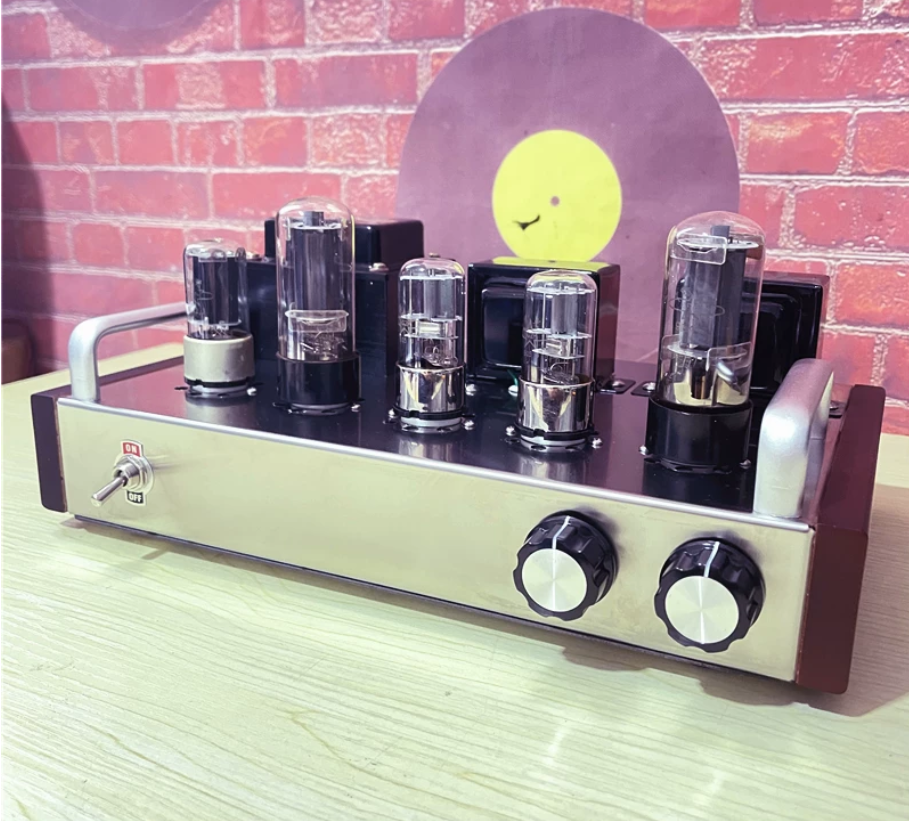

The finished amplifier no BT version :

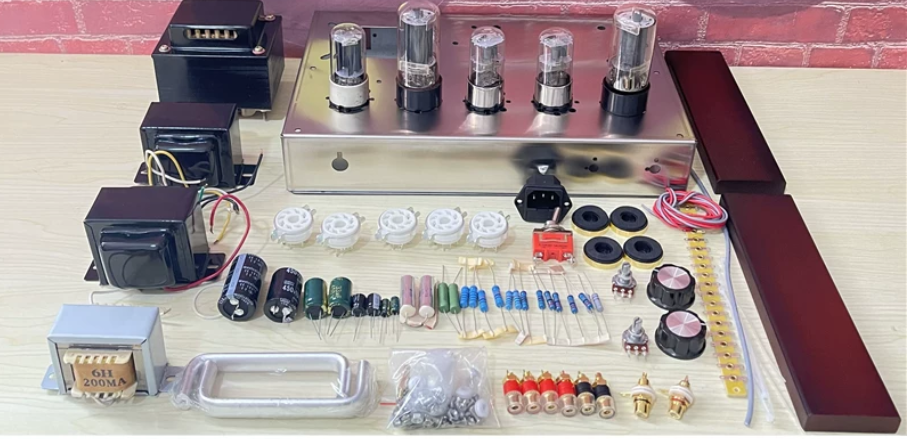

the follow is DIY kit，
