Product Details:
Referring to the classic 1969 circuit design, the circuit is simple, Single ended output, extremely low harmonic distortion, warm and delicate sound, friendly vocals, suitable for use in rooms and bookshelf speakers.

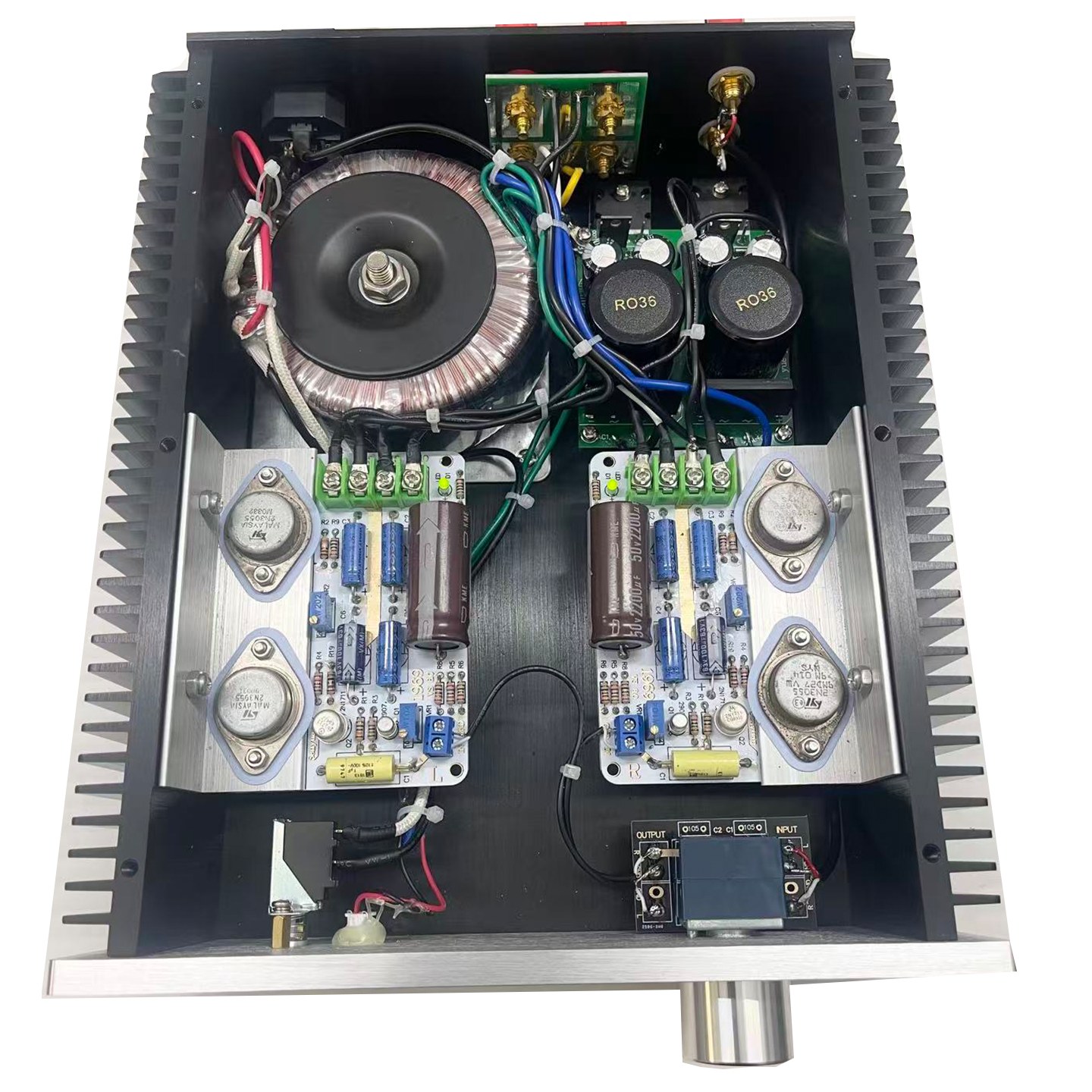

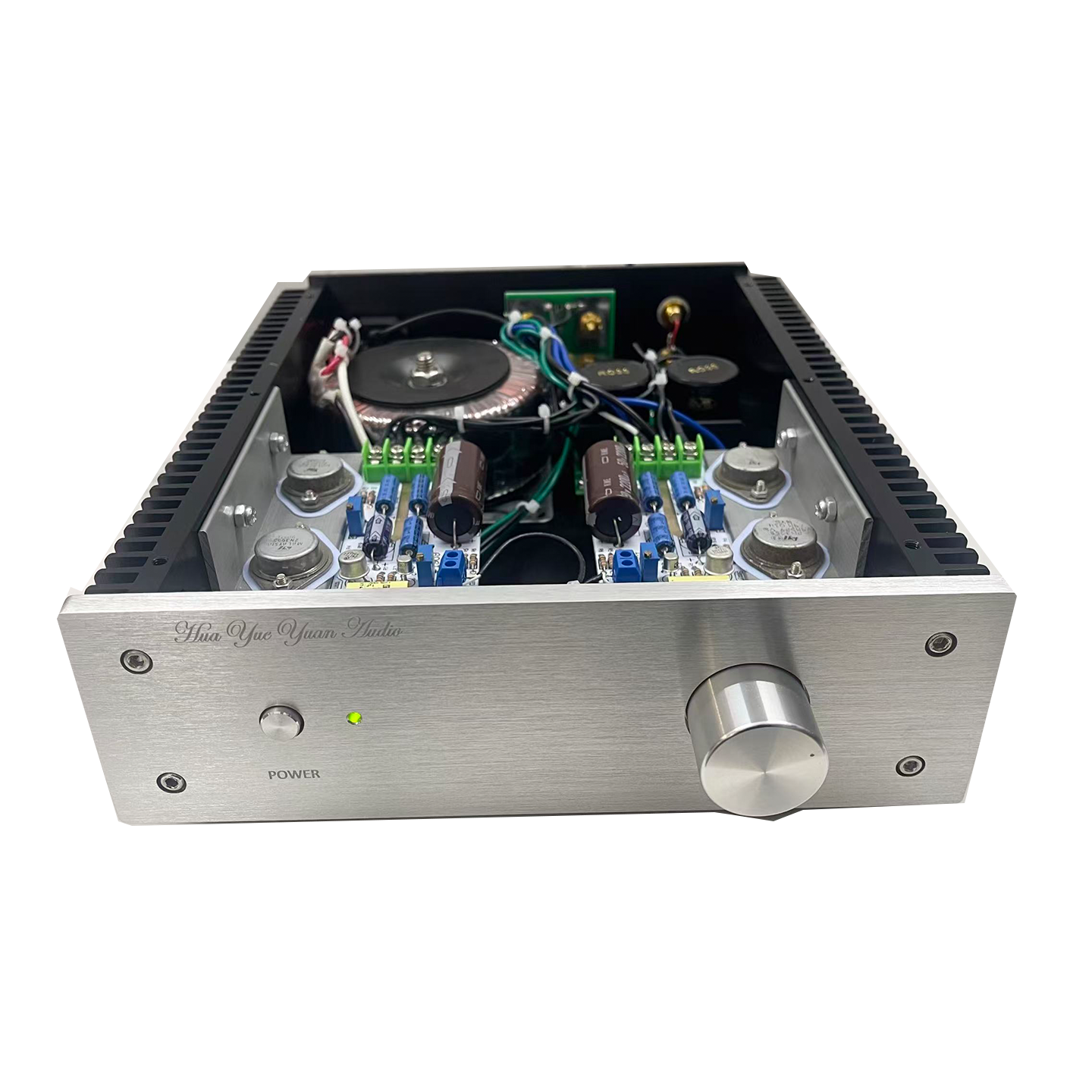

1:) Paired metal encapsulated transistor, pure Class A design.

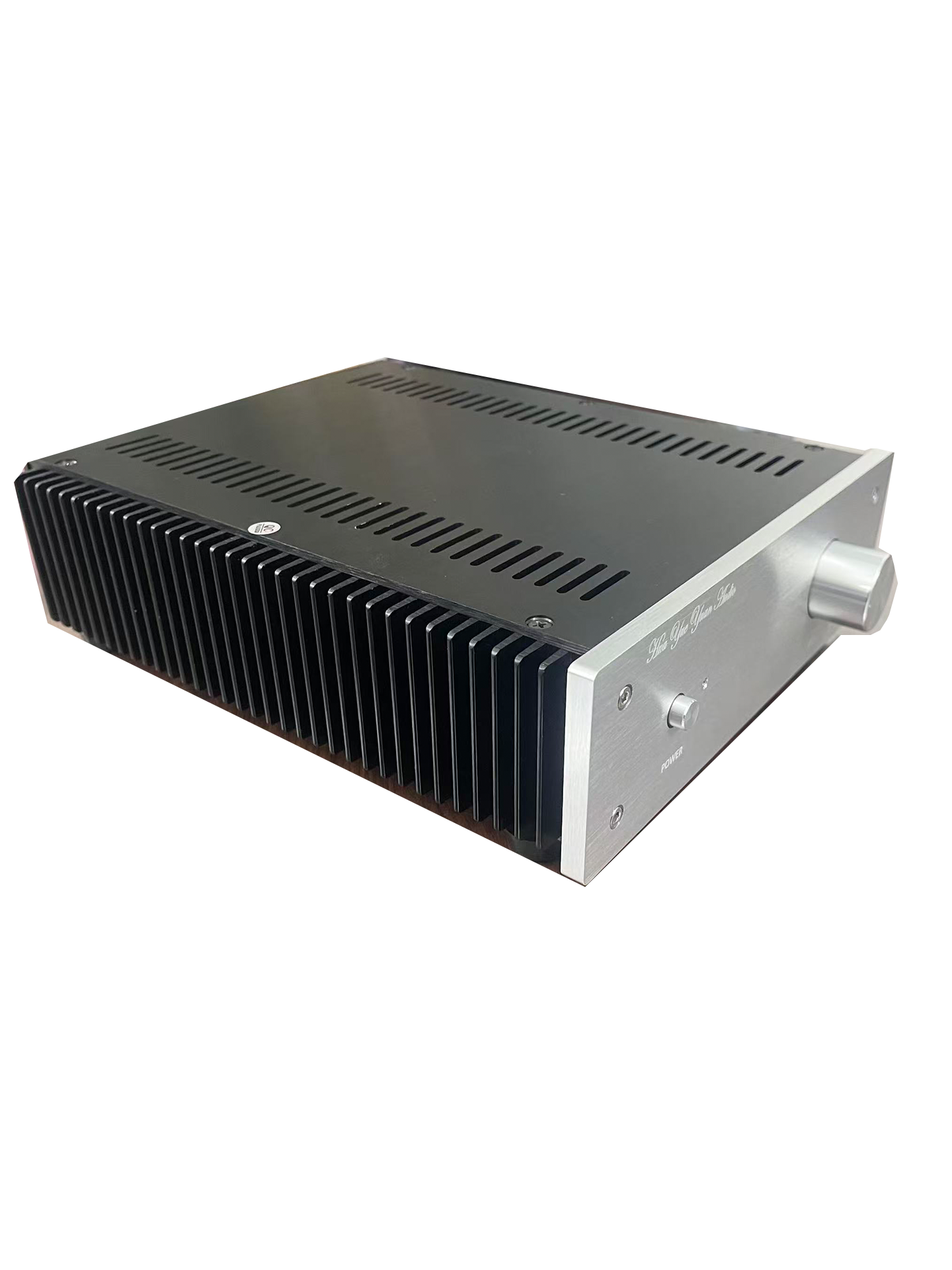

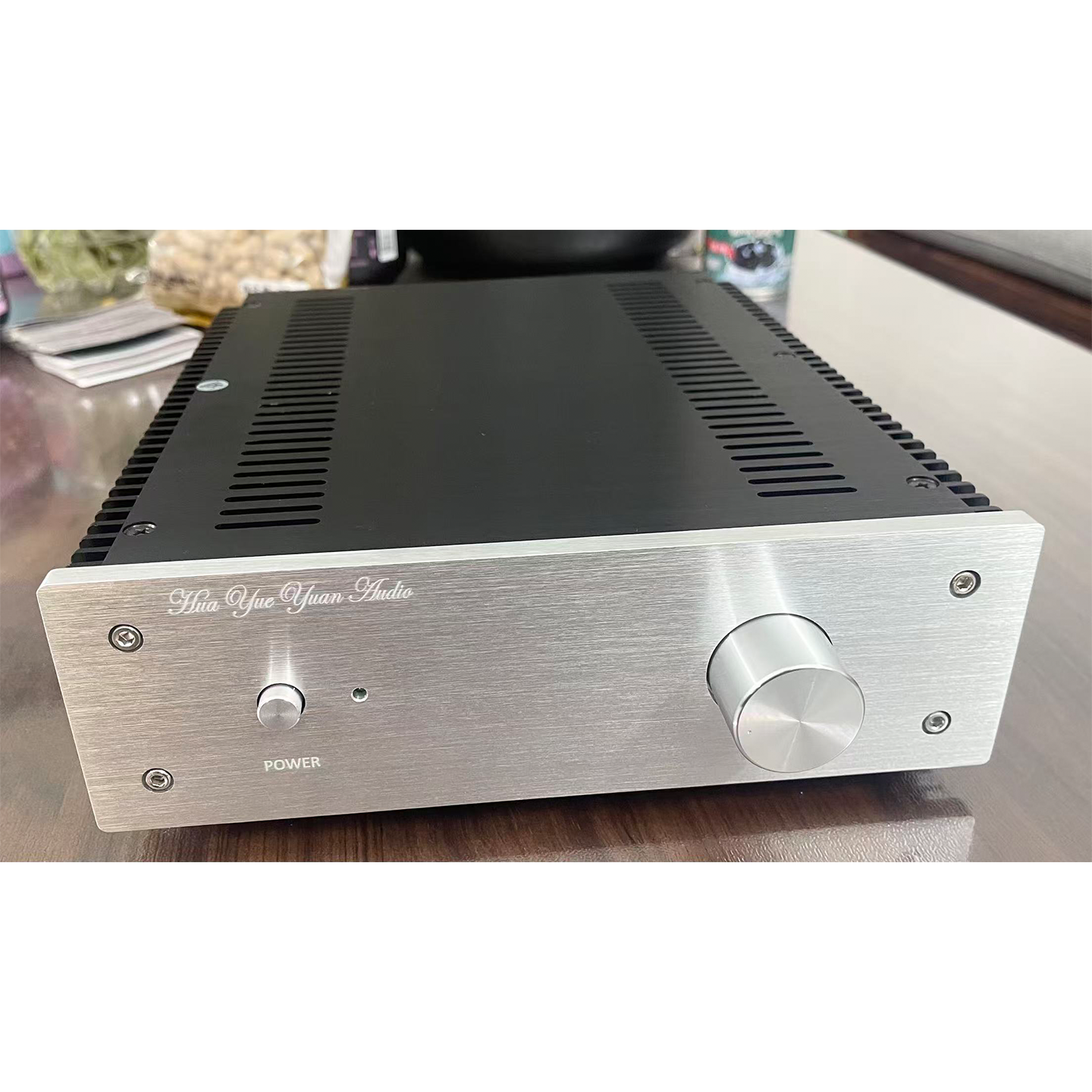

2:) CNC all aluminum alloy chassis, laser engraved, non fading.
3:) 100W full power pure copper wire wound toroidal transformer.
4:) Equipped with a protective circuit, no power on/off impact, and protected against short circuits.
5:) Japanese ALPS16 potentiometer, good balance between left and right channels, durable and long-lasting.
Specifications:
Input voltage: AC115V or AC230V (optional)
Output power: 10W * 2
Frequency response: 15Hz-30KHz
Total harmonic distortion:<0.01% (1KHz)
Input sensitivity: 50K Ω
Output impedance: 4-8Ω
Signal to noise ratio: 118db
Size: 230 * 75 * 270mm
Weight: 4.3kg
Package List:
1 × Finished HD1969 amplifier（To ensure transportation safety, power input cables are not provided by default）
