Product details:Standard version default TIP41 transistor
Upgrade version defaults 5200 transistor.
HOOD1969 is undoubtedly one of the most popular amplifier circuits in history, developed by the renowned British engineer J Hood was designed in 1969 and became popular worldwide
Using Chenjin Military Standard PCB.
Symmetric design with independent 2-channel for easy debugging.
Using Japanese chemical 3300UF output capacitor, with abundant energy.
5-ring copper foot resistor.
WIMA coupling capacitor.
Parameters:
Input voltage: DC12-28V (recommended 12-30V single power supply rectification and filtering)
Total harmonic distortion: 0.1%
Impedance: 8 ohms
Output power: 20W+20W

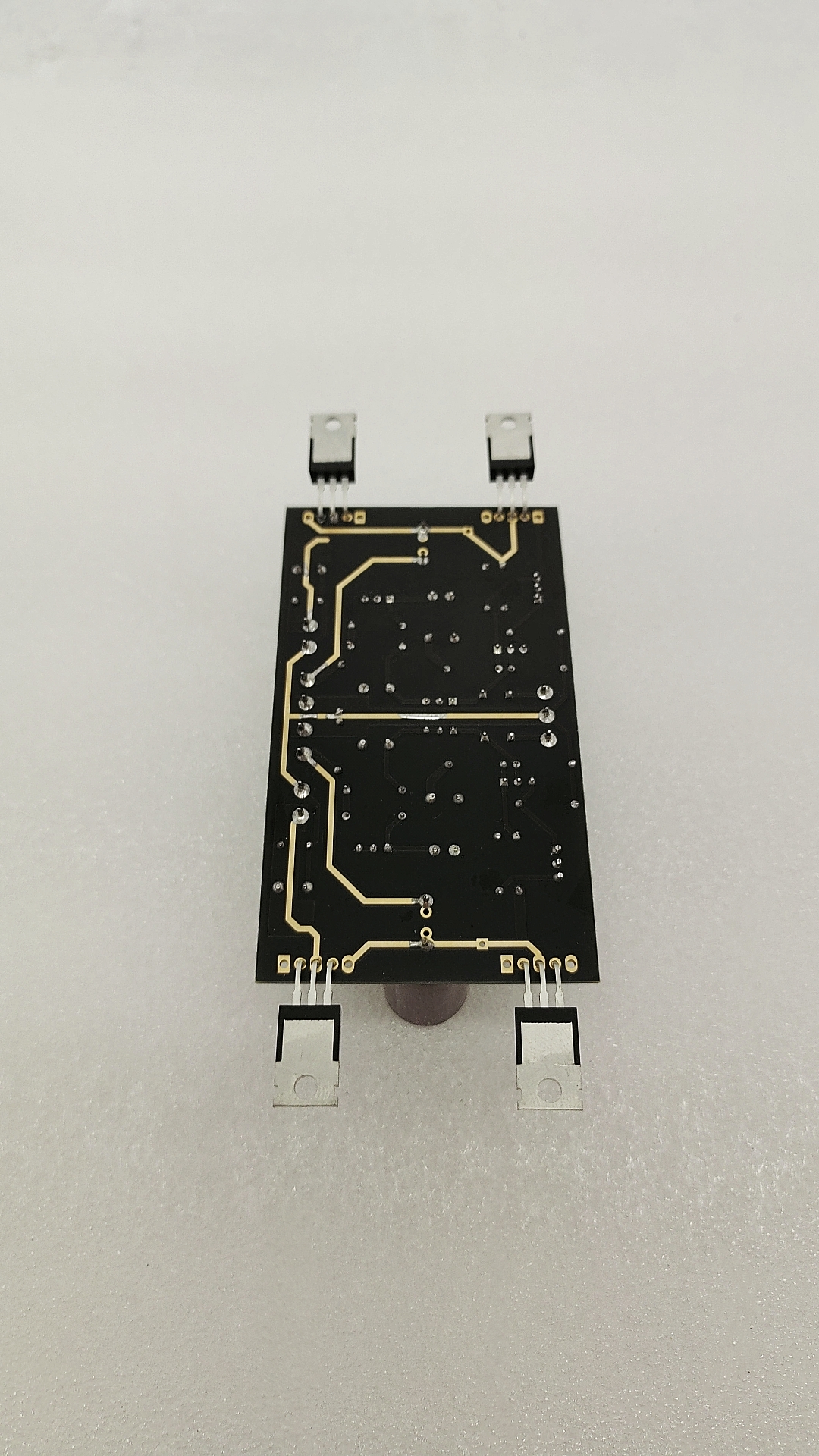

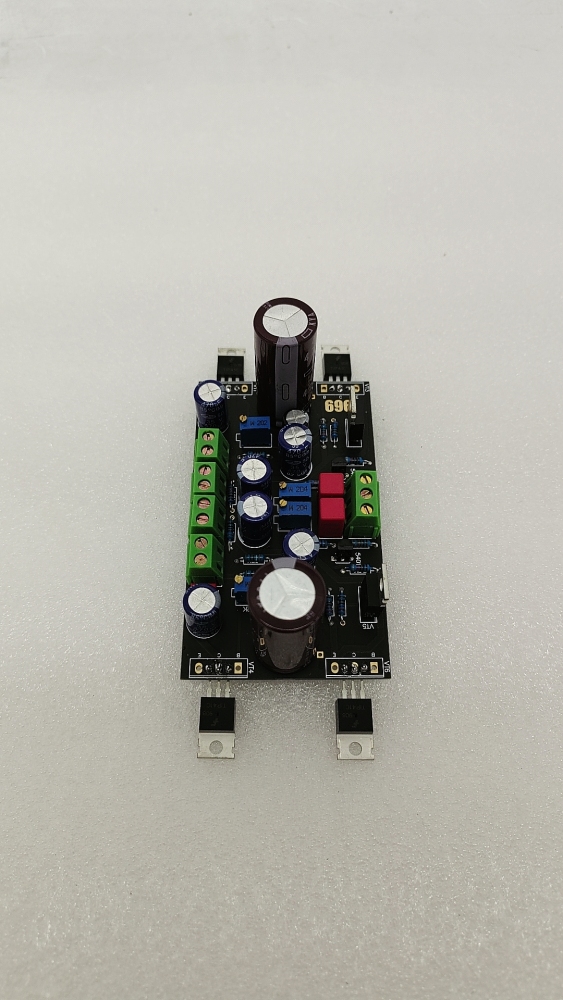

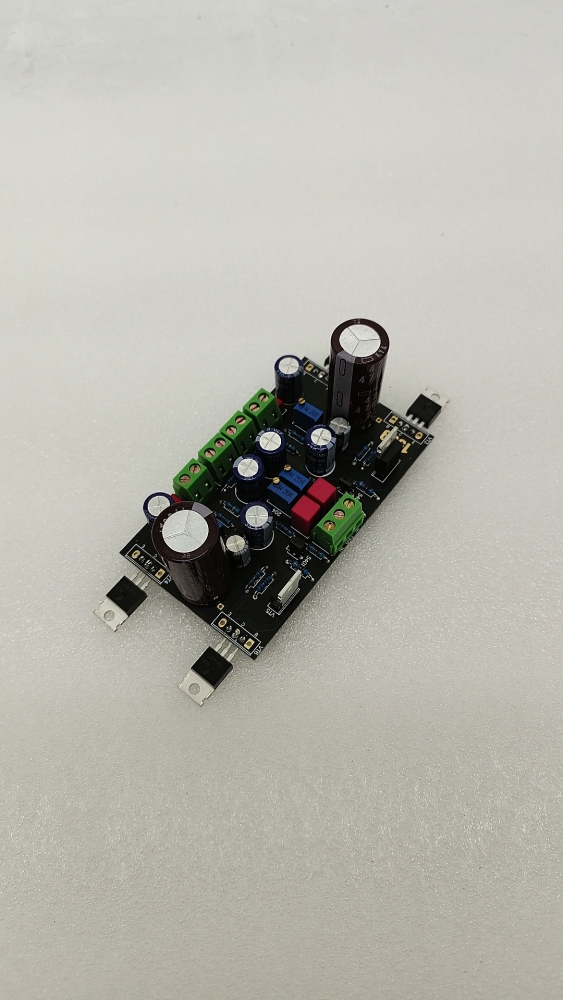

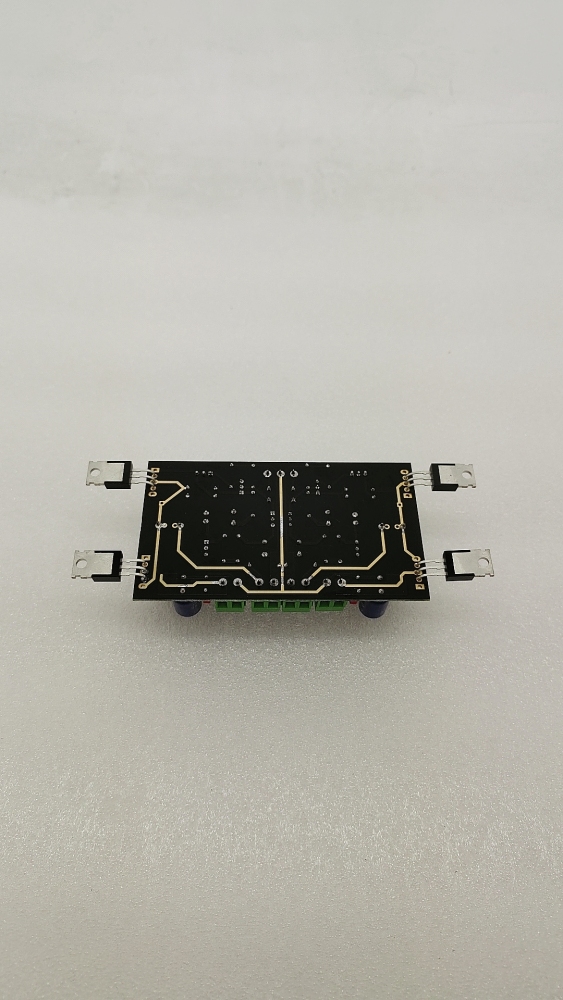

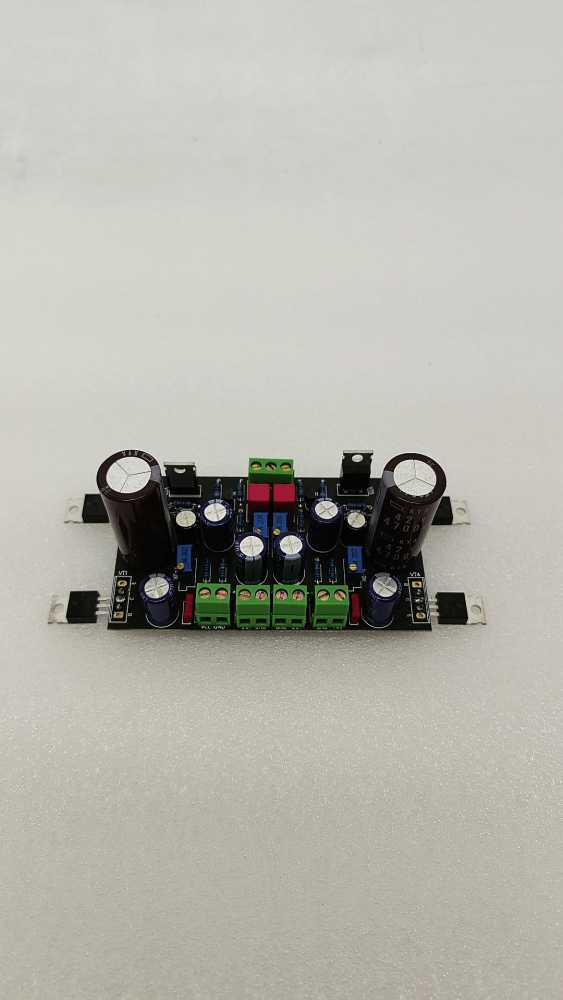

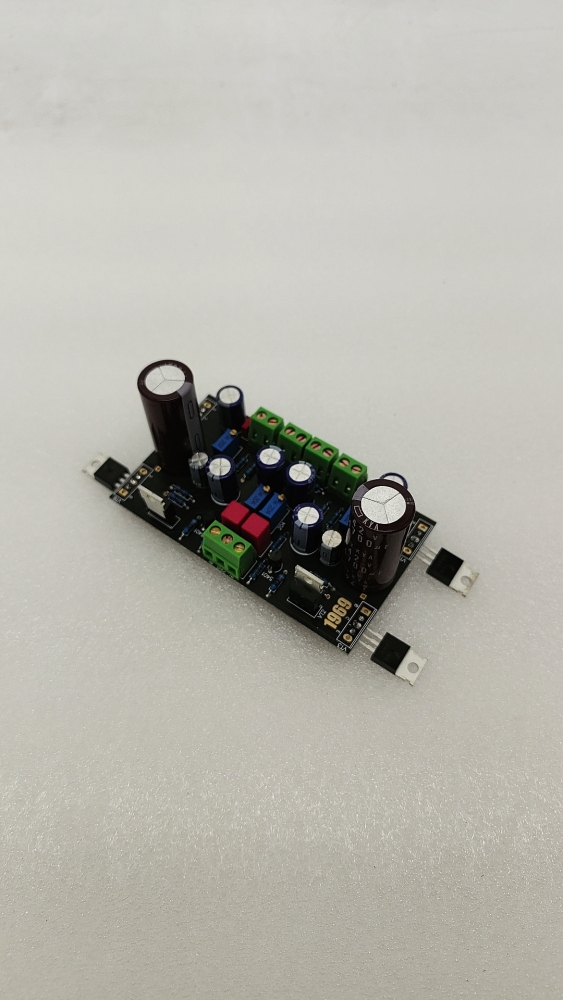

List：1969 amplifier board x 1
Attention: Due to its Class A design, a heat sink needs to be installed before use, otherwise it may burn out the transistor.
Do not touch it casually during use to avoid burns
