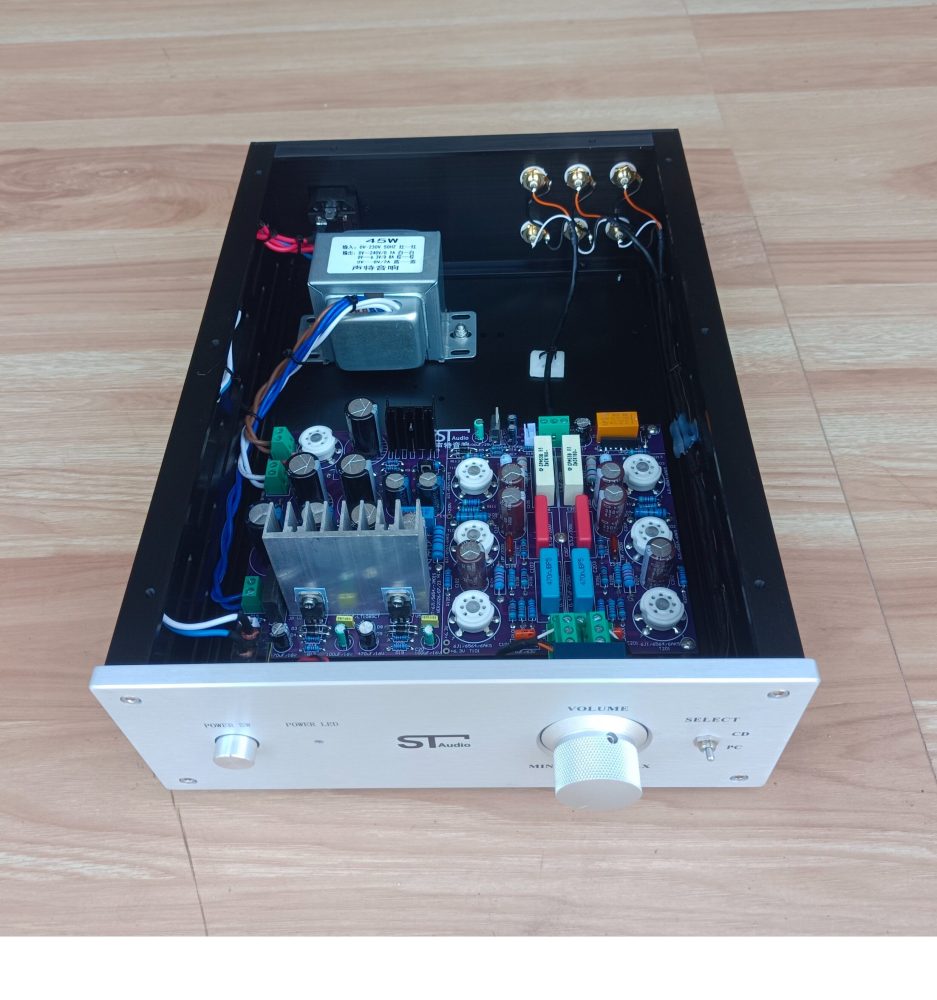

New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier

SKU:
Flash Sale
0.0 (0 Reviews)
0 Sold
$245.00 $225.40
-8%
GET $2.00 OFF ON ORDERS OVER $40.00
Get it
L18J8W12
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • input voltage:
    AC110V
    AC220V
  • Rectifier tube:
    6Z4
    6X4
Quantity:
-
+
Add to Favorites (0)
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
1/1
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • New JADIS JP200 circuit HIFI DIY stereo 5654 tube preamplifier
  • Description
Product Details:

The JP 200 circuit electronic tube preamplifier has a quiet background, high transparency, and a refreshing and delicate sound Fast low-frequency speed and good elasticity; Clear mid-range lines and natural tone; Good high-frequency extension, delicate and smooth overtones.
.
● High voltage regulated power supply, low output internal resistance, stable voltage LM317 delayed power supply is used for the filament Extend the lifespan of electronic tubes.
● The rectifier tube is 6Z4/6X4. To replace the rectifier tube model, simply manually change the two red jumper caps.
● This preamp has a delayed output design, which can prevent the impact of power on/off on the amplifier.
● Taiwan made all copper RCA.
● Japanese ALPS27 potentiometer.
● All aluminum alloy chassis, surface treated with oxidation and wire drawing.
● Japanese ALPS27 potentiometer Copper foot metal film resistor
● The signal-to-noise ratio is very high, and the noise is almost inaudible

Parameters:

● Model: JP200
● Input voltage: AC110V/220V (switchable)
● Size: 240 * 320 * 90mm （Excluding protruding parts）
● Weight: about 4.5kg
● Frequency response: 5Hz-30KHz
● Distortion: 0.0086%
● Magnification factor: 9.2 times
● Signal to noise ratio: 99db
● Input sensitivity: 100mV
● Output impedance: 200 Ω
● Minimum input: 1mV
● Maximum output: 18.4V


List:

1 x JP200  tube（To ensure transportation safety, the power input line is not included by default)
