Product details:
The sound is transparent, with good extension at both ends. Low frequencies are elastic, and high frequencies are slender. High and low frequency performance is excellent.

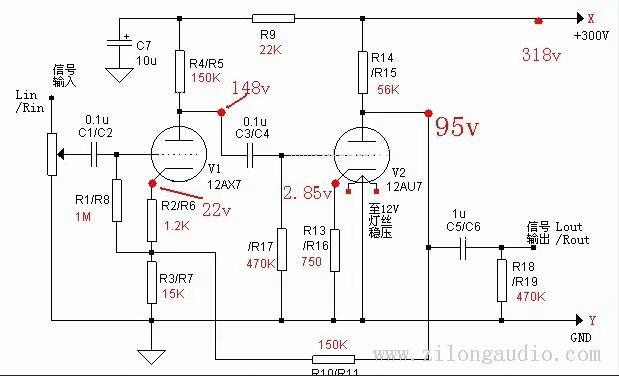

Refer to Matisse circuit design in the UK. 12AT7 has been changed to 12AU7, with a more solid low-frequency and slightly lower amplification factor than 12AT7, indicating an overall improvement in performance.
Both transformers are shielded to effectively suppress electromagnetic interference, and the high and low voltage are separated from each other, resulting in less mutual influence. The signal-to-noise ratio is high.
Using Japanese ALPS 16 A100K potentiometer.
Original genuine components, simple and unadorned, with pure quality, guaranteed sound quality, and long service life.

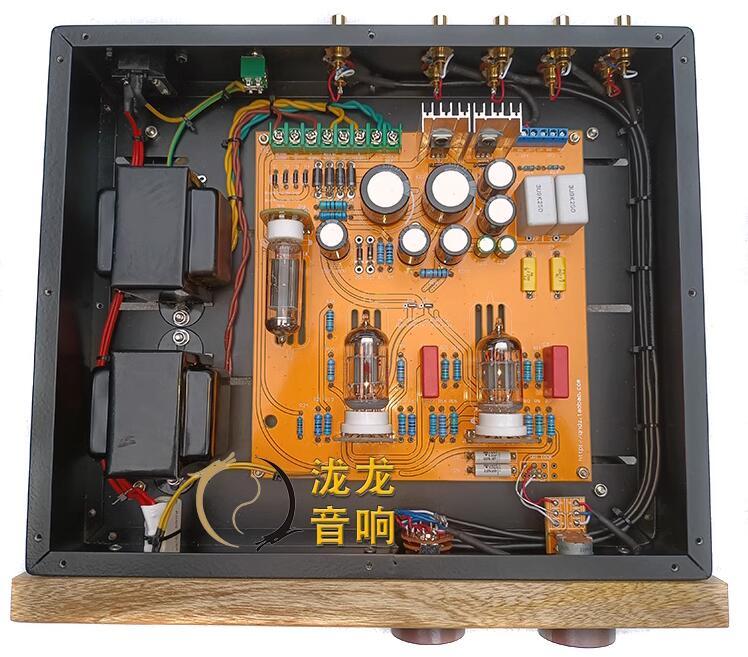

Adopting 1.6mm thick double-sided PCB, with good performance in passing large and small currents.
1.2MM thick painted iron plate chassis with excellent electromagnetic shielding effect.
Specifications:
Input sensitivity: 200mv
Output voltage: 2V (RMS THD<0.03%) -14V.
Signal to noise ratio: 96DB
Frequency response: 10Hz-30KHz (-1DB)
Input impedance: 100Kohm
Output impedance: 2000ohm
Channel isolation: 65DB

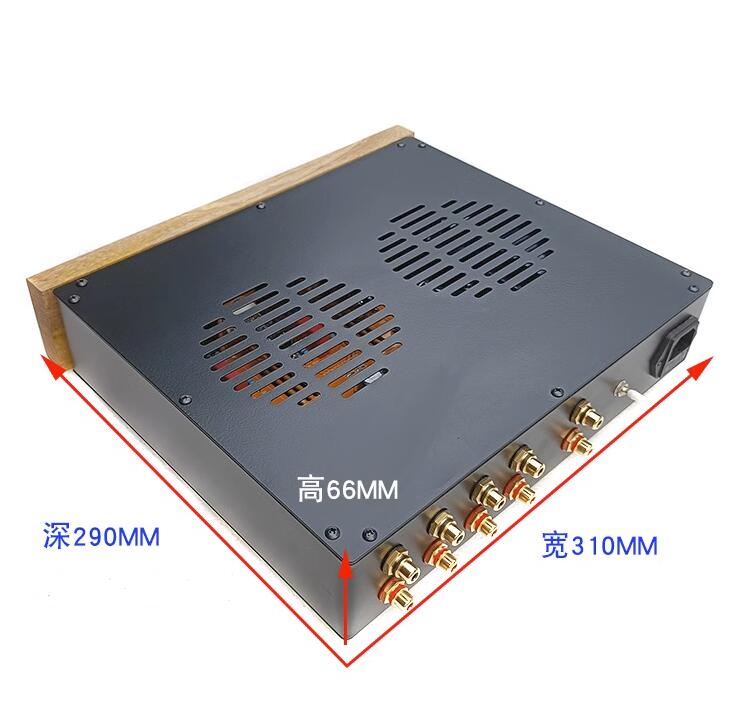

Dimensions: width 310 mm, depth 290 mm, height 66 mm,
Weight: 3.8 kilograms
