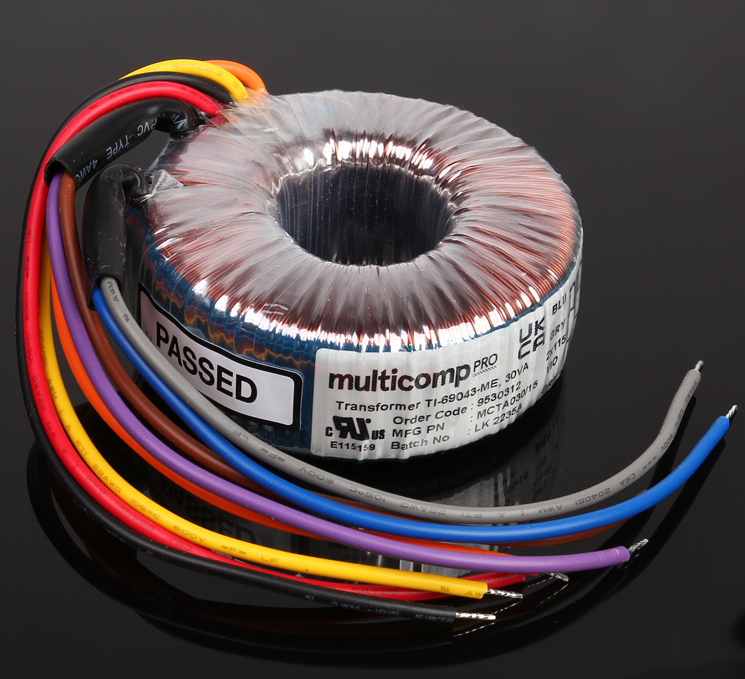

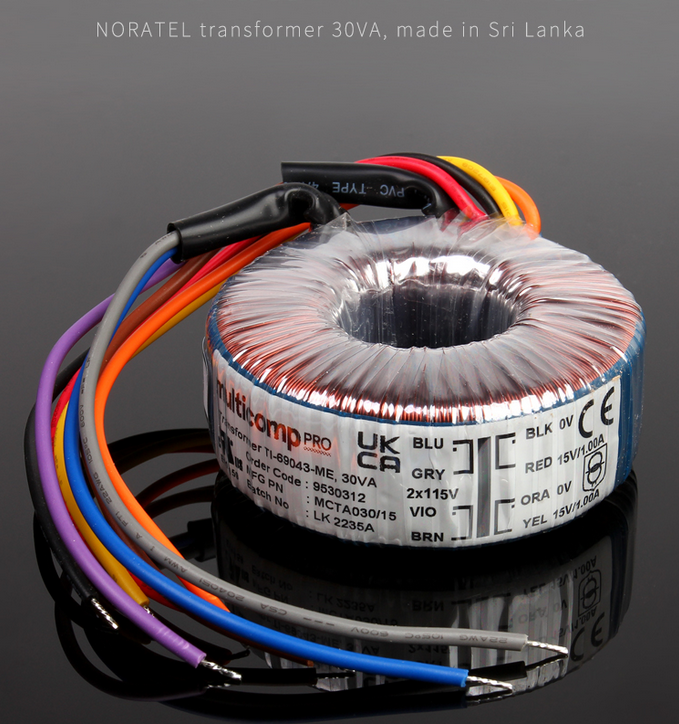

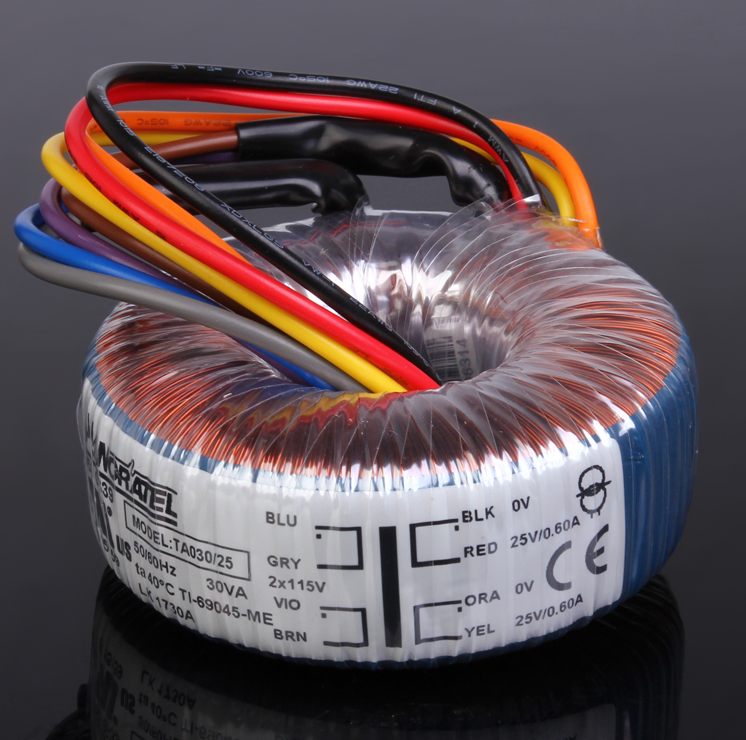

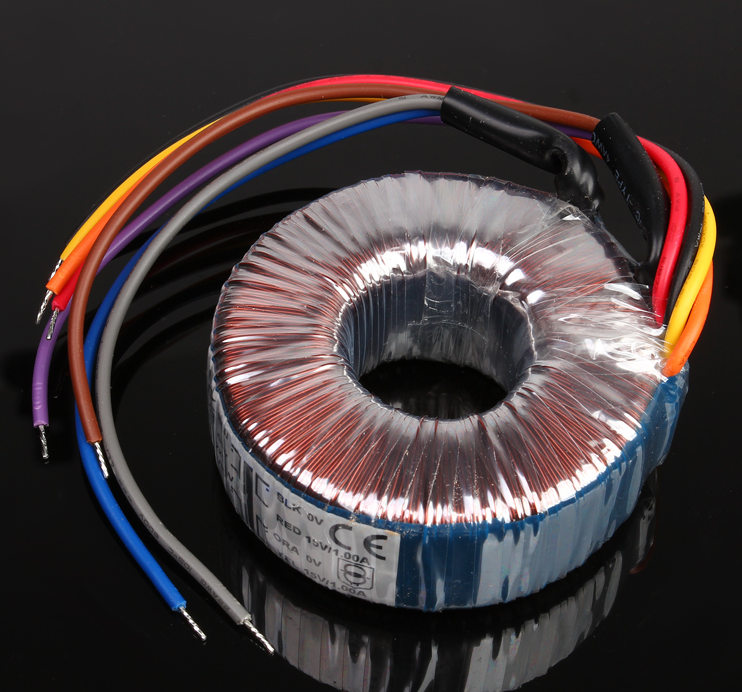

NORATEL 30W Toroidal Transformer for HIFI DIY amplifier/preamp/Linear power supply

Product Details:


Power: 30W

Primary: AC0~115V . AC0~115V .

Secondary: AC0~ 6V 2.5 A ;AC0~ 6V 2.5A ;
               AC0~ 9V 1.67A ;AC0~ 9V 1.67A ;
               AC0~12V 1.25A ;AC0~12V 1.25A ;
               AC0~15V 1 A ;AC0~15V 1 A ;
                 AC0~18V 0.83A ;AC0~18V 0.83A ;
                 AC0~25V 0.6 A ;AC0~25V 0.6A ;

Diameter: 73MM

Height: 31MM

weight: about 0.48KG /1PC


Package list:


1 × 30W Toroidal Transformer

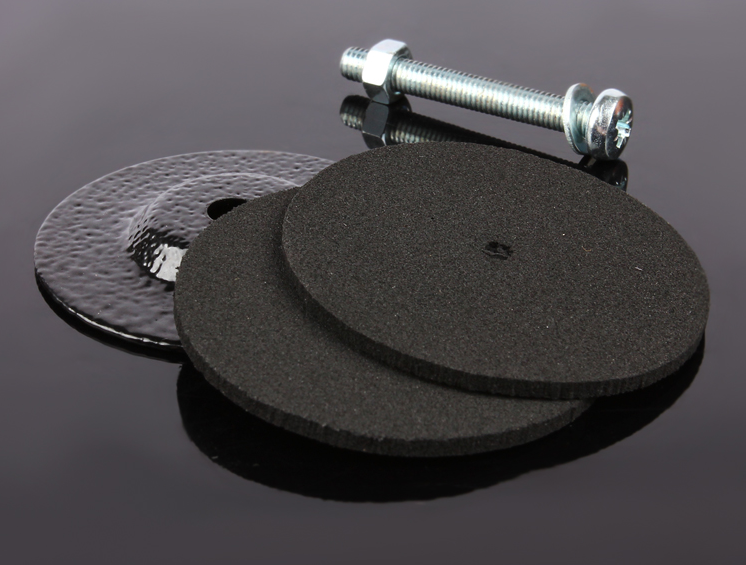

1 Sets × Mounting Gasket + Screws

Attention: Noratel Sri Lanka factory has changed its trademark to multicomp pro. The performance parameters of the newly produced transformer are exactly the same as the previous transformer.
