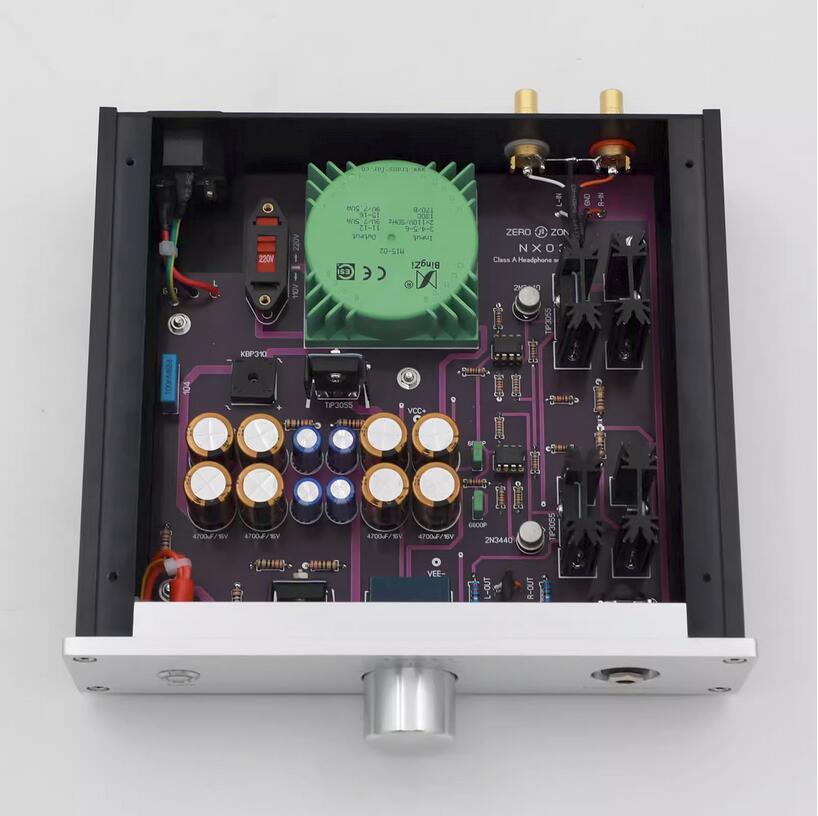

This is a new version that optimizes PCB wiring and adds a voltage selection switch. The overall size is reduced, making it more convenient and suitable for smaller chassis installation. Solved many buyers' troubles. Compared to previous versions, this PCB layout is more convenient to use.
Input voltage: AC 110V or 220V (Optional)You can also change the voltage yourself. On the PCB, we have set a voltage switch, which allows you to easily change the voltage.
Opamplifier model: OPA2134PA
Maximum output power: 1.5 W (16 ohm load)
Match headphone impedance: 4-1000 ohms
Maximum Conversion Rate: 32 ohm 16vpp
Gain: 15 dB
Frequency response: DC-100,000 Hertz less than 0.15 dB
Background noise: Less than -113 dB
Total harmonic distortion: less than 0.003% (13vpp, 32 ohms)
Size: 220mm * 52mm * 191mm (W*H*D)
Weight: About 2KG
Package includes:

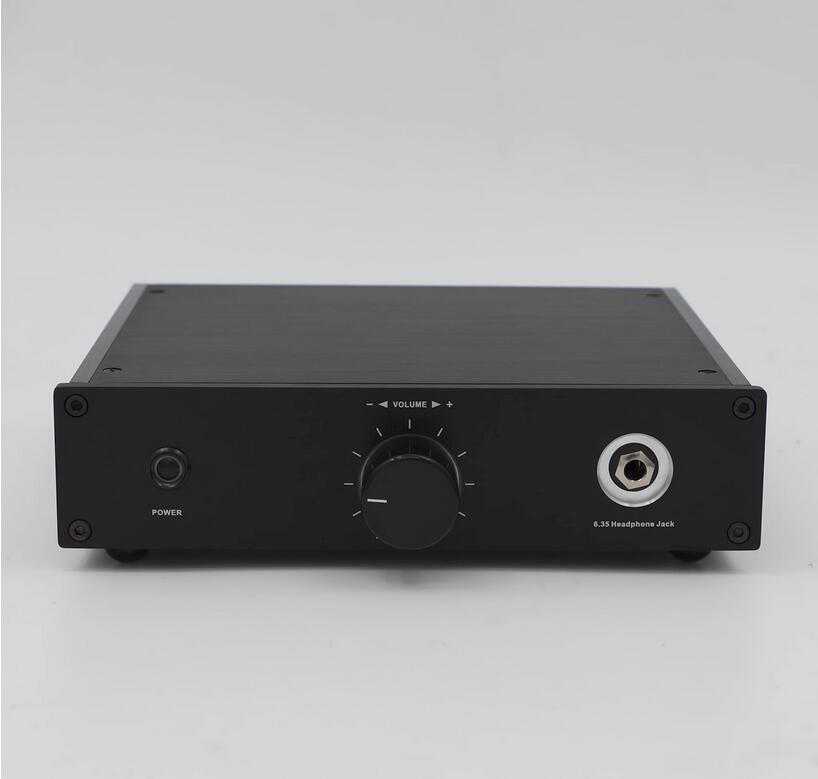

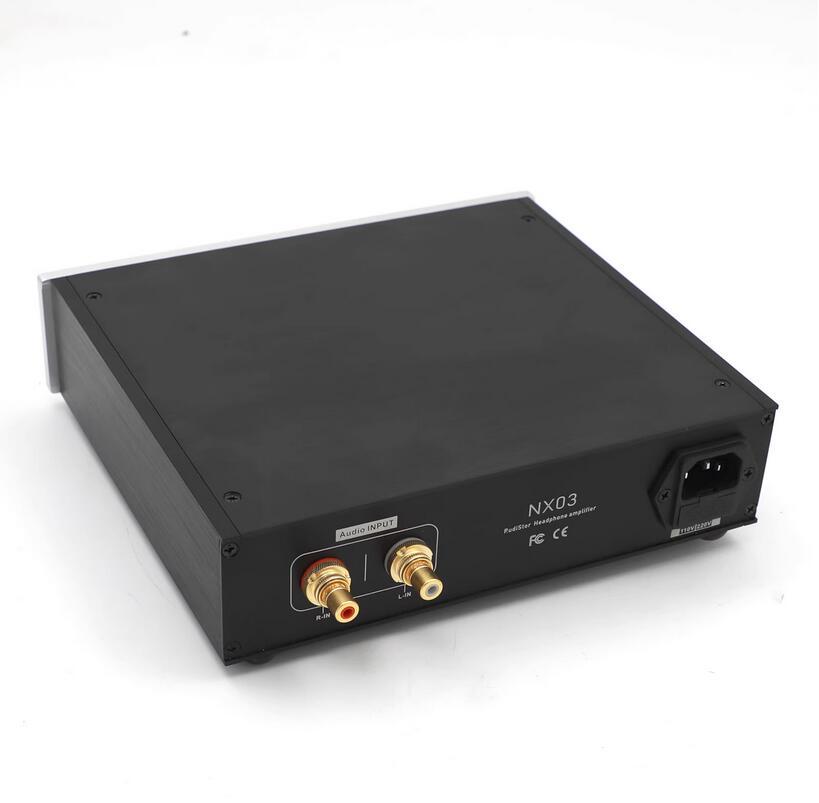

ZK-NX03 HIFI Class A Headphone amplifier X1
NOTE: We do not provide any cables.
