Omron 16A high current relay horn protection board

Product Details:

Using 1.6mm double-sided KB board

Conventional transistors and three terminal blocks are used as detection components. Design a relay based synchronous indicator light for working status, with sensitive response and reliable operation.

The OMRON relay with high current silver plated dual contacts serves as a signal channel to ensure reliable contact and sensitive switching,

The distance between the horn terminal holes is 30mm, with a V-shaped groove in the middle that can be divided into one and two, suitable for installation in most chassis holes.

input voltage is AC 0-12 AC 0-12V. This design can avoid noise caused by the ground loop of the entire system.

Size: Length 122, Width 65mm

Package list:

1 × 16A high current relay horn protection board（Can be used for two channels）

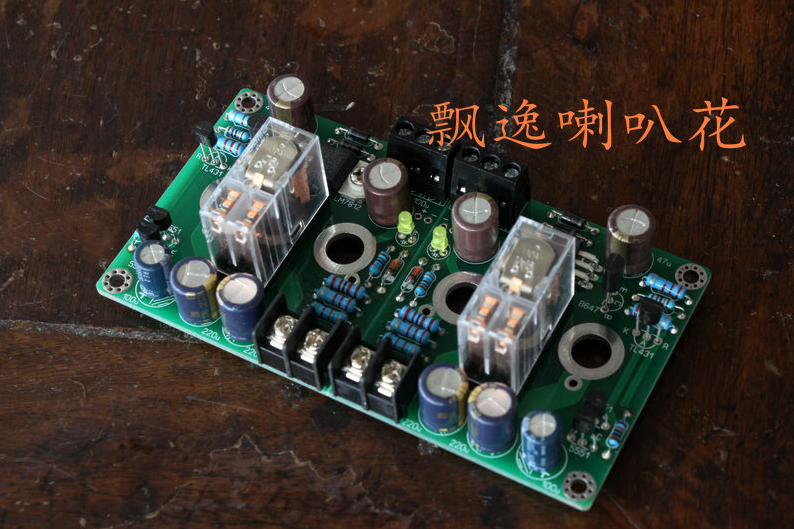

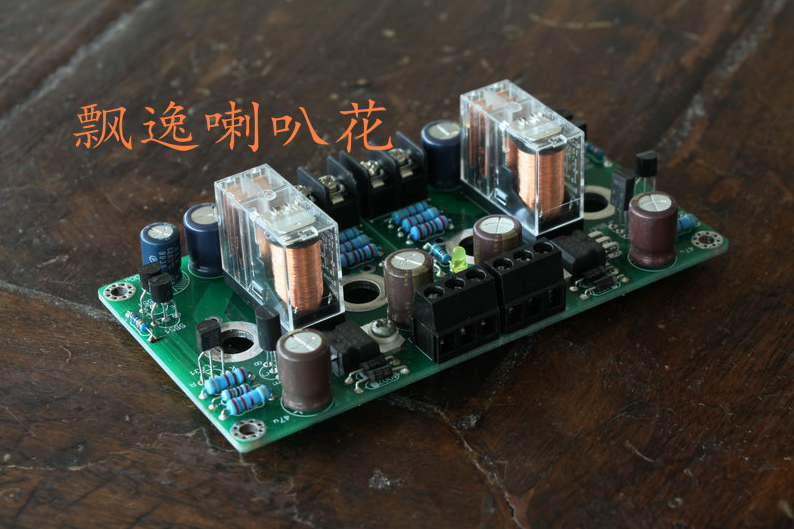

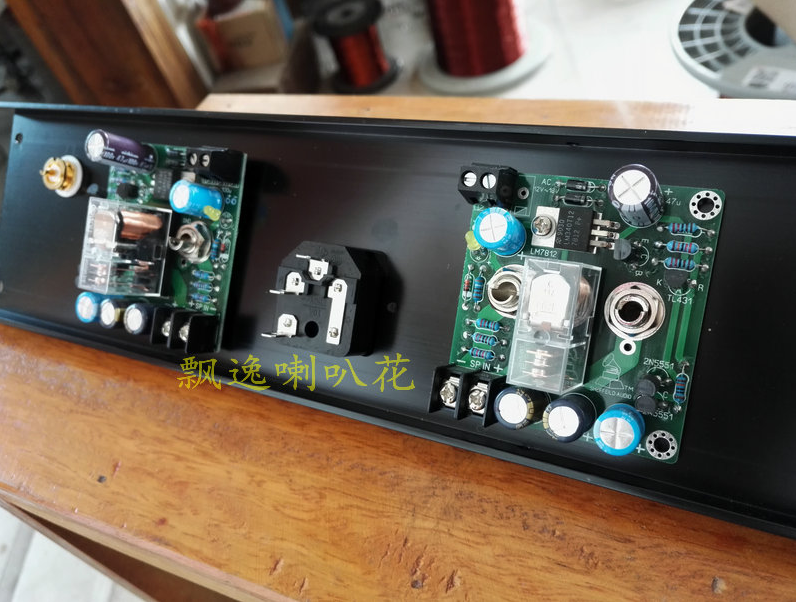

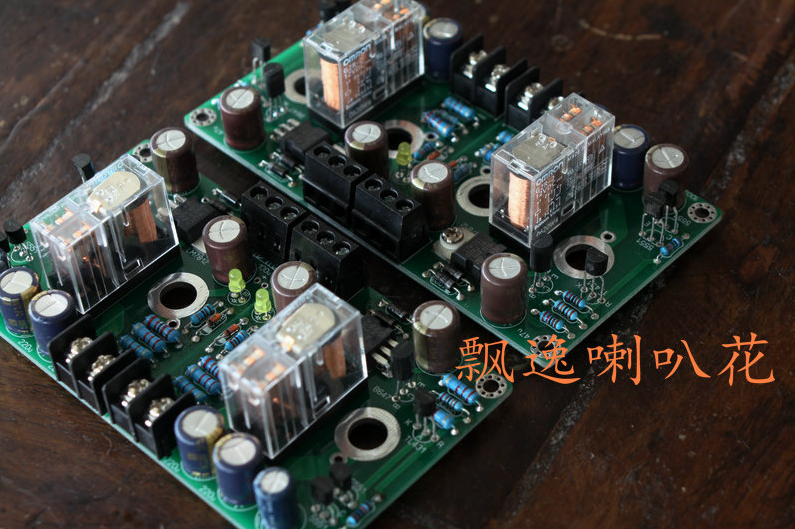

The following is the installation rendering for reference only
