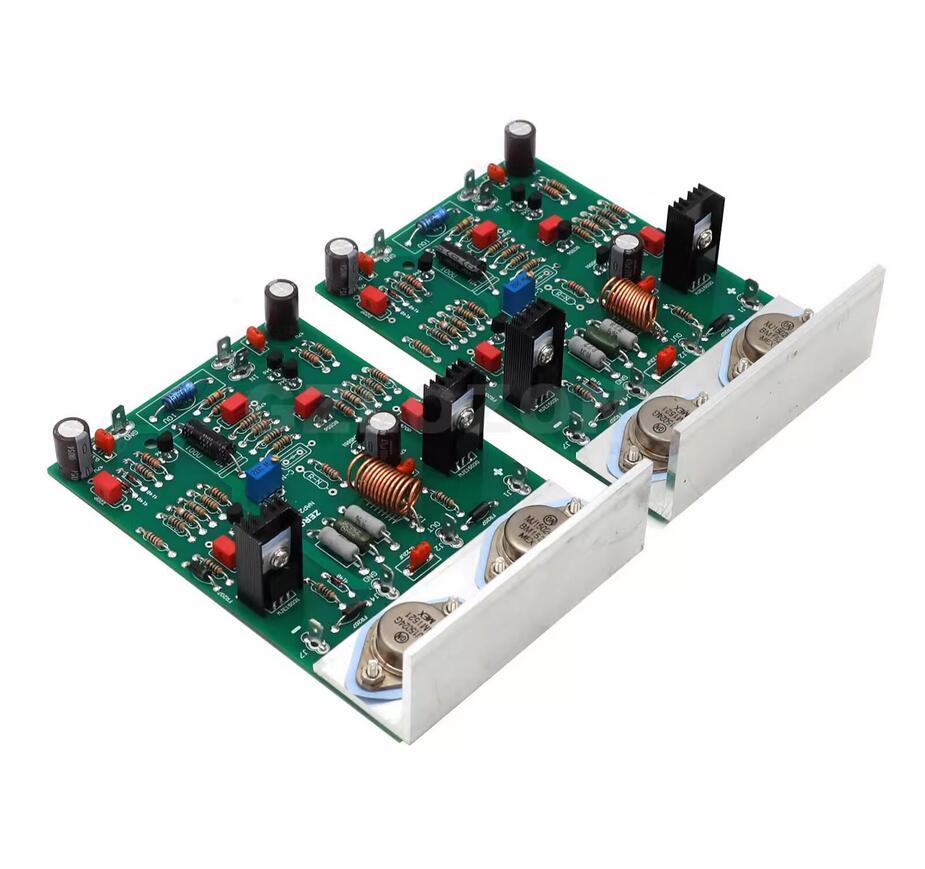

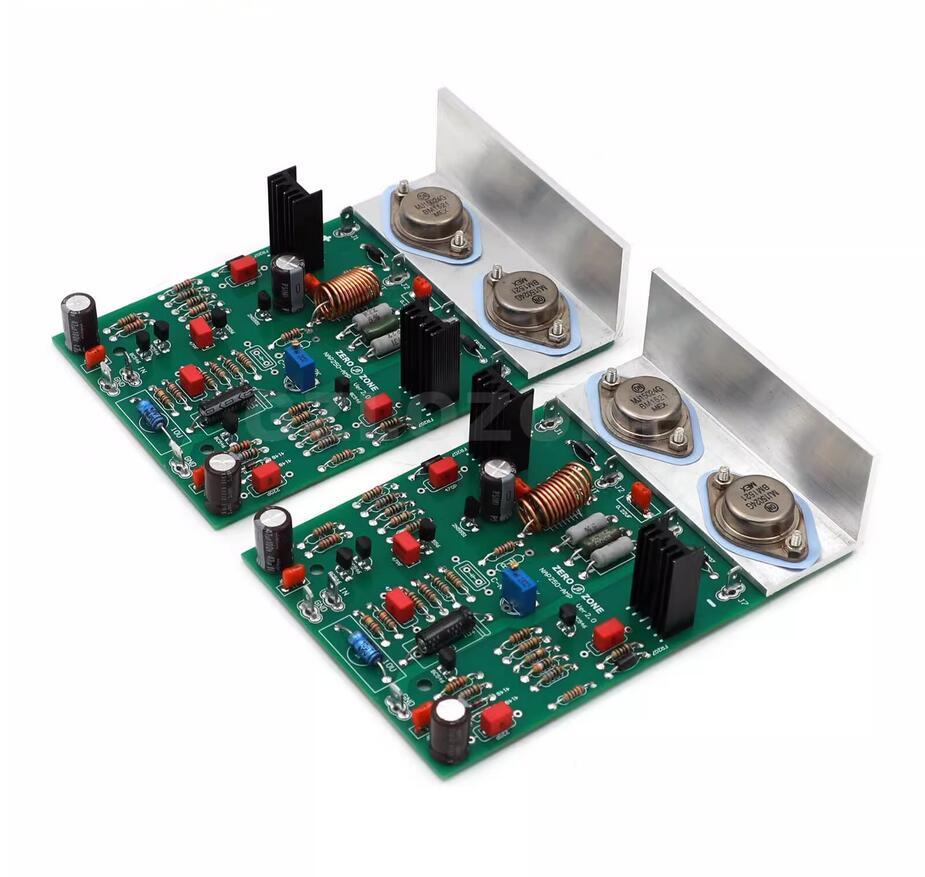

One Pair Assembeld NCC200 HIFI DIY stereo Power Amplifier Board Base On UK NAIM NAP250 circuit

Parameters:

Works voltage: +/-DC40V-50V

Output Power:   80W +80W  RMS at 8ohm load

Voltage gain + 29 dB

Input impedance 18 kOhm

THD+N=0.001%-0.03% (20HZ-20KHZ 5W-30W 8ohm )

Frequency response -3dB @ 2Hz & 65kHz

AMP PCB size: 94mm*138mm (W*L)

PCB thickness:1.6mm

Package include:

Assembeld NCC200 Power amplifier board     X 2

Note: The Power transistor ON NJ15024 default is used. but it is 100% original and works in good condition.

          NAP250 Amplifier Board at work need to deal with good heat dissipation,
