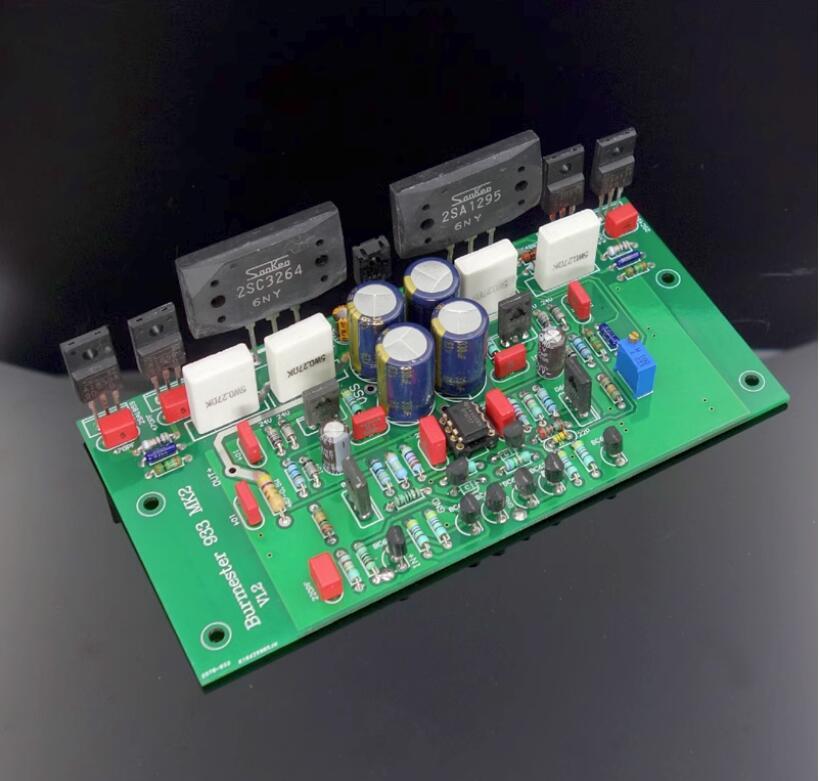

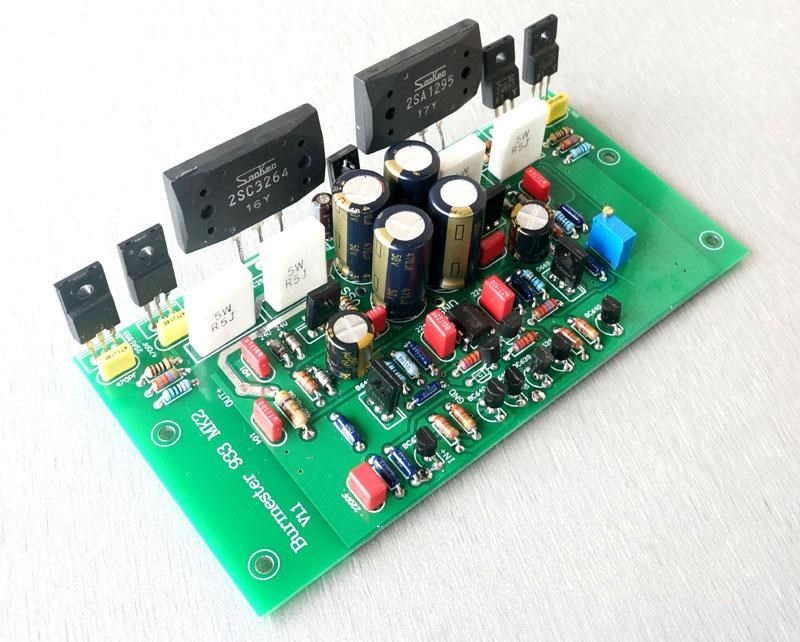

One Pair Assembled Clone Burmester 933 Power Amp Current Feedback Amplifier DIY Finished Board

Product Details:

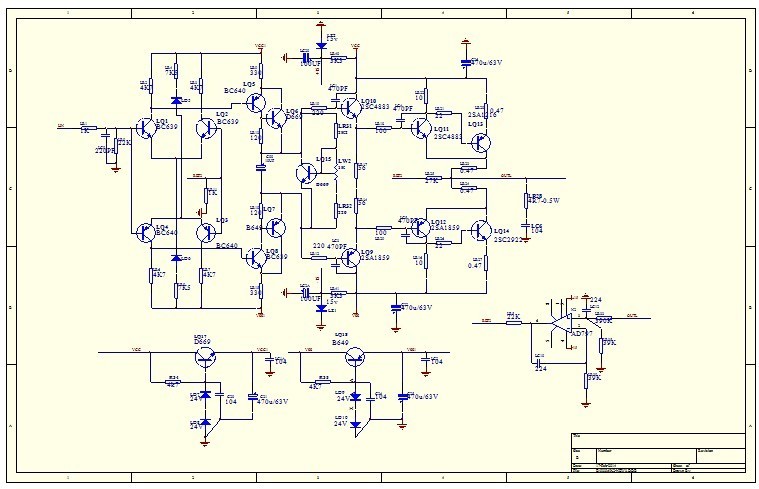

Based on the Burmester 933 power amplifier circuit.

With DC servo circuit, the assembly board has been tested successfully.

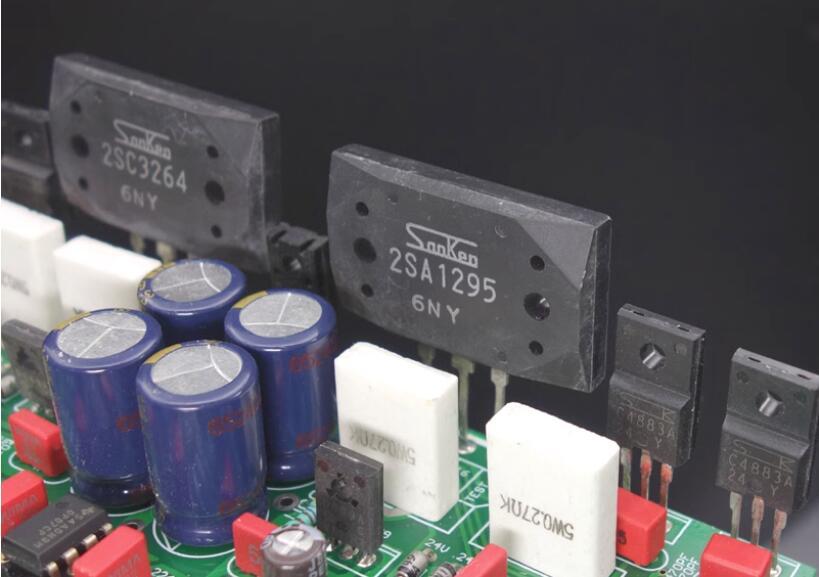

Use SANKEN 2SC3264 2SA1925 transistor.

Use high precision flow diode, Famous Japanese brand non-inductive resistor, Germany WIMA capacitor.

Specifications:

Working voltage: DC+-30V to +-60V

Output power: 130WX2 /8Ω; 180WX2 /4Ω

Frequency response: 10HZ-40KHZ

Distortion: 0.001% 1KHZ

Signal to noise ratio: 105DB

PCB size: 142*72MM

Package List:

1 pair × Assembled 933 Amplifier Board
