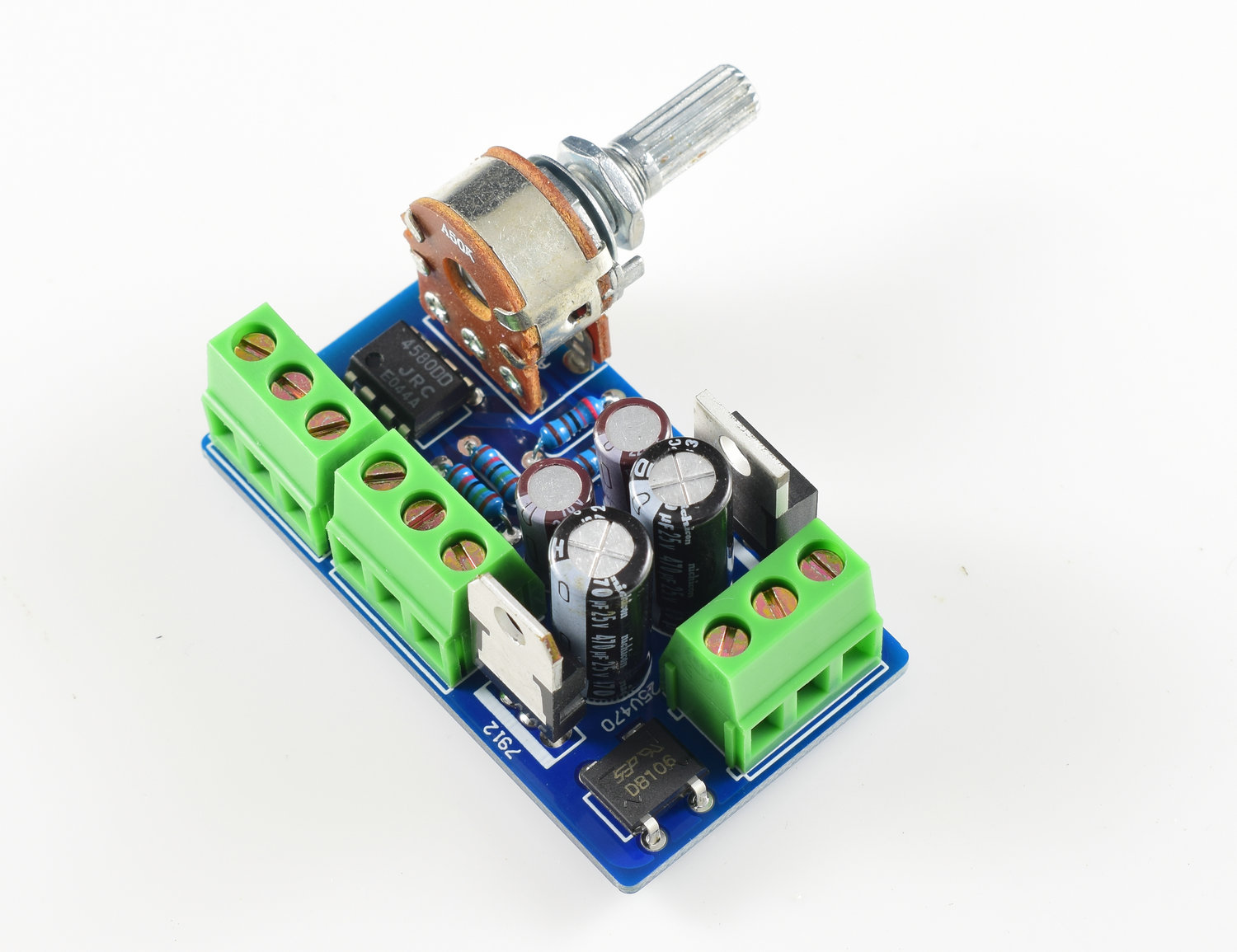

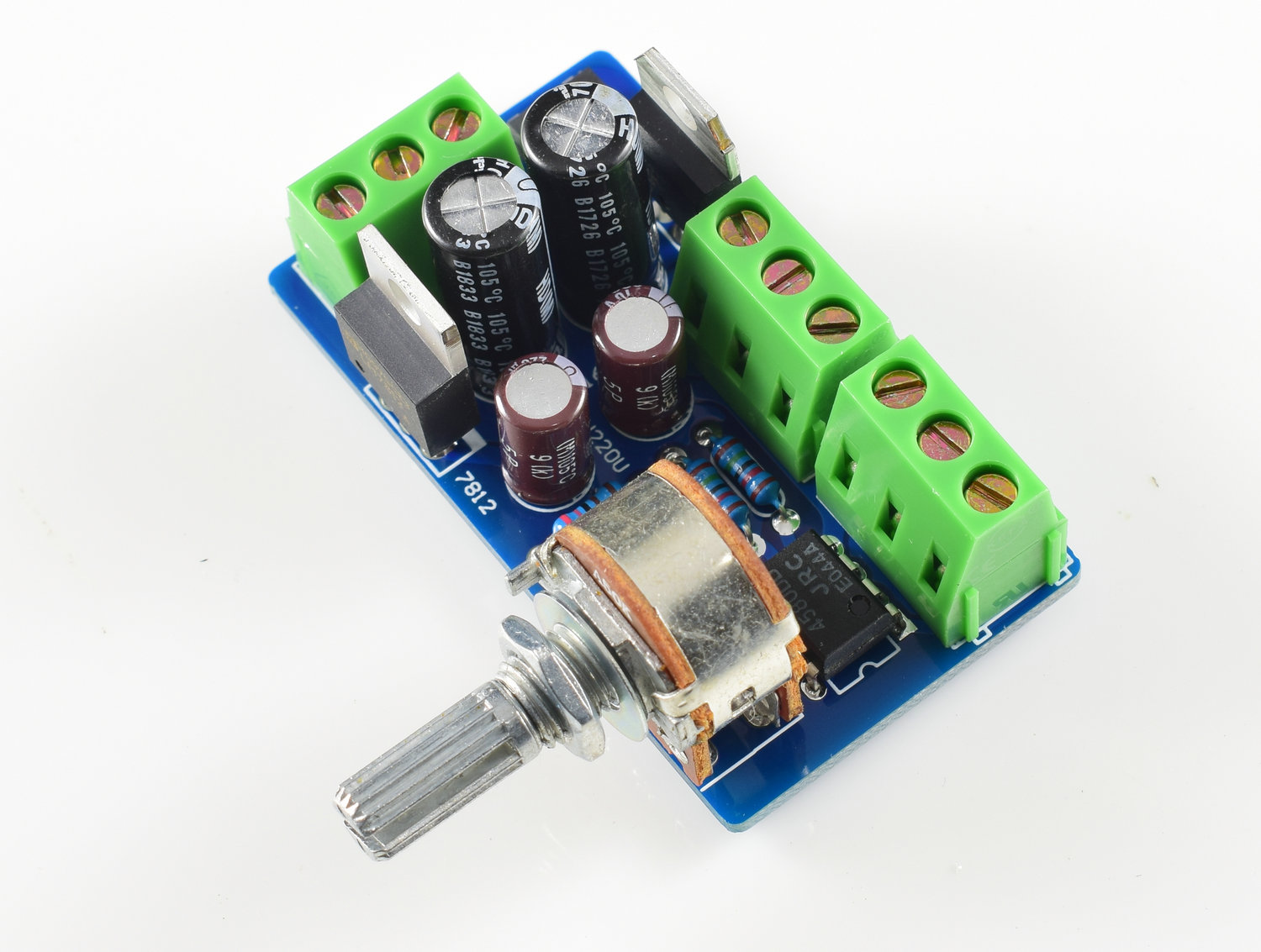

PCB Size: 93.5 * 44.4 Input voltage: AC 15V--0--15V Gain: 14 times Maximum output voltage: +/- 14V Maximum output current: 200mA Driving load: 16-800 ohm Frequency response: 5HZ - 300KHZ +/-3db Input impedance: 10K SNR: >120 db THD + N: <0.006%
NOTE: We have DIY kit or finished board (Optional) ◆ DIY kit ---- All parts need you to solder and test it. ◆ Finished board ---- All parts have been welded and tested OK.
