Product Details:

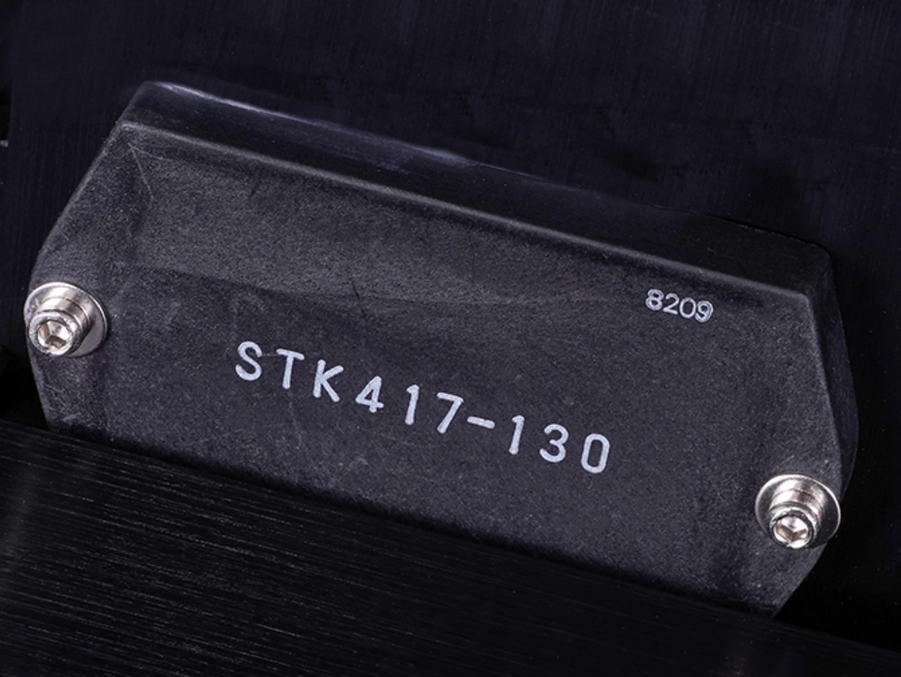

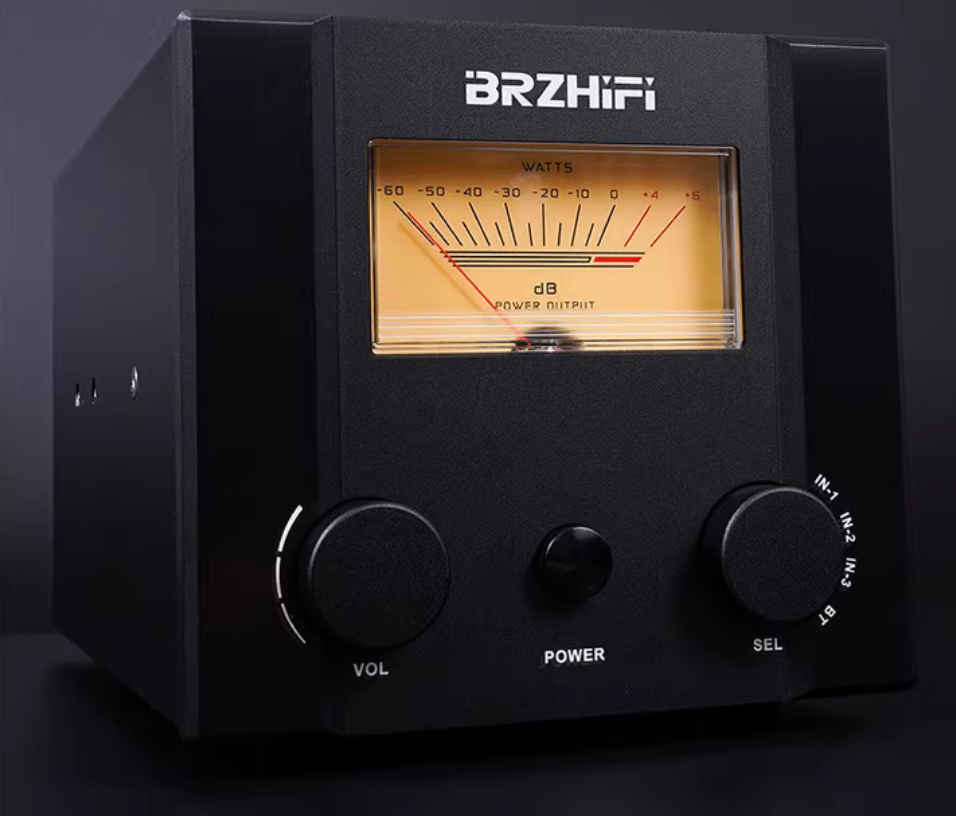

PA-417 is a mid-range HIFI amplifier with the classic STK417-130 circuit as its core. It is designed with precision and is reasonably matched with various HIFI components Balancing strong power, ultra-low distortion, and durability Suitable for home theaters, HIFI music appreciation, desktop audio systems, etc
150W * 2/8 Ω output power, can easily drive most speakers, high volume without distortion.
Integrated high-precision power transistors and precision bias circuits, with an ultra-low false positive rate of 0.01%.

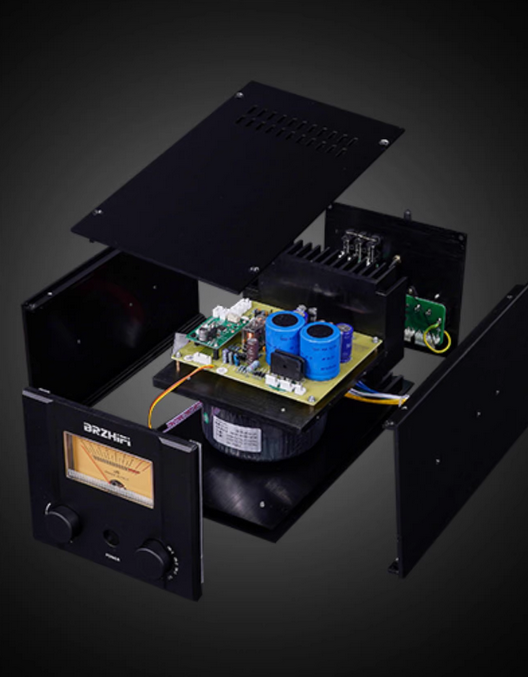

Top and bottom layered design to achieve zero electromagnetic crosstalk.
Modular circuit architecture minimizes signal and power paths, reducing signal attenuation and interference.
Built in through type heat sink, combined with heat dissipation slots, effectively and quickly dissipate heat.
300W pure copper ring transformer Small magnetic leakage, low internal resistance, and strong power.
Philips filter capacitor High stability, low internal resistance, excellent dynamic and analytical power.

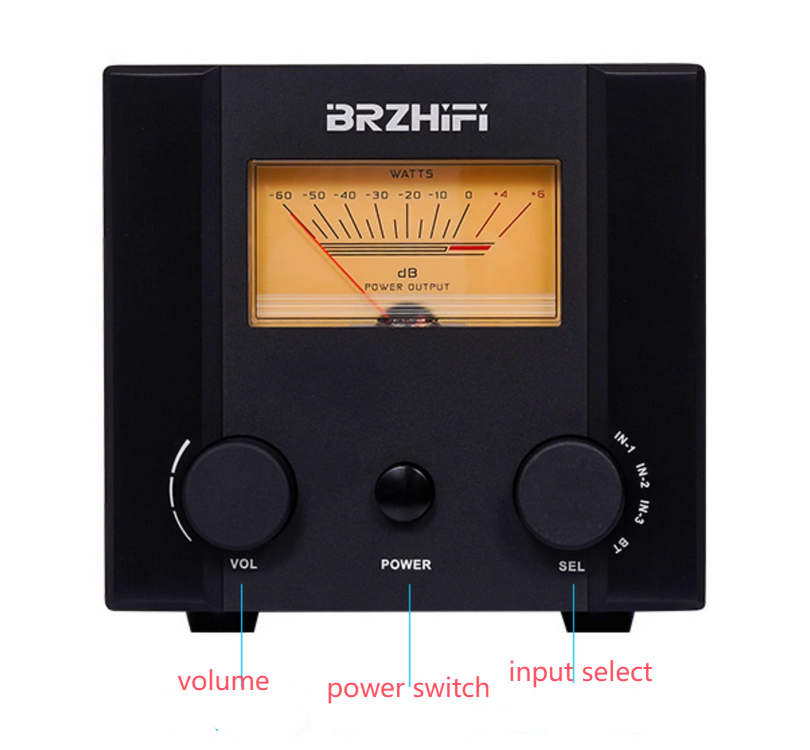

Retro style VU meter, perfectly presenting the dynamic of music with liveliness
Parameters::
Model: PA-417 Chip:
STK417-130

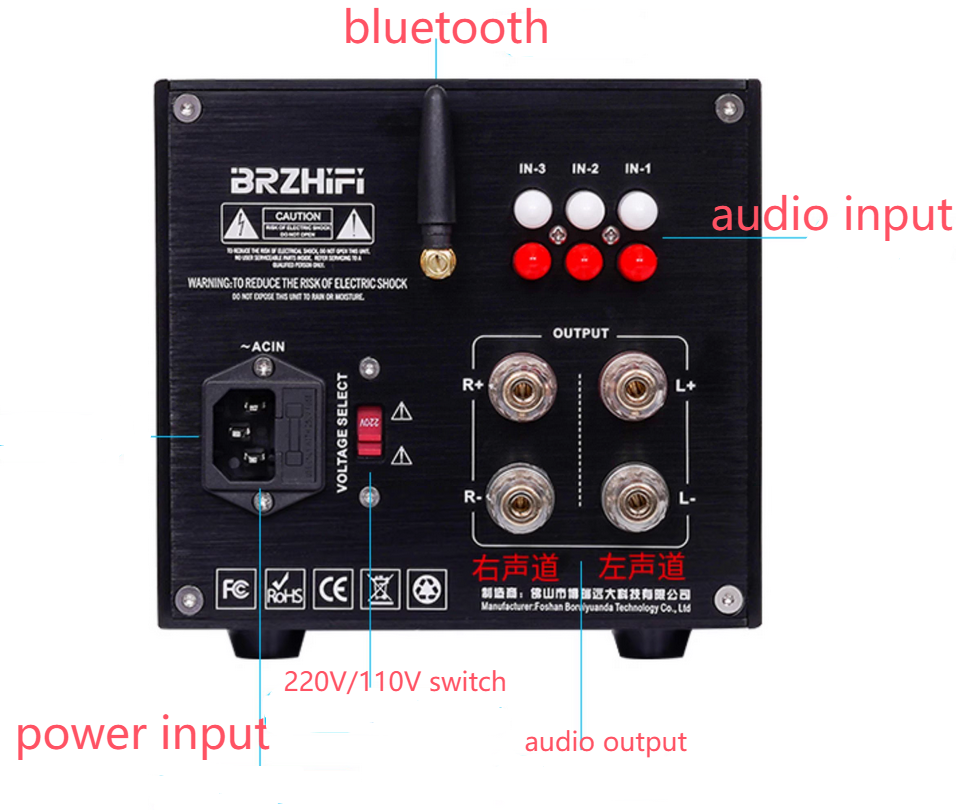

Input port: Bluetooth/AUX123
Bluetooth version: 5.3 SBC
Output power: 150W+150W4-8 Ω rated power Rated power 200W+200W4-8 Ω maximum power
Output impedance: 2-8 Ω
Magnification factor: 55 times
Frequency response range: 5-40kHz ± 3dB
Signal to noise ratio: -115dB
Input sensitivity: 750mV
Static power consumption: 10W

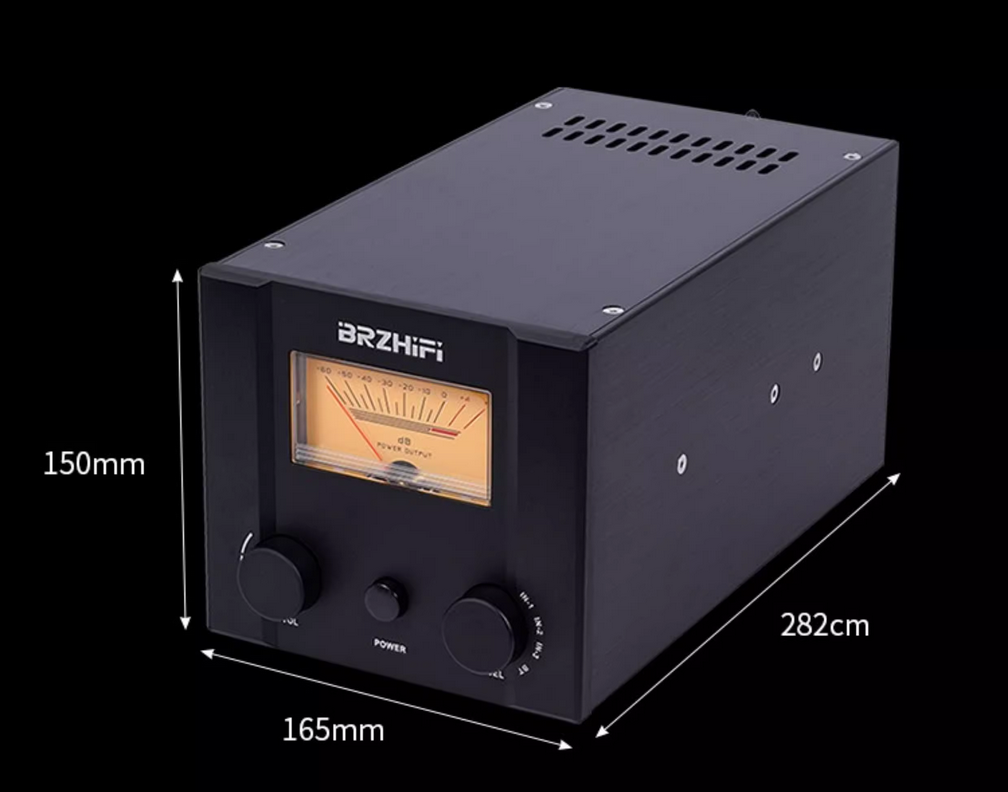

Size: 165 × 282 × 150mm Width Depth Height
Weight: Approximately 7.5KG
Input voltage: AC 220V /110V
Package list:
1 × Finished PA-417 amplifier
