Product details:
Powerful, the PA-101 bridge mode is Class A 375W per channel, while the dual channel mode is 120W pure A per channel, providing excellent dynamic and control capabilities.

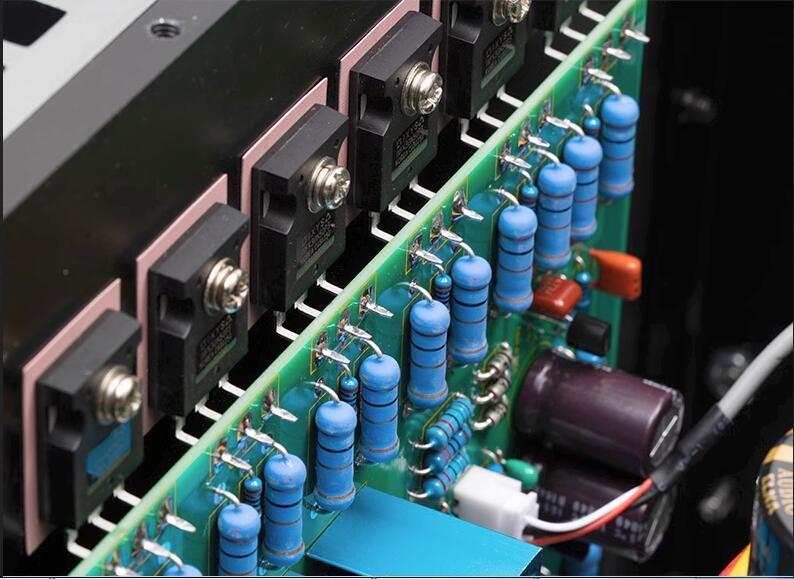

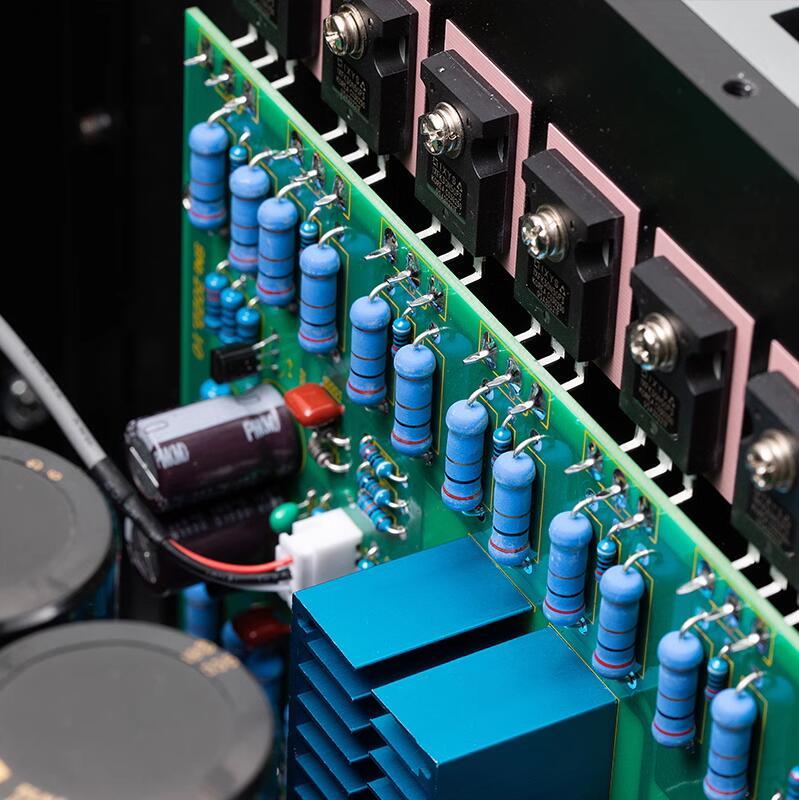

Using German IXYS field-effect transistor as amplifier, the sound is close to that of an electronic tube, moist, warm, and powerful, with rich details.
With a signal-to-noise ratio of 128dB, even when the power supply is clean enough, there is no bottom noise heard when the ear is close to the speaker..
The chassis adopts all aviation aluminum alloy CNC precision machining, with precision and high-end.

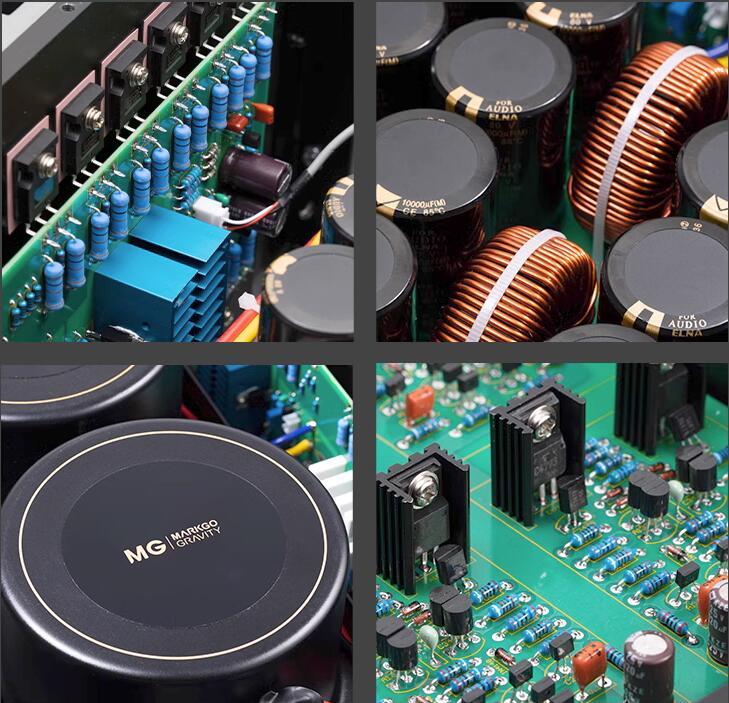

Using 24 Japanese ELNAFORAUDIO large capacitors, it can instantly output a super large current of 120A.
Using Japanese NEC relays for pure mechanical signal switching, rejecting sound dyeing.

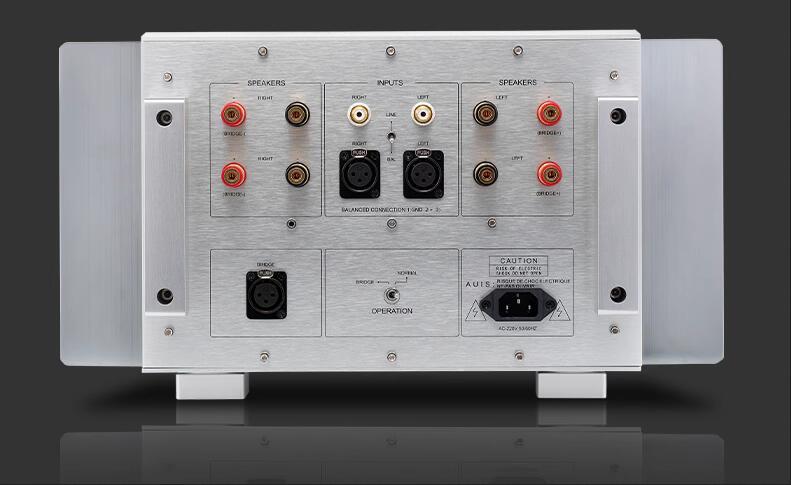

Made of 8 American CMC speaker terminals, exquisitely crafted with extremely low contact internal resistance, made of pure copper, very exquisite.
Parameters:
Impedance: 0-16
Size: 43CM long, 52CM wide, and 22CM high
Channel: 2
Color classification: PA-101
Output power: 125wx2
Weight: 42kg
Harmonic distortion: 0.08%
Signal to noise ratio: 118db
Frequency response: 20Hz-20KHz
Damping coefficient: 1000
Input impedance: 100K ohms balanced input 50K ohms RCA input
Load impedance: 2-16 ohms
Gain: 26db
Static power consumption: 450W
