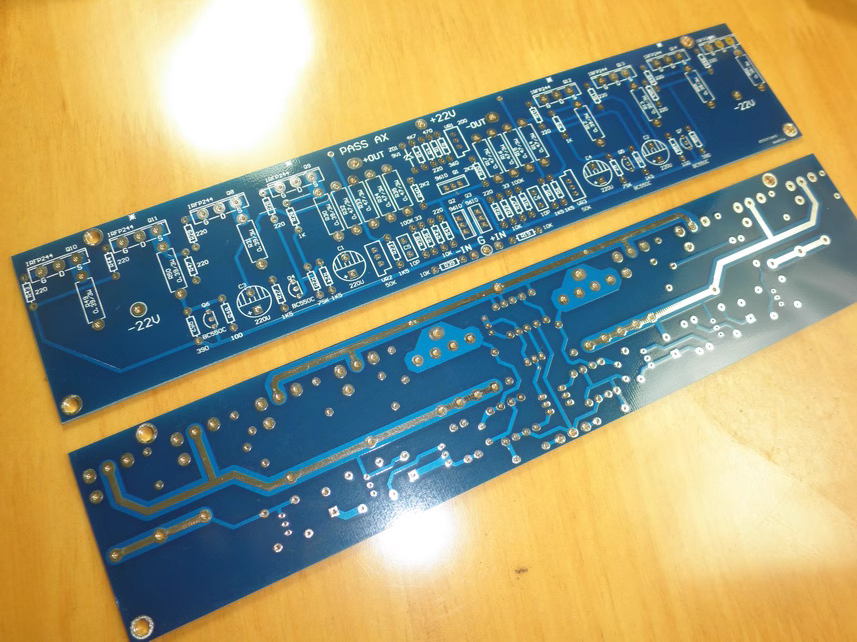

PASS AX class A HIFI DIY Fully balanced power amplifier board PCB

Product details:

PASS Aleph-X is a popular DIY circuit for PASS. It has a fully balanced structure and can achieve a Class A power of 100W with a single transistor current of 1A. It inherits the characteristics of PASS A series circuits, with pure sound, durability, and warmth.

PCB size: 27.5 * 5.6 cm 2oz

Each channel requires a 600W transformer.

By adjusting the final current through an adjustable resistor, it is recommended to use a single transistor with a current of 1A.

Working voltage: ± 22V DC, 8 transistors per channel.

List:

1 pair PASS AX pcb
