PASS J2 Audiophile Single-ended Class-A mono Amplifier Board Balanced Signal Input

Name: PASS J2 Audiophile Single-ended Class-A mono Amplifier Board Balanced Signal Input
Brand: BRZ-hifi-audio
SKU: PASS J2
Price: 22 USD
Availability: InStock

5.0 (1 Reviews)

2 Sold

$22.00

GET $2.00 OFF ON ORDERS OVER $40.00

Get it

L18J8W12

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (6)

1/1

Description

Features:

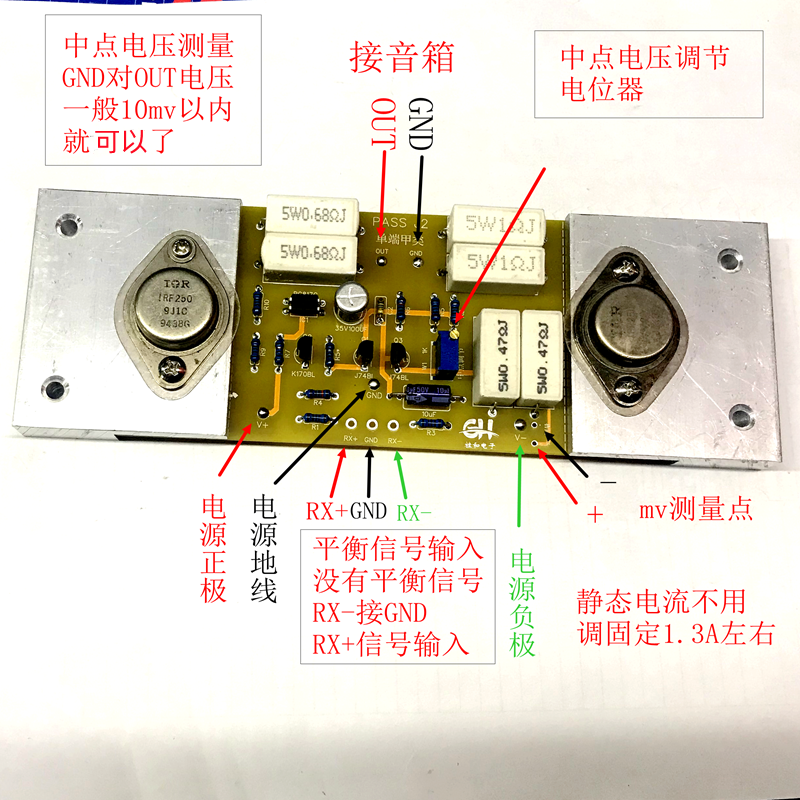

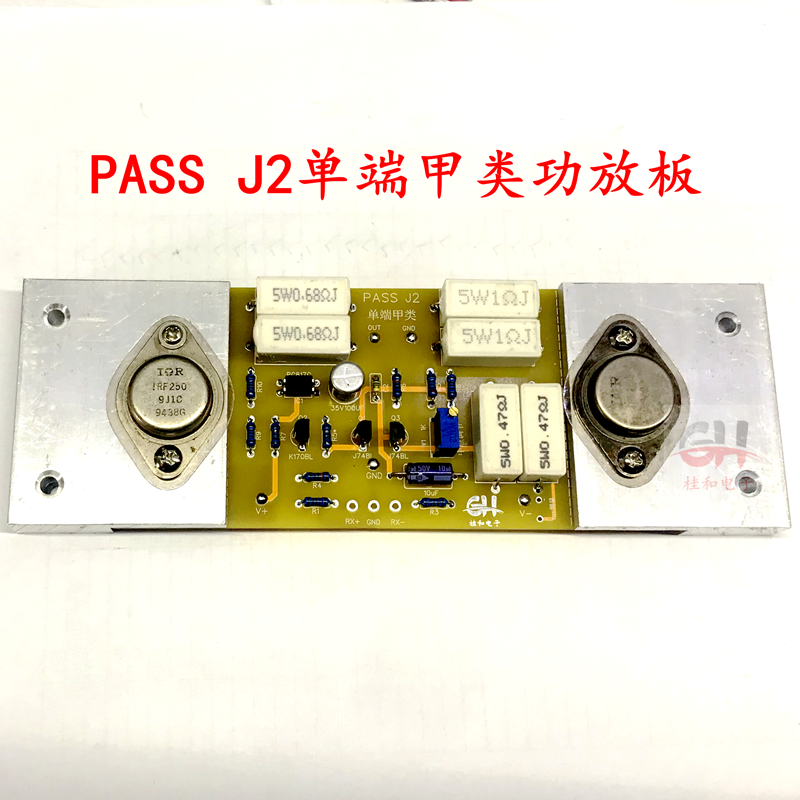

The PASS J2 amplifier board adopts a single ended single channel Class A design
.
● Single channel design, with completely independent left and right channels
● The amplifier board uses IRFP240 transistors (imported disassembled product), which are not brand new. Please do not purchase if you mind!
● Single ended Class A design with high heat generation, please do a good job of heat dissipation before powering on
● It is best to equip each channel with a heat sink of 2kg or more

Parameters:

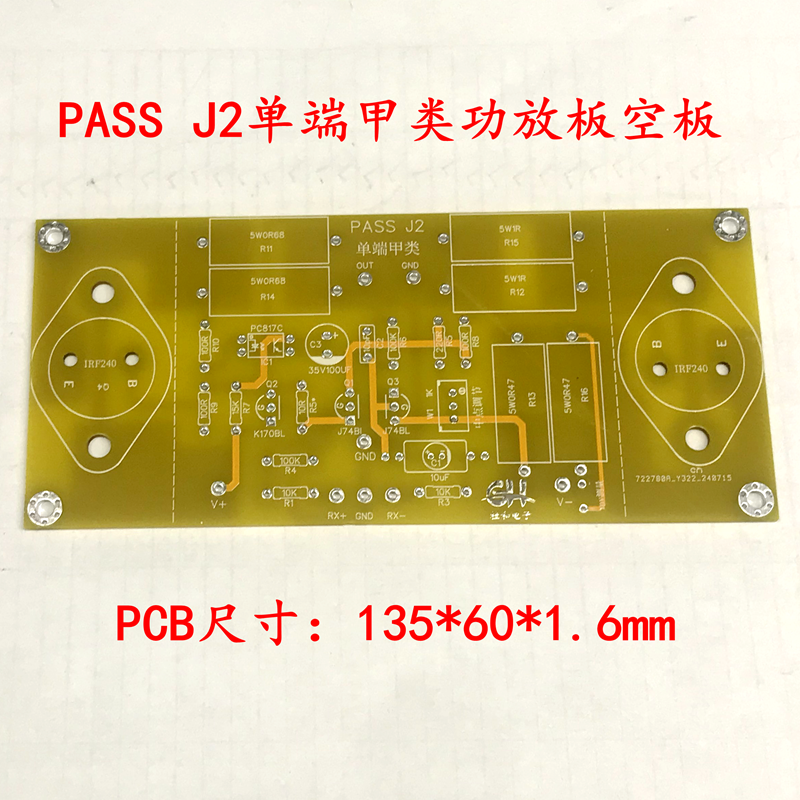

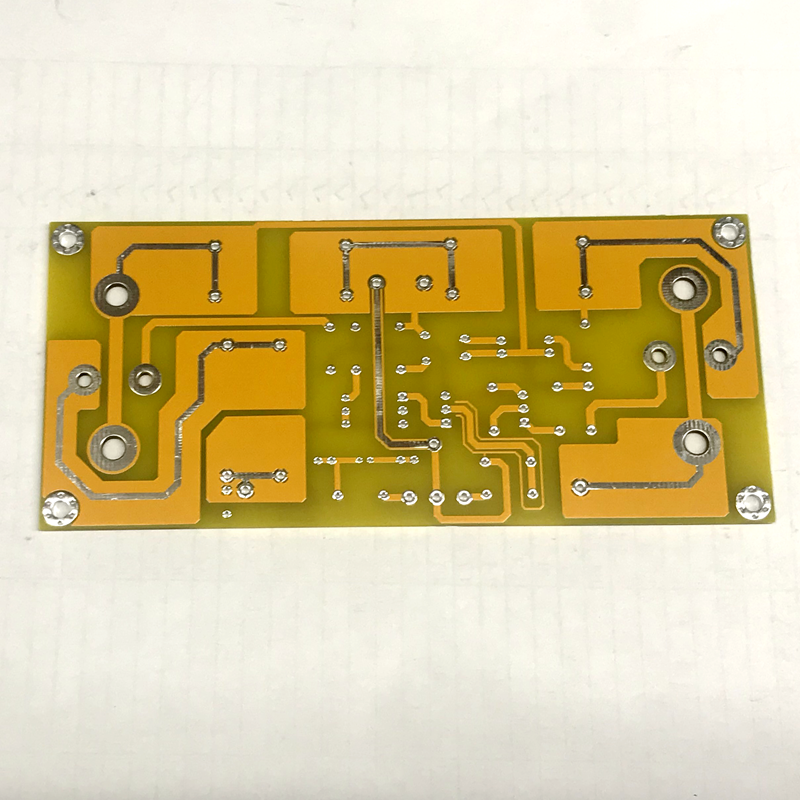

● PCB Size: 135 * 60*1.6mm
● Supply voltage: DC22-24V.
● Static current: 1.3A
● Output power: 25W
● Working status: Class A

List:

1 x PASS J2 Amplifier board（This amplifier board is designed for mono sound. If you need stereo sound, please purchase 2 of them）
