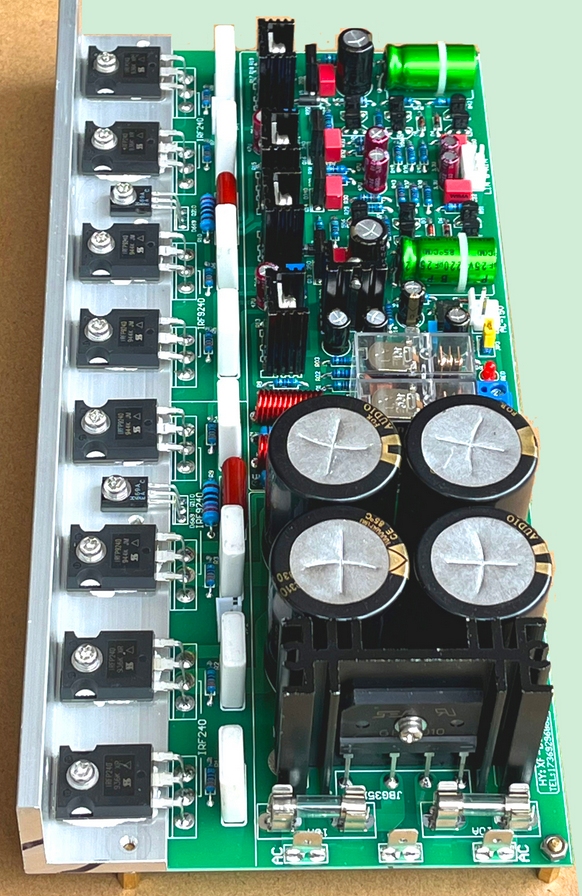

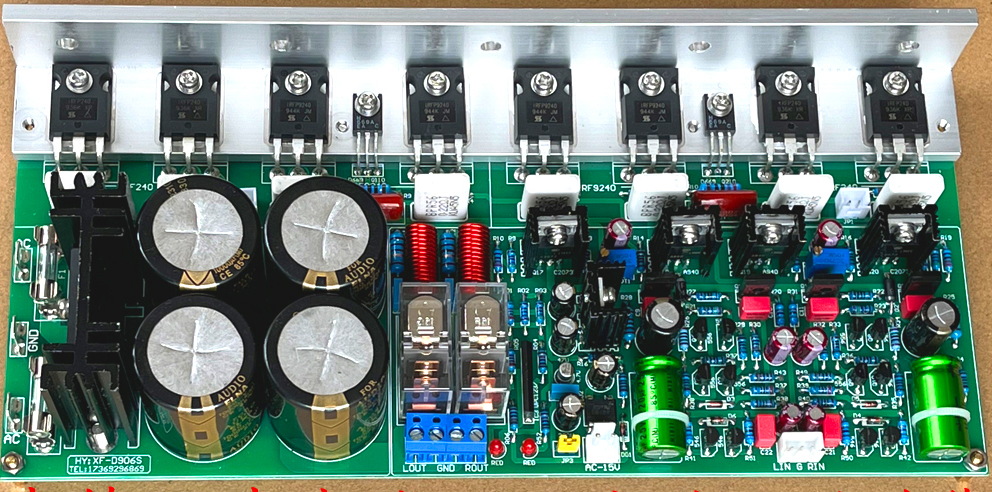

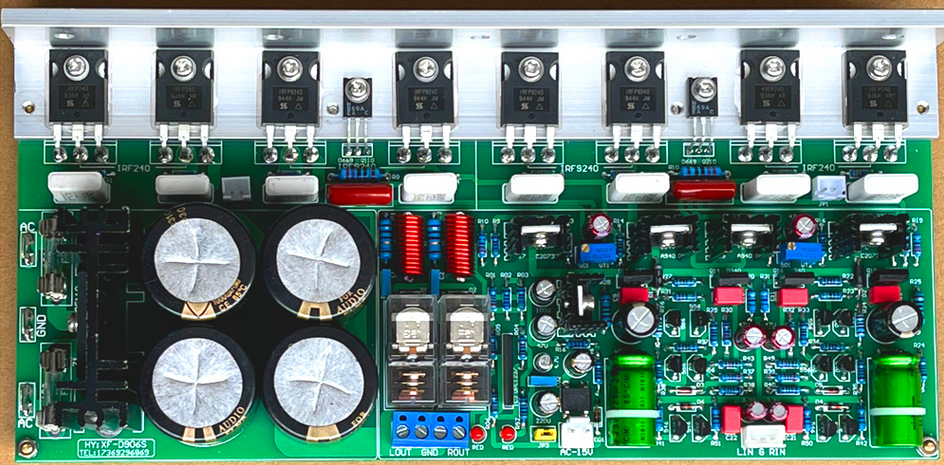

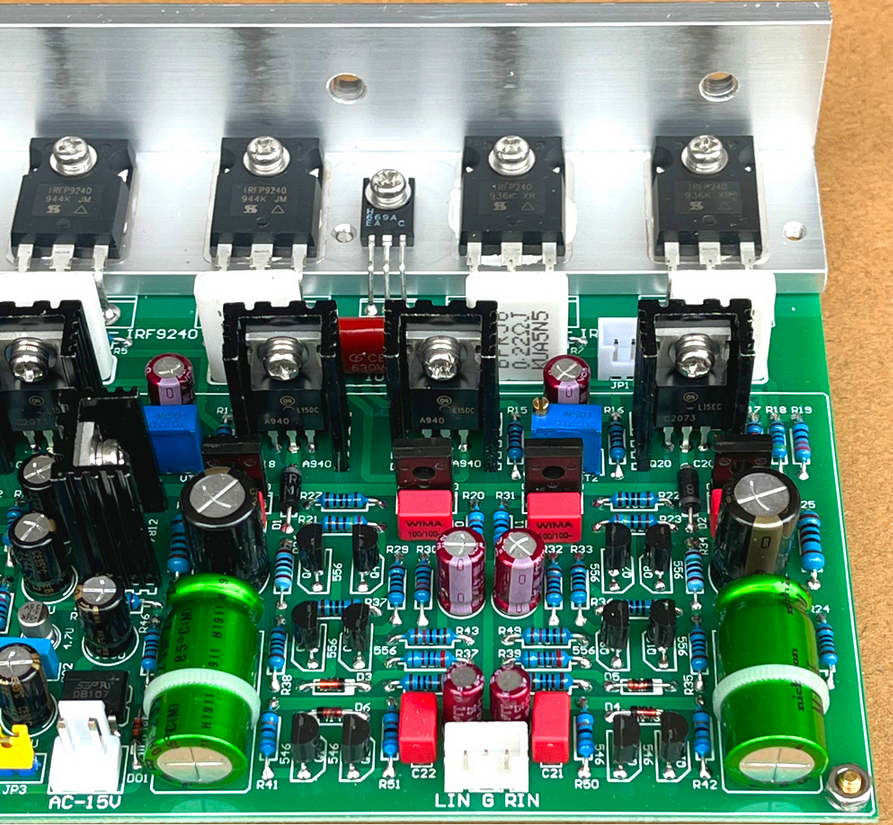

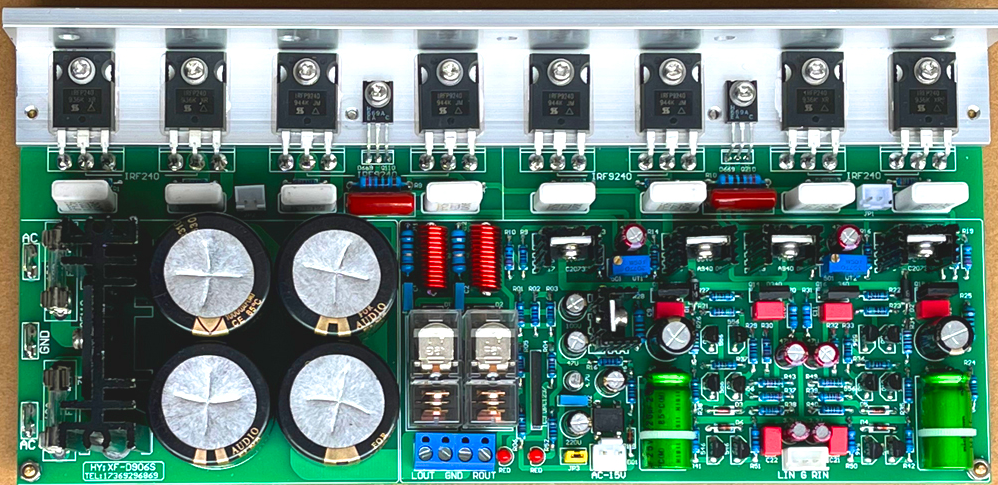

Product Details:
Referring to the classic Class A circuit design of PIONEER, coupled with field-effect transistors, the bottom noise is almost zero, and the sound quality is beautiful.

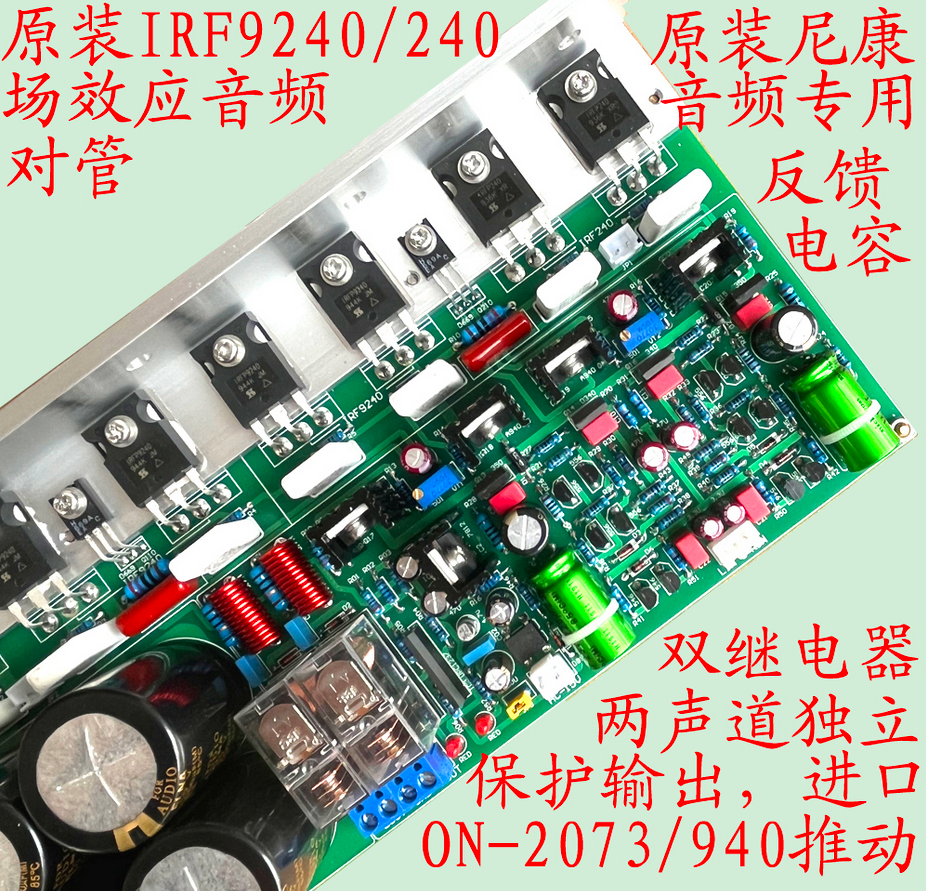

Original IRF9240/240 precision paired field-effect transistor.
Original ELNA audio filter capacitor 10000uf * 4.
Taiwan made coarse copper foot low-temperature drift resistor.
Original imported ON2073/940 excitation transistor.

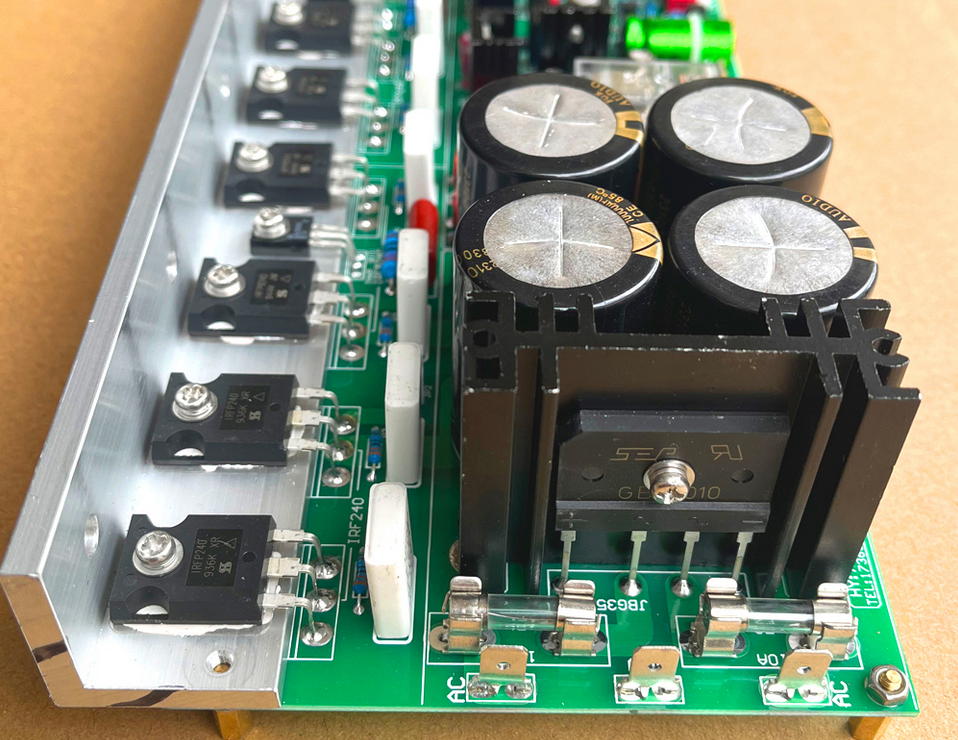

Original Taiwan SEP copper foot rectifier bridge
Parameters:
Model: DX60
Parameters: Input voltage: AC26-35V, recommended 32V (power 500W)
Output power: 40W+40W Class A 200W+200W Class AB
Output impedance: 4-8 Ω
Signal to noise ratio: 90db Distortion: 0.05%
Size: 255 * 105 * 50
Package list:
1 × Finished DX60 amplifier board
