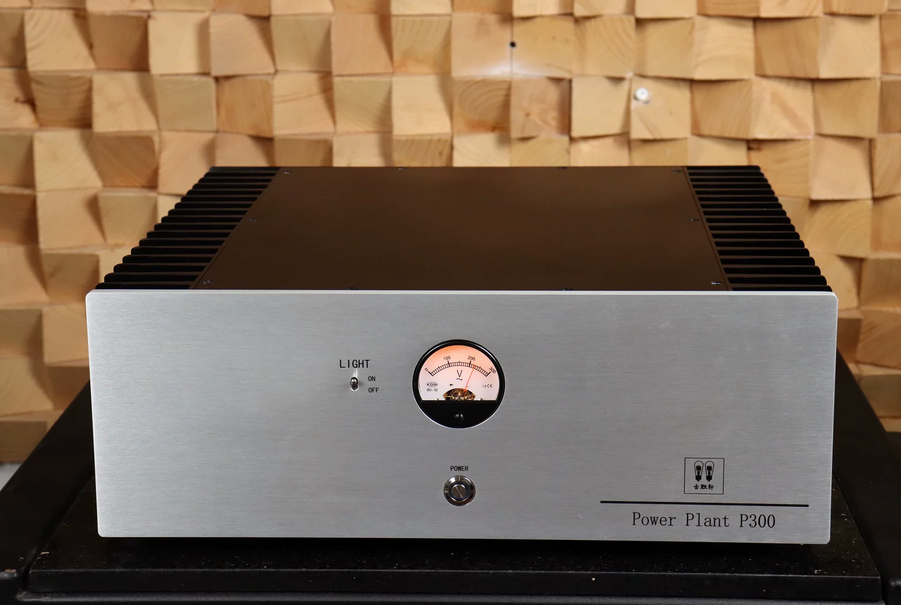

Power Plant P300 300W High purity ultra-low Regenerative audio Power Supply Power Regenerator to Upgrade Isolation Transformer 4bit output sockets

Name: Power Plant P300 300W High purity ultra-low Regenerative audio Power Supply Power Regenerator to Upgrade Isolation Transformer 4bit output s
Brand: BRZ-hifi-audio
Price: 1195.08 USD
Availability: InStock

Flash Sale

5.0 (1 Reviews)

3 Sold

~~$1,299.00~~ $1,195.08

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

input voltage:

110V

115V

230V

220V
output voltage:

all 110V

all 115V

all 220V

all 230V

2 bit 115V 2bit 230V

Quantity:

Add to Favorites (7)

1/1

Description

Power Plant P300 300W High purity ultra-low Regenerative audio Power Supply Power Regenerator to Upgrade Isolation Transformer 4bit output sockets

A regenerative power supply is where the mains power passes through an isolation transformer to eliminate some interference, then rectified into DC to remove various disturbances. It then generates a high-purity AC signal, amplifies it through a power amplifier, and outputs it through the isolation transformer. This way, AC power, DC interference, common-mode interference, and differential-mode interference are all eliminated. Among the tools to eliminate interference, the regenerative power supply ensures complete elimination!

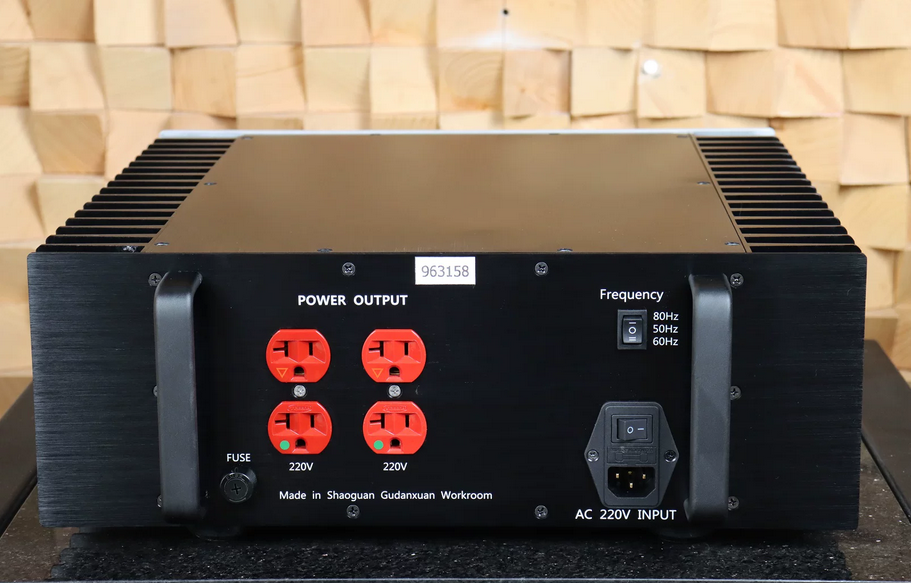

The output includes 4 outlets with 5 output options: All 220V, all 230V ， all 110V,， all 115V ，2 bit 230V 2 bit 115V, sockets.

Features:
* The regenerative power circuit is designed with an output power of 450W. The output voltage is 220V ±2% from no-load to full load (450W). When the load is 380W, the output voltage is 220V ±1.5%. Considering the limitations of the heat sink and various user cooling conditions, it is recommended not to exceed 300W during use, ensuring sufficient power reserve.
* After the transformer output, there is no large loop negative feedback circuit, which audiophiles understand is the foundation of good sound quality! The sound is lively and natural!
* A 32-bit high-speed microcontroller is employed to ensure the reliable and safe operation of the machine, monitoring input and output voltages, with both software and hardware protections in place to comprehensively safeguard your equipment!
* The output frequency can be adjusted to 50Hz, 60Hz, and 80Hz. Increasing the frequency is equivalent to enlarging the filter capacitor of the user's device, which reduces the ripple after rectification.
* The power supply operates very quietly, with no hum.
* The dimensions are 16cm in width, 43cm in depth, and 44cm in height.
* It utilizes an American-standard imported socket from the United States.

What are the characteristics of using an analog power amplifier?
Our team has mastered AC voltage stabilization technology. Initially, we stabilize the AC voltage within the range of 198-252V to a steady 220V. This significantly enhances the efficiency of the amplifier, increasing it to over 70%, overcoming the challenges of regenerative voltage in analog amplifiers! We have developed a 300W regenerative power supply!
1. Utilizing special AC voltage regulation technology: the AC power is first stabilized, significantly improving the amplifier's efficiency and ensuring stable and reliable power supply operation.
2. Employing an EI transformer. Due to the presence of magnetic gaps and magnetic resistance, it has strong anti-interference capabilities, especially against high-frequency and DC interference, with enhanced suppression capabilities. The EI transformer features a grounded shielding layer, further improving its interference suppression ability. Products with EI transformers exhibit a darker background and superior tonal quality! The input transformer is a 750W EI transformer, while the output uses a 450W EI transformer.
3. The power supply outputs 450W of power, capable of operating for short durations with a transient power reaching up to 650W. Considering varying heat dissipation environments and user conditions, it is recommended not to exceed a power limit of 300W!
4. It outputs an exceptionally pure waveform, with measured harmonic distortions of 0.017% at 50Hz, 0.008% at 60Hz, and 0.006% at 80Hz. Taking into account the diverse environments of users, the harmonic distortion is kept below 0.03%.

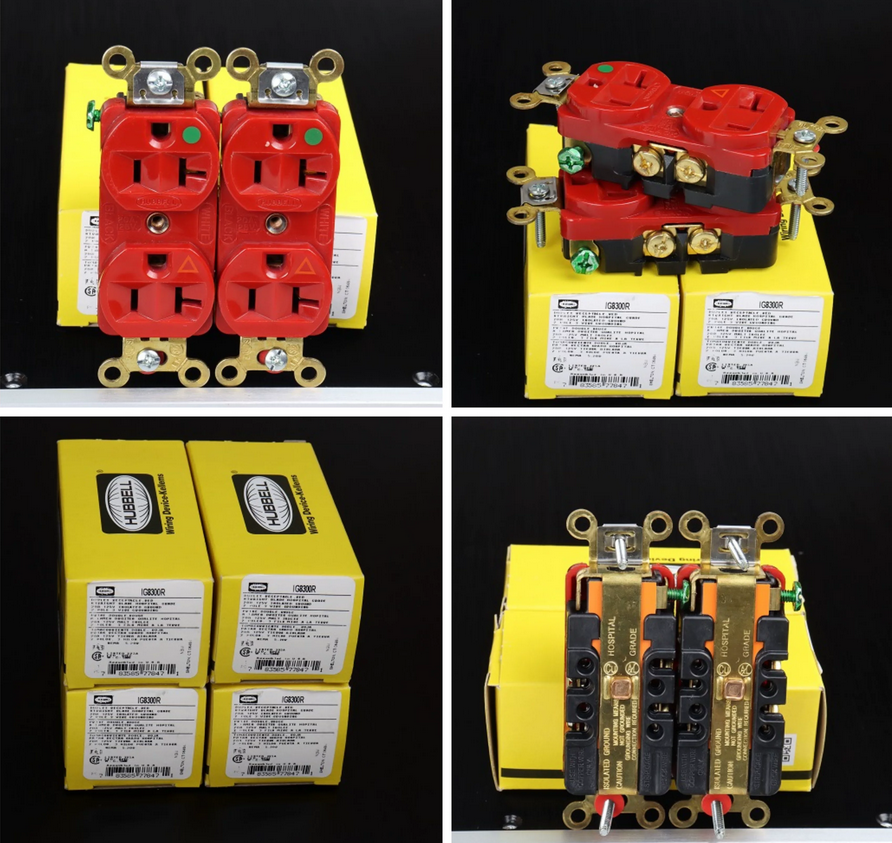

5. The output utilizes the high-end original 8300 for Hubbell. The connections are made with power cables for Prysmian, and the entire chassis is constructed of aluminum!

Package Included:
* 1 x Power Regenerator

Packaging Details:
* Weight: 29kg
