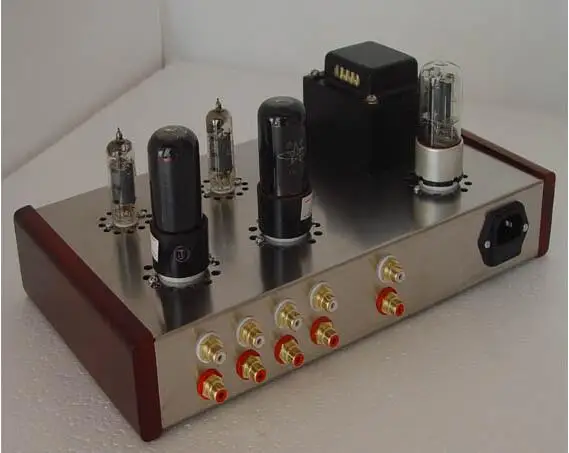

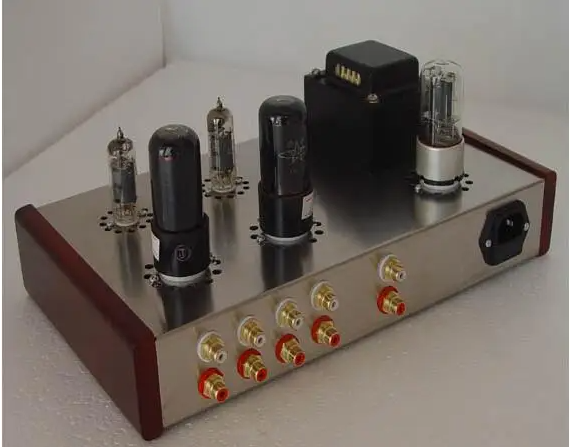

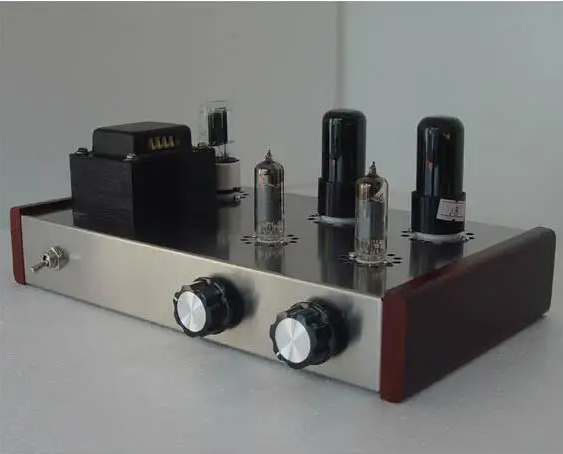

6J4+6P6P Vacuum Tube Pre-Amplifier
If you prefer to solder it yourself,you can choose DIY KIT in our store!
Technical parameters:
Frequeney responses: 10Hz - 100KHz (± 0dB); 10HZ-200KHZ (± 0.2dB)
RMS: 0.8W * 2
Output voltage: 12V
Amplification: 8 times
Power supply: AC 220V-240V or 110V
Tubes used: 2× 6P6P, 2× 6J4, 1× 6Z5P
Input: 4ways RCA jacks
Output: 1way RCA jacks
Supply votage: All Voltages are available 60Hz / 50Hz
The machine output voltage of 12V, an enlarged eight times
Power Transformers 76 * 40 / 270v * 2 / 6.3v / 3.15v * 2
Size: 290*170*50MM (W*D*H)
Weight: 6.3 kg
Package include:
1× Preamp
