PW07 Ultra-low-noise 220W 6A linear regulated power supply with overvoltage protection (5-24V)

Name: PW07 Ultra-low-noise 220W 6A linear regulated power supply with overvoltage protection (5-24V)
Brand: BRZ-hifi-audio
SKU: PW07
Price: 173.88 USD
Availability: InStock

Limited Offer!

0.0 (0 Reviews)

0 Sold

~~$189.00~~ $173.88

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $2.00 OFF ON ORDERS OVER $80.00
GET $3.00 OFF ON ORDERS OVER $160.00
GET $5.00 OFF ON ORDERS OVER $300.00
GET $8.00 OFF ON ORDERS OVER $600.00

17/05/2026/00:00:00 - 31/05/2026/00:00:00

Please select the information you want X

Input voltage:

AC110V

AC220V
output voltage:

DC5V

DC9V

DC12V

DC15V

DC19V

Customize other output voltages
output interface size:

5.5*2.1

5.5*2.5

Quantity:

Add to Favorites (0)

1/1

Description

Features:

The PW07 linear power supply has high power, low ripple, and large output current, making it suitable for powering devices such as laptops, NUCs, Daphil hosts, routers, etc.

● Multiple output voltages are available and customized services are accepted
● The maximum output current of the DC interface is 10A, and the maximum output current of the USB interface is 5V and 4A .
● Stable output, extremely low ripple, full load 6A output ripple less than 100uV.
● Select a precise voltage reference source with extremely low temperature drift, high precision, and low noise, ensuring stable long-term performance
● 25A high current transistor for sampling and driving
● Ideal diode for rectification, with low internal resistance and minimal heat generation.
● An isolated DC circuit (capable of isolating 0.7V) has been added to the power input terminal.
● Two independent overvoltage protection circuits, with an automatic port for exceeding the rated value of 1V.
● Gold plated DC output interface with good transmission performance

Parameters:

● Size: 190 * 75 * 302 mm
● Input voltage: AC220/110V.
● Output voltage: 5V/6A,9V/6A,12V/6A,15V/6A,19V/6A.
● Weight: about 6kg （including packaging）

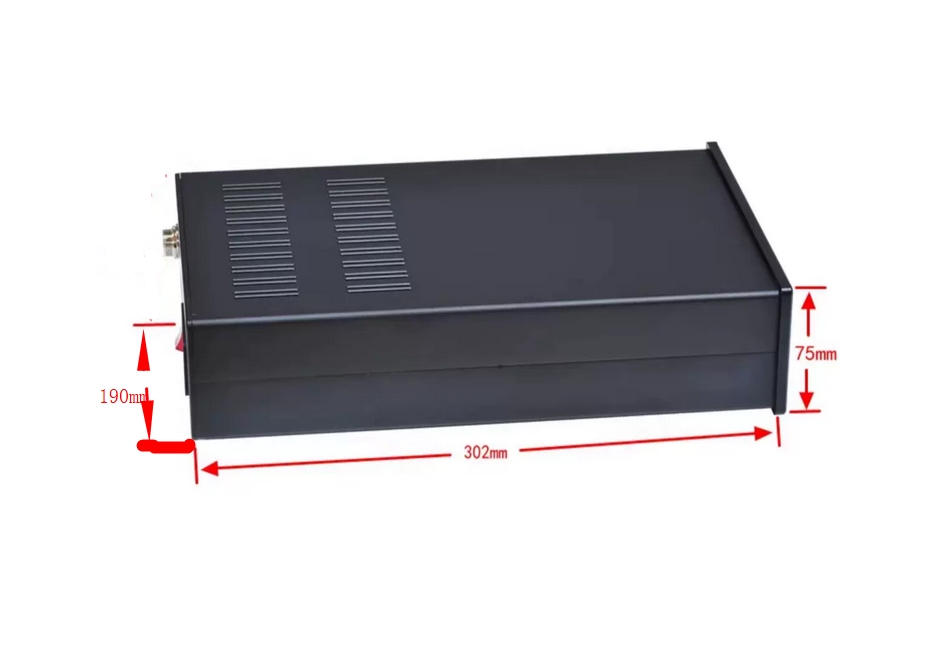

● Size: L302mm*W 190mm*H 75mm

List:

1 x PW07 linear regulated power supply（To ensure the safety of the product during transportation, a power input cable is not provided by default）

1 x PW07 linear regulated power supply
