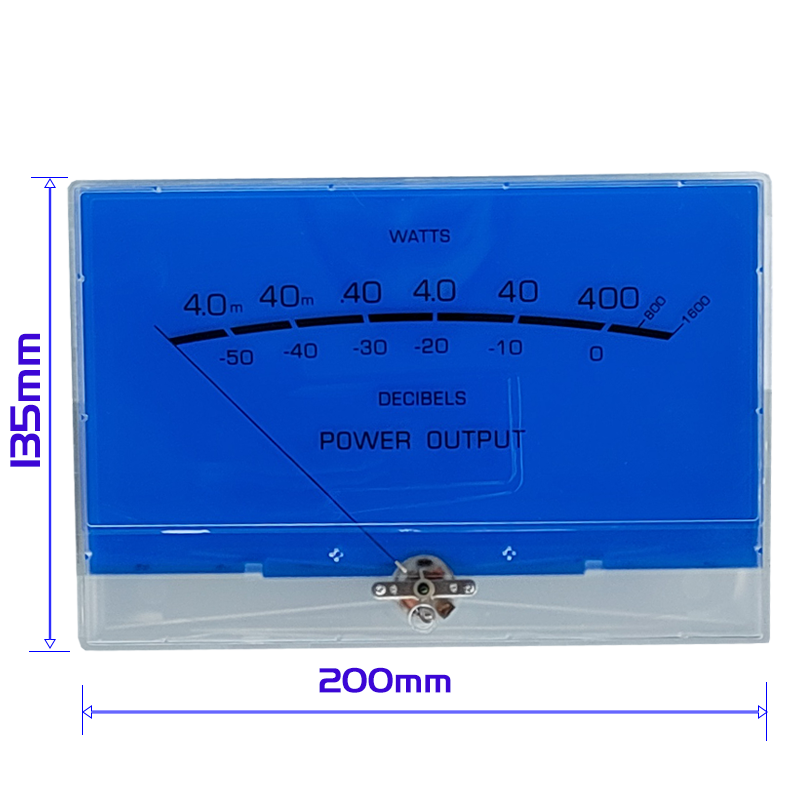

P‑200 VU Meter with LED Backlight for Power Amplifier Sound Audio Production in Taiwan

Name: P‑200 VU Meter with LED Backlight for Power Amplifier Sound Audio Production in Taiwan
Brand: BRZ-hifi-audio
SKU: P‑200
Price: 73.6 USD
Availability: InStock

Sale

5.0 (1 Reviews)

5 Sold

~~$80.00~~ $73.60

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (8)

1/1

Description

Feature:

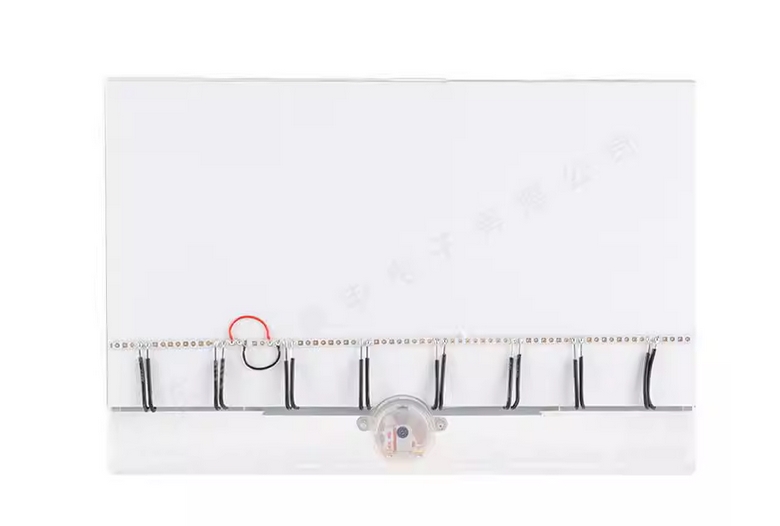

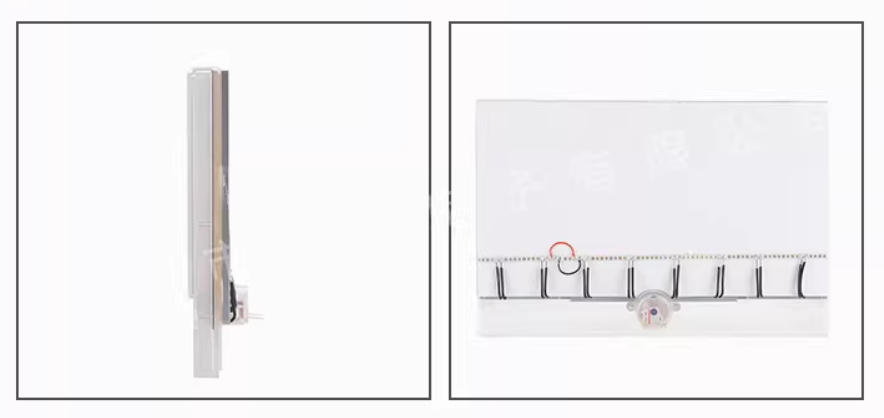

1. With LED backlight function, support pointer display, you can quickly and intuitively read the measurement results.
2. It has high impedance, strong magnetic and large damping, high stability, low power consumption, stable and reliable.
3. The movable coil type is adopted, and the vibration frequency is 16.7Hz, which is mainly used to indicate the degree of sound intensity.
4. The VU meter head is made of high quality PMMA material, which is durable and wear resistant, and has a long service life.
5. Easy installation and disassembly, widely used in , recording studio, home audio, car audio transformation, etc.

Specification:

Item Type: VU Meter Header
Material: PMMA
Model: P-200-BGB-S0532
Type: Movable Coil Type
Pointer Swing Direction: From left to right
Pointer Length: 107±1mm from the needle end to the
Pointer Width: 0.45±0.05mm
Maximum Current Sensitivity: 1200ua±10%
Internal DC Impedance: 2050Ω±10%
Friction: ±1mm
Vibration Frequency: 16.7hz (1000 Times/Min)
Temperature: 20℃
Humidity: 70%
Operating Temperature Limit: 70℃±3℃
Storage Temperature Limit: -20℃±3℃
Purpose: Used to indicate the degree of sound intensity
Applicable Scenarios: , recording studio, home audio, car audio transformation, etc.

Package List:

1 x VU Meter

Purchase link for matching driver board
https://brz-hifi-audio.com/products/1-pcs-new-vu-meter-driver-board-ta7318p-dual-channel-stereo-module-upgraded-version
