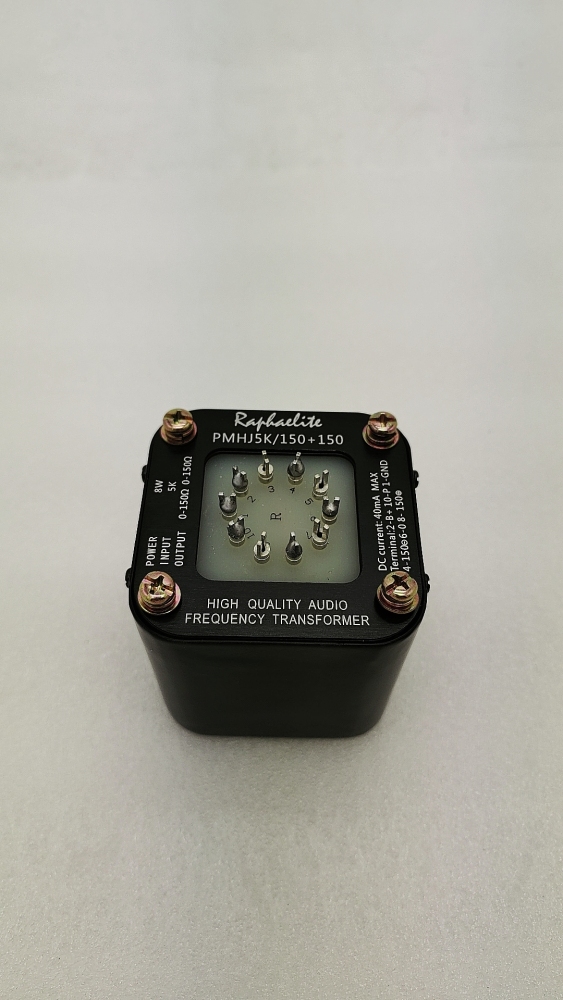

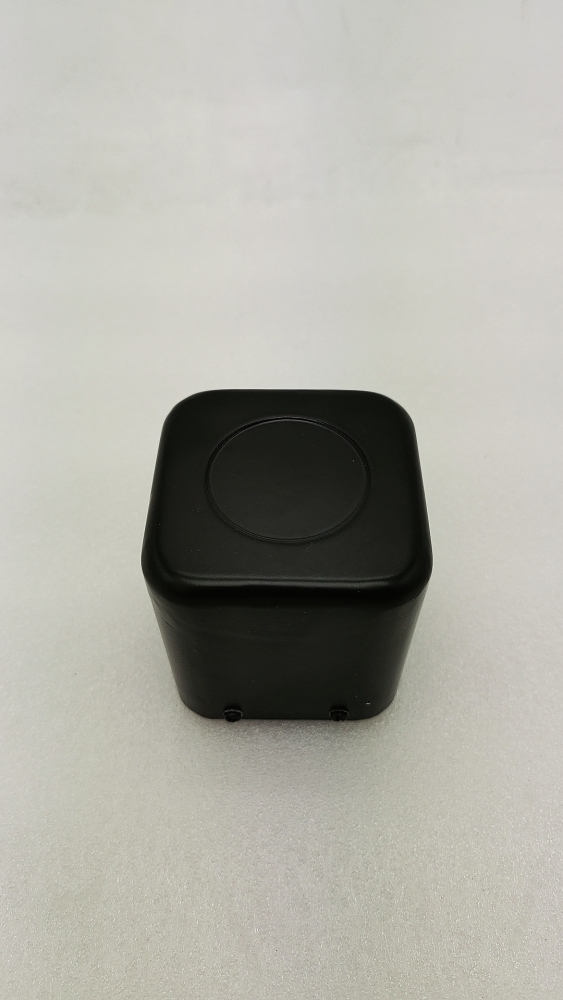

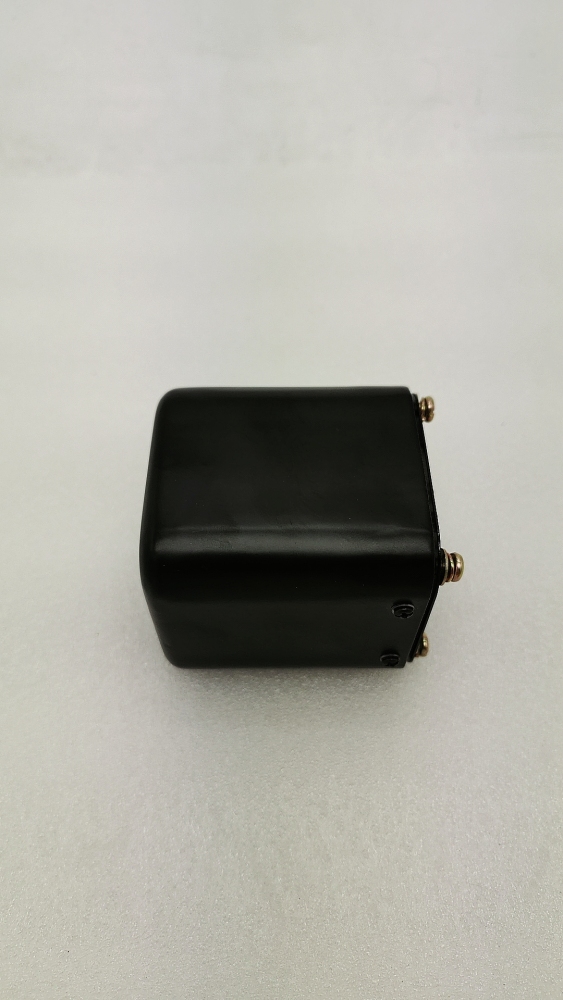

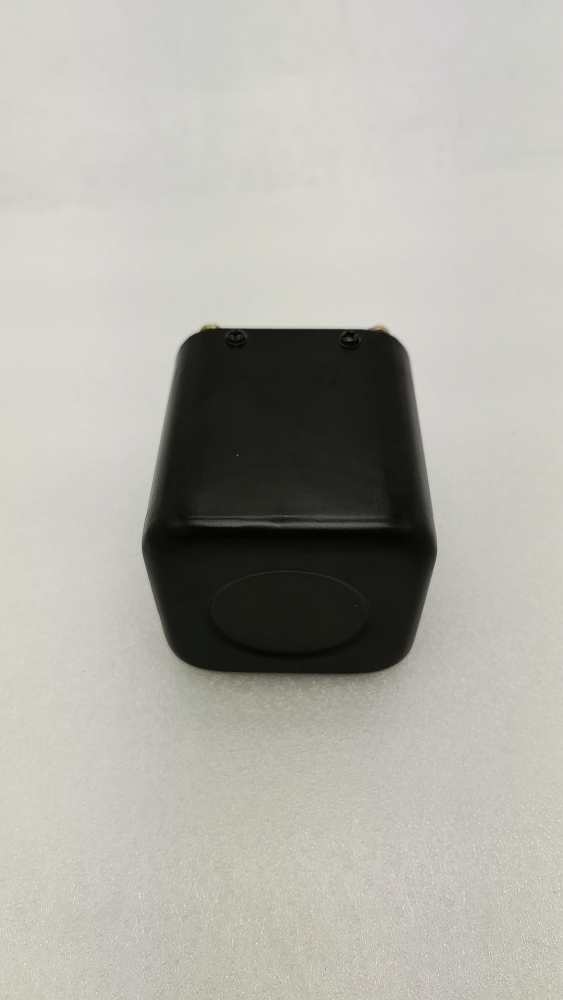

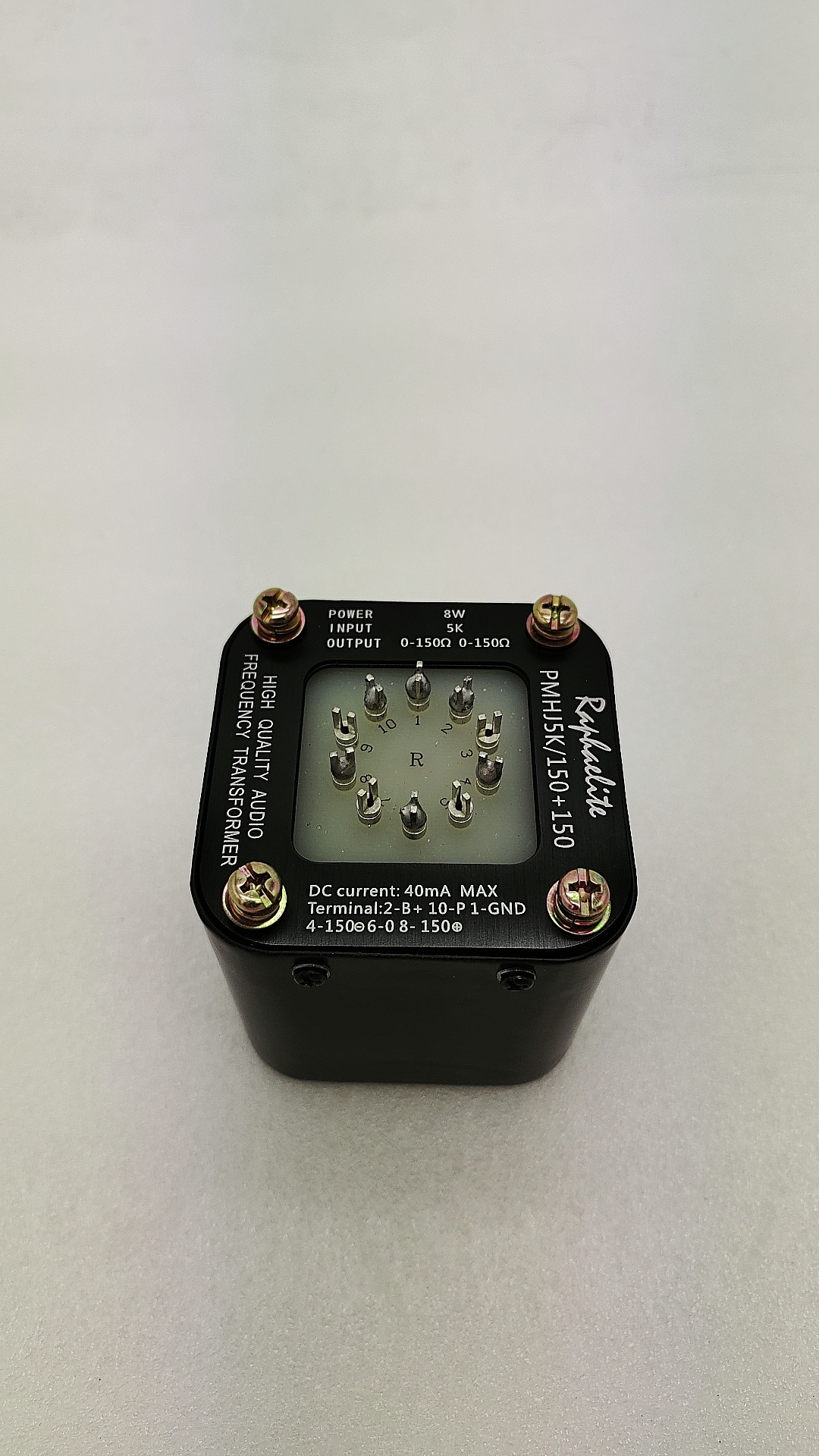

Raphaelite 5K 150+150 Permalloy transformer WE101/WE417/5842/6C45 single-end

Product details:

New silicon steel sheet
Oxygen free copper enameled wire winding
Advanced flame retardant material skeleton, safe and reliable.
The transformer is equipped with a safety device to prevent accidents from occurring.
Multiple vacuum impregnation and baking processes, beautiful and practical.

Parameters:

Model: PM5K 150 ohms+150 ohms OCC5N
Number of turns: 1:0.18+0.18
Primary impedance: 5K ohms
Secondary impedance: 150 ohms+150 ohms
Weight: 1.2kg/pcs
Frequency response: 12Hz-73KHz
Maximum withstand DC current: 40mA
Scope of application: WE101, WE4175842,6C45 single end

List:

Raphaelite 5K 150+150 Permalloy transformer x 1
