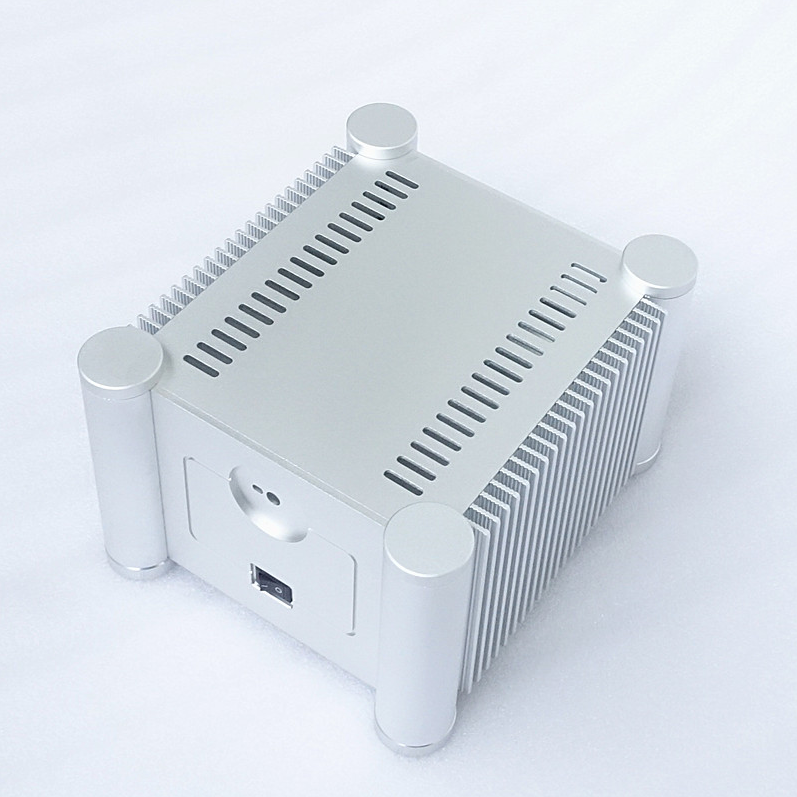

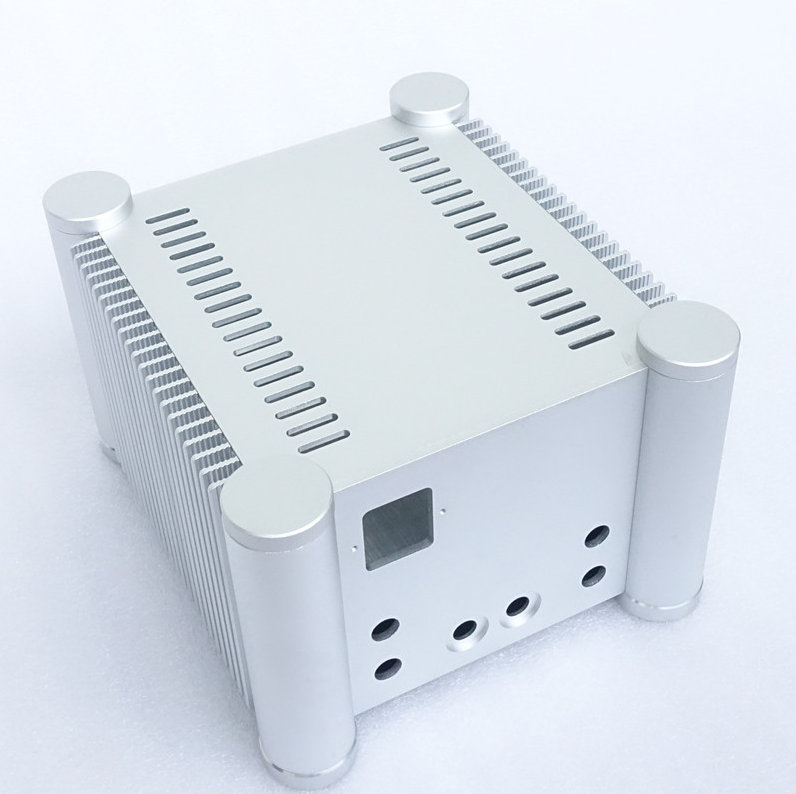

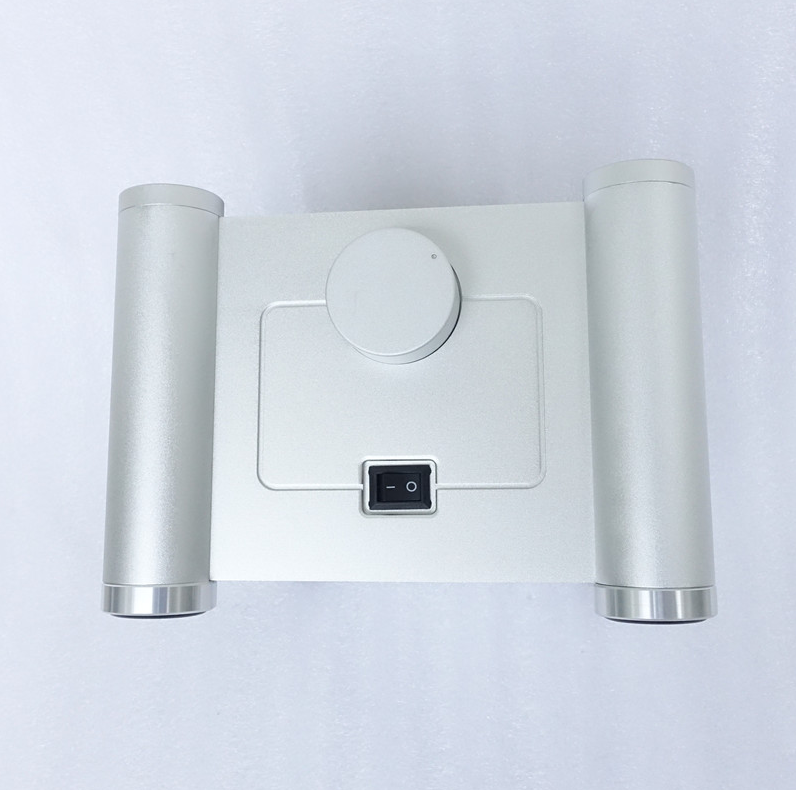

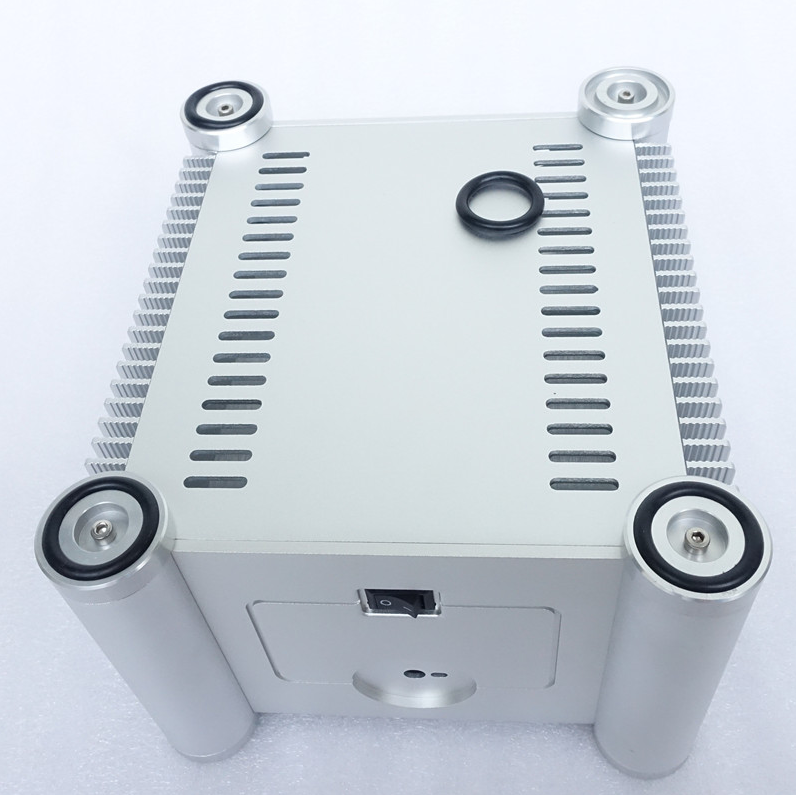

RD2013 Rounded Corner Series mini amplifier Chassis Layered case with upper and lower layers HIFI DIY white preamp box

Product Details:

External dimensions: Width 206 mm Height 150mm Depth 242 mm

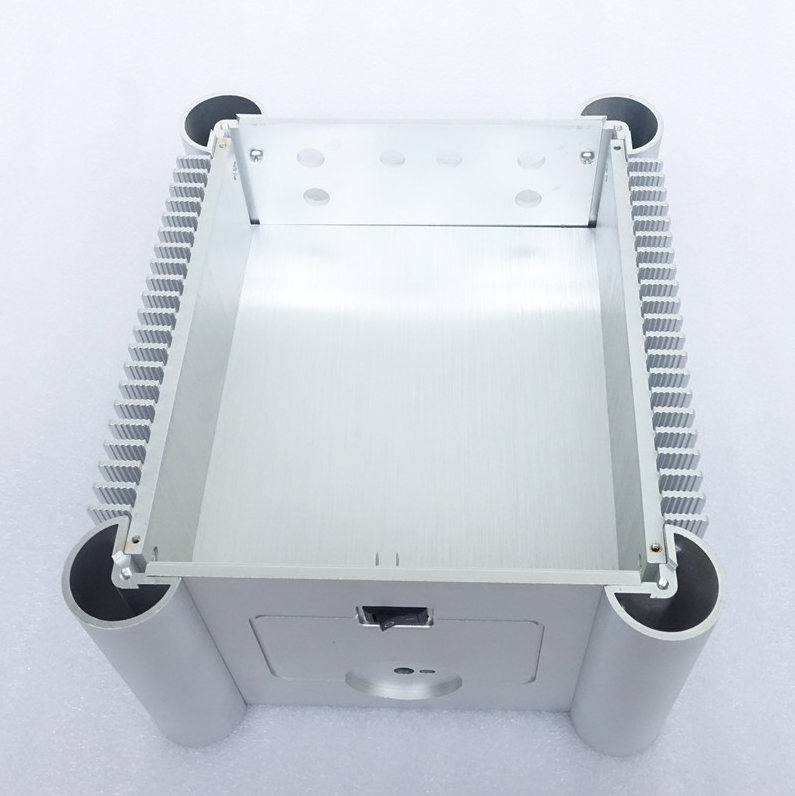

Internal dimensions: Width 160 mm Height 124mm Depth 198 mm（A 3mm thick horizontal partition is installed in the middle of the chassis, dividing the interior of the chassis into two layers, with each layer having a height of 60mm）

Weight: about 3.3 kg

Front panel thickness: 6mm

Rear panel thickness: 4mm

Heatsink size: W190 x H130 x L 21mm , substrate thickness 6 mm, heat sink weight: 0.78KG

Package List:

1 × Aluminum chassis

1 × Socket

1 × Switch

1 × Knob

4 × Aluminum machine feet
