Product Details:
Referring to the well-known BRYSTON 3B circuit design, the performance is stable and the sound effect is very good, worth listening to

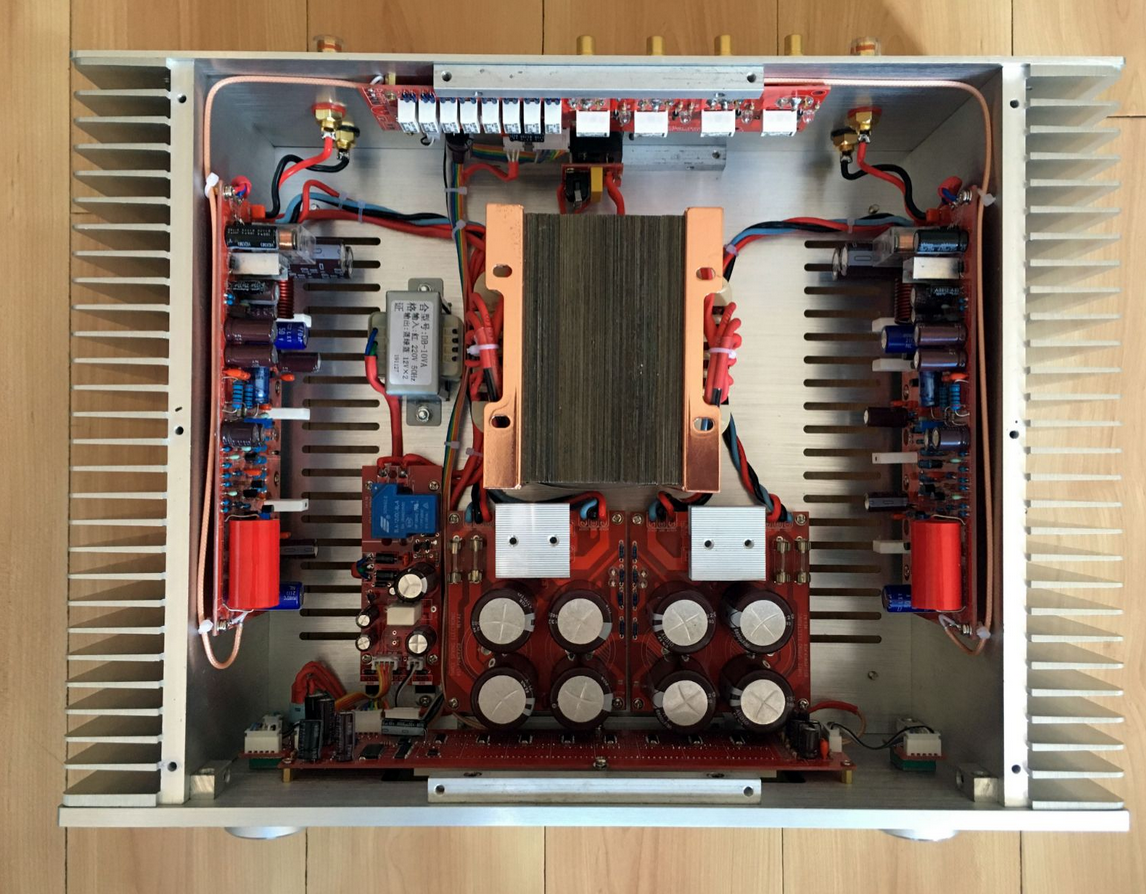

1:) The left and right channels are completely independent and powered independently, minimizing crosstalk to the greatest extent possible.
2:) Select precision paired ON MJL21193/21194 transistors.
3:) DALE resistor stepper relay volume control has very high accuracy and left-right balance in volume control.
4:) Pure resistive volume control can effectively prevent speaker damage caused by excessive output volume due to improper input wiring.

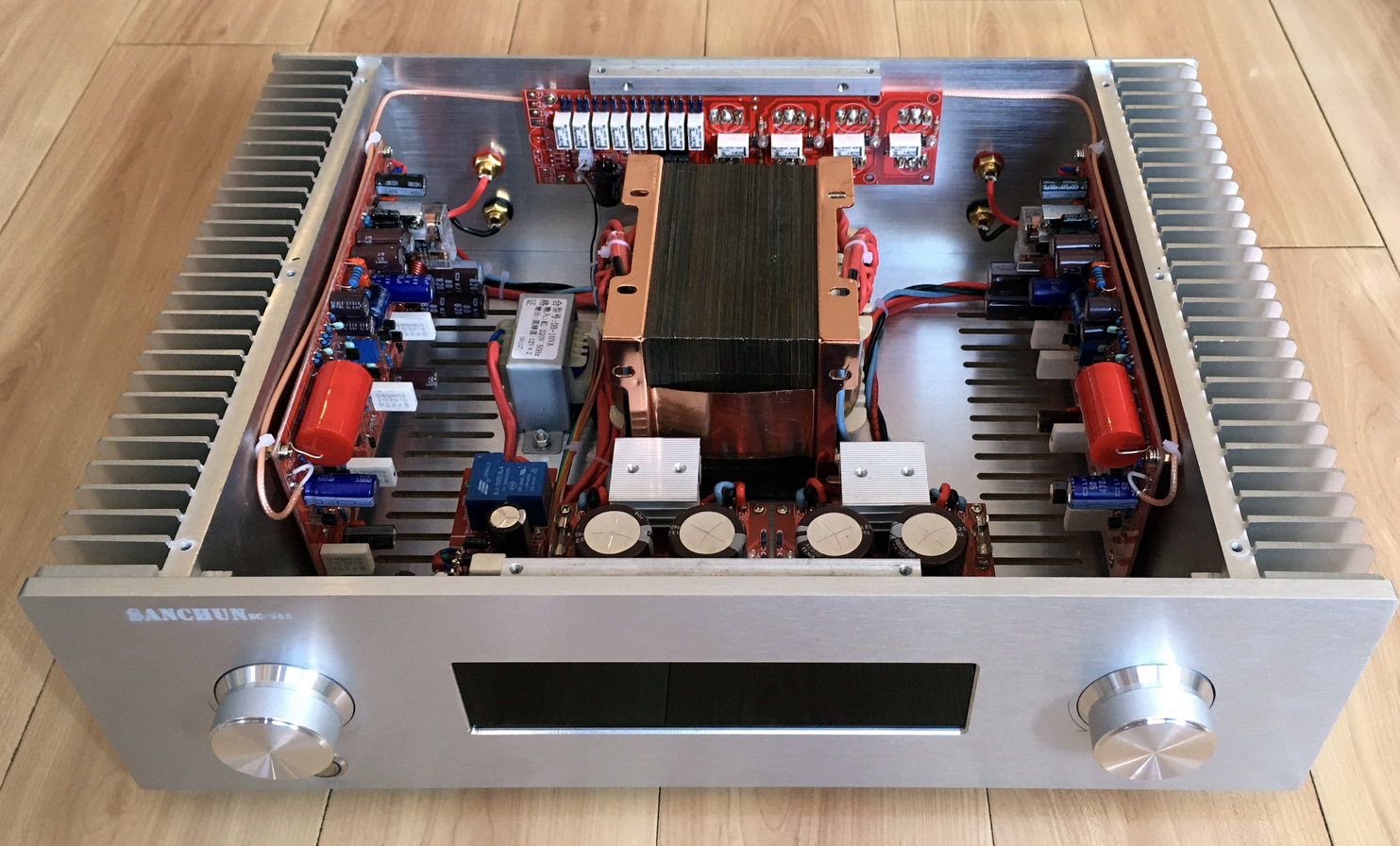

5:) The control and display parts are powered by independent transformers Avoid mutual interference between circuits.
6:) Imported Z11 iron core transformer Solid materials make for better results.

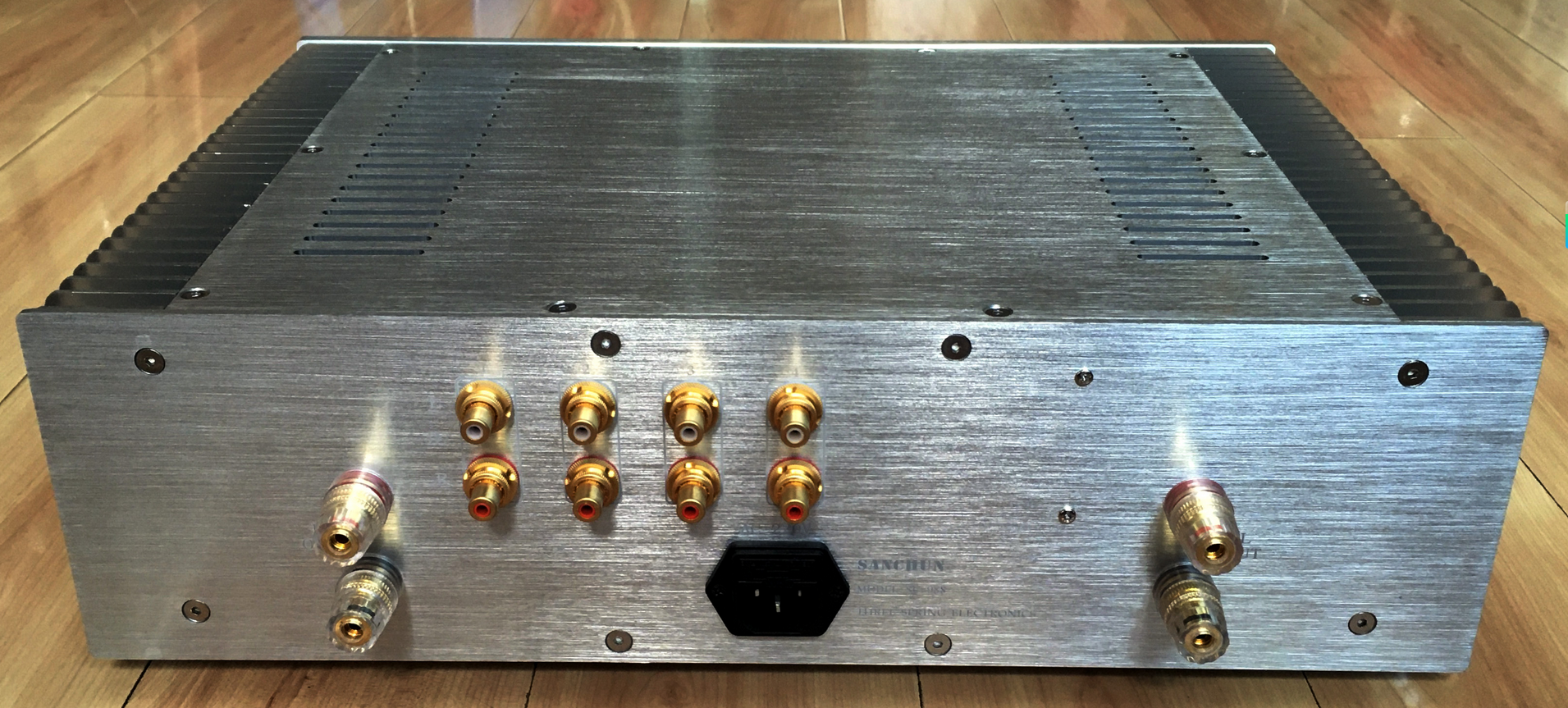

7:) Equipped with four-way input switching function.
Specifications:
Input voltage: AC115V or AC230V (optional)
Dimensions: Width: 430mm, Height: 120mm, Depth: 310mm
Weight: about 15KG
Output power: 150 watts
Type: Class AB
Package List:
1 × Finished preamplifier

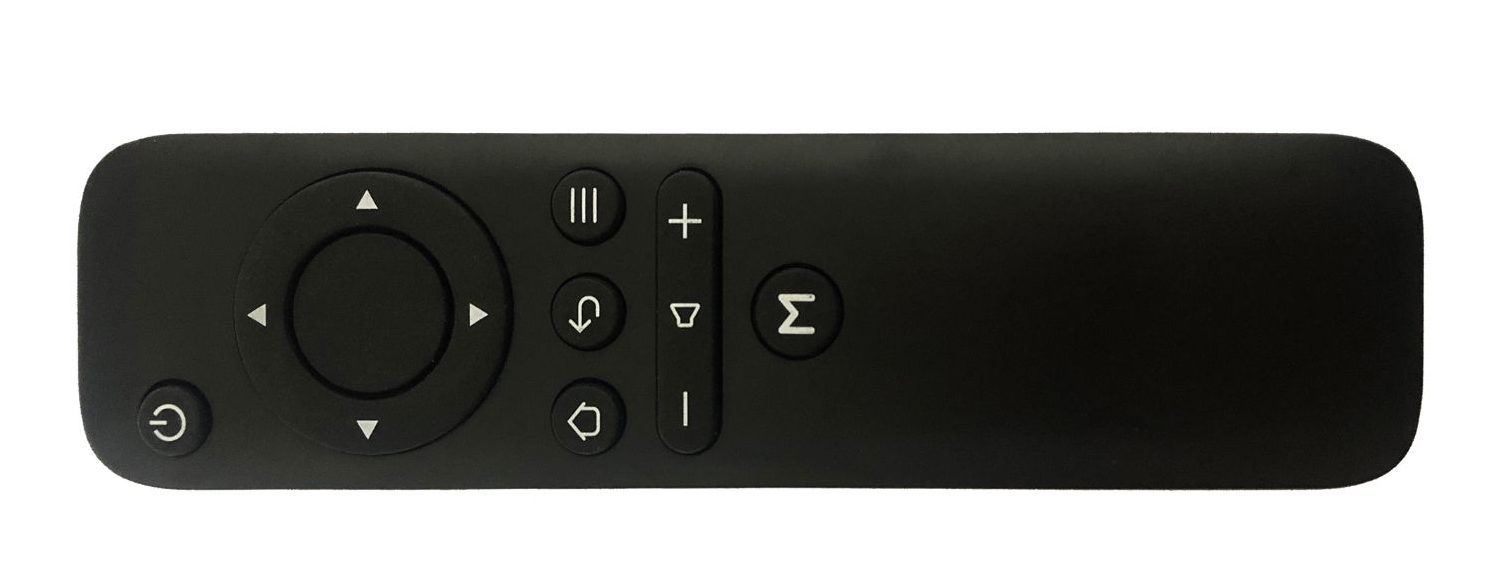

1 × remote control
For transportation safety, no power intput cable is provided.
