Refer to Sugden LA-4 circuit class A CL3 preamp HIFI audio preamplifier 4 way input 2 ways output good sound Beyond MBL6010 FM255

Name: Refer to Sugden LA-4 circuit class A CL3 preamp HIFI audio preamplifier 4 way input 2 ways output good sound Beyond MBL6010 FM255
Brand: BRZ-hifi-audio
Price: 321.08 USD
Availability: InStock

Sale

5.0 (2 Reviews)

6 Sold

~~$349.00~~ $321.08

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (9)

1/1

Description

Refer to Sugden LA-4 circuit class A preamp HIFI audio preamplifier 4 way input

Product Details
Refer to Sugden LA-4 circuit design Combined with Class A regulated power supply, the sound quality surpasses well-known preamp such as MBL6010 FM255.

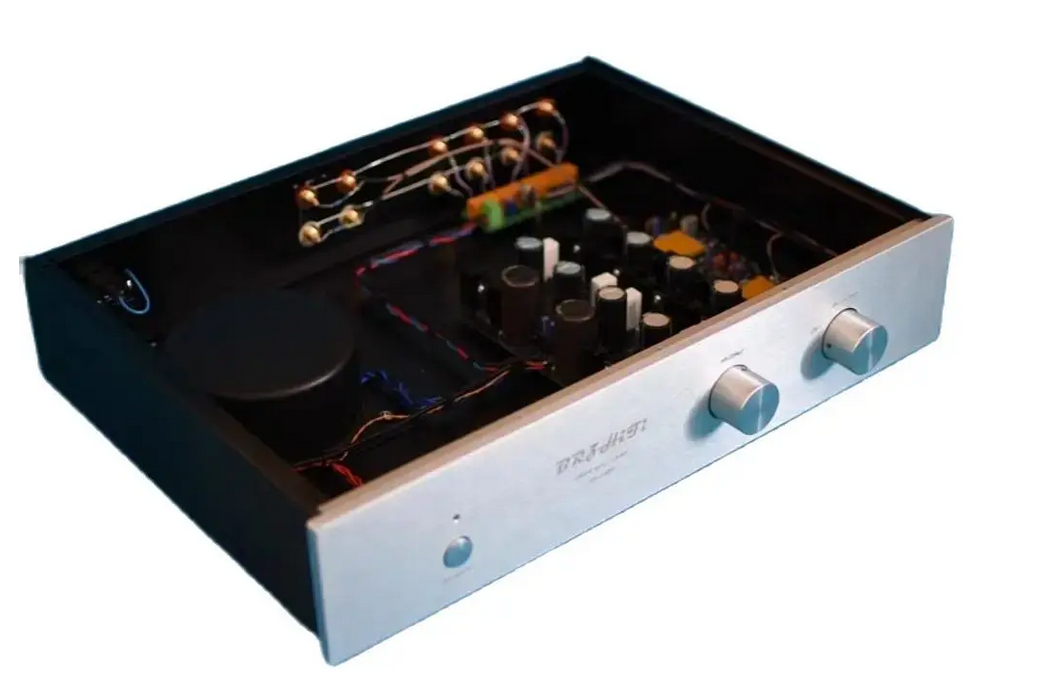

● Electricity is the mother of sound This preamp uses 3 operational amplifiers as servo Class A power supplies, with secondary voltage regulation, and Audiophile naturally understands its significance

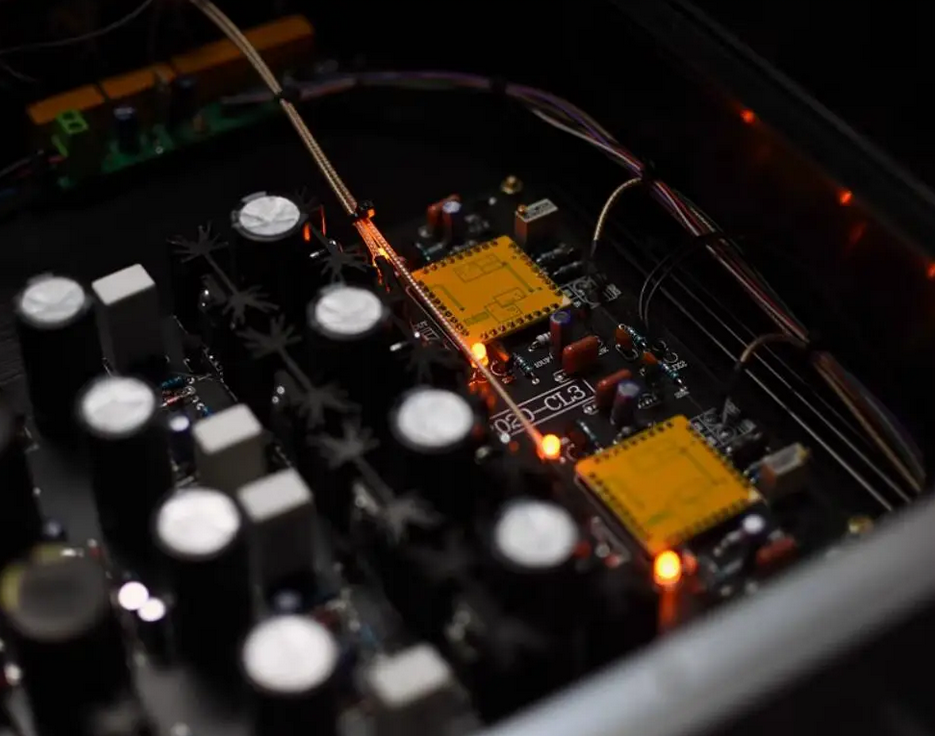

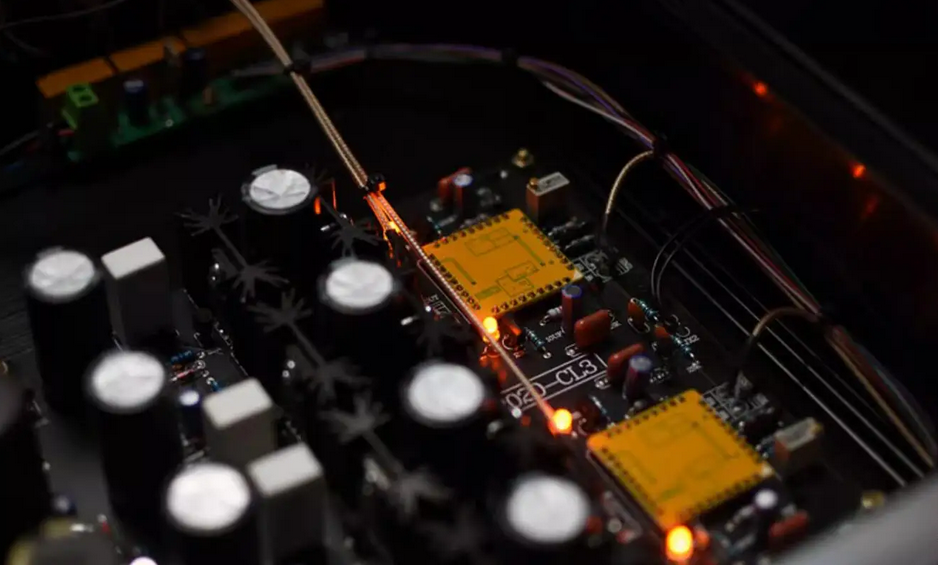

● Signal amplification is composed of discrete components, with precise pairing of transistors and strict screening Reasonably match other components.
● The original machine has authentic parameters, with a wide and warm sound that touches the heart and is sweet and moving.

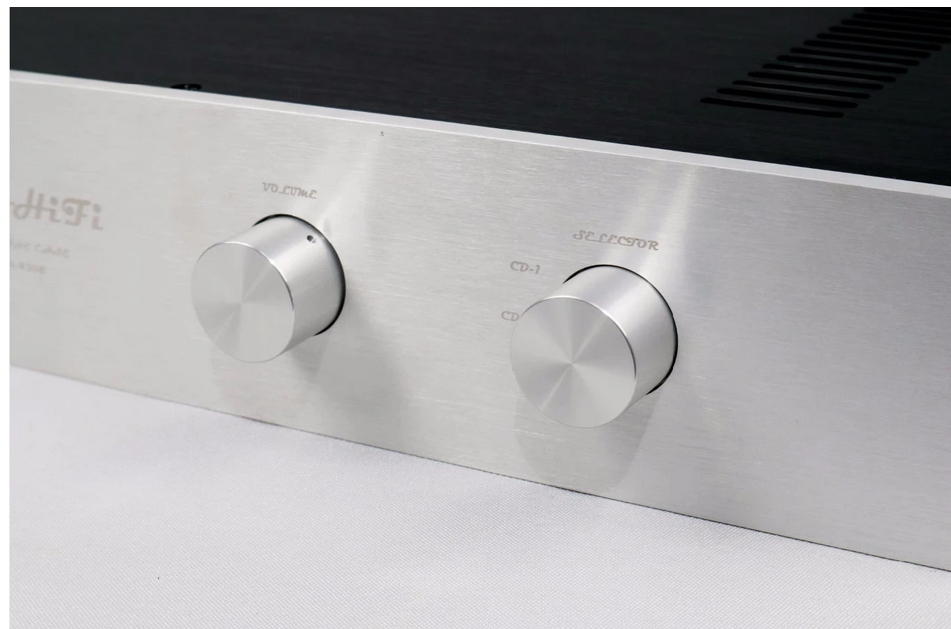

● Japanese ALPS27 potentiometer
● Copper foot resistor
● 2SK series field-effect transistor.
● Imported transistor with magnification of 600-700.
● Toshiba medium power transistor.
● Pure copper gold-plated RCA
● 4-way input switching, convenient and practical

Parameters:

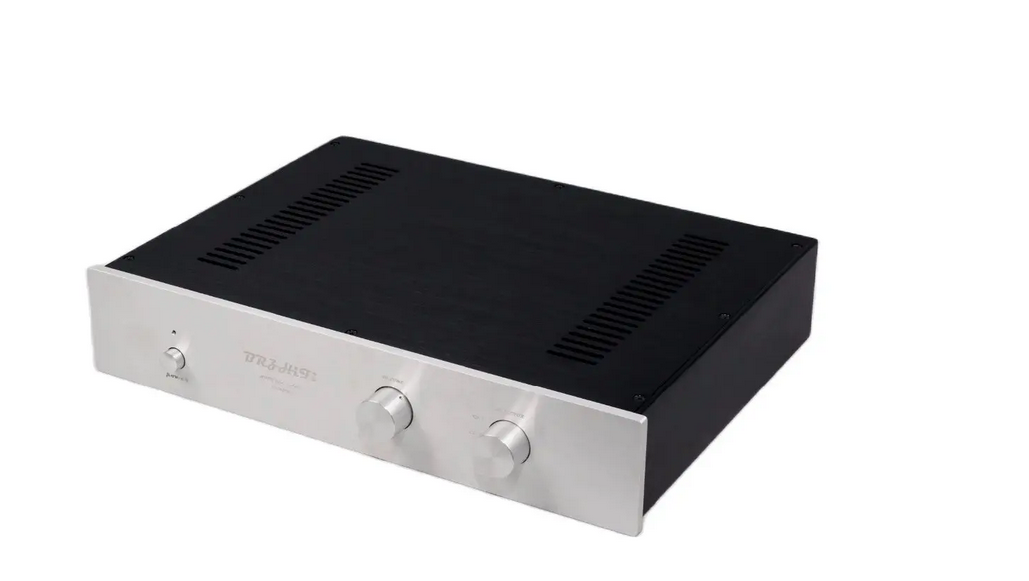

● Size: 430*300*80 mm
● Input voltage: AC220/110V.
●·Input sensitivity: 100mV (corresponding to 1V output) ·
● Maximum output: 10V
●·Input impedance: 50k Ω (single ended), 25k Ω (balanced)
●·Output impedance: 600 Ω
●·Frequency response: 15Hz-30kHz (± 0.1dB)
●·Bandwidth: 6Hz-300kHz (-3dB)
●·Signal to noise ratio:>90dB
●·Total harmonic distortion:<0.006% (1kHz, 1V output)
●·Weight: about 5.3kg

List:

1 x LA-4 circuit preamplifier（To ensure the safety of the product during transportation, a power input cable is not provided by default）
