Product Details:

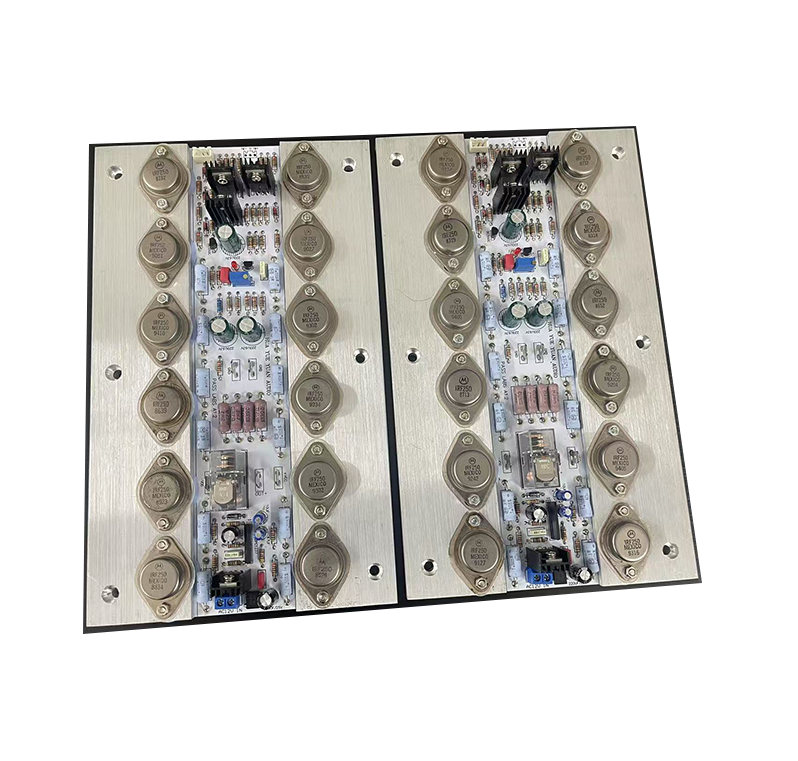

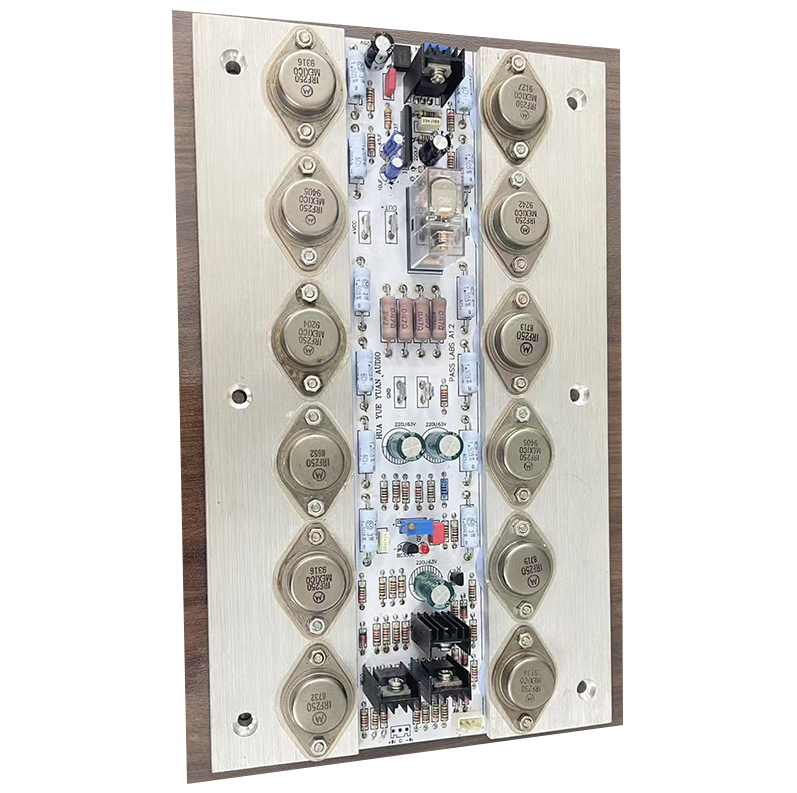

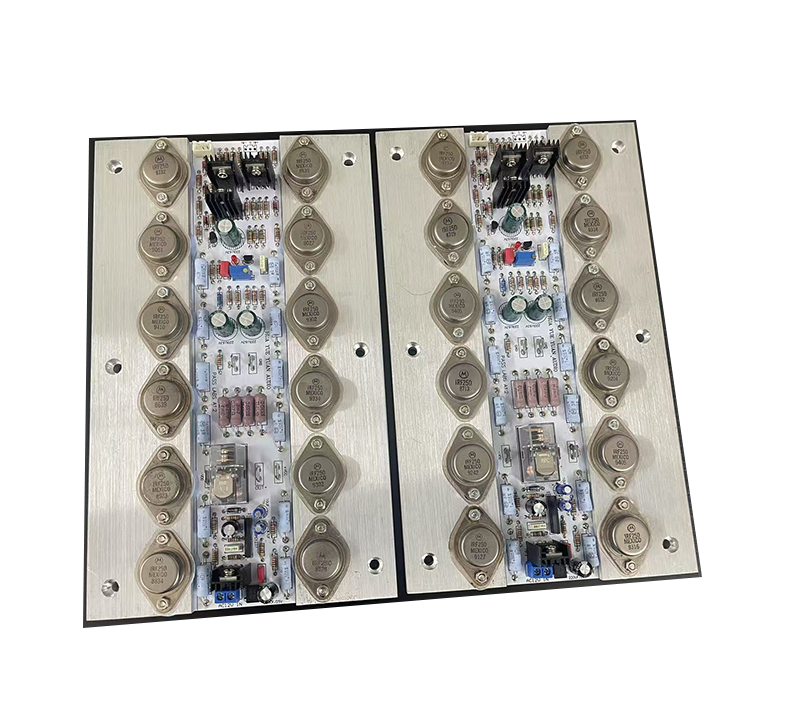

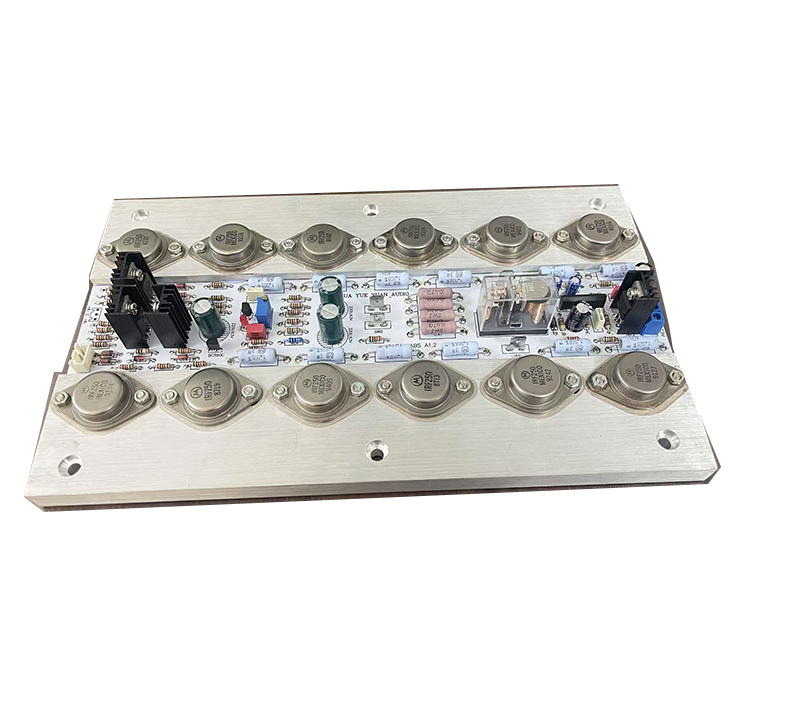

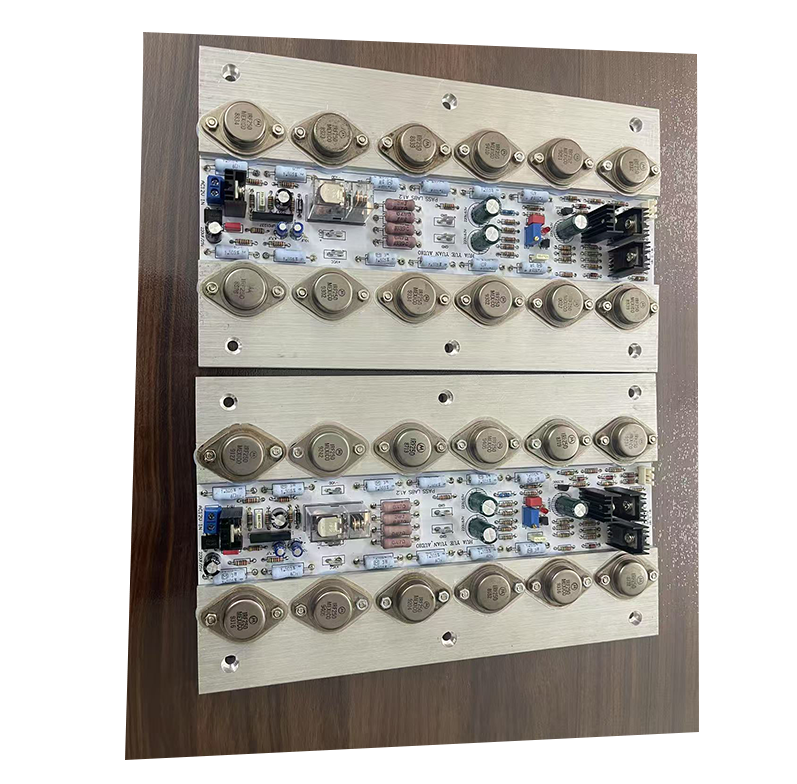

We have spent about 8 years assembling, testing, polishing, and tuning the PASS A1.2 amplifier board The precise pairing of transistors ultimately results in the desired sound.
Parameters:
Model: PASS A1.2
Input voltage: ±60V AC0-12V

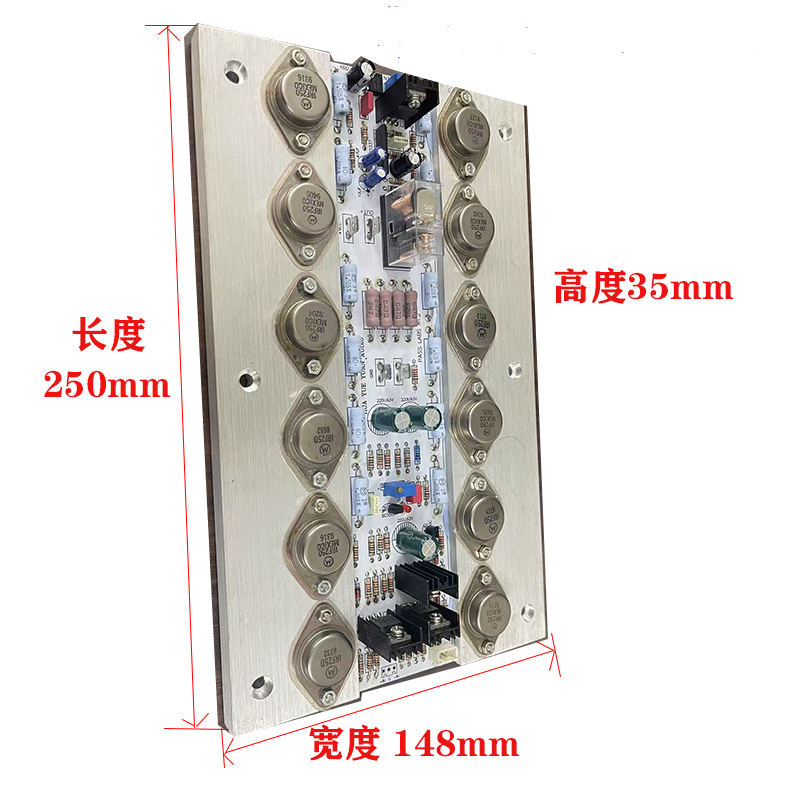

Size: L250cm*W148cm*H140cm (The size of a single board)
Input method: XLR/RCA
Output power: 80W * 2 /8Ω
Working status: Pure Class A
Mid point voltage: controlled within 60MV
Magnification factor: 15x
Static current: default at+-60V DC power supply, adjusted to 800MA for shipment
Transformer parameters: Each channel has an output power of over 400W, with dual AC43-45V and a set of single AC12V.
Heat sink: When the static current is 800MA, each channel requires 5KG or more heat sink, and dual channels require 10KG heat sink
Package list:
1 × PASS A1.2 circuit amplifier board
