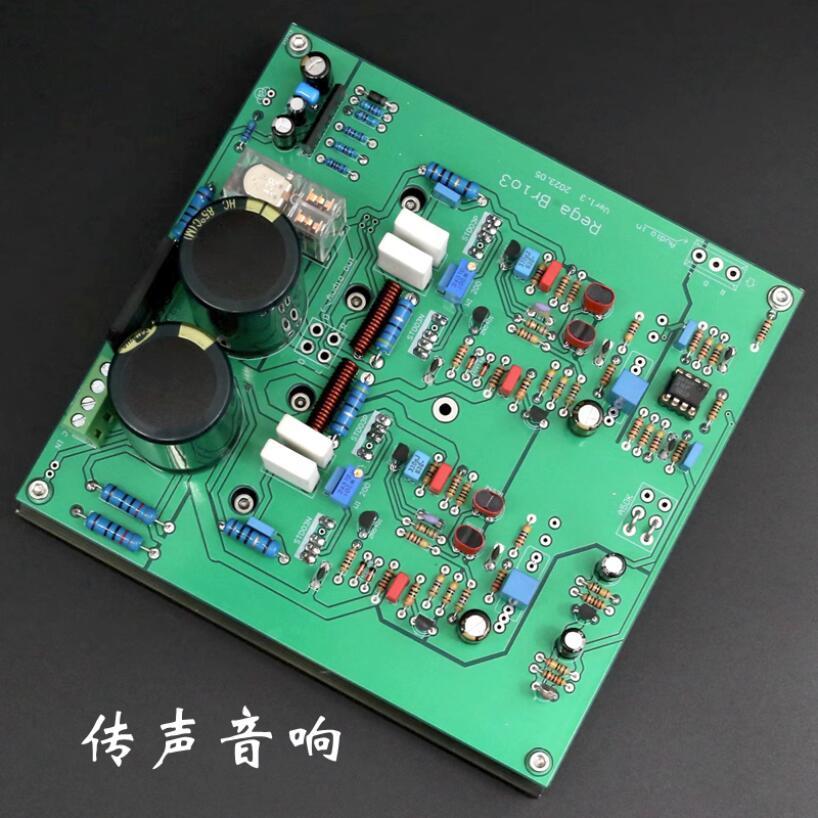

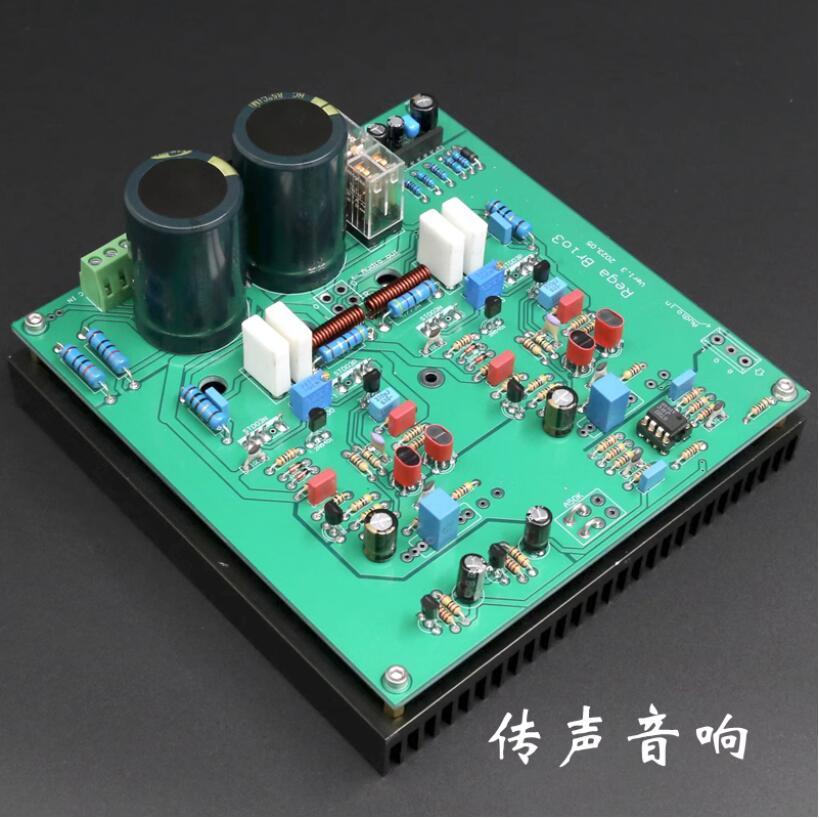

Name: Refer to UK Rega circuit hifi DIY stereo merging amplifier board
Brand: BRZ-hifi-audio
SKU: Rega
Price: 30.36 USD
Availability: InStock

Rega amplifier board

Flash Sale

0.0 (0 Reviews)

3 Sold

~~$33.00~~ $30.36

-8%

GET $2.00 OFF ON ORDERS OVER $40.00

Get it

L18J8W12

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Product Details:

Refer to the original parameter amplification circuit design of Rega power amplifier in the UK.preamp+amplifier structure. Preamp uses a parallel regulated power supply for power supply.Equipped with complete speaker protection.A typical British voice, with a full and transparent voice.

All new components.

Sanken STD03N/P high-speed thermocouple transistor, static extremely stable.

SAMWHA 50V10000uF large capacitor.

2mm thick PCB, 70um thick copper.

American ALPHA solder wire welding

Parameters:

Signal to noise ratio: 110dB

Full load distortion: 0.005%

Input sensitivity: 200mV

Magnification: 2 * 90x

Static current: initial debugging 50mA, you can adjust it again according to your heat sink and voltage

Power supply voltage: AC18V-30V * 2

Size: 147 * 155mm

Output power: 50W/8 ohms

List:

Rega circuit amplifier board x 1（No radiator included）
