Product Details:

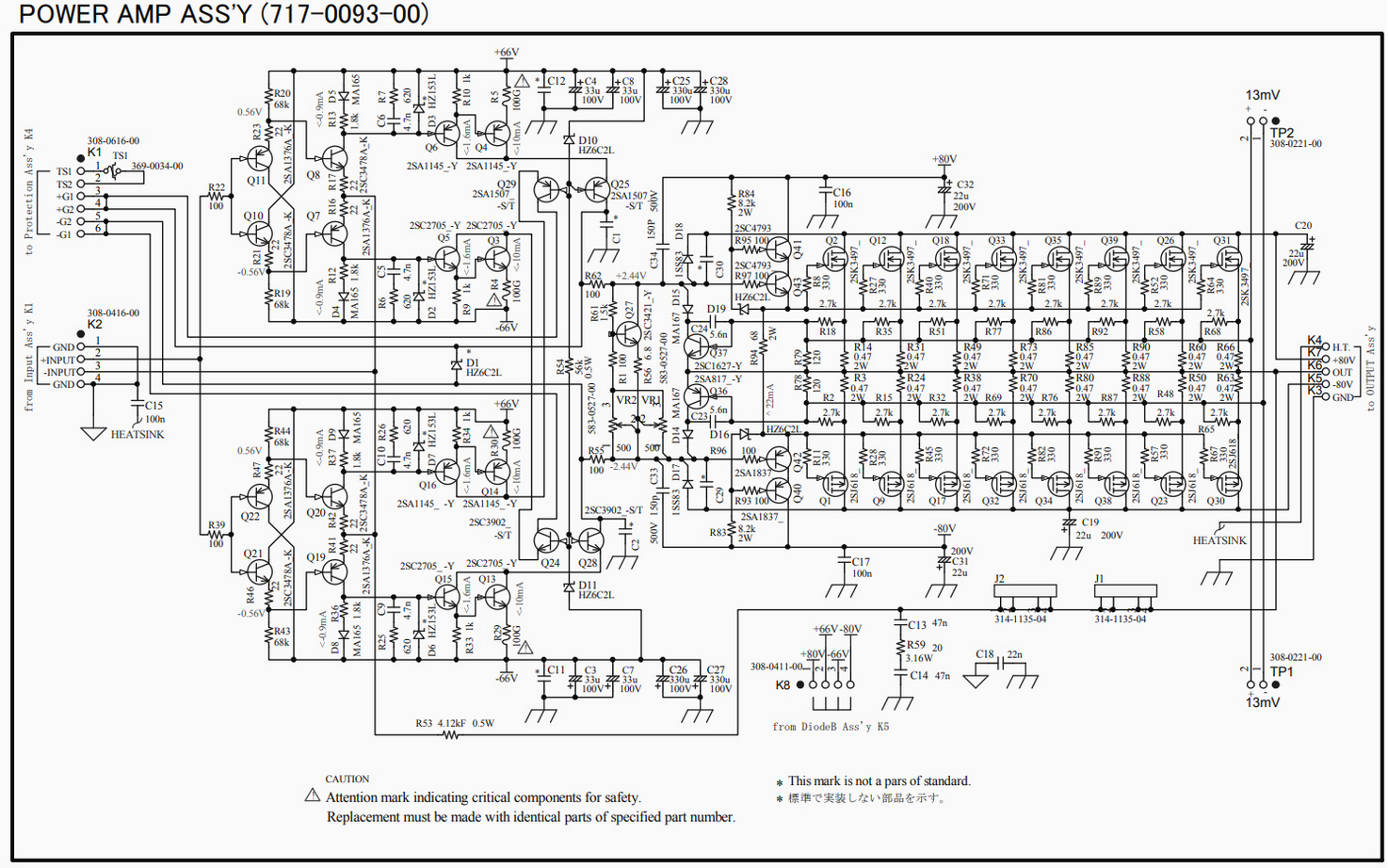

Based on the Accuphase M6000 power amplifier circuit.
2.0mm double-sided panel design
Metal film 1% error high-precision table produced coarse copper foot resistor
Japan produces KOA non inductive power resistors
Germany WIMA capacitor.Japan ELAN capacitor

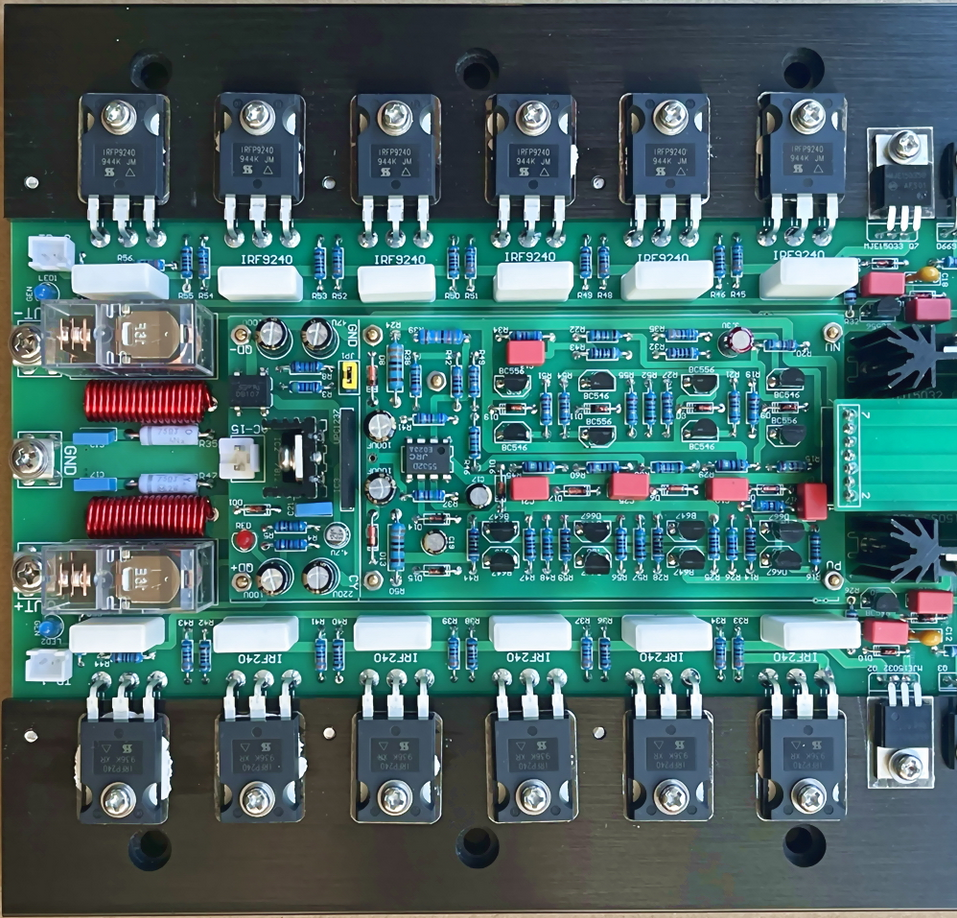

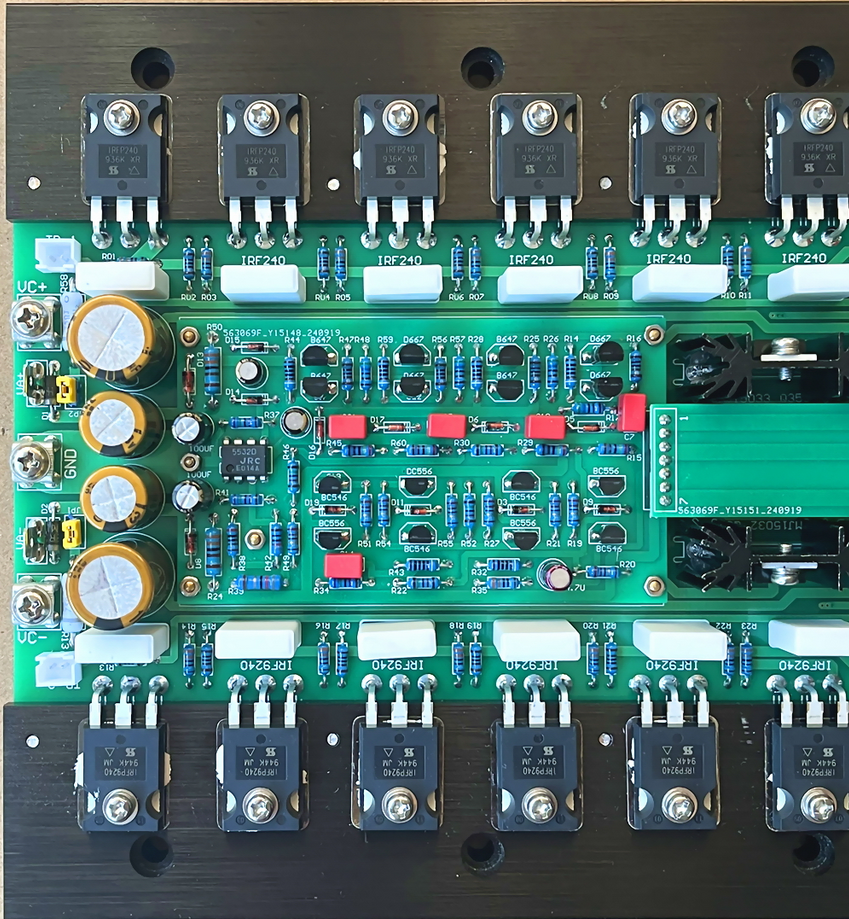

Brand new original IRFP9240/IRFP240 field-effect transistor, 12 pairs per channel.
MJE15035/15034 and MJE15033/15032 pair transistors for voltage amplification Dynamic and powerful
Specifications:
Input voltage:+/-30V-60V DC input
Transformer parameters: Dual 28-38V dual AC output power (above 800W)
Output power: Class A 200W+200W undistorted power, Class AB 600W+600W undistorted power output
Output impedance: 4-8 ohms

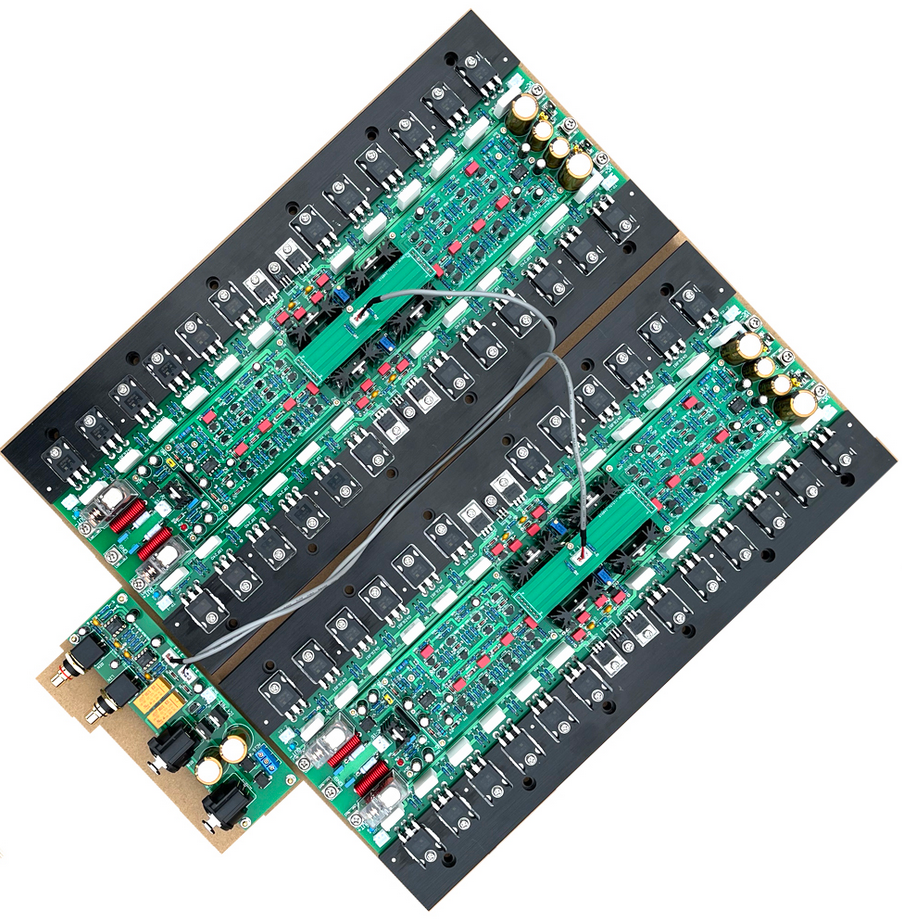

Magnifying board size: L390 * W180 * H40millimeters (including thermal conductive board)

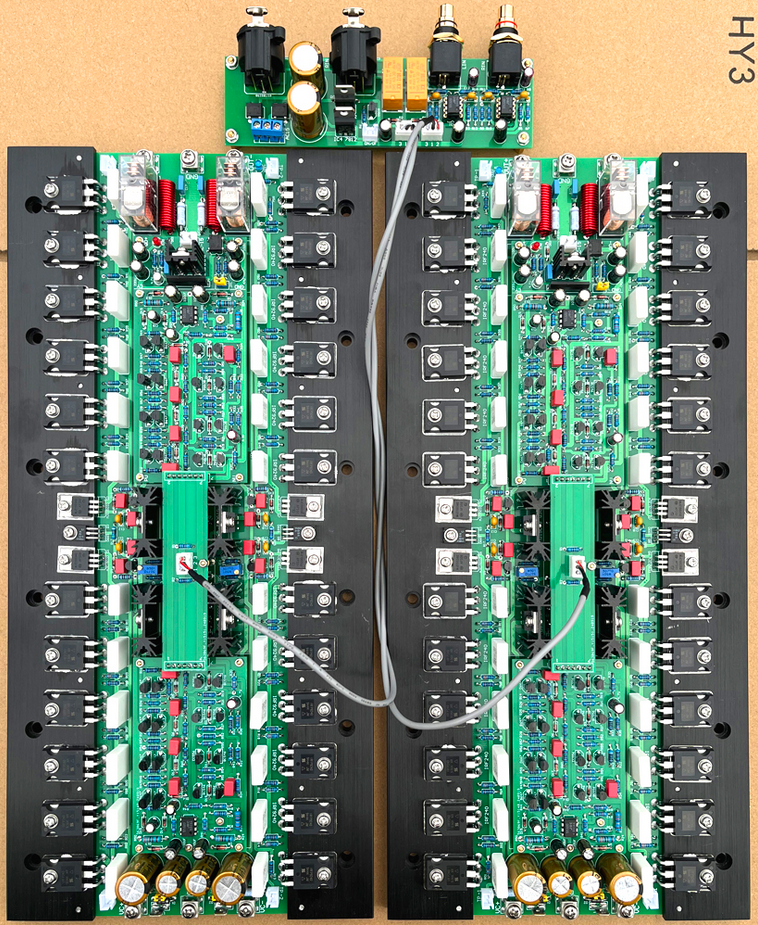

Basic parameters of horn protection
Using original Omron silver contact relay, reliable contact
7812 regulated power supply provides more stable performance.
Supply voltage: AC 12-18V 0.2A around 3W
The red light of the circuit is on, and the green light is on after 3-5 seconds when the circuit is normal. Circuit startup,
Maximum carrying power of 500W, midpoint potential drift of 1V, protection start
Output power: 130WX2 /8Ω; 180WX2 /4Ω
Class A amplifiers are different from ordinary amplifiers Due to working in a constant current state, even at low volume, the radiator still has a high temperature of about 50-60 degrees. Do not touch the radiator to avoid soup damage.
Users should not adjust the potentiometer on the board. To prevent excessive static current from burning out components.
The voltage of TP-11 and TP-2 should not exceed 50mv. After one hour, the temperature of the thermal bridge should not exceed 60 degrees. If any point exceeds it, the voltage of JP1/JP2 should be reduced
